Audio Technica ATW2192TH Headset Wireless System

Audio-Technica announces the new 2000 Series UHF True Diversity Wireless Microphone Systems, the company's latest entry in its extensive line of professional wireless systems. The 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses, and places of worship. It offers true diversity operation, easy setup, automatic frequency scanning with interference-free performance, and all the advantages of a high-quality, professional wireless system at an extremely affordable price.

Operating in the 600 MHz frequency band (656.125-678.500 MHz, TV channels 45-48) with 10 selectable frequencies and true diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency (open channel) -- particularly useful when employing multiple wireless systems, thereby avoiding interference and intermodulation. When there is a need to utilize multiple wireless systems simultaneously, any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. Additionally, the 2000 Series incorporates Audio-Technica's digital Tone Lock squelch plus an easy-to-read LCD information display, which provides convenient visual indications of settings and operation status.

The true diversity ATW-R2100 half-rack receiver features an all-metal housing for superb shielding, as well as dual independent receiver sections. Its true diversity operation selects the best signal from the two independent receiver sections, thus reducing dropouts and minimizing multipath distortion. The ATW-R2100 offers 10 PLL-synthesized UHF frequencies, advanced digital Tone Lock squelch, soft-touch controls with LCD information display, detachable UHF antennas, plus a rack-mount kit. Also included is a transmitter battery indicator LED, XLRM-type balanced and 1/4 in. unbalanced outputs, plus a ground-lift switch.

The versatile ATW-T210 UniPak body-pack transmitter has a multi-function LCD display, soft-touch controls for convenient set-up and operation, along with low- and high-impedance inputs (with a bias connection) for use with dynamic and electret condenser microphones as well as Hi-Z instrument pickups. In addition to its programmable functions, the ATW-T210 has a hinged cover to limit access to controls as appropriate for the application and user. The ATW-T210 is powered by two easily installed 1.5V AA batteries that provide approximately nine hours of operation. The ATW-T210 is compatible with the Audio-Technica Wireless Essentials accessories.

AT892CW Headset
The new MicroSet provides the ultimate in low-profile, high-performance audio. This innovative omnidirectional condenser headworn mic offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind either ear for an ultra-secure, comfortable fit with or without glasses.

Features
Serious advances in affordable professional wireless

Clear sound quality and rock-solid, dependable performance

Automatic frequency scanning finds an open channel at the touch of a button

All 10 user-switchable channels are compatible for easy use with multiple systems; no confusing frequency groups

True Diversity operation selects the better signal from the two receiver sections, reducing dropouts

Tone Lock tone squelch system fights interference

Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering

Balanced XLR and unbalanced 1/4 in. output jacks enable use with a wide variety of audio gear

Includes rack-mount kit and detachable UHF antennas

Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

Technical Info

Overall System Specifications
Operating Frequency: 656.125 to 678.500 MHz

Number of Channels: 10 total

Frequency Stability: +/-0.005%, Phase Lock Loop frequency control

Modulation Mode: FM

Normal Deviation: +/-5 kHz

Operating Range: 300 ft. typical

Operating Temperature Range: 41 degrees F (5 degrees C) to 113 degrees F (45 degrees C)

Frequency Response: 100 Hz to 15 kHz

Receiver Specifications
Receiving System: Dual independent RF sections, automatic-switching diversity

Image Rejection: 55 dB nominal, 50 dB minimum

Signal-to-noise Ratio: >100 dB at 40 kHz deviation (A-weighted), maximum modulation 40 kHz

Total Harmonic Distortion: <1% (10 kHz deviation at 1 kHz)

Sensitivity: 20 dB

AT892CW Headset Specs
Element: Condenser

Polar pattern: Omnidirectional

Frequency response: 20-20,000 hz

Open circuit sensitivity: –44 db (6.3 Mv) re 1v at 1 pa

Maximum input sound level: 122 db spl, 1 khz at 1% T.H.D.

Signal-to-noise ratio: 60 db, 1 khz at 1 pa

Power requirements: Voltage range: 2.5-11V

Current consumption: 0.1 Ma typical @ 5v

Weight: Microphone, boom & earpiece: 0.08 Oz (2.4 G)

Dimensions: Microphone: 0.32 in. (8.1 Mm) long, 0.11 in. (2.7 Mm) diameter

Boom: 3.87 in. (98.4 Mm) long, 0.042 in. (1.07 Mm) boom diameter

Cable: 55 in. (1.4 M), unterminated

Accessories furnished: Two windscreens; two element covers; clothing clip

Audio-technica case style: M31

Rebates

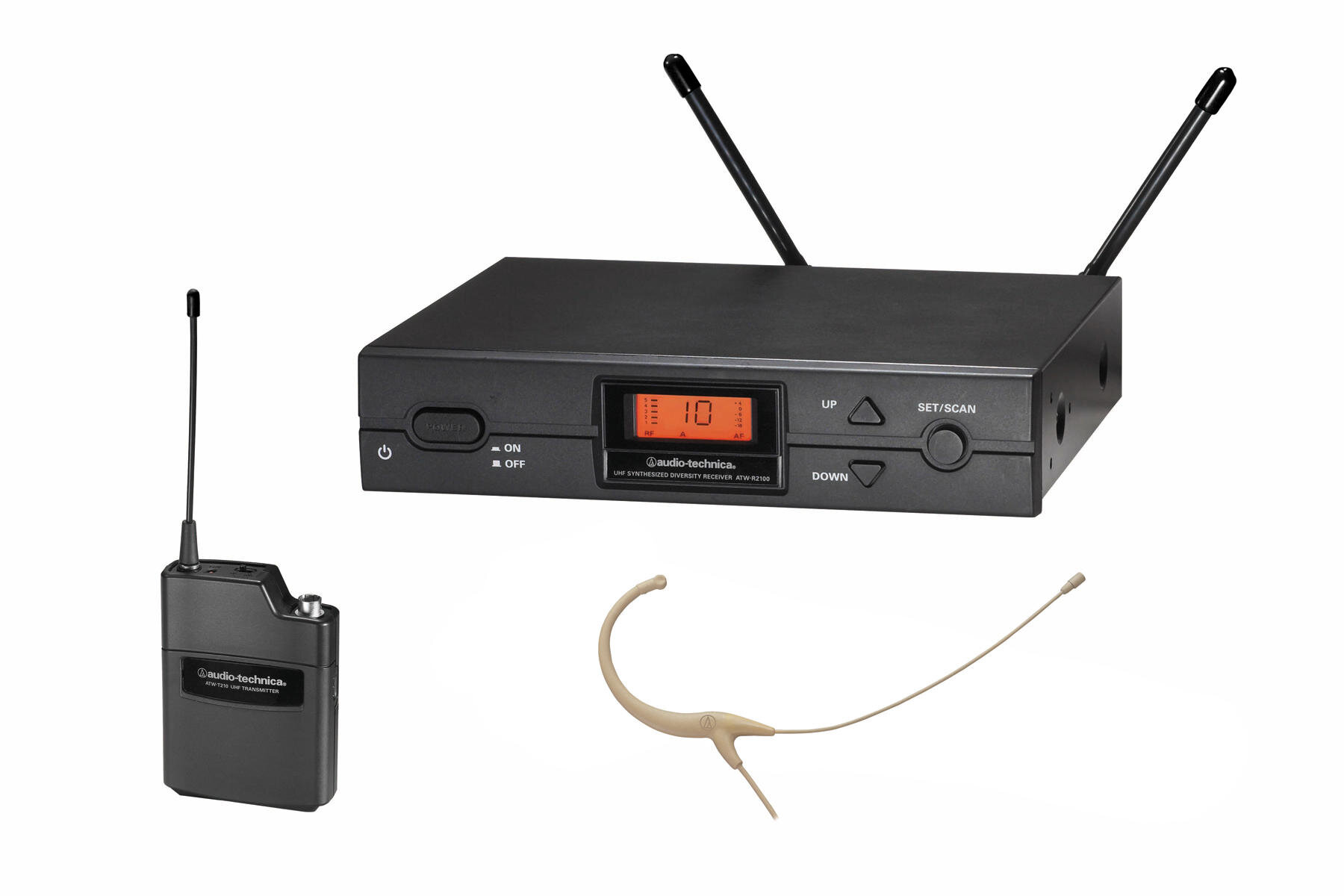

With bodypack transmitter and flesh-tone AT892CW headset mic for unobtrusive stage performance.
