Audio-Technica ATW2192 Headset

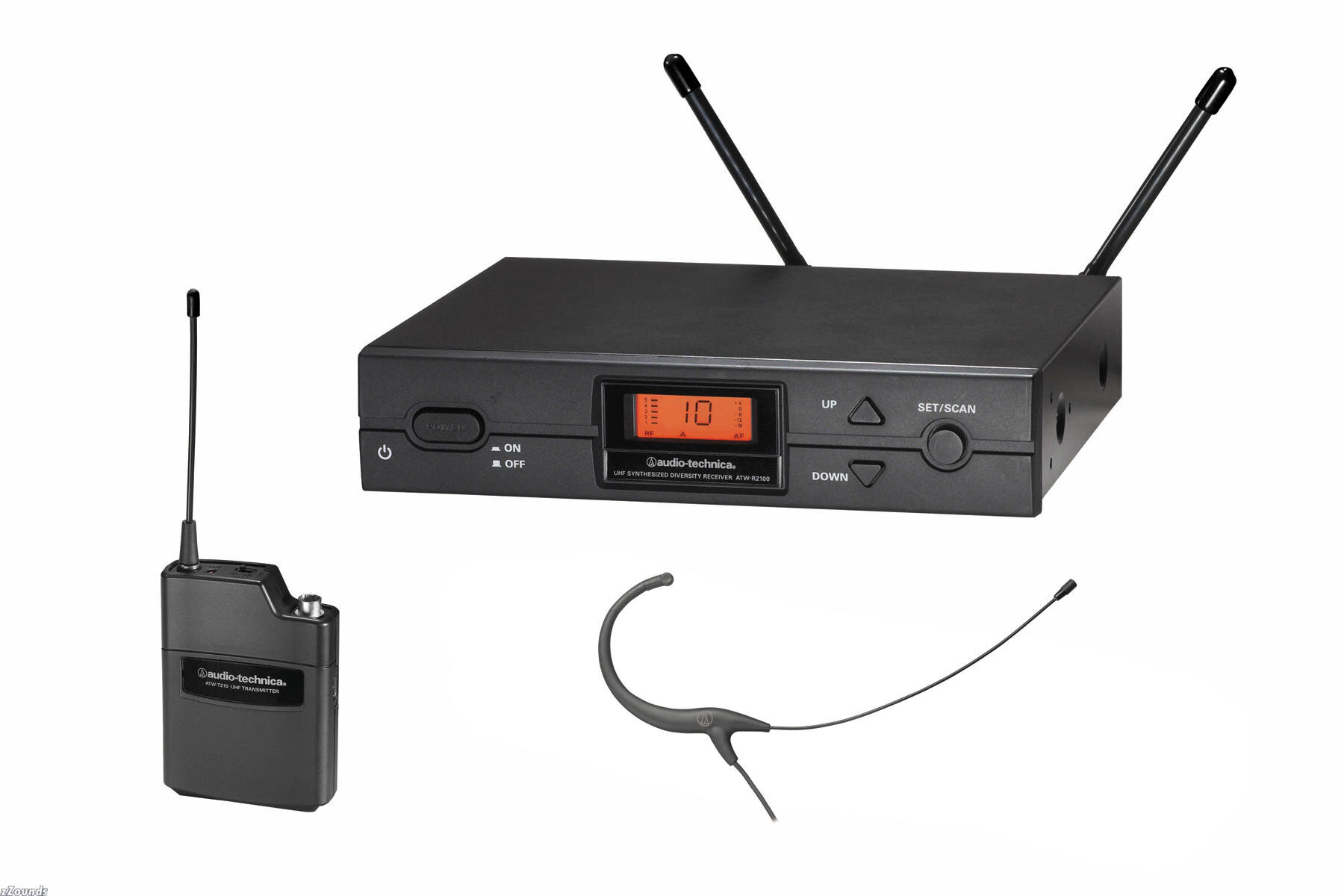

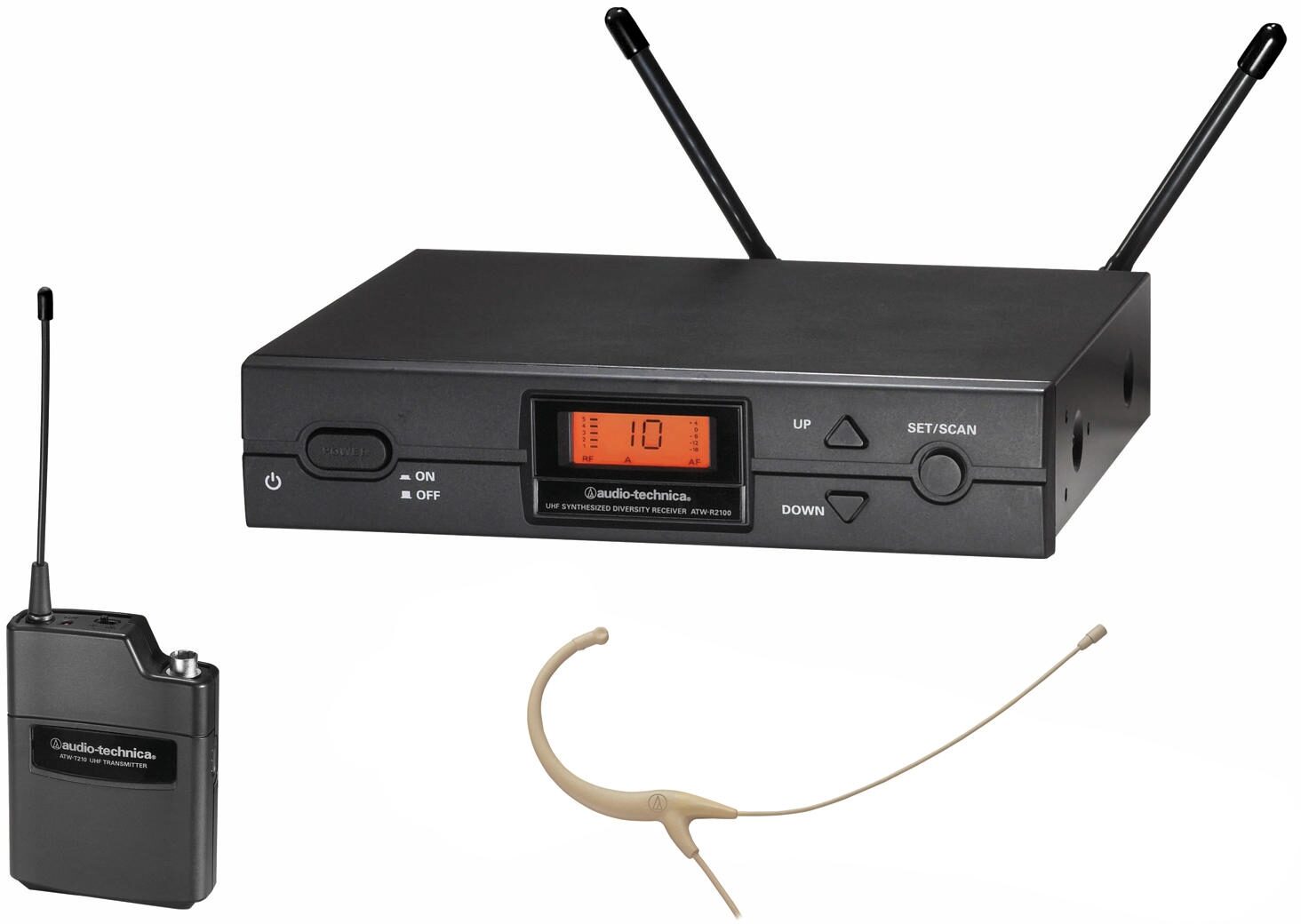

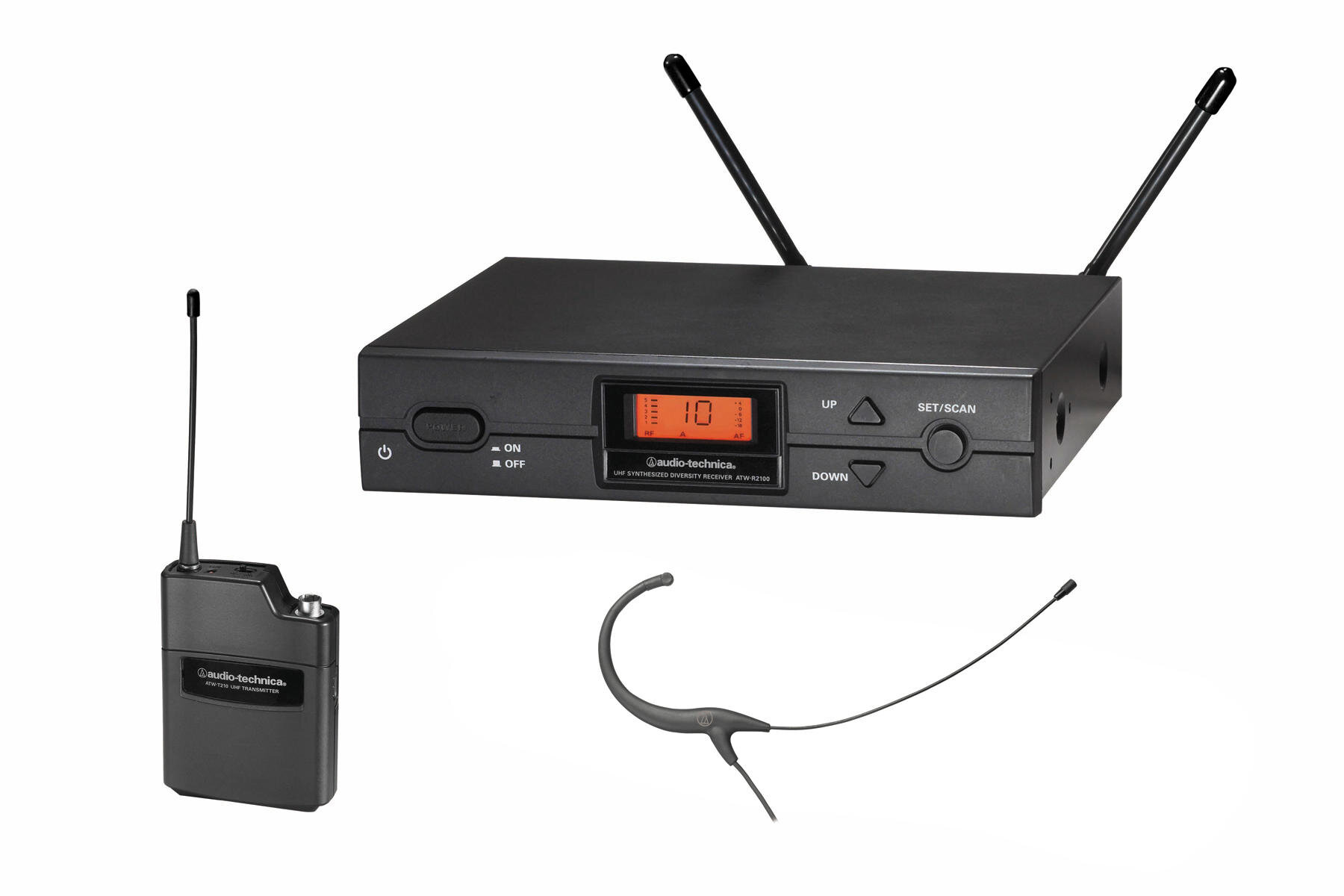

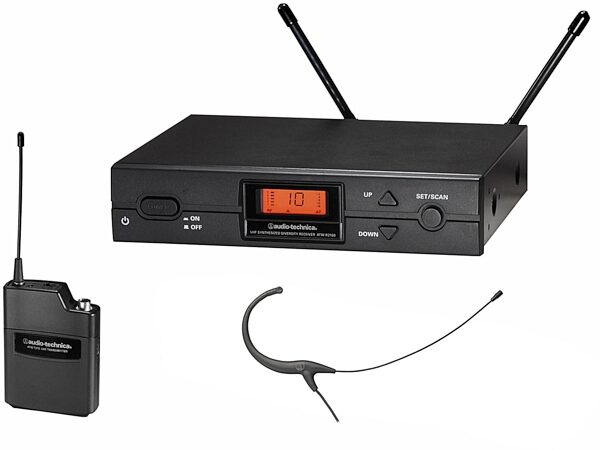

Audio-Technica announces the 2000 Series UHF True Diversity wireless microphone systems, the company's entry in its extensive line of professional wireless systems. The 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses, and places of worship. It offers true diversity operation, easy setup, automatic frequency scanning with interference-free performance, and all the advantages of a high-quality, professional wireless system at an extremely affordable price.
Operating in the 600 MHz frequency band (656.125-678.500 MHz, TV channels 45-48) with 10 selectable frequencies and true diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency (open channel) -- particularly useful when employing multiple wireless systems, thereby avoiding interference and intermodulation. When there is a need to utilize multiple wireless systems simultaneously, any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. Additionally, the 2000 Series incorporates Audio-Technica's digital Tone Lock squelch plus an easy-to-read LCD information display, which provides convenient visual indications of settings and operation status.

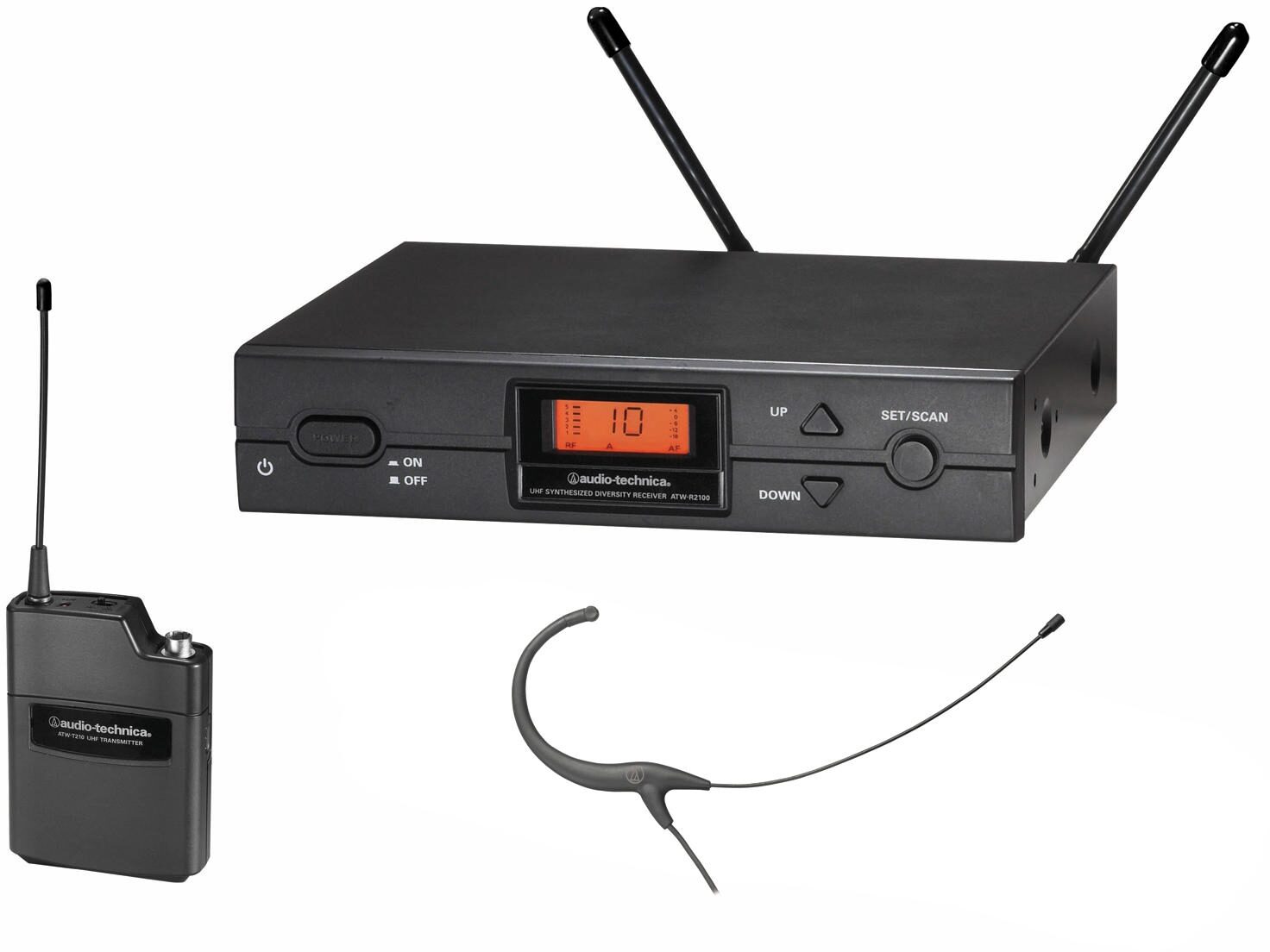

The true diversity ATW-R2100 half-rack receiver features an all-metal housing for superb shielding, as well as dual independent receiver sections. Its true diversity operation selects the best signal from the two independent receiver sections, thus reducing dropouts and minimizing multipath distortion. The ATW-R2100 offers 10 PLL-synthesized UHF frequencies, advanced digital Tone Lock squelch, soft-touch controls with LCD information display, detachable UHF antennas, plus a rack-mount kit. Also included is a transmitter battery indicator LED, XLRM-type balanced and 1/4 in. unbalanced outputs, plus a ground-lift switch.
The versatile ATW-T210 UniPak body-pack transmitter has a multi-function LCD display, soft-touch controls for convenient set-up and operation, along with low- and high-impedance inputs (with a bias connection) for use with dynamic and electret condenser microphones as well as Hi-Z instrument pickups. In addition to its programmable functions, the ATW-T210 has a hinged cover to limit access to controls as appropriate for the application and user. The ATW-T210 is powered by two easily installed 1.5V AA batteries that provide approximately nine hours of operation. The ATW-T210 is compatible with the Audio-Technica Wireless Essentials accessories.

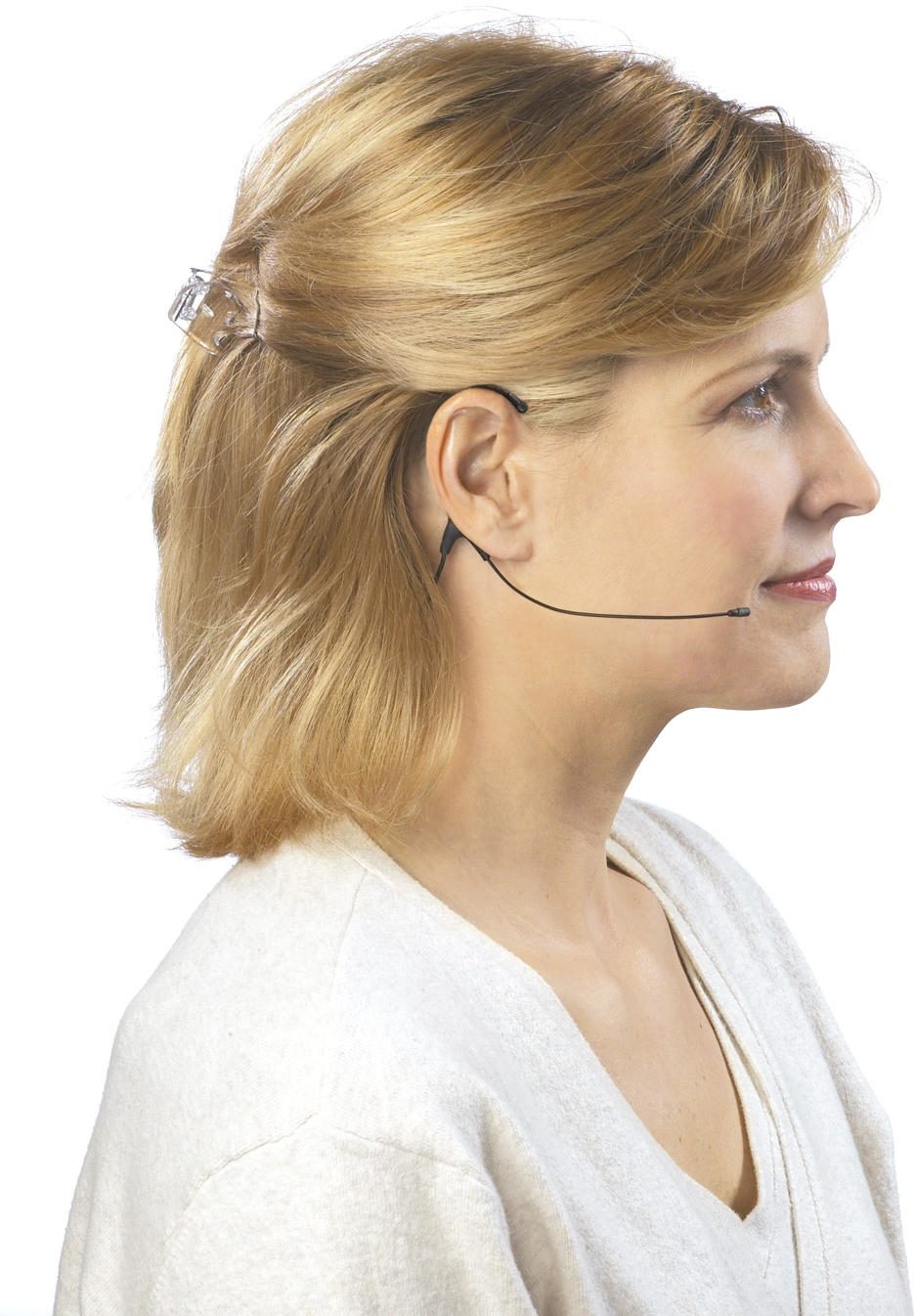

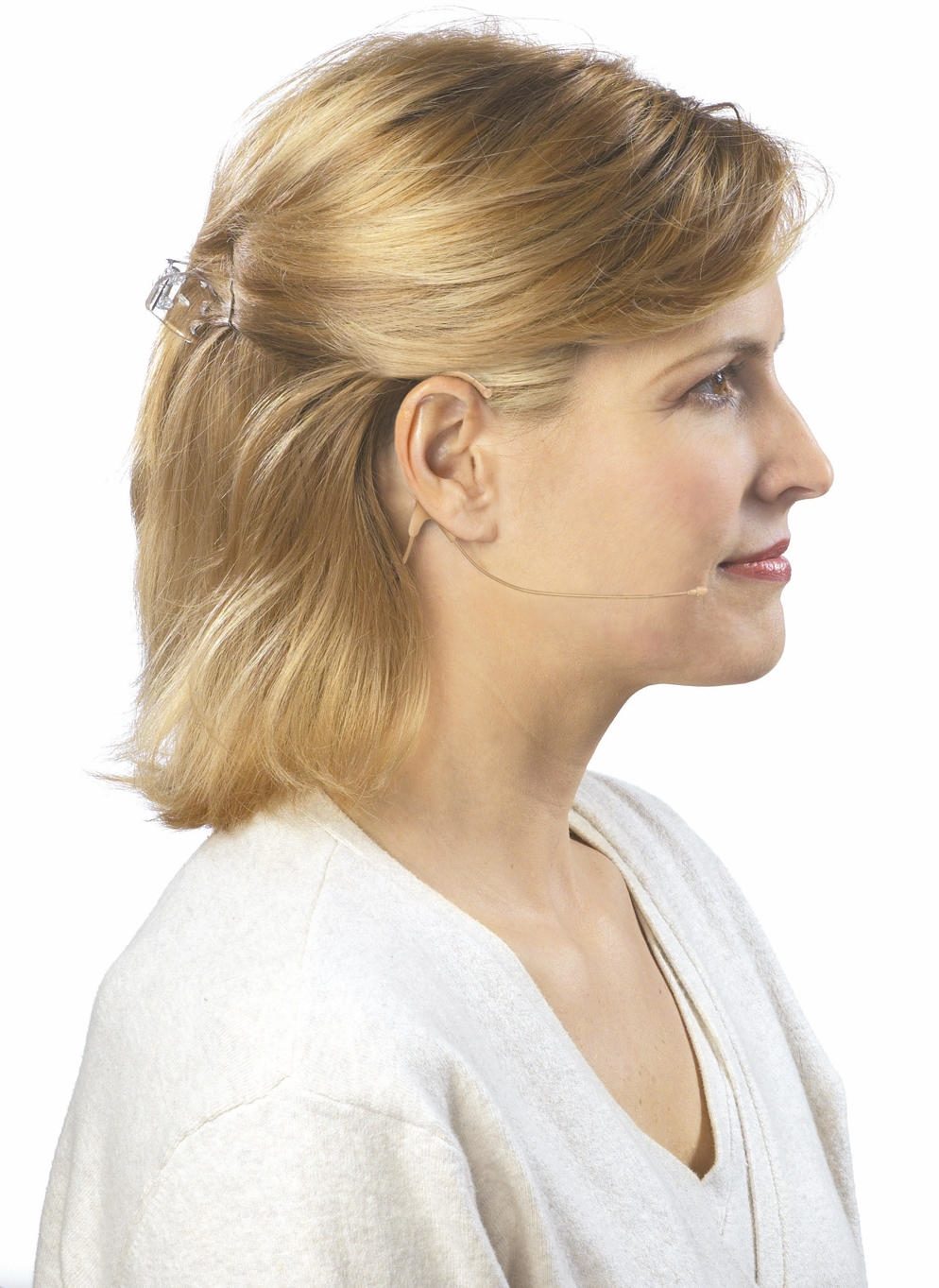

The MicroSet provides the ultimate in low-profile, high-performance audio. This innovative omnidirectional condenser headworn mic offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind either ear for an ultra-secure, comfortable fit with or without glasses.
- Serious advances in affordable professional wireless
- Clear sound quality and rock-solid, dependable performance
- Automatic frequency scanning finds an open channel at the touch of a button
- All 10 user-switchable channels are compatible for easy use with multiple systems; no confusing frequency groups
- True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
- Tone Lock tone squelch system fights interference
- Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering
- Balanced XLR and unbalanced 1/4-inch output jacks enable use with a wide variety of audio gear
- Includes rack-mount kit and detachable UHF antennas
- Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee's wireless operations on these frequencies. For more information, visit the FCC's wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
zZounds is an authorized dealer of Audio-Technica products.
Overall System Specifications
- Operating Frequency: 656.125 to 678.500 MHz
- Number of Channels: 10 total
- Frequency Stability: +/-0.005%, Phase Lock Loop frequency control
- Modulation Mode: FM
- Normal Deviation: +/-5 kHz
- Operating Range: 300 ft. typical
- Operating Temperature Range: 41 degrees F (5 degrees C) to 113 degrees F (45 degrees C)
- Frequency Response: 100 Hz to 15 kHzReceiver Specifications
- Receiving System: Dual independent RF sections, automatic-switching diversity
- Image Rejection: 55 dB nominal, 50 dB minimum
- Signal-to-noise Ratio: >100 dB at 40 kHz deviation (A-weighted), maximum modulation 40 kHz
- Total Harmonic Distortion: <1% (10 kHz deviation at 1 kHz)
- Sensitivity: 20 dBAT892CW Headset Specs
- Element: Condenser
- Polar pattern: Omnidirectional
- Frequency response: 20-20,000 hz
- Open circuit sensitivity: -44 db (6.3 Mv) re 1v at 1 pa
- Maximum input sound level: 122 db spl, 1 khz at 1% T.H.D.
- signal-to-noise ratio: 60 db, 1 khz at 1 pa
- Power requirements: Voltage range: 2.5-11V
- Current consumption: 0.1 Ma typical @ 5v
- Weight: Microphone, boom & earpiece: 0.08 Oz (2.4 G)
- Dimensions: Microphone: 0.32 in. (8.1 Mm) long, 0.11 in. (2.7 Mm) diameter
- Boom: 3.87 in. (98.4 Mm) long, 0.042 in. (1.07 Mm) boom diameter
- Cable: 55 in. (1.4 M), unterminated
- Accessories furnished: Two windscreens; two element covers; clothing clip
- Audio-technica case style: M31
