The new 2000 Series UHF True Diversity Wireless Microphone Systems are Audio-Technica's latest entry in its extensive line of professional wireless systems. The 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses, and places of worship. It offers true diversity operation, easy setup, automatic frequency scanning with interference-free performance, and all the advantages of a high-quality, professional wireless system at an extremely affordable price.
Operating in the 600 MHz frequency band (656.125-678.500 MHz, TV channels 45-48) with 10 selectable frequencies and true diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency (open channel) -- particularly useful when employing multiple wireless systems, thereby avoiding interference and intermodulation. When there is a need to utilize multiple wireless systems simultaneously, any of the 2000 Series 10 channels may be used together without any frequency coordination problems or group selection issues. Additionally, the 2000 Series incorporates Audio-Technica's digital Tone Lock squelch plus an easy-to-read LCD information display, which provides convenient visual indications of settings and operation status.

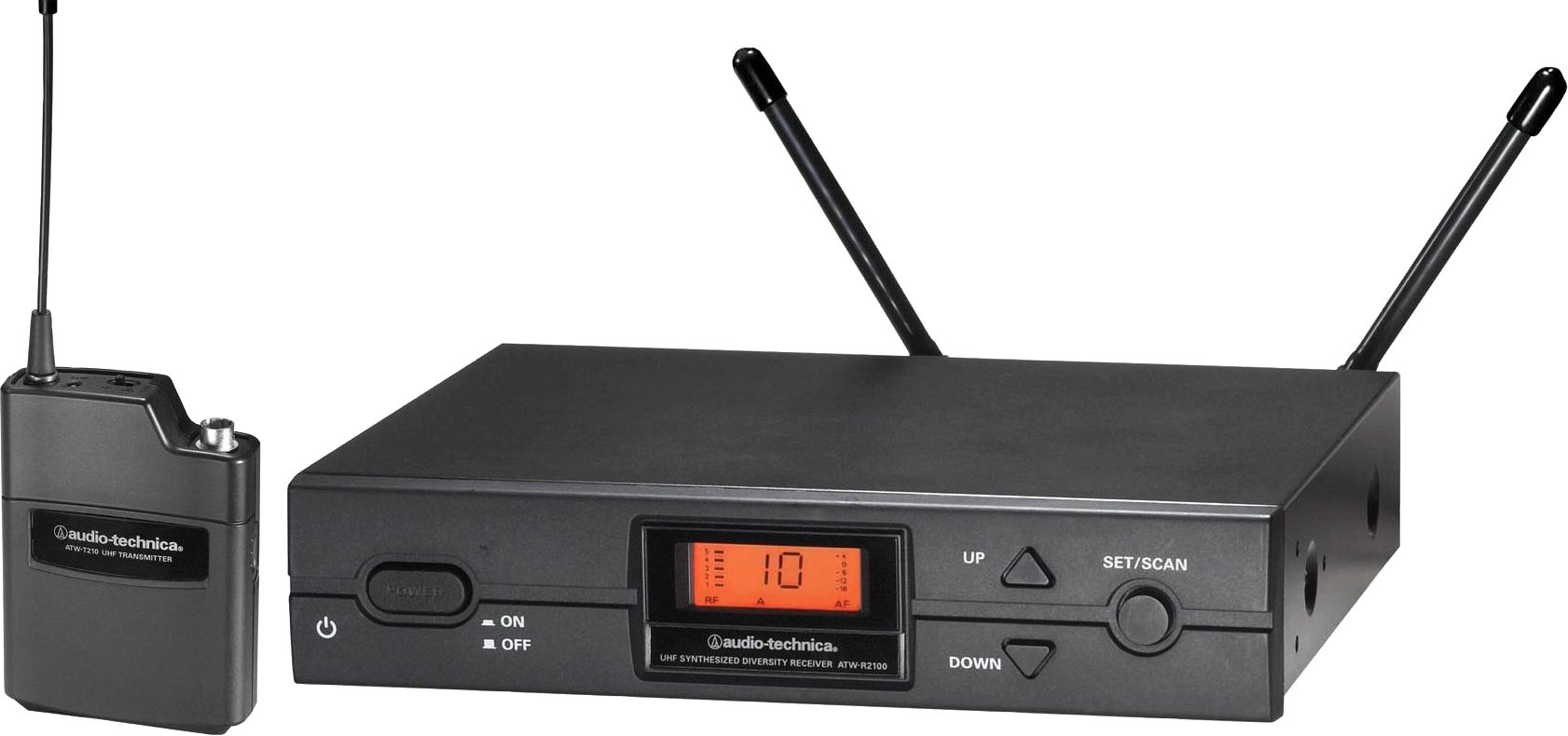

The ATW-2110 UHF UniPak Transmitter System consists of the ATW-R2100 true diversity receiver and the ATW-T210 UniPak body-pack transmitter.
The true diversity ATW-R2100 half-rack receiver features an all-metal housing for superb shielding, as well as dual independent receiver sections. Its true diversity operation selects the best signal from the two independent receiver sections, thus reducing dropouts and minimizing multipath distortion. The ATW-R2100 offers 10 PLL-synthesized UHF frequencies, advanced digital Tone Lock squelch, soft-touch controls with LCD information display, detachable UHF antennas, plus a rack-mount kit. Also included is a transmitter battery indicator LED, XLRM-type balanced and 1/4 in. unbalanced outputs, plus a ground-lift switch.
The versatile ATW-T210 UniPak body-pack transmitter has a multi-function LCD display, soft-touch controls for convenient set-up and operation, along with low- and high-impedance inputs (with a bias connection) for use with dynamic and electret condenser microphones as well as Hi-Z instrument pickups. In addition to its programmable functions, the ATW-T210 has a hinged cover to limit access to controls as appropriate for the application and user. The ATW-T210 is powered by two easily installed 1.5V AA batteries that provide approximately nine hours of operation. The ATW-T210 is compatible with the Audio-Technica Wireless Essentials accessories.
Features
Serious advances in affordable professional wireless
Clear sound quality and rock-solid, dependable performance
Automatic frequency scanning finds an open channel at the touch of a button
All 10 user-switchable channels are compatible -- for easy use with multiple systems; no confusing frequency groups
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock tone squelch system fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering
Balanced XLR and unbalanced 1/4 in. output jacks enable use with a wide variety of audio gear
Includes rack-mount kit and detachable UHF antennas
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
ATW-T220 Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound
Technical Info
UniPak Body-pack System:
-- ATW-2110: ATW-R2100 receiver and ATW-T210 UniPak transmitter.
Select a Wireless Essentials microphone or cable to complete the system.
Overall system
Operating frequency: UHF band, 656.125 MHz to 678.500 MHz
Number of channels: 10 total
Frequency stability: +/- 0.005%, Phase Lock Loop frequency control
Modulation mode: FM
Normal deviation: +/- 5 kHz
Operating range: 300 ft. typical
Operating temperature range: 41 degrees F (5 degrees C) to 113 degrees F (45 degrees C)
Frequency response: 100 Hz to 15 kHz
ATW-R2100 receiver
Receiving system: dual independent receivers, automatic-switching diversity
Image rejection: 55 dB nominal, 50 dB minimum
Signal-to-noise ratio: >100 dB at 40 kHz deviation (A-weighted), maximum modulation 40 kHz
Total harmonic distortion: <1% (+/- 10 kHz deviation at 1 kHz)
Sensitivity: 20 dBuV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate frequency: 65.75 MHz, 10.7 MHz
Audio output (AF level set at "0"):
-- Unbalanced: 25 mV (at 1 kHz, +/- 5 kHz deviation, 100k ohm load)
-- Balanced: 12.5 mV (at 1 kHz, +/- 5 kHz deviation, 100k ohm load)
Output connectors
-- Unbalanced: 1/4 in. phone jack
-- Balanced: XLRM-type
Power supply: 120V AC 60 Hz, or 12-18V DC, 350 mA, with external supply
Dimensions (W x H x D): 8.27 x 1.73 x 6.39 in.
Net weight: 2.2 lbs
Accessories included: two flexible UHF antennas, rack-mount adapters, AC adapter
ATW-T210 UniPak transmitter
RF power output: 12 mW
Spurious emissions: under federal regulations
Input connections: high impedance, low impedance, bias
Batteries (not included): two 1.5V AA alkaline
Current consumption: 150 mA typical
Battery life: approximately 9 hours (depending on battery type and use pattern)
Dimensions (W x H x D): 2.60 x 3.63 x 0.89 in.
Net weight (without batteries): 2.82 oz
