This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

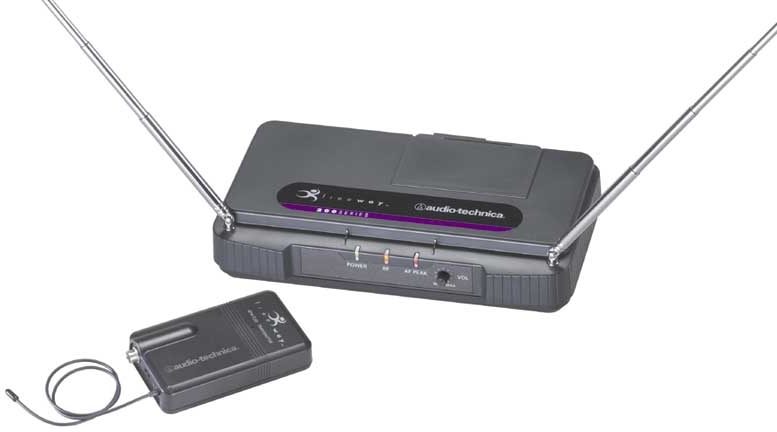

Audio Technica ATW201 200 Series Body Pack System
Includes: ATW-R200 receiver and ATW-T201 transmitter.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
AudioTechnica is breaking new ground in affordable VHF wireless. This is a single-channel receiver with an advanced dipole antenna design and features a unique removable docking power supply that slides into the receiver. The receiver also offers squelch and volume controls along with AF Peak, RF & Power indicator lights, and a 1/4 in. output. Choose this UniPak body-pack system and add a guitar cable, lavalier (lapel) or headset mic for your specific application (sold separately).
Features:
Advanced dipole antenna system
Available in three traveling frequencies
Removable docking power supply inserts into back of receiver
Adjustable squelch control
ATW-T201 UniPak transmitter includes variable microphone/guitar trim control
Operating Frequencies VHF band, 169.505, 170.245, 171.905 MHz
Frequency Stability ±0.005%
Modulation Mode FM
Maximum Deviation ±15 kHz
Operating Range 200' minimum
Operating Temperature Range 40° F (4° C) to 110° F (43° C)
Frequency Response 80 Hz to 13 kHz
ATW-R200 Receiver
Receiving System Non-diversity, single-channel dual antenna system
Image Rejection 50 dB minimum
Signal-to-noise Ratio 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
Sensitivity 20 dBµV for 60 dB S/N (IEC-weighted)
Audio Output 350 mV (at 1 kHz, ±10 kHz deviation, 100 k ohm load)
Output Connector 1/4 in. phone jack
Power Supply 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply
Dimensions 8.27 in. (210.0 mm) W x 1.72 in. (43.5 mm) H x 4.73 in. (120.0 mm) D
Net Weight 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams)
Accessories Included AD1202A 120V docking AC adapter; 120V AC IEC cordset
ATW-T201 UniPakTM Transmitter
RF Power Output 10 mW (High) and 2 mW (Low) typical
Spurious Emissions Under federal regulations
Dynamic Range >=90 dB, A-weighted
Input Connections High impedance, low impedance, bias
Battery (not included) 9V (NEDA type 1604) alkaline
Current Consumption 30 mA typical
Battery Life Approximately 15 hours (High) and 20 hours (Low)
Dimensions 2.56 in. (65.0 mm) W x 4.33 in. (110.0 mm) H x 1.00 in. (25.4 mm) D
Net Weight (without battery)
Features:
Advanced dipole antenna system
Available in three traveling frequencies
Removable docking power supply inserts into back of receiver
Adjustable squelch control
ATW-T201 UniPak transmitter includes variable microphone/guitar trim control
Technical Info
Overall SystemOperating Frequencies VHF band, 169.505, 170.245, 171.905 MHz
Frequency Stability ±0.005%
Modulation Mode FM
Maximum Deviation ±15 kHz
Operating Range 200' minimum
Operating Temperature Range 40° F (4° C) to 110° F (43° C)
Frequency Response 80 Hz to 13 kHz
ATW-R200 Receiver
Receiving System Non-diversity, single-channel dual antenna system
Image Rejection 50 dB minimum
Signal-to-noise Ratio 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
Sensitivity 20 dBµV for 60 dB S/N (IEC-weighted)
Audio Output 350 mV (at 1 kHz, ±10 kHz deviation, 100 k ohm load)
Output Connector 1/4 in. phone jack
Power Supply 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply
Dimensions 8.27 in. (210.0 mm) W x 1.72 in. (43.5 mm) H x 4.73 in. (120.0 mm) D
Net Weight 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams)
Accessories Included AD1202A 120V docking AC adapter; 120V AC IEC cordset
ATW-T201 UniPakTM Transmitter
RF Power Output 10 mW (High) and 2 mW (Low) typical
Spurious Emissions Under federal regulations
Dynamic Range >=90 dB, A-weighted
Input Connections High impedance, low impedance, bias
Battery (not included) 9V (NEDA type 1604) alkaline
Current Consumption 30 mA typical
Battery Life Approximately 15 hours (High) and 20 hours (Low)
Dimensions 2.56 in. (65.0 mm) W x 4.33 in. (110.0 mm) H x 1.00 in. (25.4 mm) D
Net Weight (without battery)
What Our Customers Say About zZounds
"I have made many purchases online over the years, and without fail zZounds delivers as promised." - customer on November 5, 2009
Audio Technica ATW201 200 Series Body Pack System Reviews
1 out of 10
zZounds has verified that this customer bought this product from us.
"Heads up on this one guys!"
Feature:
The cord from the body pack to guitar is much longer than it needs to be. It could have been half the length and been just about right. I have to stuff the excess cord into a pocket to keep if from snagging stuff on stage or walking through a crowd.
Quality:
I set the system up and tested it in my studio. I took it on one gig, and it worked fine. The second gig I took it to, it failed to function. The following day, I replaced the transmitter battery and smoke came from the unit as it fried itself. I returned it per AT's product support guidelines for a warranty repair. Guess what; the damage is not covered under warranty. The service tech and manager both explained that since the damage was caused by a battery that leaked, they considered it a form of abuse. I explained that I used the correct battery per the instructions and did nothing wrong or abusive but they refused to repair the unit under warranty.
Value:
This product is not worth the selling price and the manufacturer wills not see a penny of my money from this point forward.
Desirability:
The appeal of a wireless system to me was purely functional. I only used it during sound checks at live venues so I could walk around while me and the rest of the band played and I would adjust sound levels. I still plan to use a wireless as I just described but it won't be from this manufacturer.
Sound:
This wireless system is very sensitive to different settings. The feedback is unstopable if you don't find just the right settings and the book was not all that helpful in recommending a place to start.
Ease of Use:
Again, it would be easier to use if the instructions didn't assume you already knew how to set-up a wireless system.
Support:
Support? What support. I'm stuck with a nonfunctioning wireless system. AT could have helped me out. Nope. They chose to insist I abused their product because the battery leaked.
Overall:
I am completely dissatisfied with the product and worse yet, I am out 100% of the money I paid for it.
The cord from the body pack to guitar is much longer than it needs to be. It could have been half the length and been just about right. I have to stuff the excess cord into a pocket to keep if from snagging stuff on stage or walking through a crowd.
Quality:
I set the system up and tested it in my studio. I took it on one gig, and it worked fine. The second gig I took it to, it failed to function. The following day, I replaced the transmitter battery and smoke came from the unit as it fried itself. I returned it per AT's product support guidelines for a warranty repair. Guess what; the damage is not covered under warranty. The service tech and manager both explained that since the damage was caused by a battery that leaked, they considered it a form of abuse. I explained that I used the correct battery per the instructions and did nothing wrong or abusive but they refused to repair the unit under warranty.
Value:
This product is not worth the selling price and the manufacturer wills not see a penny of my money from this point forward.
Desirability:
The appeal of a wireless system to me was purely functional. I only used it during sound checks at live venues so I could walk around while me and the rest of the band played and I would adjust sound levels. I still plan to use a wireless as I just described but it won't be from this manufacturer.
Sound:
This wireless system is very sensitive to different settings. The feedback is unstopable if you don't find just the right settings and the book was not all that helpful in recommending a place to start.
Ease of Use:
Again, it would be easier to use if the instructions didn't assume you already knew how to set-up a wireless system.
Support:
Support? What support. I'm stuck with a nonfunctioning wireless system. AT could have helped me out. Nope. They chose to insist I abused their product because the battery leaked.
Overall:
I am completely dissatisfied with the product and worse yet, I am out 100% of the money I paid for it.
Submitted: 08/22/2006
Style of Music: Rock, Country, Blues
