This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

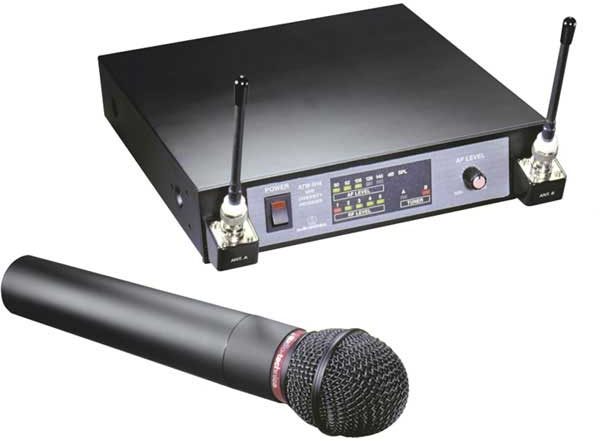

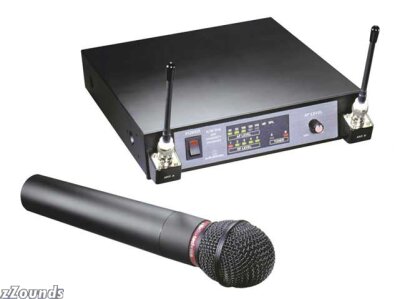

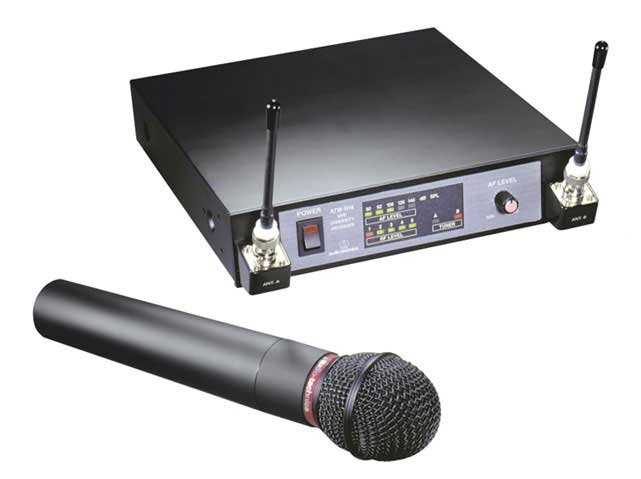

Audio Technica 1400 Series Handheld Wireless System (Model ATW1452)
System Includes: ATW-R14 Receiver and ATW-T52 Handheld Unidirectional Dynamic Microphone/Transmitter.
Because this item is used at your mouth or ear, it cannot be returned once opened due to health reasons. details
Description
Docs
The ATW-1452 Handheld Microphone System consists of an ATW-R14 receiver and ATW-T52 handheld, unidirectional dynamic microphone/transmitter.
Features
True Diversity reception with 2 independent RF sections for greatest reliability
Interference-resistant UHF band operation
Convenient detachable front-mount antennas
Rugged metal receiver housing
Balanced and unbalanced audio output jacks
Ground-lift switch and adjustable squelch
2 receivers can be mounted side-by-side in a single 19" rack space
Power-save switches on transmitters
ATW-T52 handheld microphone/transmitter features a Hi-ENERGY¬ dynamic element
1400 Series Overall System
Operating Frequency: UHF band, 732 MHz to 746 MHz
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200 ft. maximum
Operating Temperature Range: 40Á F (4Á C) to 110Á F (43Á C)
Frequency Response: 100 Hz to 15 kHz
ATW-R14 Receiver
Receiving System Dual independent receivers, automatic-switching diversity reception
Image Rejection 45 dB minimum
Signal-to-noise Ratio 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
Sensitivity <=20 µV for 60 dB S/N (IEC-weighted)
Audio Output
Unbalanced: 280 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Balanced: 160 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Output Connectors
Unbalanced: Õ in. phone jack
Balanced: XLRM-type
Power Supply: 12-18V DC, 500 mA
Dimensions (W x H x D): 8.27 x 1.93 x 9.88 in. (210 x 49 x 251mm)
Net Weight: 2.9 lbs. (1.3 kg)
Accessories Included: 2 antennas, rack-mount adapters, AD1205A AC adapter
ATW-T52 Handheld Transmitter
RF Power Output: 50 mW Max
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB
Microphone Element: Dynamic unidirectional
Battery (not included): 9V (NEDA type 1604) alkaline
Current Consumption: 50 mA typical
Battery Life: Approximately 8 hours in High position, approximately 10 hours in Low position
Dimensions: 9.53 in. (242mm) long, 2.13 in. (54mm) diameter
Net Weight (without battery): 12.3 oz. (350 g)
Accessory included: AT8431 stand clamp
Features
True Diversity reception with 2 independent RF sections for greatest reliability
Interference-resistant UHF band operation
Convenient detachable front-mount antennas
Rugged metal receiver housing
Balanced and unbalanced audio output jacks
Ground-lift switch and adjustable squelch
2 receivers can be mounted side-by-side in a single 19" rack space
Power-save switches on transmitters
ATW-T52 handheld microphone/transmitter features a Hi-ENERGY¬ dynamic element
Technical Info
System Includes: ATW-R14 Receiver and ATW-T52 Handheld Unidirectional Dynamic Microphone/Transmitter.1400 Series Overall System
Operating Frequency: UHF band, 732 MHz to 746 MHz
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200 ft. maximum
Operating Temperature Range: 40Á F (4Á C) to 110Á F (43Á C)
Frequency Response: 100 Hz to 15 kHz
ATW-R14 Receiver
Receiving System Dual independent receivers, automatic-switching diversity reception
Image Rejection 45 dB minimum
Signal-to-noise Ratio 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
Sensitivity <=20 µV for 60 dB S/N (IEC-weighted)
Audio Output
Unbalanced: 280 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Balanced: 160 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Output Connectors
Unbalanced: Õ in. phone jack
Balanced: XLRM-type
Power Supply: 12-18V DC, 500 mA
Dimensions (W x H x D): 8.27 x 1.93 x 9.88 in. (210 x 49 x 251mm)
Net Weight: 2.9 lbs. (1.3 kg)
Accessories Included: 2 antennas, rack-mount adapters, AD1205A AC adapter
ATW-T52 Handheld Transmitter
RF Power Output: 50 mW Max
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB
Microphone Element: Dynamic unidirectional
Battery (not included): 9V (NEDA type 1604) alkaline
Current Consumption: 50 mA typical
Battery Life: Approximately 8 hours in High position, approximately 10 hours in Low position
Dimensions: 9.53 in. (242mm) long, 2.13 in. (54mm) diameter
Net Weight (without battery): 12.3 oz. (350 g)
Accessory included: AT8431 stand clamp
What Our Customers Say About zZounds
"I'm very happy with zZounds and the product I bought from them and would recommend them to anyone." - customer on November 12, 2009
Audio Technica 1400 Series Handheld Wireless System (Model ATW1452) Reviews
10 out of 10
zZounds has verified that this customer bought this product from us.
"It is the only mic I will use at my karaoke shows. Has the best vocal sound of any I've tried, and good durability."
Sound:
Has a much better sound than my shure wired mics. I have three atw1452's and love them. It is the only mic I use at my karaoke shows anymore. Many singers say I have the best sound at my shows over other shows.
Has a much better sound than my shure wired mics. I have three atw1452's and love them. It is the only mic I use at my karaoke shows anymore. Many singers say I have the best sound at my shows over other shows.
Submitted: 05/11/2005
Style of Music: Rock, Country, Dance
10 out of 10
"Excellent intelligability"
Sound is very clean - I use it with a Mackie mixer and amps with EV sp500 speakers.
Very impressed with simplicity of operation and durability of mic.
Very impressed with simplicity of operation and durability of mic.
Submitted: 01/12/2002
Style of Music: Contemporary - Prophetic
