This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

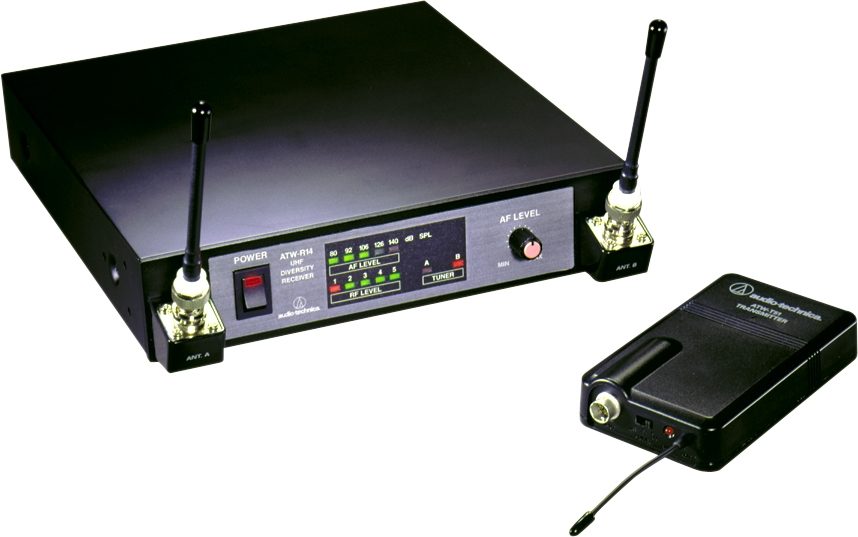

Audio Technica 1400 Series Body Pack Wireless System (Model ATW1451)
System Includes: ATW-R14 Receiver and ATW-T51 UniPak? Transmitter.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
The ATW-1451 UniPak Body-pack System consists of an ATW-R14 receiver and ATW-T51 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.
Features
True Diversity reception with 2 independent RF sections for greatest reliability
Interference-resistant UHF band operation
Convenient detachable front-mount antennas
Rugged metal receiver housing
Balanced and unbalanced audio output jacks
Ground-lift switch and adjustable squelch
2 receivers can be mounted side-by-side in a single 19" rack space
Power-save switches on transmitters
ATW-T51 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups.
1400 Series Overall System
Operating Frequency: UHF band, 732 MHz to 746 MHz
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200 ft. maximum
Operating Temperature Range: 40Á F (4Á C) to 110Á F (43Á C)
Frequency Response: 100 Hz to 15 kHz
ATW-R14 Receiver
Receiving System: Dual independent receivers, automatic-switching diversity reception
Image Rejection: 45 dB minimum
Signal-to-Noise Ratio: 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: <=20 µV for 60 dB S/N (IEC-weighted)
Audio Output
Unbalanced: 280 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Balanced: 160 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Output Connectors
Unbalanced: 1/4 in. phone jack
Balanced: XLRM-type
Power Supply: 12-18V DC, 500 mA
Dimensions (W x H x D): 8.27 x 1.93 x 9.88 in. (210 x 49 x 251mm)
Net Weight: 2.9 lbs. (1.3 kg)
Accessories included: 2 antennas, rack-mount adapters, AD1205A AC adapter
ATW-T51 UniPak Transmitter
RF Power Output: 50 mW Max
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB
Input Connections: High impedance, low impedance, bias
Battery (not included): 9V (NEDA type 1604) alkaline
Current Consumption: 50 mA typical
Battery Life: Approximately 8 hours in High position, approximately 10 hours in Low position
Dimensions (W x H x D): 2.56 x 4.33 x 1 in. (65 x 110 x 25.44mm)
Net Weight (without battery): 3.2 oz. (90 g)
Features
True Diversity reception with 2 independent RF sections for greatest reliability
Interference-resistant UHF band operation
Convenient detachable front-mount antennas
Rugged metal receiver housing
Balanced and unbalanced audio output jacks
Ground-lift switch and adjustable squelch
2 receivers can be mounted side-by-side in a single 19" rack space
Power-save switches on transmitters
ATW-T51 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups.
Technical Info
System Includes: ATW-R14 Receiver and ATW-T51 UniPak Transmitter.1400 Series Overall System
Operating Frequency: UHF band, 732 MHz to 746 MHz
Frequency Stability: ±0.005%
Modulation Mode: FM
Maximum Deviation: ±15 kHz
Operating Range: 200 ft. maximum
Operating Temperature Range: 40Á F (4Á C) to 110Á F (43Á C)
Frequency Response: 100 Hz to 15 kHz
ATW-R14 Receiver
Receiving System: Dual independent receivers, automatic-switching diversity reception
Image Rejection: 45 dB minimum
Signal-to-Noise Ratio: 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: <=20 µV for 60 dB S/N (IEC-weighted)
Audio Output
Unbalanced: 280 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Balanced: 160 mV (at 1 kHz, ±10 kHz deviation, 10k ohm load)
Output Connectors
Unbalanced: 1/4 in. phone jack
Balanced: XLRM-type
Power Supply: 12-18V DC, 500 mA
Dimensions (W x H x D): 8.27 x 1.93 x 9.88 in. (210 x 49 x 251mm)
Net Weight: 2.9 lbs. (1.3 kg)
Accessories included: 2 antennas, rack-mount adapters, AD1205A AC adapter
ATW-T51 UniPak Transmitter
RF Power Output: 50 mW Max
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB
Input Connections: High impedance, low impedance, bias
Battery (not included): 9V (NEDA type 1604) alkaline
Current Consumption: 50 mA typical
Battery Life: Approximately 8 hours in High position, approximately 10 hours in Low position
Dimensions (W x H x D): 2.56 x 4.33 x 1 in. (65 x 110 x 25.44mm)
Net Weight (without battery): 3.2 oz. (90 g)
What Our Customers Say About zZounds
"zZounds is one of the best businesses I've ever dealt with. Excellent prices and service." - customer on November 2, 2009
Audio Technica 1400 Series Body Pack Wireless System (Model ATW1451) Reviews
10 out of 10
Audio-Technica ATW-1451 Customer Review
I tried all kinds of wireless for my bass rig. Ths is the only one that doesn't drop out. I use it every weekend. I had one problem with the transmitter, called A-T, and had a new one under warranty at my door in 2 days. Thats the way service should be handled.
Submitted: 09/08/2002
Style of Music: What About Bob?, Classic Rock, Modern Rock
10 out of 10
"The value for the buck is unmatched!"
Feature:
As for features, there aren't many. However that keeps it simple to use. I only wish it had multiple channels.
Quality:
No problems what so ever!
Value:
I can't imagine a better product for the price.
Desirability:
It does look good with the front mounted LEDs and the short non-telescoping antennas. Plus it rack mounts!
Sound:
Sounds better than most direct connect cables. VERY clean w/the full dynamic range. I've also walked all over my house to see if I can make the receiver dropout, but I've yet to have that happen...even on the LO setting!
Overall:
I would buy it again in a heartbeat!
As for features, there aren't many. However that keeps it simple to use. I only wish it had multiple channels.
Quality:
No problems what so ever!
Value:
I can't imagine a better product for the price.
Desirability:
It does look good with the front mounted LEDs and the short non-telescoping antennas. Plus it rack mounts!
Sound:
Sounds better than most direct connect cables. VERY clean w/the full dynamic range. I've also walked all over my house to see if I can make the receiver dropout, but I've yet to have that happen...even on the LO setting!
Overall:
I would buy it again in a heartbeat!
Submitted: 10/06/2003
Style of Music: rock, alternative, blues, heavy metal, acoustic
