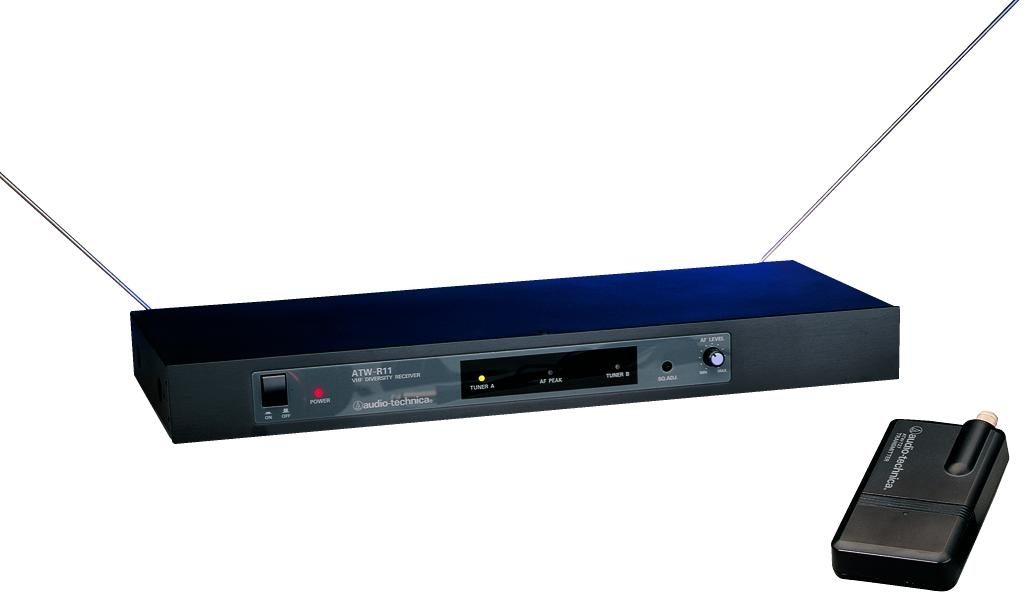

Audio Technica 1100 Series Body Pack Wireless System (Model ATW1127)
System Includes: ATW-R11 Receiver and ATW-T27 UniPak Transmitter.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
The ATW-1127 UniPak Body-pack System consists of an ATW-R11 receiver and an ATW-T27 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.
Features
True diversity reception and full FM deviation
Choice of 20 VHF frequencies
InvisibleLink¬ circuitry delivers optimum sound quality
Ground-lift switch and adjustable squelch control
Balanced and unbalanced audio output jacks
Receiver mounts in a single 19 in. rack space
Dual-power battery-save switches on transmitters
ATW-T27 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups.
1100 Series Overall System
Operating Frequency: VHF high band, 169 MHz to 216 MHz
Frequency Stability +/- 0.005%, single-frequency crystal-controlled
Modulation Mode: FM
Maximum Deviation: +/- 30 kHz, traveling frequencies +/- 15 kHz
Operating Range: 200 ft. minimum
Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)
Frequency Response: 100 Hz to 15 kHz
ATW-R11 Receiver
Receiving System: Dual independent receivers, automatic-switching diversity reception
Image Rejection: >=60 dB
Signal-to-noise Ratio: 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 10 µV for 60 dB S/N (IEC-weighted)
Audio Output Unbalanced: 350 mV (at 1 kHz, +/- 10 kHz deviation, 10k ohm load)
Balanced: 220 mV (at 1 kHz, +/- 10 kHz deviation, 10k ohm load)
Output Connectors: Unbalanced: 1/4 in. phone jack Balanced: XLRM-type
Power Supply: 12-18V DC, 350 mA, with provided AC adapter
Dimensions (W x H x D): 16.93 x 1.92 x 7.28 in. (430.0 x 48.8 x 185.0 mm)
Net Weight: 5.5 lbs. (2.5 kg)
Accessories Included: Two whip antennas, rack-mount adapters, AD1205A AC adapter
ATW-T27 UniPak Transmitter
RF Power Output: 50 mW Max
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB
Input Connections: High impedance, low impedance, bias
Battery (not included): 9V (NEDA type 1604) alkaline
Current Consumption: 30 mA typical
Battery Life: Approximately 15 hours in High position, approximately 20 hours in Low position
Dimensions (W x H x D): 2.56 x 4.33 x 1 in. (65 x 110 x 25.4mm)
Net Weight (without battery): 2.8 oz. (78 g)
Features
True diversity reception and full FM deviation
Choice of 20 VHF frequencies
InvisibleLink¬ circuitry delivers optimum sound quality
Ground-lift switch and adjustable squelch control
Balanced and unbalanced audio output jacks
Receiver mounts in a single 19 in. rack space
Dual-power battery-save switches on transmitters
ATW-T27 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups.
Technical Info
System Includes: ATW-R11 Receiver and ATW-T27 UniPak Transmitter.1100 Series Overall System
Operating Frequency: VHF high band, 169 MHz to 216 MHz
Frequency Stability +/- 0.005%, single-frequency crystal-controlled
Modulation Mode: FM
Maximum Deviation: +/- 30 kHz, traveling frequencies +/- 15 kHz
Operating Range: 200 ft. minimum
Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)
Frequency Response: 100 Hz to 15 kHz
ATW-R11 Receiver
Receiving System: Dual independent receivers, automatic-switching diversity reception
Image Rejection: >=60 dB
Signal-to-noise Ratio: 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 10 µV for 60 dB S/N (IEC-weighted)
Audio Output Unbalanced: 350 mV (at 1 kHz, +/- 10 kHz deviation, 10k ohm load)
Balanced: 220 mV (at 1 kHz, +/- 10 kHz deviation, 10k ohm load)
Output Connectors: Unbalanced: 1/4 in. phone jack Balanced: XLRM-type
Power Supply: 12-18V DC, 350 mA, with provided AC adapter
Dimensions (W x H x D): 16.93 x 1.92 x 7.28 in. (430.0 x 48.8 x 185.0 mm)
Net Weight: 5.5 lbs. (2.5 kg)
Accessories Included: Two whip antennas, rack-mount adapters, AD1205A AC adapter
ATW-T27 UniPak Transmitter
RF Power Output: 50 mW Max
Spurious Emissions: Under federal regulations
Dynamic Range: >=90 dB
Input Connections: High impedance, low impedance, bias
Battery (not included): 9V (NEDA type 1604) alkaline
Current Consumption: 30 mA typical
Battery Life: Approximately 15 hours in High position, approximately 20 hours in Low position
Dimensions (W x H x D): 2.56 x 4.33 x 1 in. (65 x 110 x 25.4mm)
Net Weight (without battery): 2.8 oz. (78 g)
What Our Customers Say About zZounds
"Super affordable gear. Great and affordable shipping... mine was free!" - customer on October 27, 2009
Audio Technica 1100 Series Body Pack Wireless System (Model ATW1127) Reviews
1 out of 10
"Bad Advertising, and Bad design"
Feature:
This product REQUIRES a propietary adapter in order to work, I feel that the manufacturer made a big mistake with this
Quality:
It looked like good quality poorly designed equipment... take that as you will. the proprietary connector used 4 very thin pins with no secure lock system for the cable, it would break very easily.
Value:
The website advertises 20 selectable frequencies... but that just means that one is hardcoded, and there's 20 totall.
Desirability:
no flashy lights... no cool display, it's dismal.
Sound:
The sound of this product couldn't be realized, since the attennas are on the wrong side of the rackmount... they are forced to cross, which is not good for diversity spread systems
Support:
They were friendly... there is no toll-free number however, and the only thing they could tell me was.. yes, you need to buy our special cable to make it work with a guitar... or any instrument.
Overall:
I actually just requested an RMA. I wish I knew the cable was required before I bought it... and I'm sorry stating that you should buy a wireless mic or wireless essentials cable to complete the system on the website doesn't cut it.. it needs to read.. YOU NEED THIS CABLE FOR IT TO WORK with a link to it.
This product REQUIRES a propietary adapter in order to work, I feel that the manufacturer made a big mistake with this
Quality:
It looked like good quality poorly designed equipment... take that as you will. the proprietary connector used 4 very thin pins with no secure lock system for the cable, it would break very easily.
Value:
The website advertises 20 selectable frequencies... but that just means that one is hardcoded, and there's 20 totall.
Desirability:
no flashy lights... no cool display, it's dismal.
Sound:
The sound of this product couldn't be realized, since the attennas are on the wrong side of the rackmount... they are forced to cross, which is not good for diversity spread systems
Support:
They were friendly... there is no toll-free number however, and the only thing they could tell me was.. yes, you need to buy our special cable to make it work with a guitar... or any instrument.
Overall:
I actually just requested an RMA. I wish I knew the cable was required before I bought it... and I'm sorry stating that you should buy a wireless mic or wireless essentials cable to complete the system on the website doesn't cut it.. it needs to read.. YOU NEED THIS CABLE FOR IT TO WORK with a link to it.
Submitted: 09/10/2004
