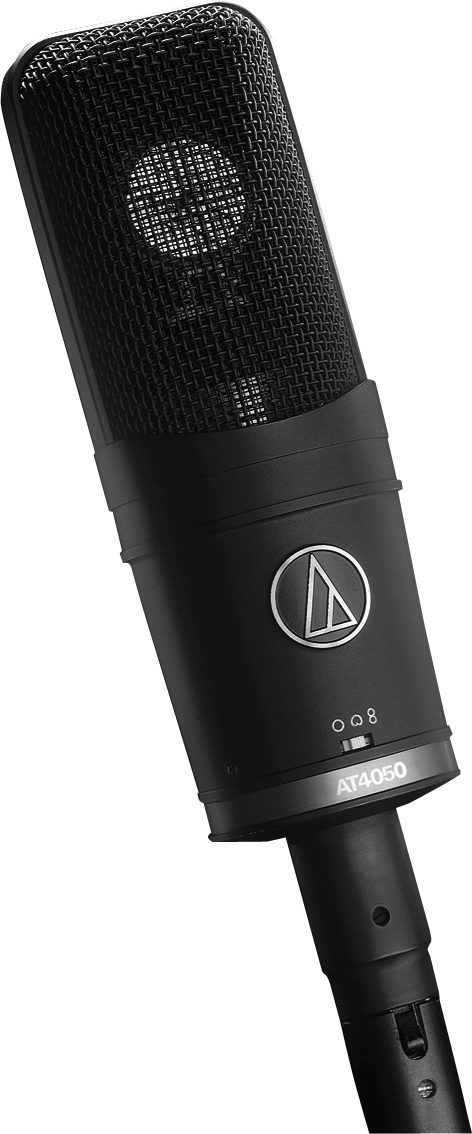

Audio Technica AT4050 Studio Condenser Microphone

The AT4050 is a transformerless, multiple-pattern studio microphone designed for use in the most demanding applications. It utilizes dual gold-plated, aged, "large-diaphragm" condenser elements for extended frequency response. The microphone polar pattern can be switched for cardioid, omnidirectional or figure-of-eight operation. This, coupled with low-noise transformerless electronics, makes this microphone ideal for the most critical digital recordings.

Features:
Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality

Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone

The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use

Three switchable polar patterns: omni, cardioid, figure-of-eight

Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

Switchable 80 Hz hi-pass filter and 10 dB pad

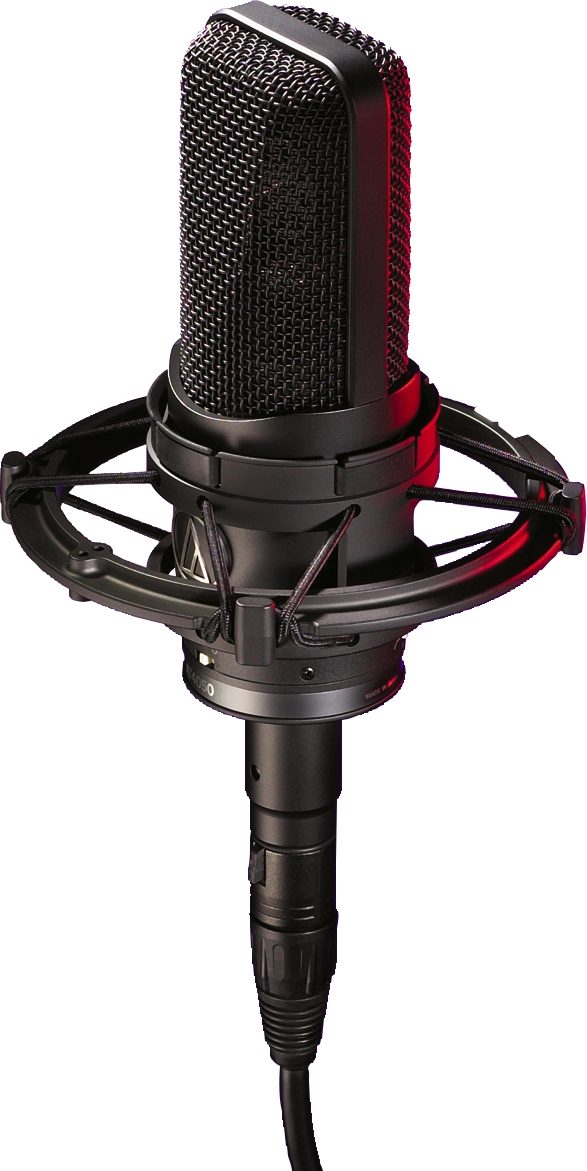

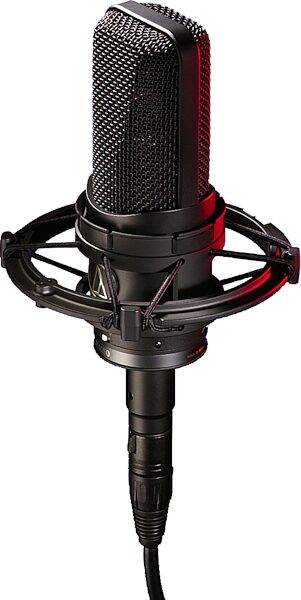

Includes AT8449 shock mount

Technical Info

Element: Condenser

Dynamic Range (Typical): 132 dB, 1 kHz at Max. SPL

Polar Pattern: Cardioid, Omni, Figure-of-eight

Phantom Power Requirements: 48V (±4V)

Frequency Response: 20 - 18,000 Hz

Switches: Polar pattern; 10 dB pad; roll-off

Open Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa

Low Frequency Roll-off: 80 Hz, 12 dB per octave

Impedance: 100 ohms

Weight: 18.0 oz (510 g)

Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.

Output Connector: XLRM-type

Signal to Noise Ratio: 77 dB, 1 kHz at 1 Pa

Accessories Furnished: AT8449 shock mount; microphone dust cover; protective case

Coupling an airy treble and midrange with a rich low-end, the 4050 shines on a variety of sources. Omni, cardioid, and figure-8 patterns. Low-cut filter and -10 dB pad. Includes shockmount, dust cover, and case.
