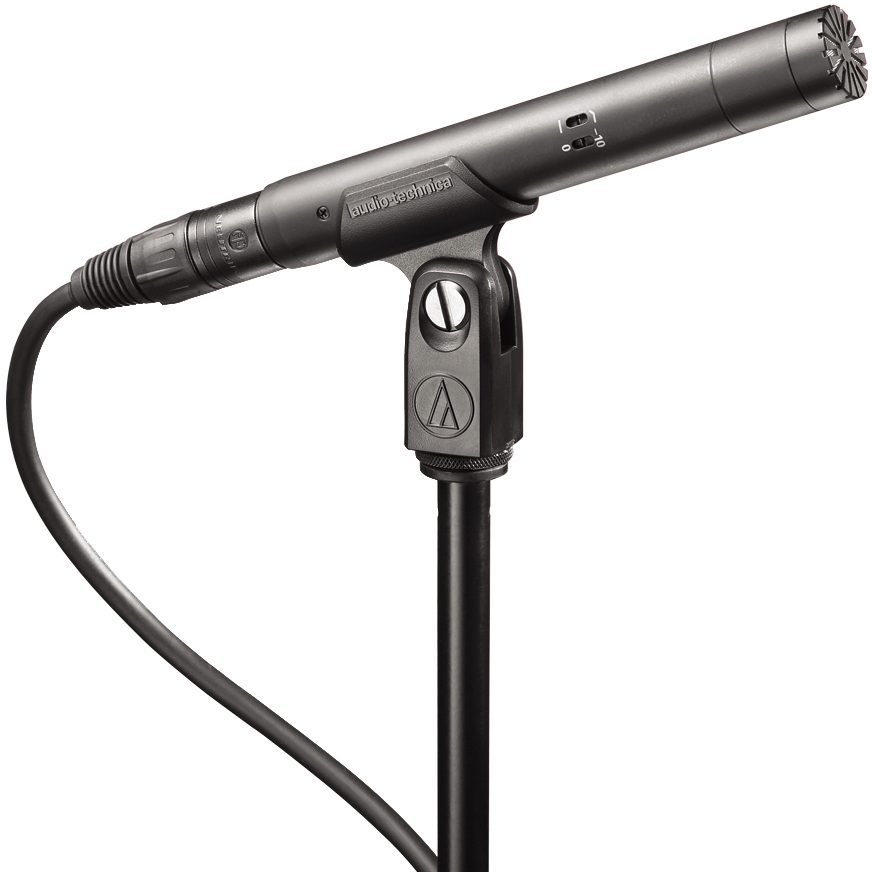

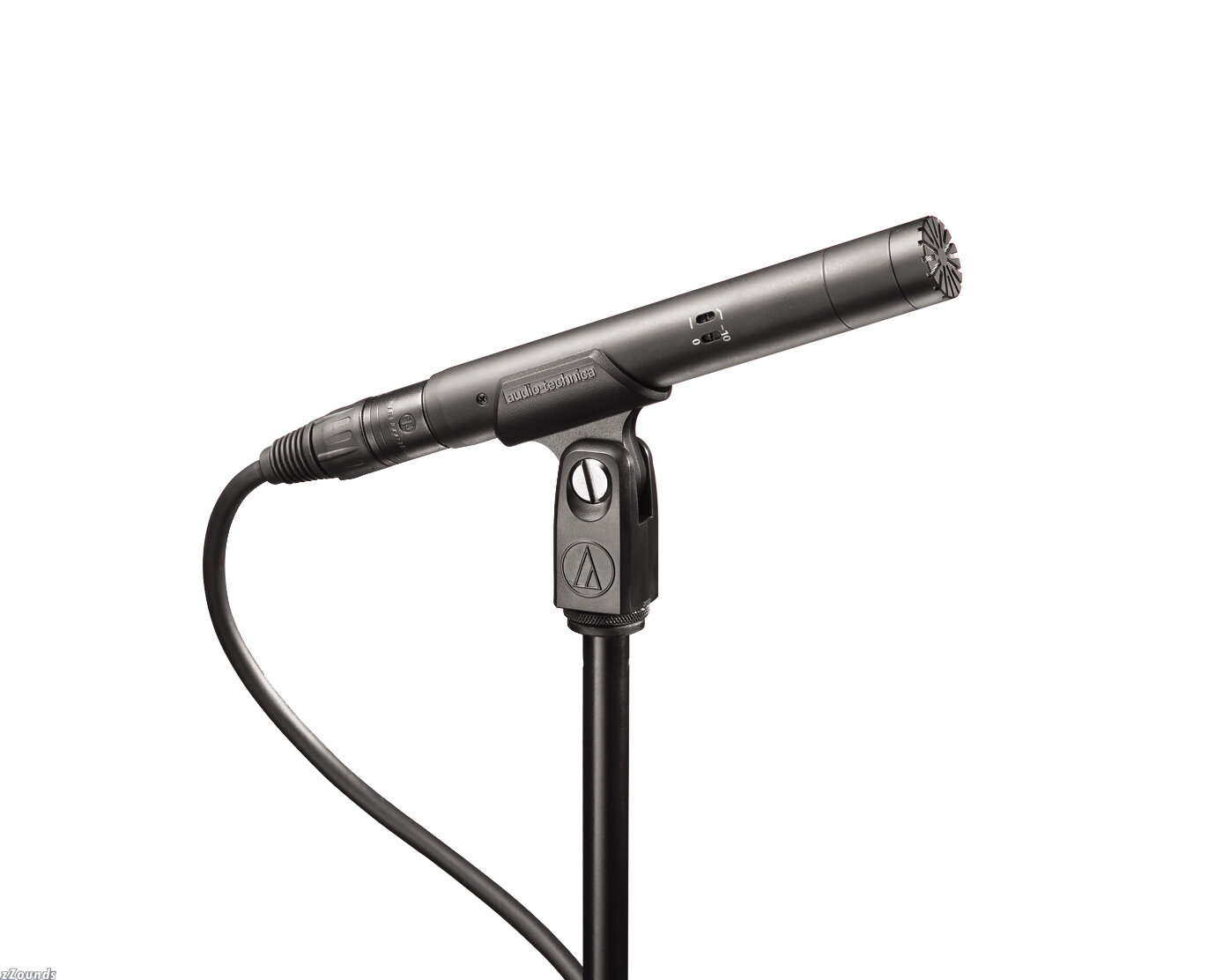

Audio Technica AT4022 Small Diaphragm Condenser Microphone

The low-profile AT4022 omnidirectional condenser recording mic is outstanding for piano, acoustic guitar, and other acoustic instruments. With a flat, extended frequency response and wide dynamic range ideal for critical studio and live applications, the AT4022 handles high SPLs with ease. The microphone's omnidirectional polar pattern preserves the "sound" of the recording location, delivers flat response and freedom from proximity effect. Its low-mass diaphragm improves transient response and reduces handling/mechanical noise transfer.

Features
Outstanding performance and rugged construction, ideal for critical studio & live applications

High SPL handling and wide dynamic range

Flat, extended frequency response

Switchable 80 Hz hi-pass filter and 10 dB pad

Omnidirectional polar pattern provides maximum ambient pickup

Low self noise perfectly suited for digital recording equipment

Exceptional reproduction of low frequency sounds

Low-mass element for superb transient response

Technical Info

Element: Fixed-charge back plate, permanently polarized condenser

Polar Pattern: Omnidirectional

Freq. Response: 20-20,000 Hz

LF Roll-Off: 80 Hz, 12 dB/octave

Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa

Impedance: 250 ohms

Max. Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.;
156 dB SPL, with 10 dB pad (nominal)

Noise: 13 dB SPL

Dynamic Range: (typical): 133 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 81 dB, 1 kHz at 1 Pa

Phantom Power Requirements: 48V DC, 3.0 mA typical

Switches: Flat, roll-off;
10 dB pad

Weight: 124 g (4.4 oz)

Dimensions: 144.0 mm (5.67 in.) long,
21.0 mm (0.83 in.) maximum body diameter

Output Connector: Integral 3-pin XLRM-type

Accessories Furnished: AT8405a stand clamp for 5/8 in.-27 threaded stands; windscreen; protective carrying case

Audio Technica Case Style: S1
