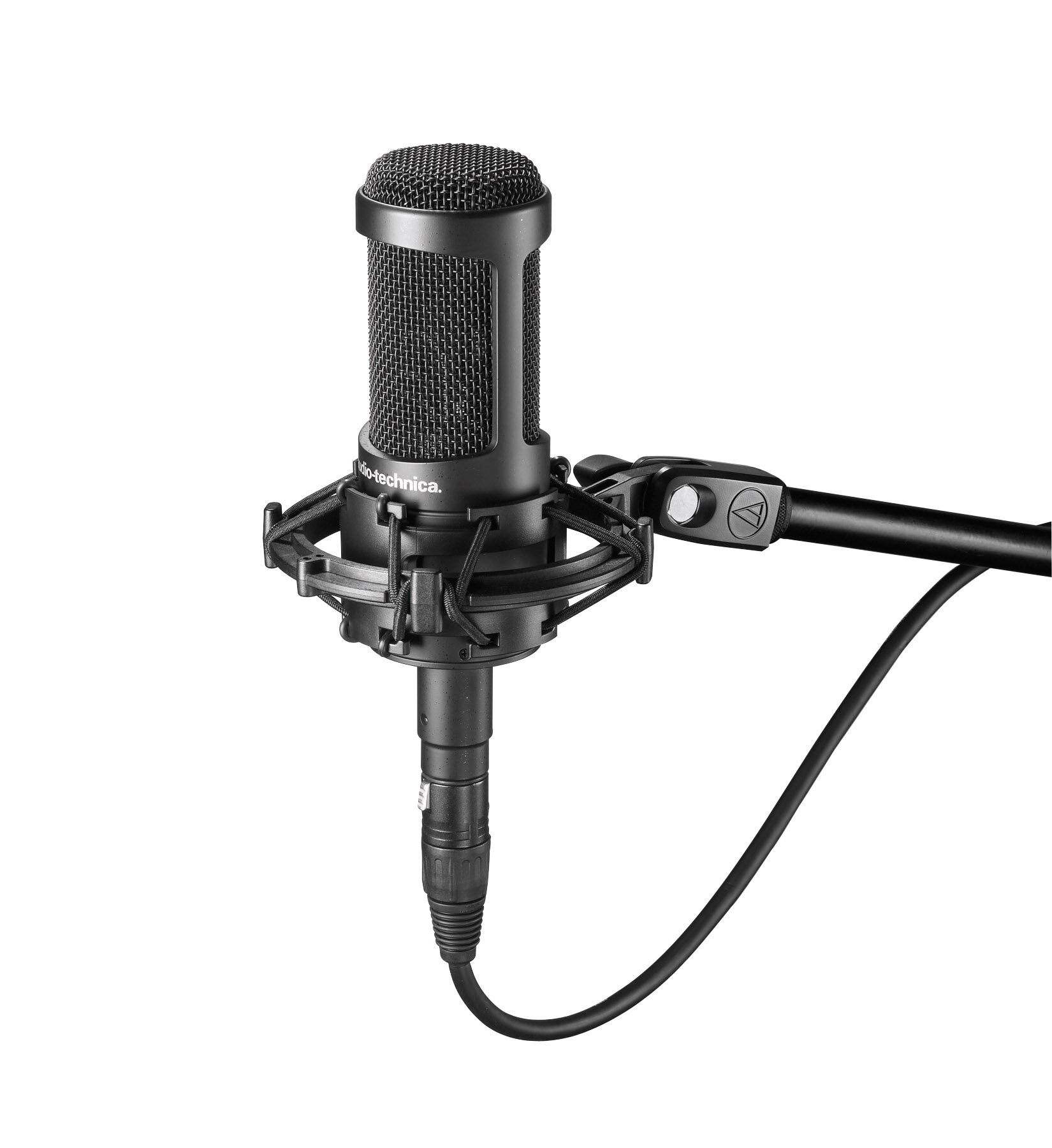

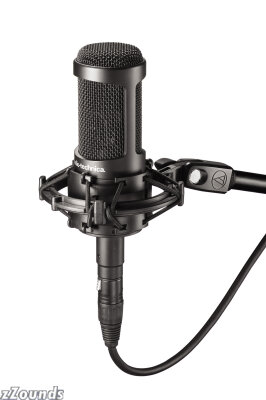

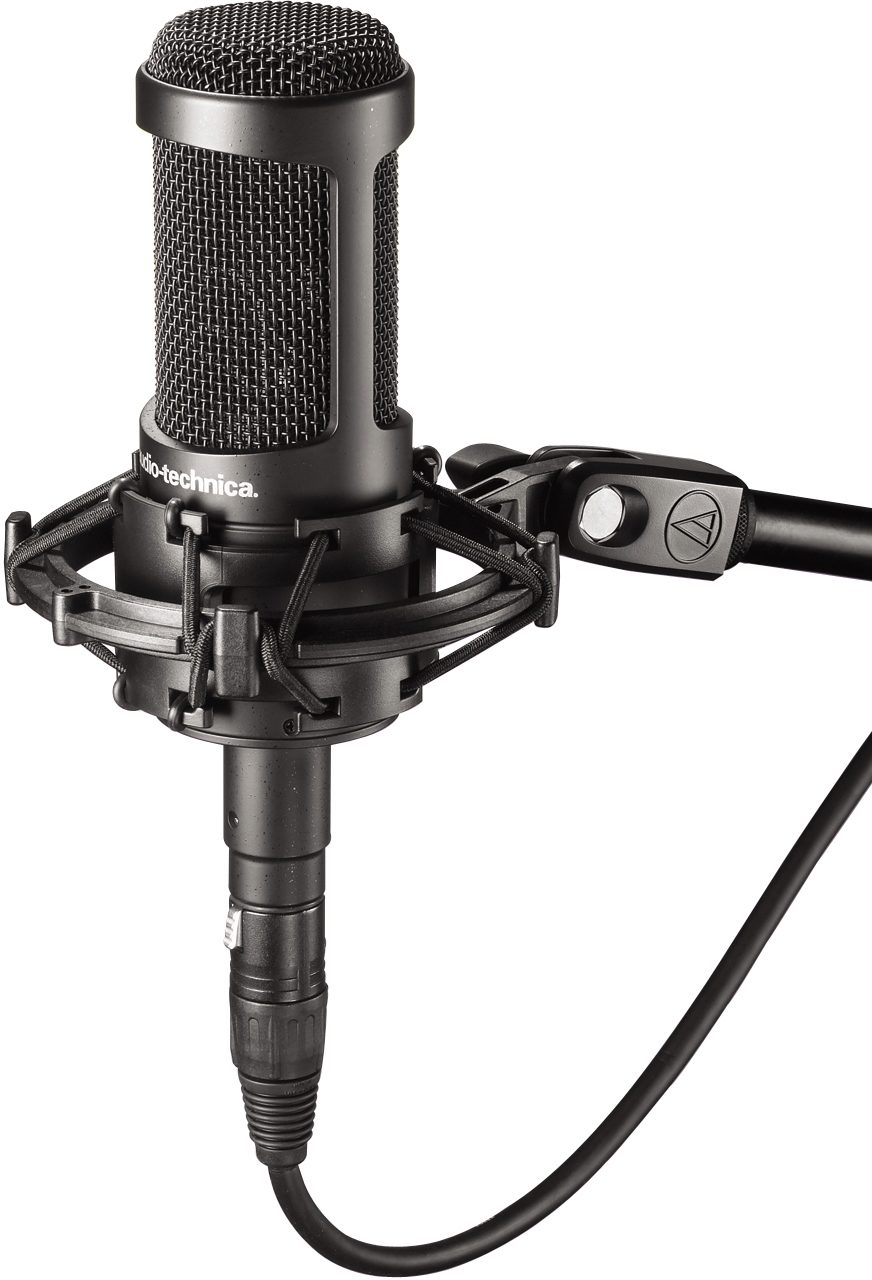

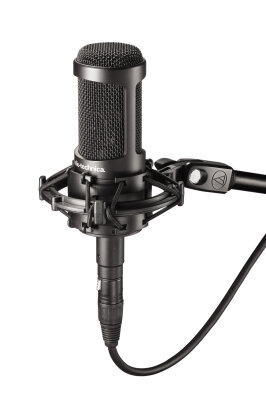

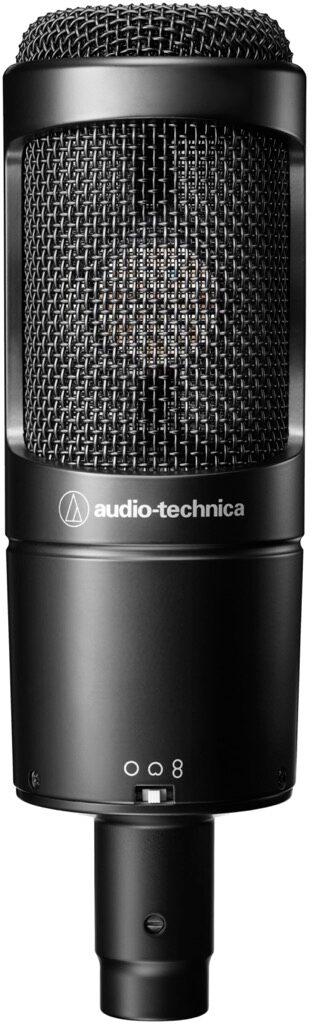

Audio Technica AT2050 Multi-Pattern Condenser Microphone

Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones. details

About This Product!

Description

Docs

News

The versatile AT2050 provides consistent, superior performance in switchable cardioid, omnidirectional and figure-of-eight polar pattern settings. Its dual large diaphragms are gold-vaporized and aged to achieve optimum characteristics over years of use. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the microphone is ideal for studio and live sound use on vocals, piano, strings, drum overheads, guitar amps, and more.

Features
Three switchable polar patterns: omni, cardioid, figure-of-eight

Switchable 80 Hz high-pass filter and 10 dB pad

Large diaphragm for smooth, natural sound and low noise

State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

Includes shock mount & protective pouch

Technical Info

Element: Externally-polarized (dc bias) condenser

Polar patterns: Cardioid, Omnidirectional,Figure-of-eight

Frequency response: 20-20,000 hz

Low frequency roll-off: 80 hz, 12 db/octave

Open ircuit sensitivity: -42 db (7.9 Mv) re 1v at 1 pa

Impedance: 120 ohms

Maximum input sound level: 149 db spl, 1 khz at 1% t.H.D.; 159 Db spl, with 10 db pad (nominal)

Noise: 17 dB SPL

Dynamic range (typical): 132 dB, 1 kHz at Max SPL

Signal-to-Noise Ratio: 77 dB, 1 kHz at 1 pa

Phantom power requirements: 11-52v dc, 4.7 Ma typical

Switches: Polar selection; flat, roll-off; 10 db pad (nominal)

Weight: 412 g (14.5 Oz)

Dimensions: 170.0 mm (6.69 in.) Long, 52.0 Mm (2.05 in.) Maximum body diameter

Output connectors: Integral 3-pin XLRM-type

Accessories furnished: AT8458 shock mount for 5/8 in.-27 threaded stands; 5/8 in.-27 to 3/8 in.-16 threaded adapter; soft protective pouch

Audio-Technica case style: R5
