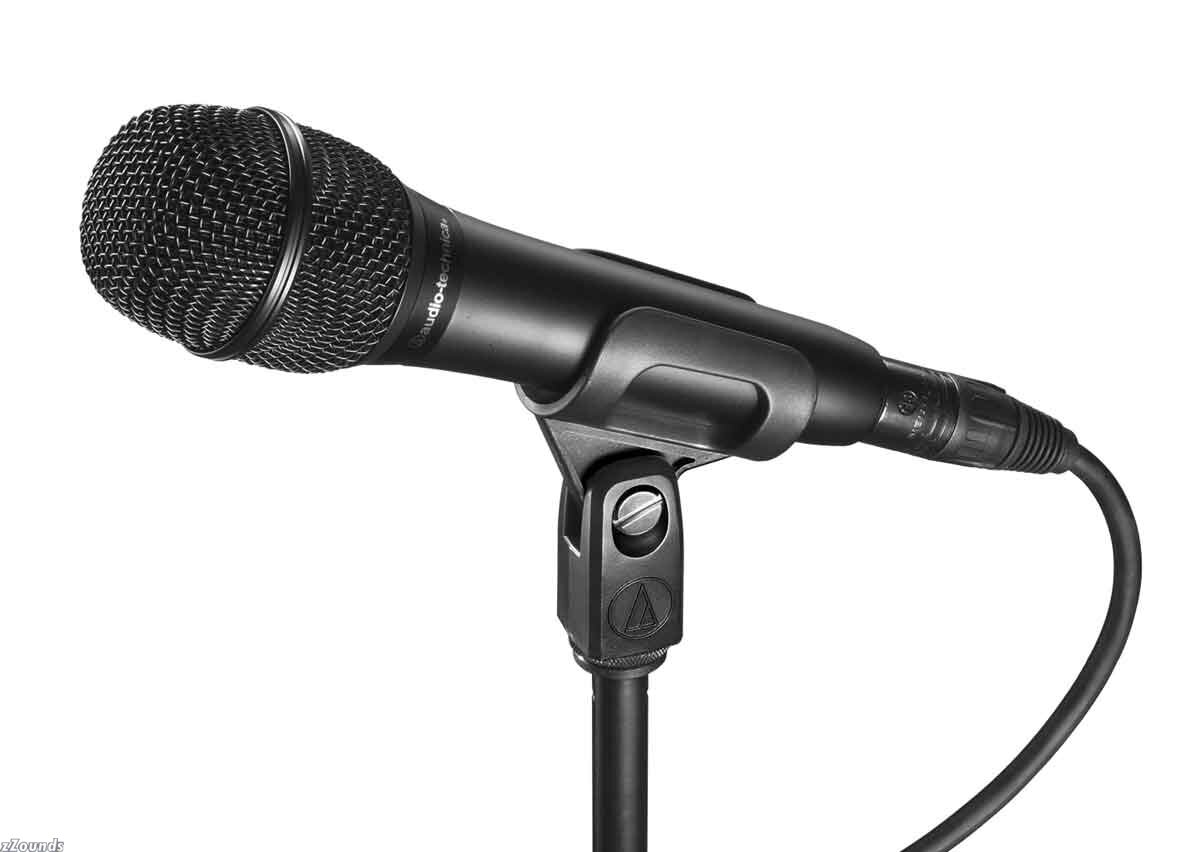

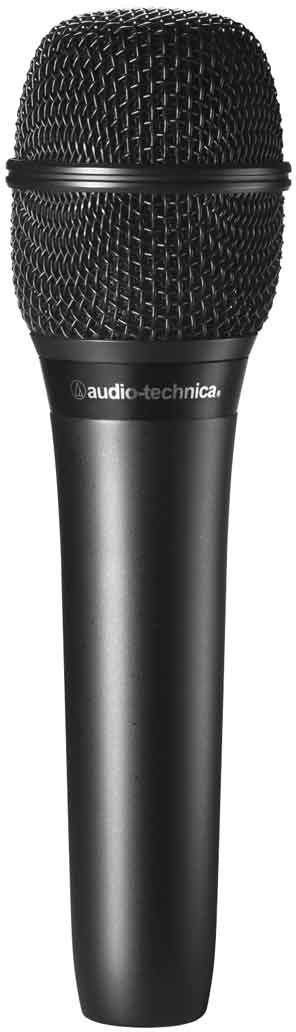

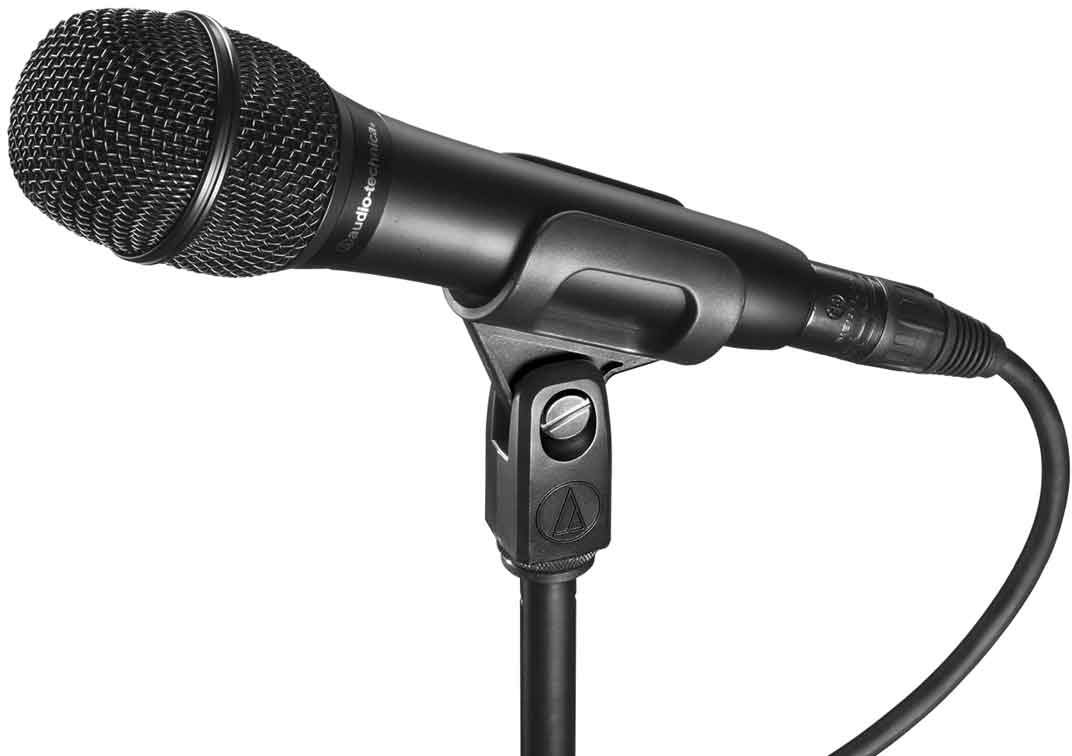

The new AT2010 is designed to bring the studio-quality articulation and intelligibility of Audio-Technica’s renowned 20 Series to the stage, for crystal-clear vocal performances. Featuring the same 16 mm low-mass diaphragm found in the critically acclaimed AT2020 side-address studio condenser, the AT2010 excels wherever articulate vocals are needed: in houses of worship, for solo performances, jazz vocalists, singer/songwriters, and more.
Features
Extended frequency response and superior transient response for smooth, natural sonic characteristics
High SPL-handling and wide dynamic range provide unmatched versatility
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Multi-stage grille design offers excellent protection against plosives and sibilance without compromising high-frequency clarity
Corrosion-resistant contacts from gold-plated XLRM-type connector
Rugged, all-metal and construction for years of trouble-free service
Quiet-Flex stand clamp provides silent, flexible microphone positioning
Technical Info
Element: Fixed-charge back plate permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 40-20,000 Hz
Open Circuit Sensitivity: –48 dB (3.9 mV) re 1V at 1 Pa
Impedance: 100 ohms
Maximum input sound level: 136 dB SPL, 1 kHz at 1% T.H.D.
Dynamic range (typical): 113 dB, 1 kHz at Max SPL
Signal-to-noise ratio: 71 dB, 1 kHz at 1 Pa
Phantom power requirements: 48V DC, 2 mA typical
Weight: 233g (8.2 oz)
Dimensions: 179.1 mm (7.05 in.) long,
50.8 mm (2.00 in.) maximum body diameter
Output connector: integral 3-pin XLRM-type
Accessories furnished: AT8470 Quiet-Flex stand clamp for 5/8 in.-27 threaded stands; 5/8 in.-27 to 3/8 in.-16 threaded adapter; soft protective pouch
Audio Technica case style: T7
This handheld condenser microphone brings studio-quality vocal performance to any live performance! Cardioid pattern for off-axis noise rejection. Low-mass diaphragm for dynamics and clarity. Includes flexible mic clip, soft pouch.
