Audix DR456 Drum Microphone Combo Pack (4xi5, 1xD6, 4xDVice)

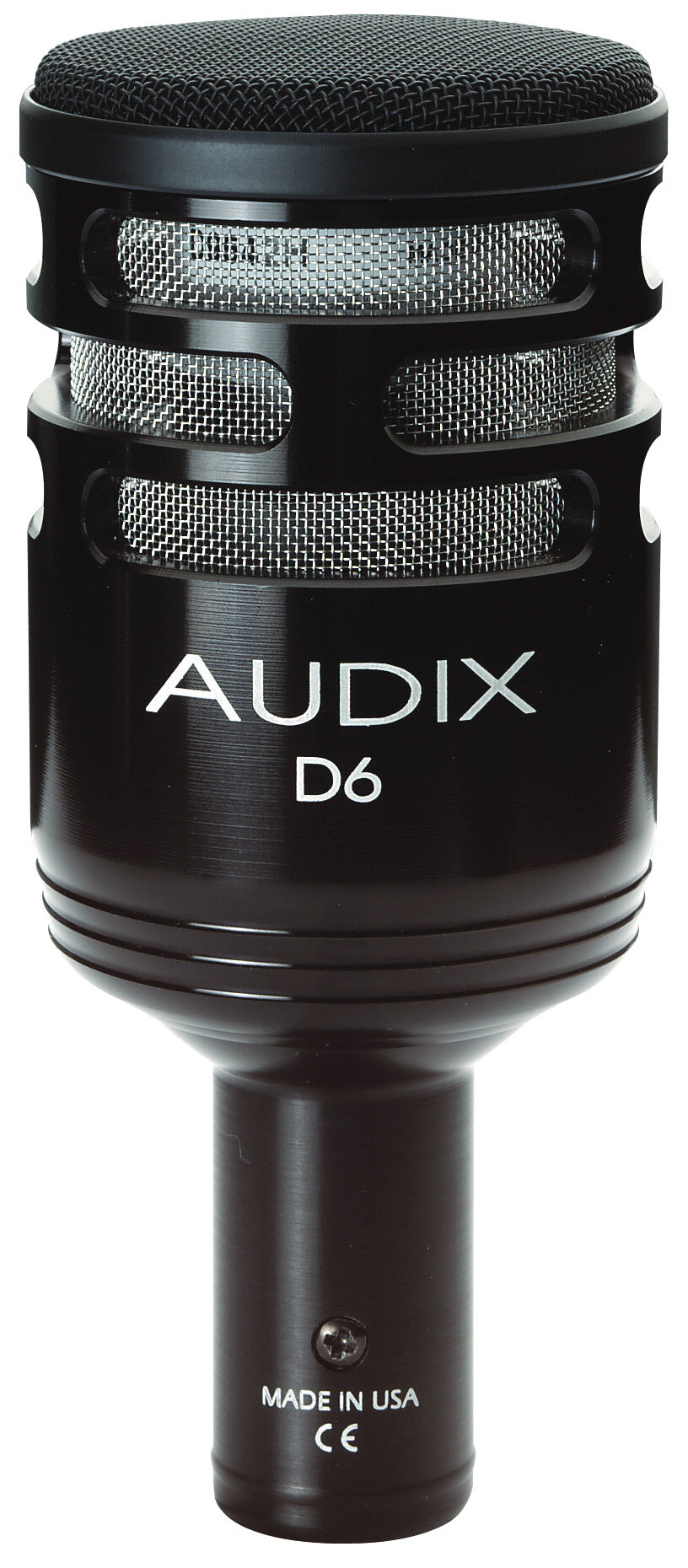

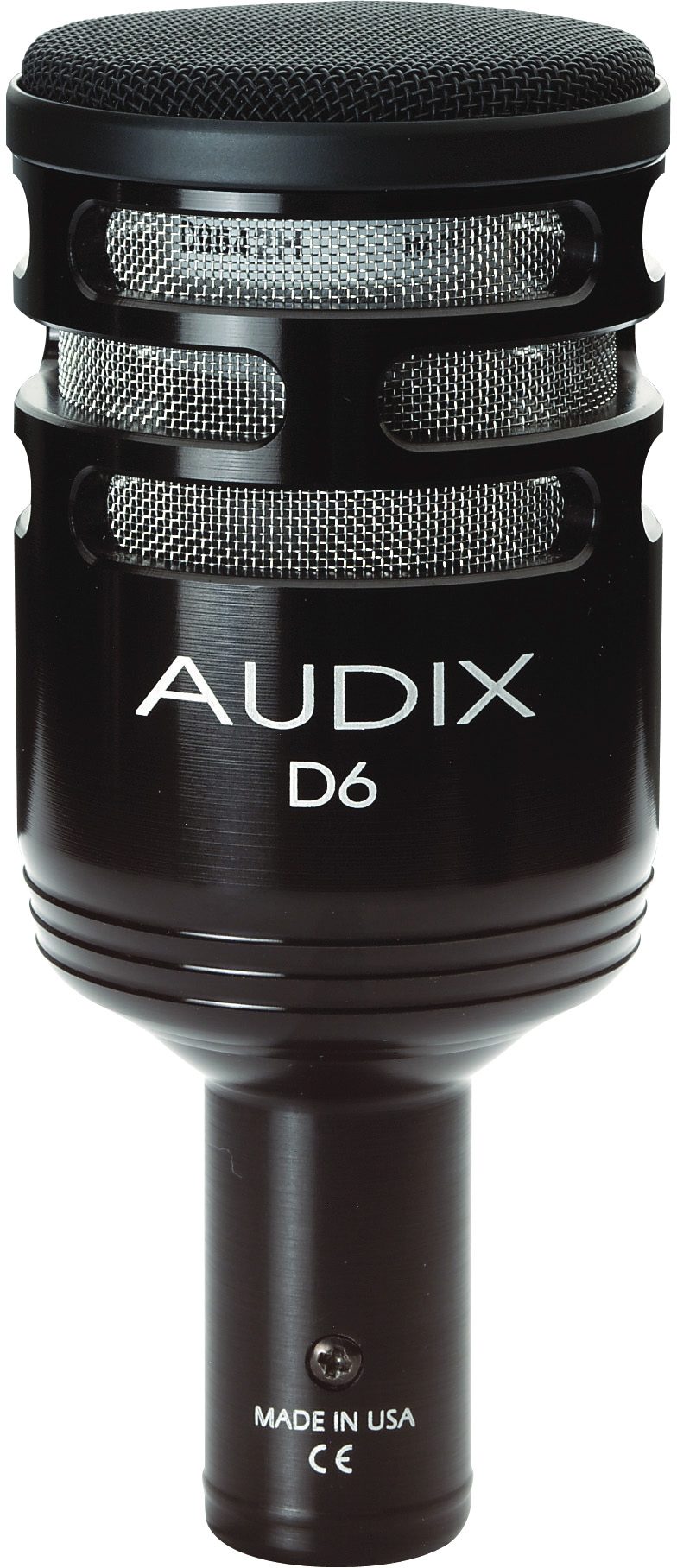

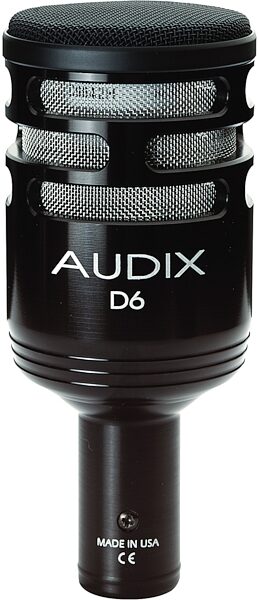

The D6 is an American-made instrument microphone designed for live and studio performance. Characterized by a cardioid pick-up pattern and a frequency response of 30 Hz - 15 kHz, the D6 is an ideal choice for kick drum, bass cabs, and other instruments requiring low-frequency reproduction. Transformerless design, low impedance, and balanced output allow interference-free performance even with long cable runs. The D6, a one-piece body precision machined from solid aluminum, consists of a durable hard-coat anodized finish.

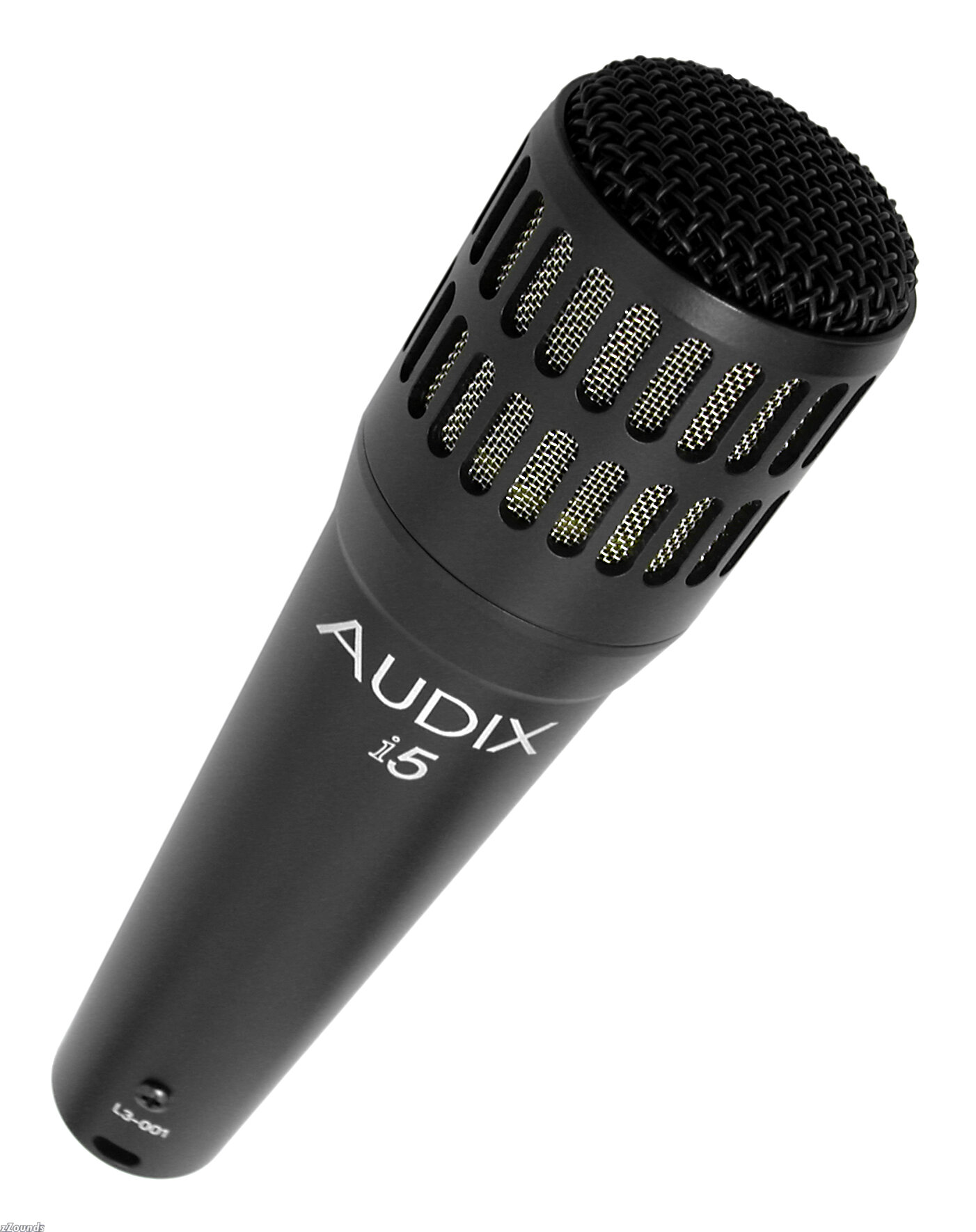

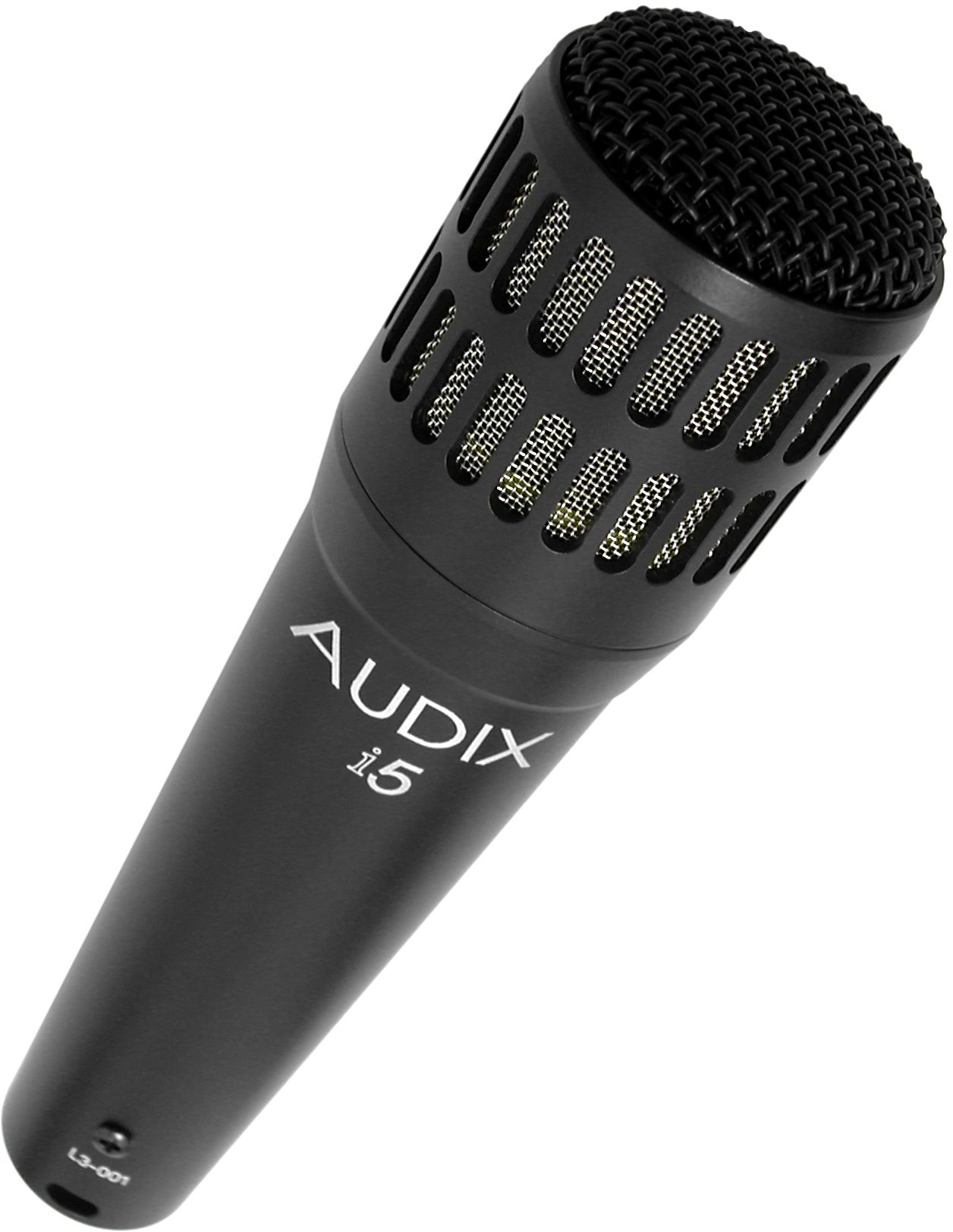

The i-5 is a professional dynamic instrument microphone designed for a wide variety of applications for live sound and studio performance. Characterized with a cardioid pick-up pattern and a frequency response of 50 Hz - 15 kHz, the i-5is an ideal choice for snare, toms, percussion instruments, electric guitar cabs, brass, and acoustic instruments. Clear, accurate, and able to handle sound pressure levels in excess of 140 dB, the i-5 can also be utilized for speech and vocals. Transformerless design, low impedance, and balanced output allow interference-free performance, even with long cable runs. The i-5 housing and grill are precision-cast parts made of zinc-alloy metal, with durable black e-coat finish.

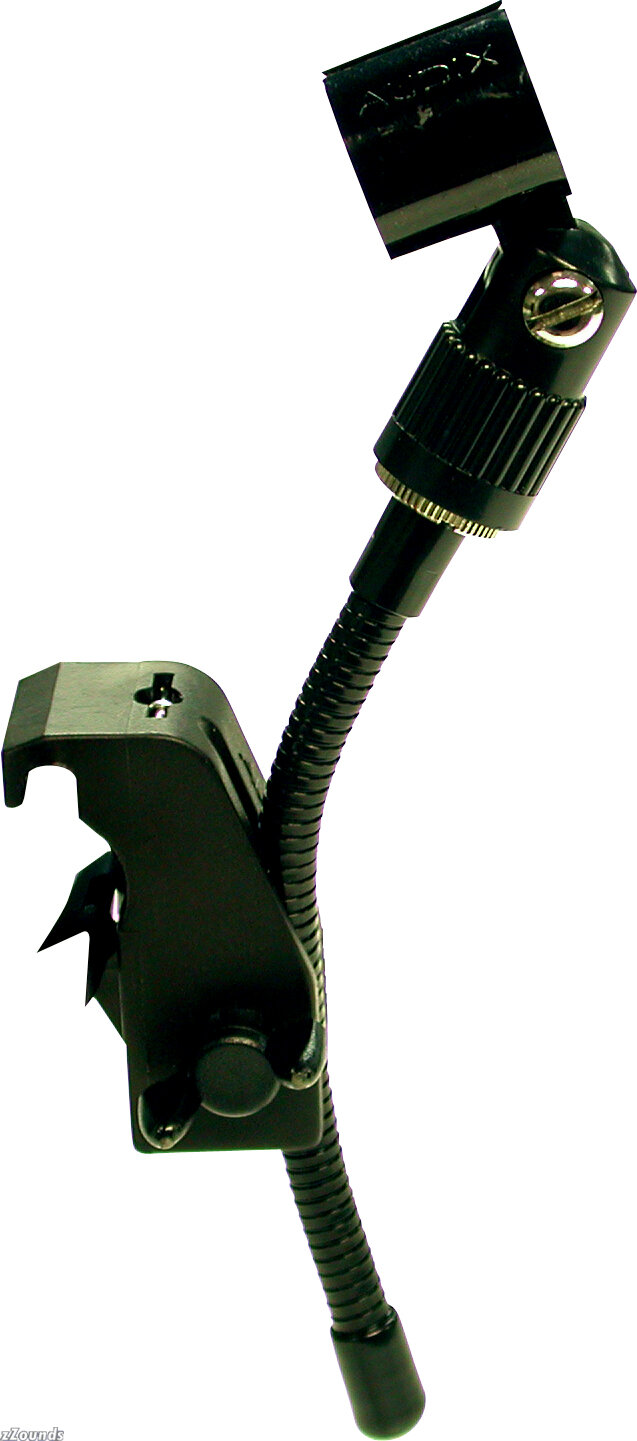

The D-Vice is a gooseneck clip designed primarily for use on drums. It works with Audix D series, Micro D series, and most other mic clips using a 5/8 in. thread.

D6 Applications
Live stage-coffee house to stadium

Kick drum, floor tom, djembe, cajon

Acoustic bass, electric bass cabs

Studio-any instrument requiring precise low-frequency reproduction

i-5 Applications
Live stage, studio

Snare, toms, percussion

Guitar cabs, electric instruments

Brass, flute, woodwinds

Acoustic instruments

Vocals, speech

i-5 Features
Clear and accurate sound reproduction

Handles high SPL without distortion

Provides exceptional gain before feedback

Provides excellent isolation on stage

Precision cast zinc alloy body and grill

Extremely durable

Technical Info

D6
Transducer type: dynamic

Frequency response: 30 Hz - 15 kHz

Polar pattern: cardioid

Output impedance: 200 ohms

Sensitivity: 2.2 mV @ 80Hz

Capsule technology: VLM Type E

Off-axis rejection: >20 db

Maximum SPL: 144 db

Cable/connector: 3-pin gold-plated male XLR connector

Polarity: positive voltage on pin 2 relative to pin 3 of output
XLR connector

Housing: machined aluminum

Weight: 7.7 oz / 217 grams

Finish: black anodized

i-5
Transducer type: dymamic

Frequency response: 50 Hz - 16 kHz

Polar pattern: cardioid

Output impedance: 150 ohms

Sensitivity: 1.9 mV (ref 1k @ 1 Pascal)

Capsule technology: VLM Type B

Off-axis rejection: >23 dB

Maximum SPL: 140 dB

Cable/connector: 3-pin gold-plated male XLR connector

Polarity: positive voltage on pin 2 relative to pin 3 of output XLR connector

Housing: cast zinc alloy

Weight: 6.5 oz/183 grams

Finish: black E-coat

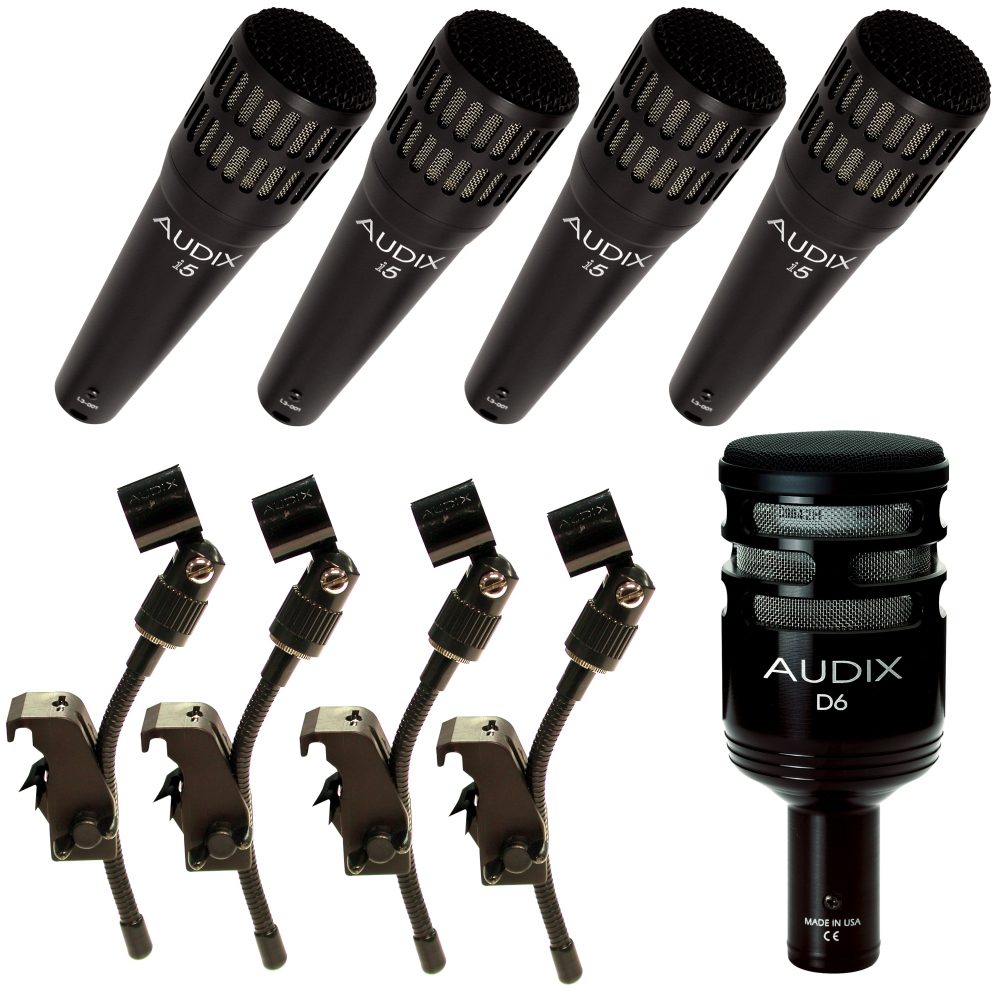

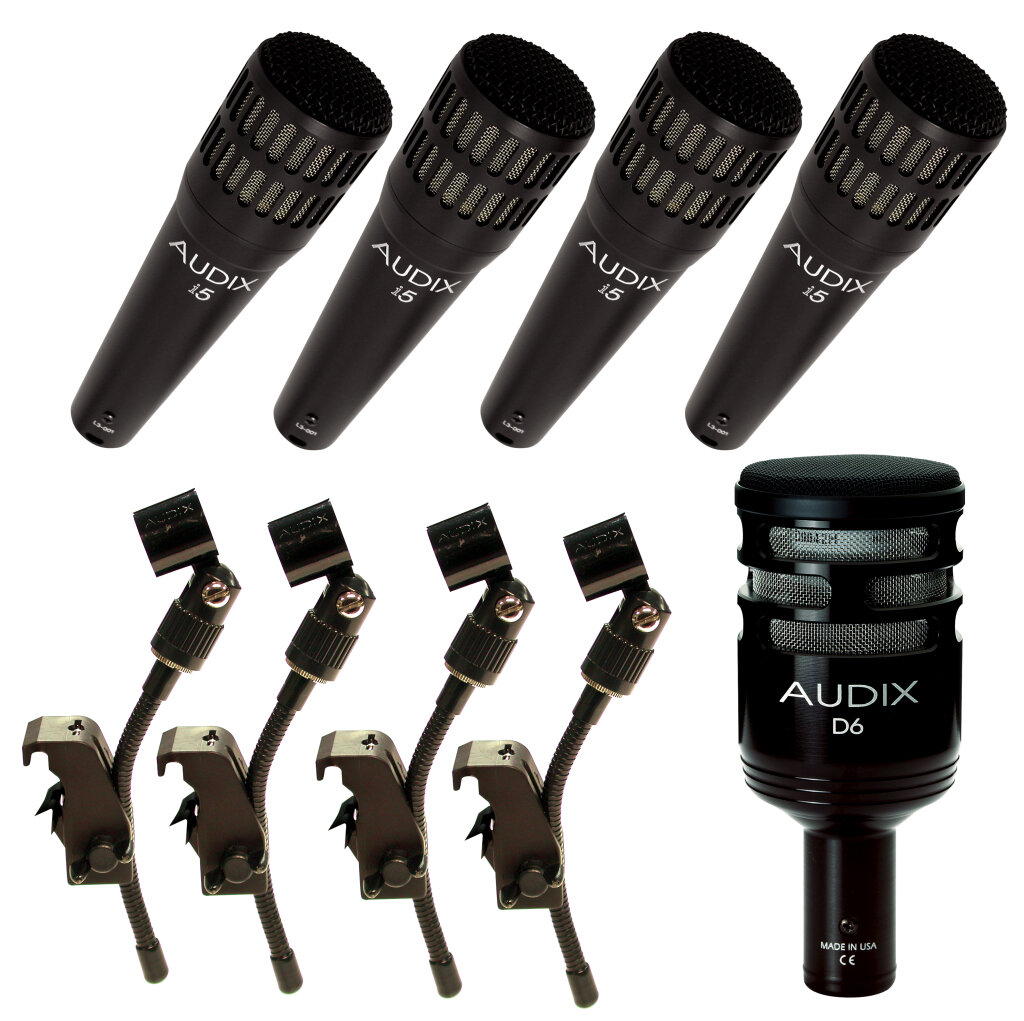

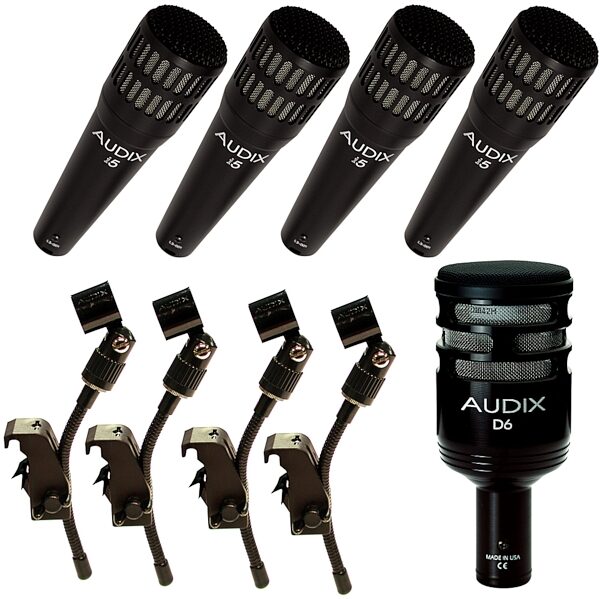

The DR456 package includes four i5 snare/tom mics, a D6B kick mic, and 4 D-Vice clamp mounts.
