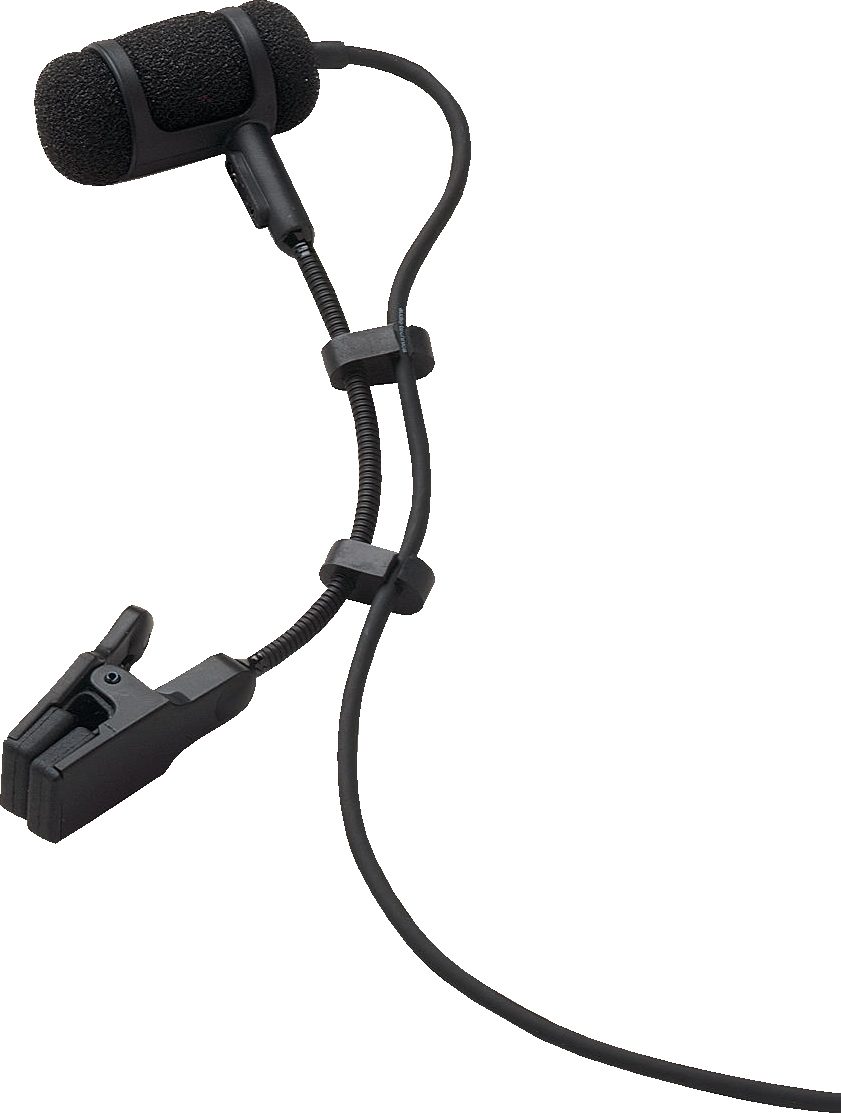

The ATM-35cw is terminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters. Attached cable is 55 in. (1.4 m) in length. Includes AT8418 instrument mount for brass, reeds, drums, etc.
Features:
Clips to brass, reeds, piano, acoustic bass, snare and toms
Crisp, clear, well-balanced response, even at high SPLs
Interchangeable elements available for hypercardioid and subcardioid polar patterns
UniMount clip permits accurate positioning while protecting element
Operates on battery or phantom power
Technical Info
Element: Condenser
Phantom Power Requirements: 11 - 52V, 2 mA typical
Polar Pattern: Cardioid
Battery Type: 9V
Frequency Response: 30 - 20,000 Hz
Battery Current/Life: 1 mA/1000 hours typical
Open Circuit Sensitivity: -45 dB (5.6 mV) re 1V at 1 Pa
Switch: Off/on-flat/on-roll-off
Off: battery only
Impedance: 200 ohms
Low-frequency Roll-off: 150 Hz, 12 dB per octave
Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.
Weight: 0.3 oz. (8.5 g)
Signal to Noise Ratio: 67 dB, 1 kHz at 1 Pa
Power Module: In-line
Dynamic Range (Typical): 118 dB, 1 kHz at Max. SPL
