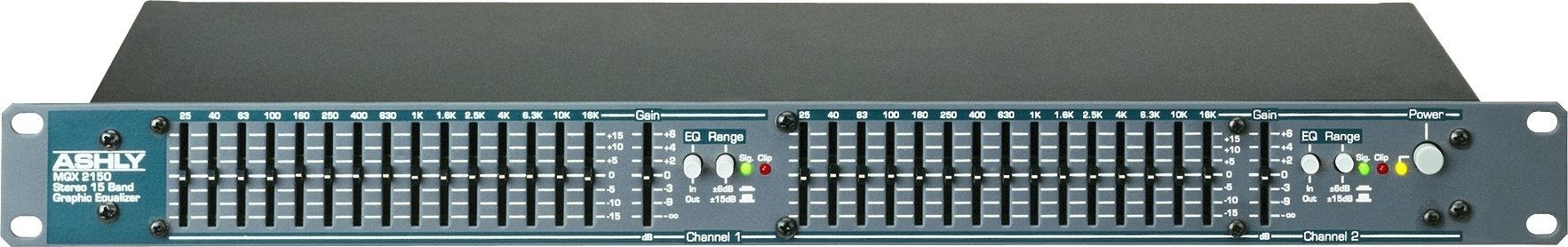

Ashly MQX2150 Dual 15-Band Graphic EQ

The MQX Series features all the performance and great sound of the legendary GQX models in an uniquely compact package. The center detented position of every fader acts as an on/off switch for its filter (to minimize any possible degradation to signal noise levels). Even the faders themselves put these MQX Series models into a class all their own. Instead of the 20mm plastic faders typically used by the competition, Ashly has selected a custom-manufactured 25mm slide fader device. The additional range and accuracy of this component allow us to offer up to +/-15 dB of boost or cut adjustment on each individual filter.

Features
Low Noise Design

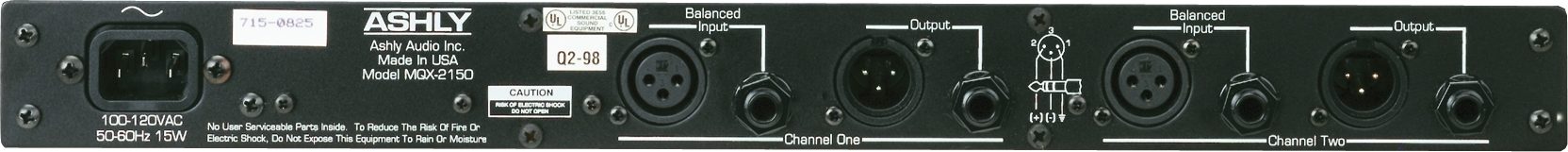

Balanced XLR, 1/4 in. TRS and Barrier Strip Screw

Terminals on Inputs and Outputs

Silent In/Out Switching

Signal Present and Clip LEDs

Precision Wein Bridge Filters

25mm Fader with Center-Off Position

Constant ioQlt Design

Switchable Low Cut Filter

Selectable 15dB or 6dB Range

5-Year Worry-Free Warranty

Technical Info

Input Type: Active Balanced

Input Impedance: 20K ohm Balanced, 10k ohm Unbalanced

Max. Input Level: +23dBu

Output Type: Pseudo-Balanced

Output Impedance: 200 ohm Balanced, 100 ohm Unbalanced

Max. Output Level: +23dBu

Connectors: 1/4 lE Phone jack, XLR and Barrier Strip

Frequency Response: ± .25dB

Total Harmonic Distortion: < .01% @ +20dBu

IM Distortion (SMPTE): < .01% @ +20dBu

Output Hum and Noise: < -92dBu (20Hz - 20kHz unweighted)

Crosstalk: NA

Filter Type: Constant Q/Wein Bridge

Bandwidth: 1/3 octave

Tolerance: ±3%

Range: ±6 or ±15 dB

Subsonic Filter: 18dB/octave @ 40Hz, switchable

Power Requirements:
Nominal Voltage: 90-125VAC, 50-60Hz, (240VAC available)

Minimum Voltage: 90VAC

Power: 10W

Shipping Weight: 8 lbs.

Dimensions (H x W x D): 1.75 x 19 x 6 in.
