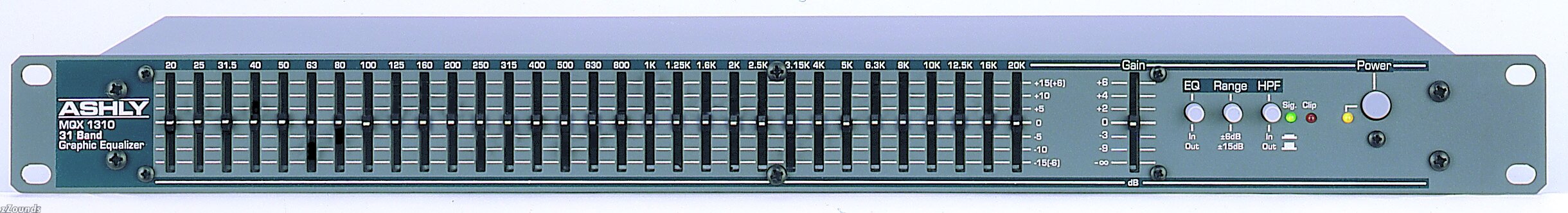

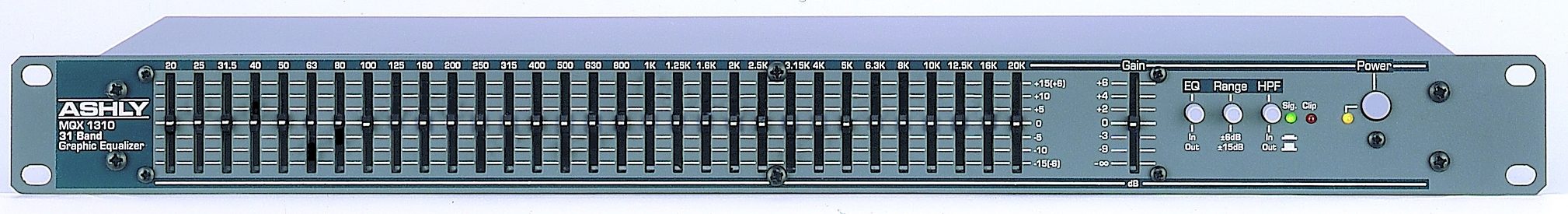

Ashly MQX1310 Equalizer

Until now, audio engineers choosing an equalizer had to give up a lot just to save a little rack space. Ashly believes that engineers should never have to compromise their standards just for the sake of miniaturization. They proudly announce the MQX Series, featuring all the performance and great sound of the legendary GQX models in an uniquely compact package.

The same exacting filter design and summing circuitry are utilized, with each filter exhibiting true constant Q response. The center detented position of every fader acts as an on/off switch for its filter (to minimize any possible degradation to signal noise levels). Even the faders themselves put these MQX Series models into a class of their own. Instead of the 20mm plastic faders typically used by the competition, Ashly has selected a custom-manufactured 25mm slide fader device. The additional range and accuracy of this component offers up to +/-15 dB of boost or cut adjustment on each individual filter (an Ashly exclusive in this class of product).

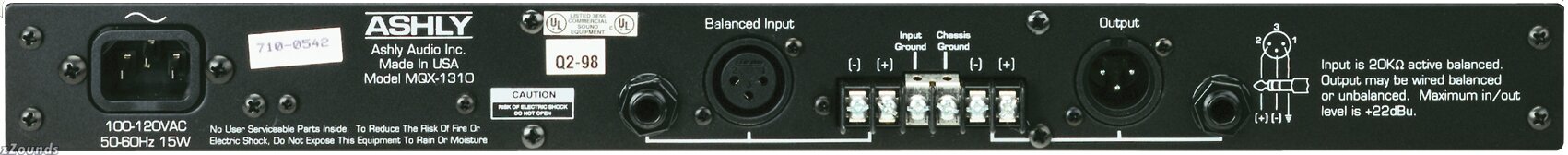

Housed in a rugged steel chassis, each model features balanced inputs and outputs, with full ground lift provisions. For those engineers looking to avoid those pesky "wall warts," you will be pleased to find that Ashly feature internal power supplies in all their products.

Of course, each MQX Series equalizer is covered by our exclusive Five Year Worry Free Warranty. Finally, a truly professional graphic equalizer in a smaller rack space package. When performance, value, and reliability are the most important considerations, the Ashly MQX Series offers the obvious solution to your limited rack space equalization situation!

Features
Low Noise Design

Balanced XLR, 1/4 in. TRS and Barrier Strip Screw

Terminals on Inputs and Outputs

Silent In/Out Switching

Signal Present and Clip LEDs

Precision Wein Bridge Filters

25mm Fader with Center-Off Position

Constant ioQlt Design

Switchable Low Cut Filter

Selectable 15dB or 6dB Range

5-Year Worry-Free Warranty

Technical Info

Input Type: Active Balanced

Input Impedance: 20K ohm Balanced, 10k ohm Unbalanced

Max. Input Level: +23dBu

Output Type: Pseudo-Balanced

Output Impedance: 200 ohm Balanced, 100 ohm Unbalanced

Max. Output Level: +23dBu

Connectors: 1/4 in. Phone jack, XLR and Barrier Strip

Frequency Response: ± .25dB

Total Harmonic Distortion: < .01% @ +20dBu

IM Distortion (SMPTE): < .01% @ +20dBu

Output Hum and Noise: < -92dBu (20Hz - 20kHz unweighted)

Crosstalk: NA

Filter Type: Constant Q/Wein Bridge

Bandwidth: 1/3 octave

Tolerance: ±3%

Range: ±6 or ±15 dB

Subsonic Filter: 18dB/octave @ 40Hz, switchable

Power Requirements
Nominal Voltage: 90-125VAC, 50-60Hz, (240VAC available)

Minimum Voltage: 90VAC

Power: 10W

Shipping Weight: 8 lbs.

Dimensions (H x W x D): 1.75 x 19 x 6 in.
