This product is no longer available at zZounds.
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

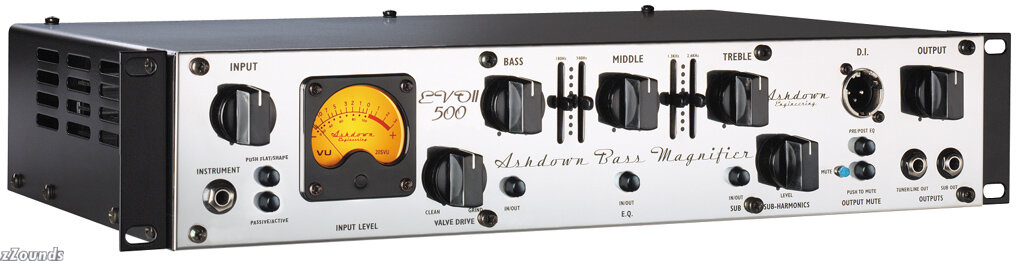

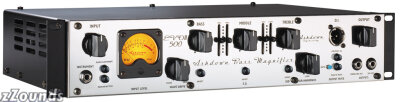

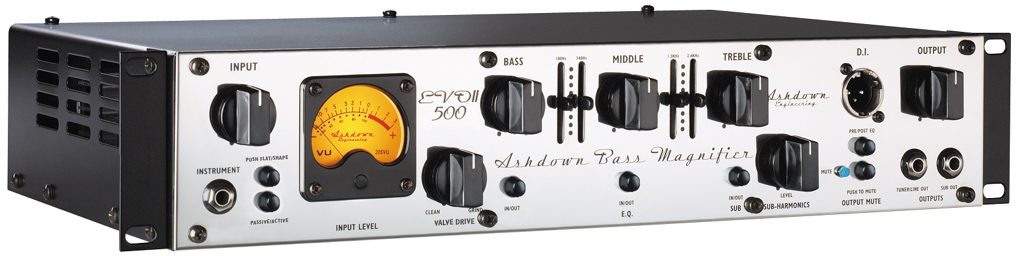

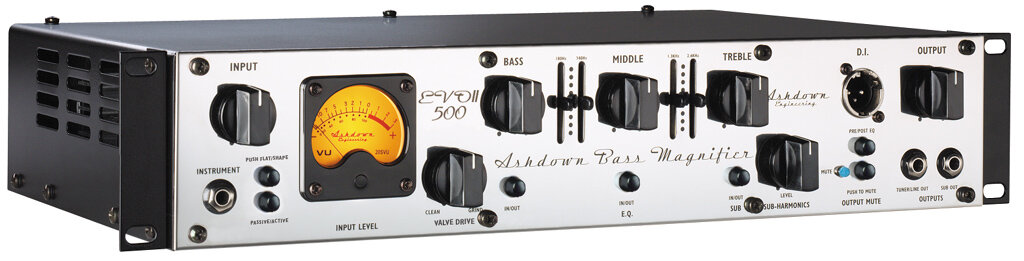

Ashdown ABM500RC EVO II Rackmount Bass Amplifier Head (575 Watts)
Chrome Rackmount version of the ABM500EII.
overview
specifications
documents
For those requiring an integrated solution, the ABM 500RC EVO II is a rack-mounting version of the standard ABM 500 EVO II Head, with a stunning, polished chrome panel. Three straightforward rotary tone controls provide 20dB of cut and boost at 60Hz, 660Hz and 5kHz, and are supplemented by two pairs of additional sliders giving 15dB cut and boost at 180Hz, 340Hz, 1.3kHz and 2.6kHz. The EQ can be switched in/out, and flat/shaped by footswitch, enabling players to go from a flat fretless sound to a boosted sound via a favorite EQ setting.
A single input is switchable for passive and active instruments with a blend of solid state and dual triode tube preamps stages which can be preset and selected by footswitch, providing access to a massive range of clean, warm and overdriven tones. Also footswitchable is the mighty Ashdown sub-harmonic generator which precisely tracks the main signal and reproduces it an octave lower. A sub-harmonic level control enables the player to add just the right amount of low-end reinforcement - everything from a subtle, thickening of the sound to unbridled, bone crushing tone.

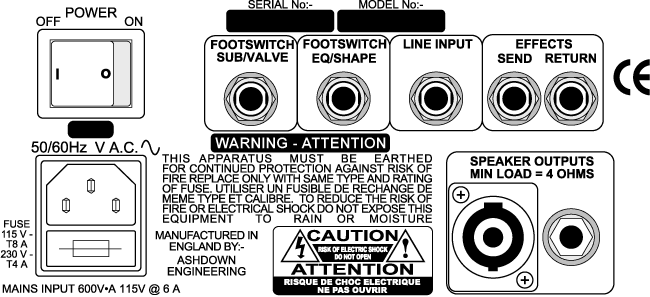

The ABM 500RC EVO II features a front-panel mounted balanced DI out with pre or post EQ switching, a sub-bass output, a tuner output, an FX loop and a line input for the connection of an external sampler or sound source. Output muting cuts the signal from the DI output but leaves the tuner output 'live', allowing the player to tune up in silence. A new upgraded power section has faster transient attack, more headroom and even less noise.
Specifications
Power Output: 575 watts
High Instrument Input Impedance: 3.9m Ohms, input range 150mV - 20mV p-p
Low Instrument Input Impedance: 10k Ohms, input range 300mV - 40V p-p
Stereo Line Input Impedance: 22k Ohms, input level 0dBu nominal
Effects Return Impedance: 22k Ohms, input level 0dBu Nominal
Tuner Output Impedance: 22k Ohms, level 0dBu nominal
Sub Output Impedance: 1k Ohms, level 0dBu Nominal
Effects Send Impedance: 22k Ohms, level 0dBu nominal
DI Output: 600 Ohms balanced, level 0dBu nominal
Speaker Outputs: Minimum impedance 4 Ohms
Shape (Push Flat): +8dB @ 50Hz & 4kHz, -8dB @ 400Hz, filter slope - 6dB/octave
Bass: 15dB @ 45Hz
Middle: 15dB @ 660Hz
Treble: 15dB @ 7kHz shelving
Slider 1: 15dB @ 110Hz
Slider 2: 15dB @ 340Hz
Slider 3: 15dB @ 1.3kHz
Slider 4: 15dB @ 2.6kHz
Frequency Response: -3dB at 17Hz and 30kHz
Power Requirements: 230 / 115V
Height: 90mm (3.5 in.)
Width: 483mm (19 in.)
Depth: 267mm (10.5 in.)
Weight: 14kg (30.9lbs)
Power Output: 575 watts
High Instrument Input Impedance: 3.9m Ohms, input range 150mV - 20mV p-p
Low Instrument Input Impedance: 10k Ohms, input range 300mV - 40V p-p
Stereo Line Input Impedance: 22k Ohms, input level 0dBu nominal
Effects Return Impedance: 22k Ohms, input level 0dBu Nominal
Tuner Output Impedance: 22k Ohms, level 0dBu nominal
Sub Output Impedance: 1k Ohms, level 0dBu Nominal
Effects Send Impedance: 22k Ohms, level 0dBu nominal
DI Output: 600 Ohms balanced, level 0dBu nominal
Speaker Outputs: Minimum impedance 4 Ohms
Shape (Push Flat): +8dB @ 50Hz & 4kHz, -8dB @ 400Hz, filter slope - 6dB/octave
Bass: 15dB @ 45Hz
Middle: 15dB @ 660Hz
Treble: 15dB @ 7kHz shelving
Slider 1: 15dB @ 110Hz
Slider 2: 15dB @ 340Hz
Slider 3: 15dB @ 1.3kHz
Slider 4: 15dB @ 2.6kHz
Frequency Response: -3dB at 17Hz and 30kHz
Power Requirements: 230 / 115V
Height: 90mm (3.5 in.)
Width: 483mm (19 in.)
Depth: 267mm (10.5 in.)
Weight: 14kg (30.9lbs)
zZounds is an
authorized dealer of
authorized dealer of
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
"Good quality shipments and I always love your prices. My order shipped free and with no tax! You have my vote, zZounds!" - customer on August 14, 2010
Ashdown ABM500RC EVO II Rackmount Bass Amplifier Head (575 Watts) Reviews
14 People rated this product :
9 out of 10
Read all 2 Ashdown ABM500RC EVO II Rackmount Bass Amplifier Head (575 Watts) reviews
9 out of 10
zZounds has verified that this customer bought this product from us.
"This Brit-Head Rocks!"
Feature:
EQ's are simple and sensitive. Valve Drive gives it that tube-amp sound, and it sounds pretty dang real to me. I really like the Sub-Harmonics feature- really sounds great on grundge stuff. I'm getting a 5-string axe pretty soon. Looking forward to hearing the low B through this amp and the 2 x 15" Bergantinos. Another nice touch: this amp has TWO cooling fans, they are very quiet, so I doubt I'll ever have to worry about over-heating issues, especially since it's rack-mounted. Saved the best for last... that way cool Vu Meter!
Quality:
So far so good. Only the two issues mentioned above brings this a 9 instead of a 10. The rack-mount has a chrome face, which looks great in the rack along with my Korg tuner...
Value:
I give it a 10 because, based on similar amps I tried, this one definitely gave me the best value for my buck...
Desirability:
I love the look... especially the Vu Meter!!! That alone pushed me over the edge. The only other Ashdown head that looks cooler than mine is the Mark King Signature model. It's a stunning red color! Almost went that direction, but I wanted the features of my EVO-II.
Sound:
I could almost give this a 10. It's a very powerful amp- clean when you want it to be; booming, rib rattling lows, warm mids, and bright, edgy highs. You can easily make it sound like a 60's tube amp. I play it through a Bergantino NV215 (2 x 15" and a 6" mid-range). This cabinet is most excellent, and handles 600 watts. This amp pushes air through that cab effortlessly. My guitarist plays a double-stack, 100 watt Marshall (usually uses only one cab, though), and I hold-up the bottom end without breaking a sweat. I recently obtained this amp, and the guys are very happy now... especially our drummer. Now our singer can't say he's banging his drums too hard... the bass is in the building now!
Support:
No issues yet...
Overall:
I expect to hang onto this one for a long time. If it were lost, or stolen, I would most likely replace it the same...
EQ's are simple and sensitive. Valve Drive gives it that tube-amp sound, and it sounds pretty dang real to me. I really like the Sub-Harmonics feature- really sounds great on grundge stuff. I'm getting a 5-string axe pretty soon. Looking forward to hearing the low B through this amp and the 2 x 15" Bergantinos. Another nice touch: this amp has TWO cooling fans, they are very quiet, so I doubt I'll ever have to worry about over-heating issues, especially since it's rack-mounted. Saved the best for last... that way cool Vu Meter!
Quality:
So far so good. Only the two issues mentioned above brings this a 9 instead of a 10. The rack-mount has a chrome face, which looks great in the rack along with my Korg tuner...
Value:
I give it a 10 because, based on similar amps I tried, this one definitely gave me the best value for my buck...
Desirability:
I love the look... especially the Vu Meter!!! That alone pushed me over the edge. The only other Ashdown head that looks cooler than mine is the Mark King Signature model. It's a stunning red color! Almost went that direction, but I wanted the features of my EVO-II.
Sound:
I could almost give this a 10. It's a very powerful amp- clean when you want it to be; booming, rib rattling lows, warm mids, and bright, edgy highs. You can easily make it sound like a 60's tube amp. I play it through a Bergantino NV215 (2 x 15" and a 6" mid-range). This cabinet is most excellent, and handles 600 watts. This amp pushes air through that cab effortlessly. My guitarist plays a double-stack, 100 watt Marshall (usually uses only one cab, though), and I hold-up the bottom end without breaking a sweat. I recently obtained this amp, and the guys are very happy now... especially our drummer. Now our singer can't say he's banging his drums too hard... the bass is in the building now!
Support:
No issues yet...
Overall:
I expect to hang onto this one for a long time. If it were lost, or stolen, I would most likely replace it the same...
Style of Music: You name it, I can play it...
10 out of 10
zZounds has verified that this customer bought this product from us.
"ASHDOWN, think your playin' with kids?!!!"
Desirability:
listen to this thing!!!! and look how cool it looks on stage with all the lights bouncing off the chrome!!!!!!!
Overall:
kickin' ass!!!!
listen to this thing!!!! and look how cool it looks on stage with all the lights bouncing off the chrome!!!!!!!
Overall:
kickin' ass!!!!
Style of Music: rock, anything
