Ashdown Acoustic Radiator 1 Acoustic Amplifier (100 Watts, 1x8 in.)

100-watt bridged power section. 8 in., dual tweeter array drriver. Compact and portable.

This product is no longer available at zZounds.

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

Additional Images:

Main
Main
Front Panel
Front Panel
Back Panel
Back Panel

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!
Description

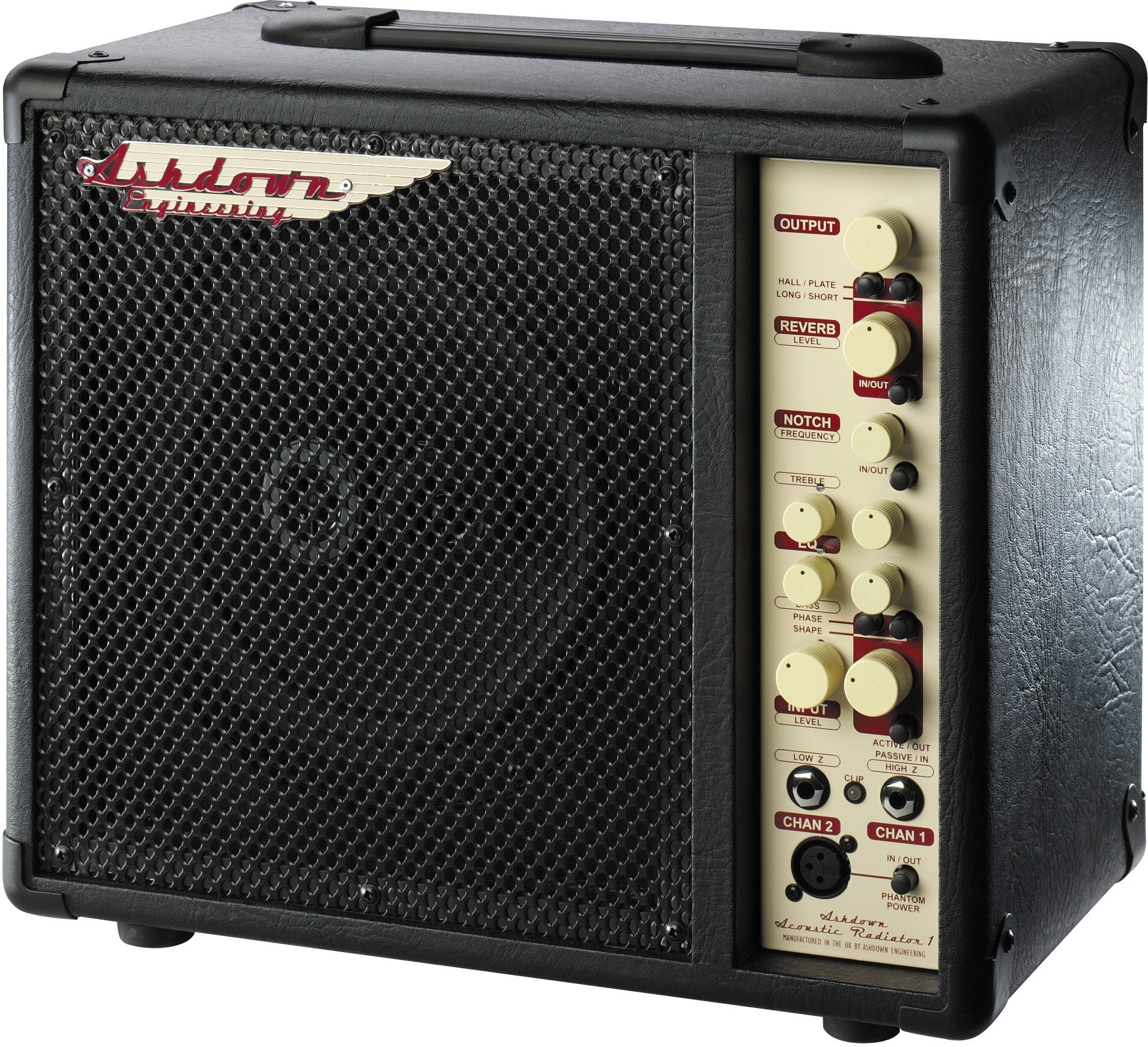

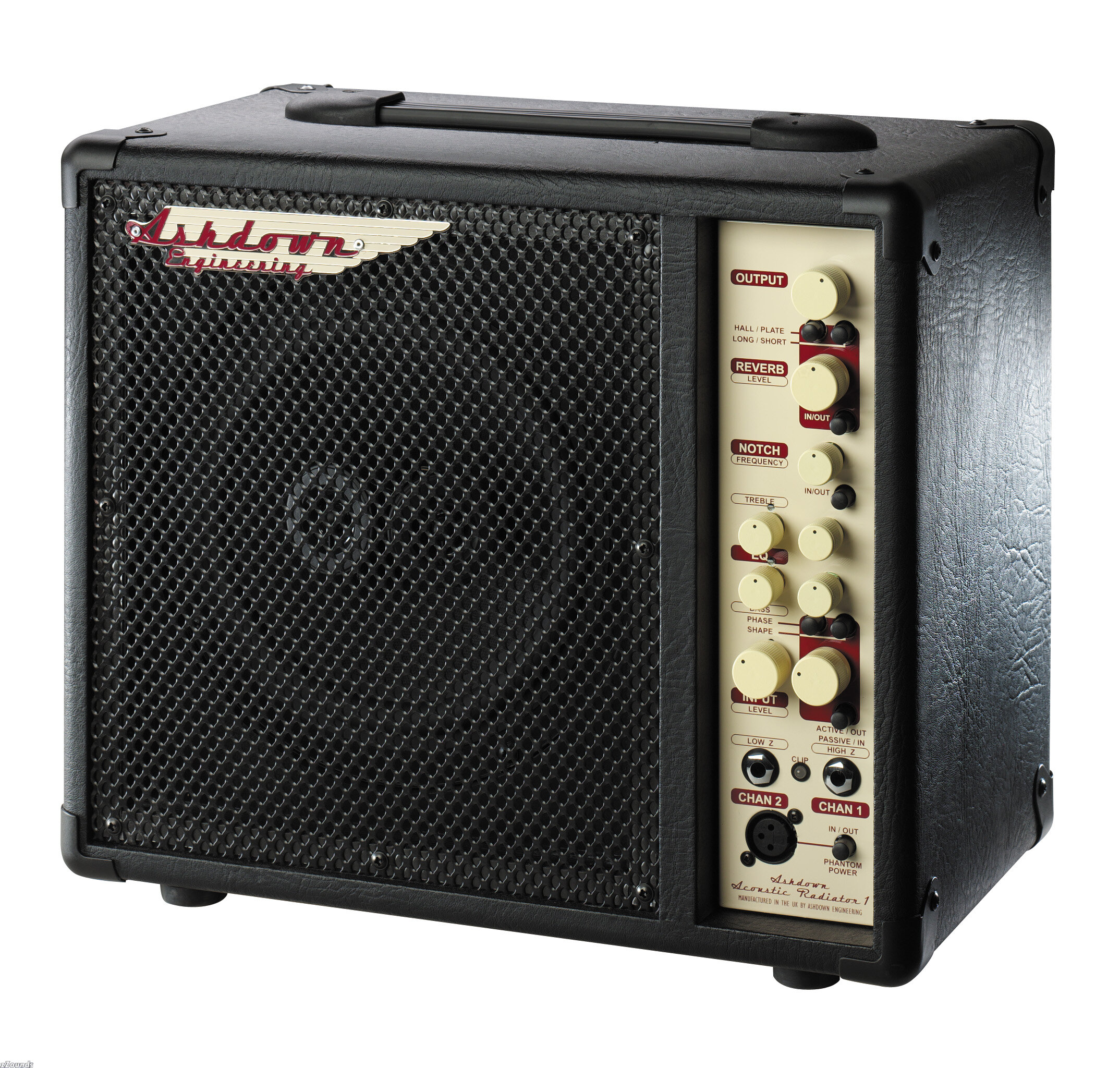

For the acoustic musician on the move, the Ashdown Acoustic Radiator 1 combines a 100 Watt bridged power section, a fully-featured preamplifier and an 8 in., dual tweeter array driver in a compact, portable and beautifully designed cabinet. There are 2 channels with facilities including a switchable input for active and piezo pick-ups with a phase switch for the elimination of standing wave feedback, an XLR mic input with switchable phantom power, bass and treble controls with a shape switch providing instant access to an optimum acoustic guitar Eq setting, a switchable notch filter with a variable frequency control to tune out feedback, and an all-new digital reverb. Rear panel facilities include a balanced XLR DI output for recording use, or for connection to a PA system, an FX loop and a line / link output.

Technical Info

Low Input: Impedance 10 Ohms / Input range 150mV - 8V p-p

High Input: Impedance 10 Ohms / Input range 200mV - 15V p-p

Effects Return: Impedance 22kOhms / Input level 0dBu nominal

Tuner Output: Impedance 22kOhms / Level 0dBu nominal

Effects Send: Impedance 22kOhms / Level 0dBu nominal

DI Output: 600 Ohms balanced / Level -20dBu nominal

Line Output: Impedance 10kOhms / Level 0dBu nominal

Power: 60W RMS

Output Impedance: 8 Ohms

Speaker Configuration: 1 x 8" with dual tweeter array

Height: 284mm (11.2 in.)

Width: 364mm (14.3 in.)

Depth: 175mm (6.9 in.)

Weight: 5.9kg (13lbs)
