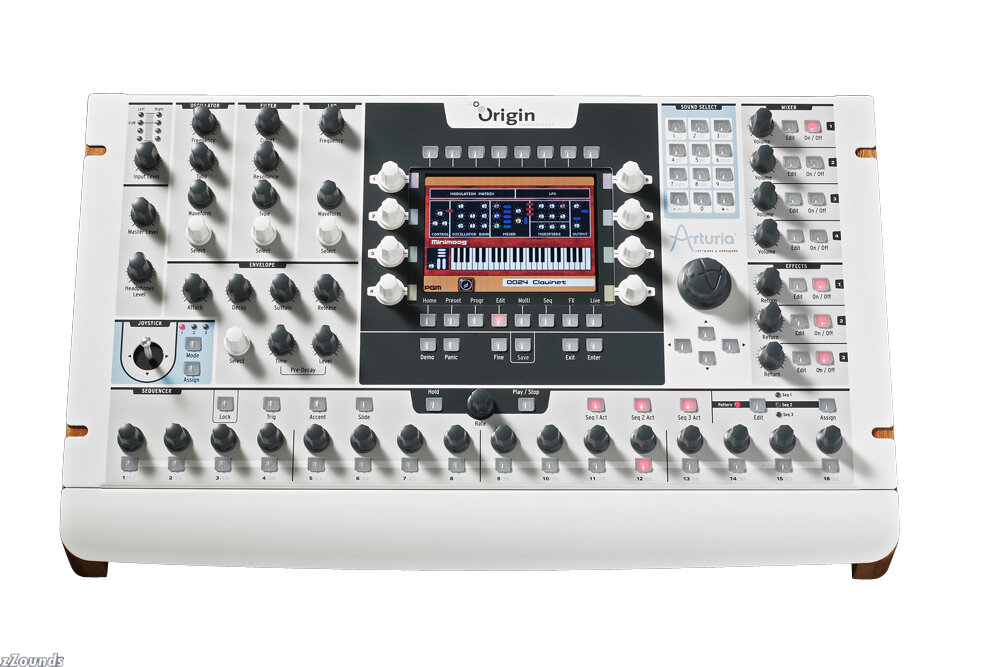

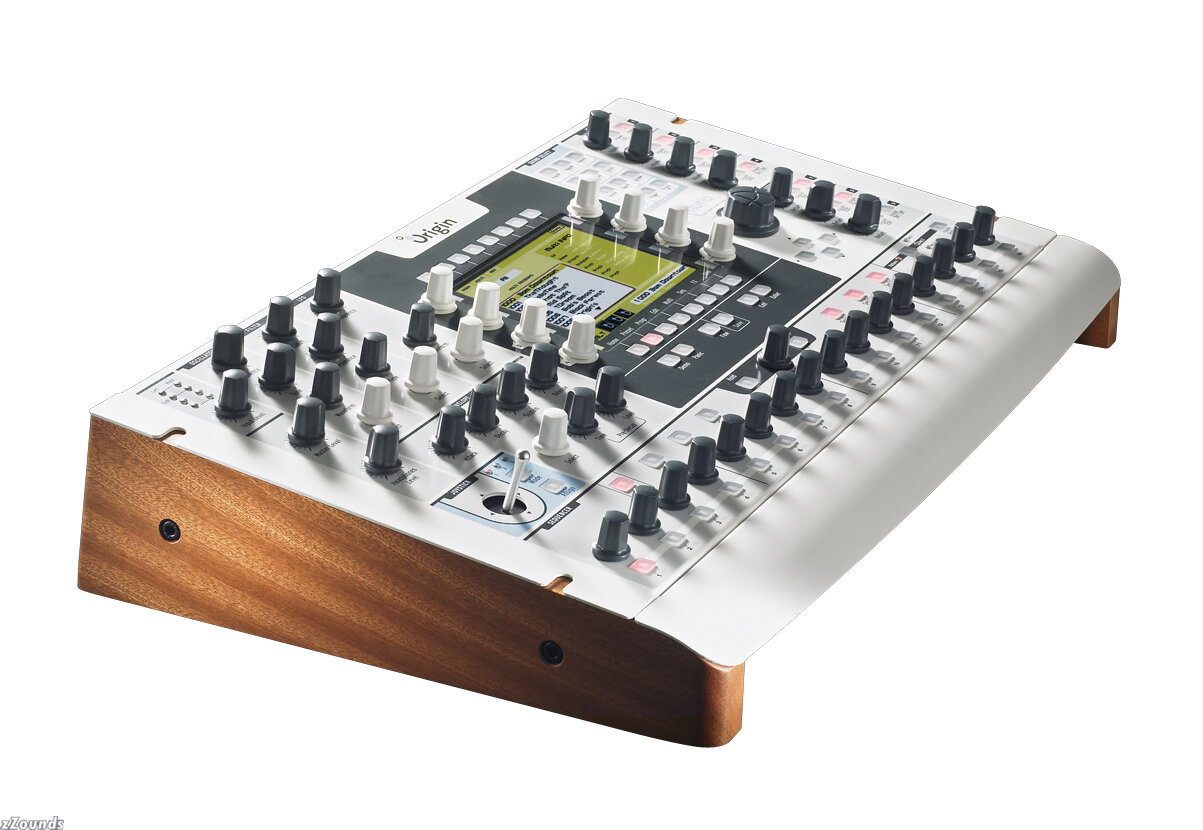

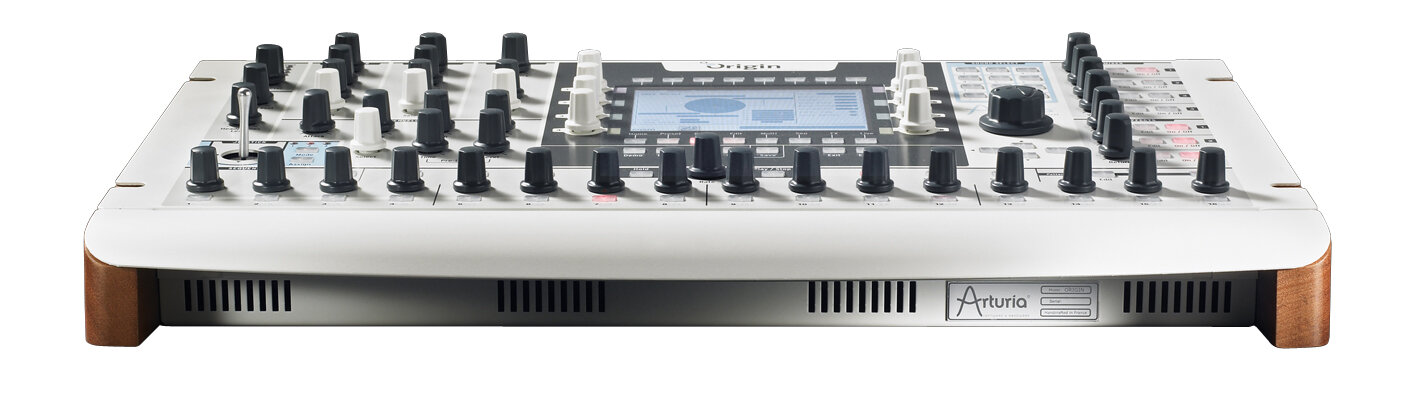

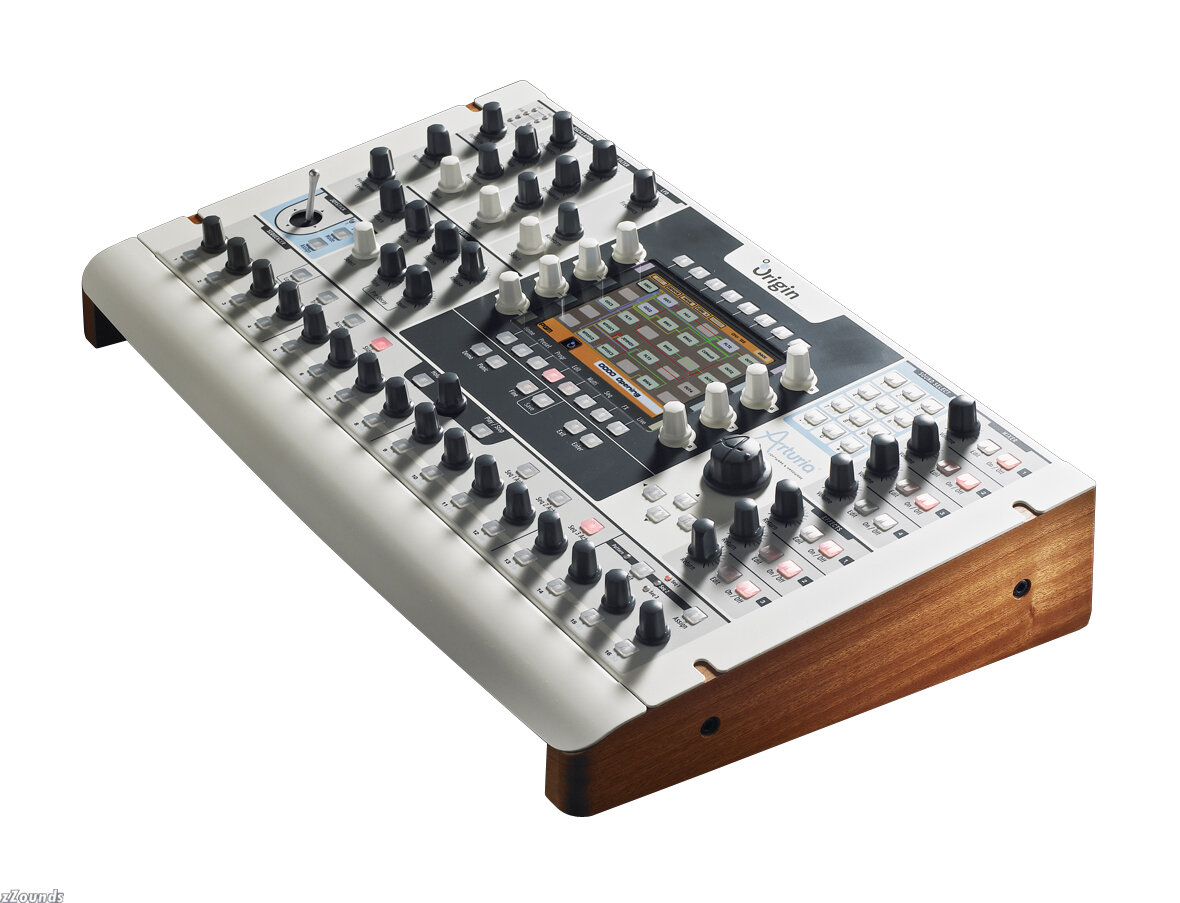

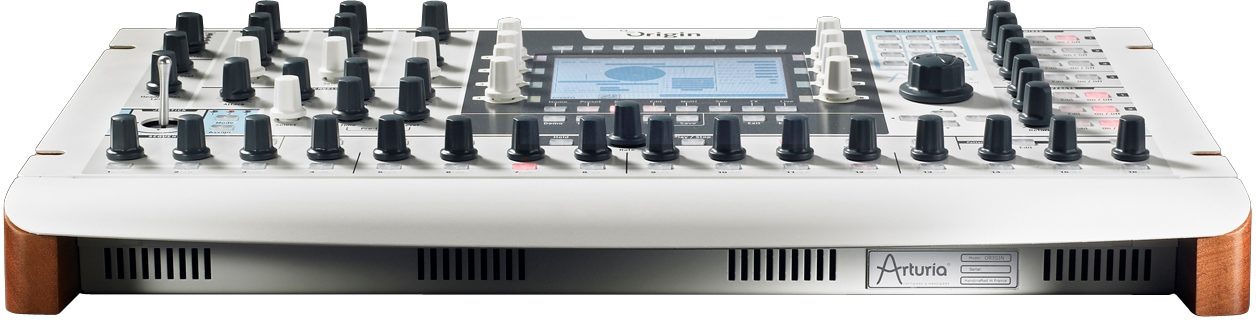

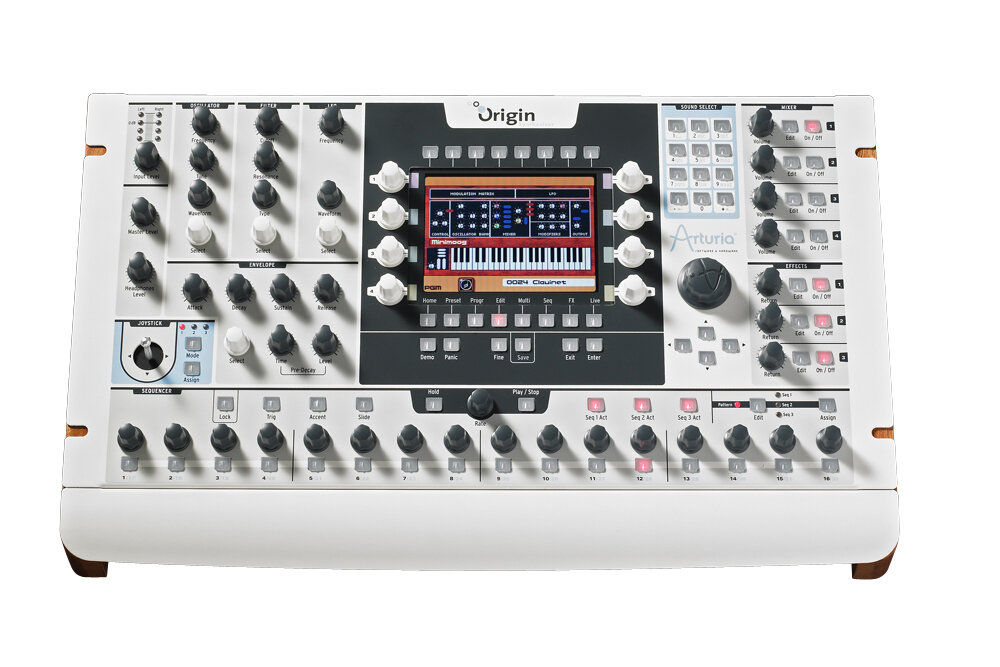

Arturia Origin Virtual Modular Synthesizer

Get Arturia's Origin Synthesizer and get the most powerful synthesizer on the market. The Origin goes much further than you've ever seen a synth go. It surpasses the traditional definition of synthesizers. It is a hardware DSP system that houses several synthesizers in one machine. Some of these synths come from the past, such as the Minimoog, some are totally new and innovative.
Loaded with modules extracted from the best synthesizers of all time, Origin lets you combine these modules and take advantage of the additional possibilities put onboard. The result: a new type of sound accessible through an extremely intuitive interface.

Features
- Create your own synthesis patch by connecting independent modules

- Modules include; Moog Modular, Yamaha CS-80, the Roland Jupiter-8 and others

Superb audio quality with TAE engine in a hardware chassis (24 bits/44.1 kHz)

- High-Quality Real time Effects: Phaser, Chorus, Delay, Reverb, Distortion, EQ and Bit Crusher

- 500 presets created by a selection of international sound designers

- 16/32 step advanced sequencer, program three sub-sequences at a time even live!

- Multi mode allows you to play 4 instruments at a time

- Creative Macros, advanced LFO's, innovative modulation sources and variable Joystick modes

- Advanced Preset browser

- Analog Audio Connectivity: 2 audio ins, 10 audio outs

- Digital Audio: SPDIF out, USB 2.0

- Built-in expression pedal and footswitch control inputs

- MIDI: In, Out, Thru or USB 2

- Up to 32 voices of polyphony

- Also a MIDI controller offering 33 encoders, 21 potentiometers and 1 joystick

- Ergonomic hardware design and quality manufacturing in France and Germany

- Connect to a Mac/PC to Archive presets, exchange data and upgrade firmware

- 160 pages manual in English

Technical Info

Specifications
Operating sampling frequency: 44.1 kHz

Modes: Program / Multi

Sound generation system: TAE

Polyphony: 32 voices

Synth (modular structure):
- Up to 9 oscillators (emulations from Minimoog, ARP 2600, CS-80, JP8, ProV)
- Up to 4 wavetables oscillators
- Up to 4 filters (switchable multimode filters including analog emulations
- 1, 2 & 4-poles LP, HP, BP and Notch modes
- Up to 4 output VCAs
- Up to 5 mixers (5 Minimixer and 1 Joystick mixer)
- 1 RingMod
- 2 faders
- 1 BodShifter
- Up to 4 poly LFO and 2 mono LFO mono
- Up to 8 ADSR Envelopes modules
- 1 Galaxy module
- 1 2D envelope

Minimoog template:
- Up to 3 oscillators; one 4-poles LP resonant filter, one mixer
- 2 envelopes; one LFO and one modulation matrix

Effects: 5 including: chorus, delay, reverb, distortion, dual phaser

Effects Structure: 3 effect slots per Program with serial and parallel structures

Step sequencer:
- Structure: Three 32 steps free assignable sub-sequences
- Play modes: One shot, loop (forward, backward; forward and backward)

Arpeggiator modes: Forward, backward, forward and backward, random

Programs: 1000 programs (400 Factory and 600 User Programs)

Program structure:
- 1 synth modular or template structure
- 3 effect slots, 1 sequence

Multi: 256 (100 Factory and 156 User multis)

Multi structure/modes: Up to 4 Programs slots with Layering, split and MIDI

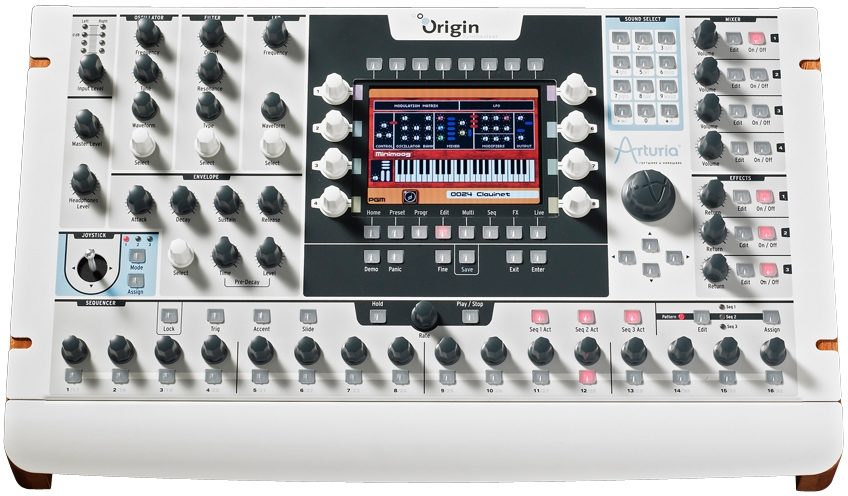

Controllers: 21 potentiometers, 33 encoders, 1 joystick

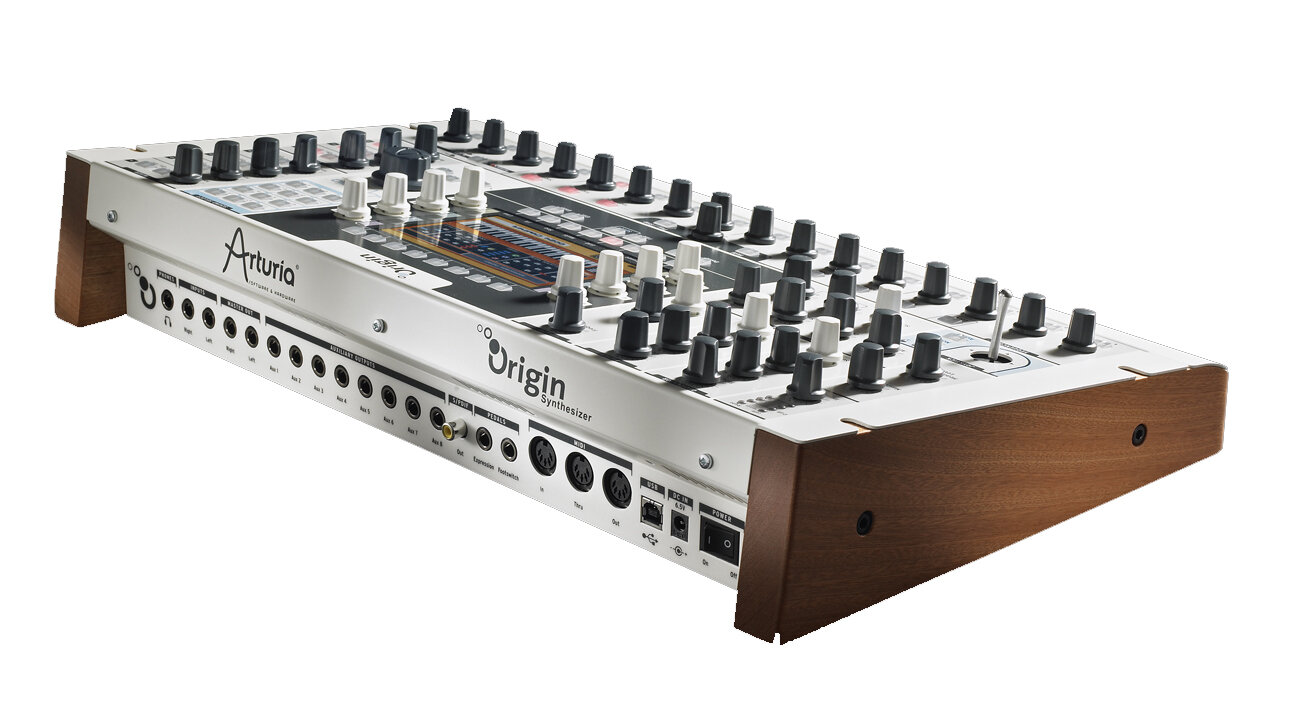

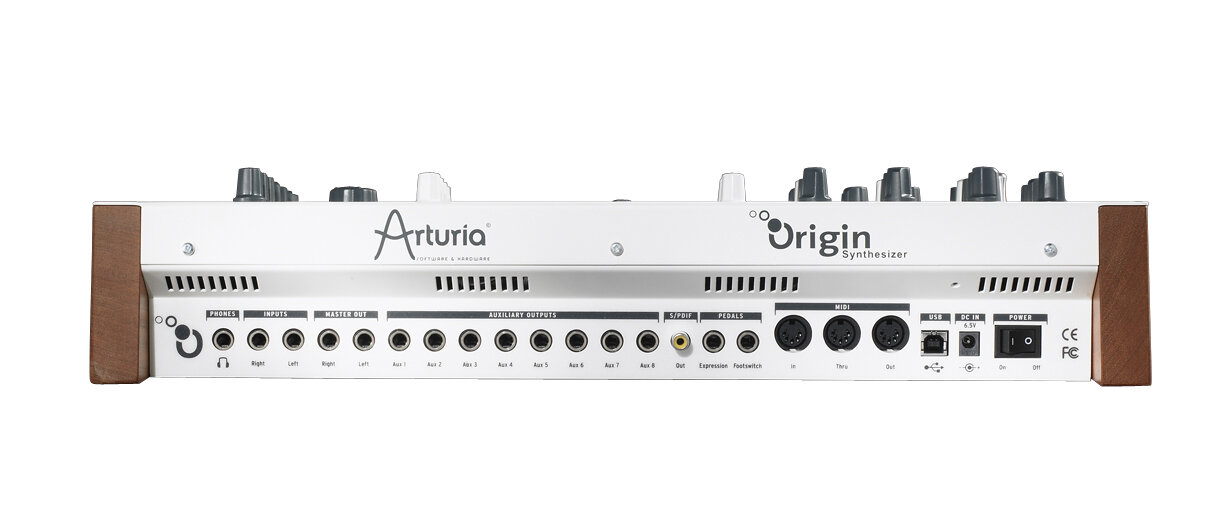

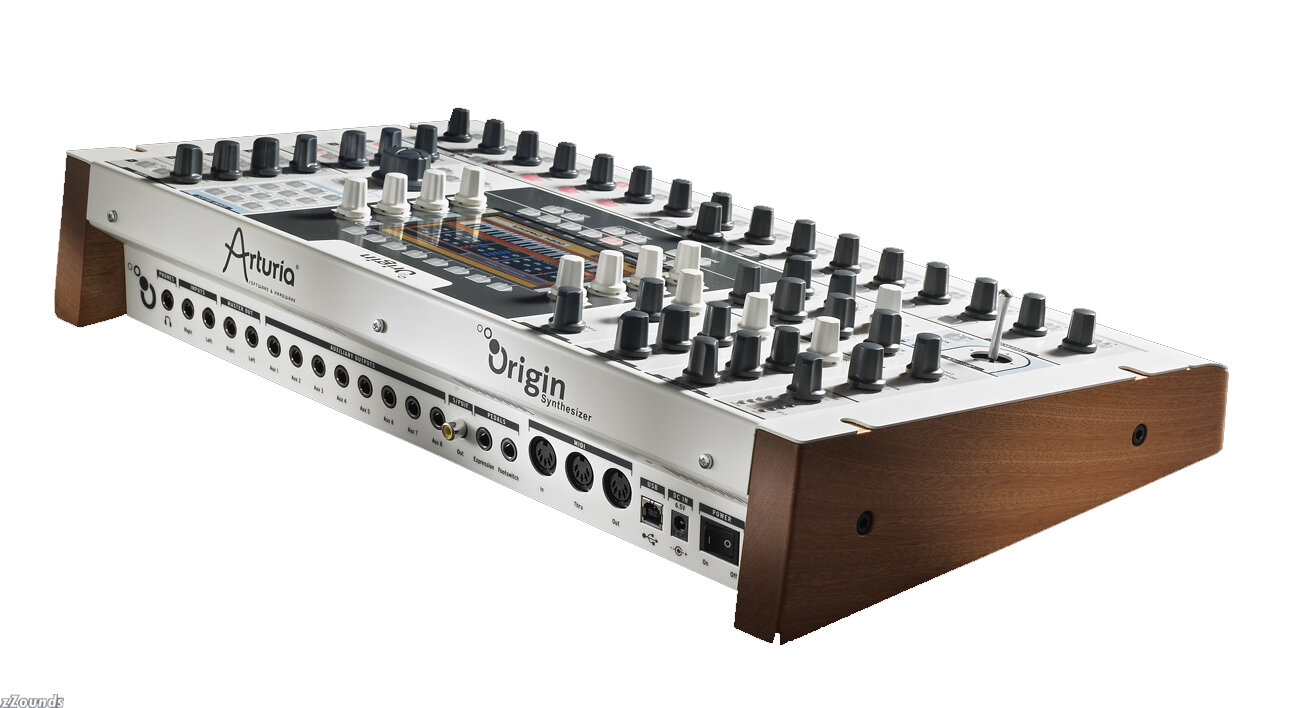

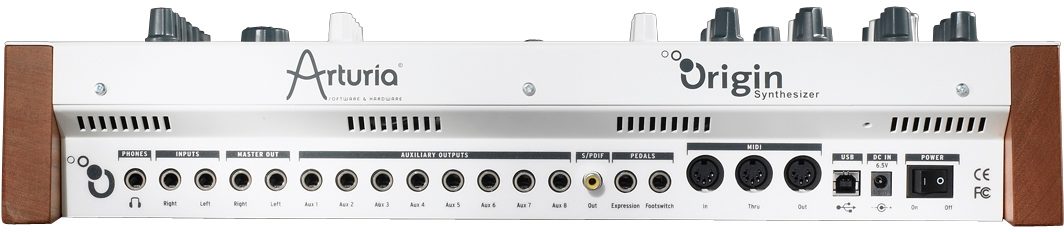

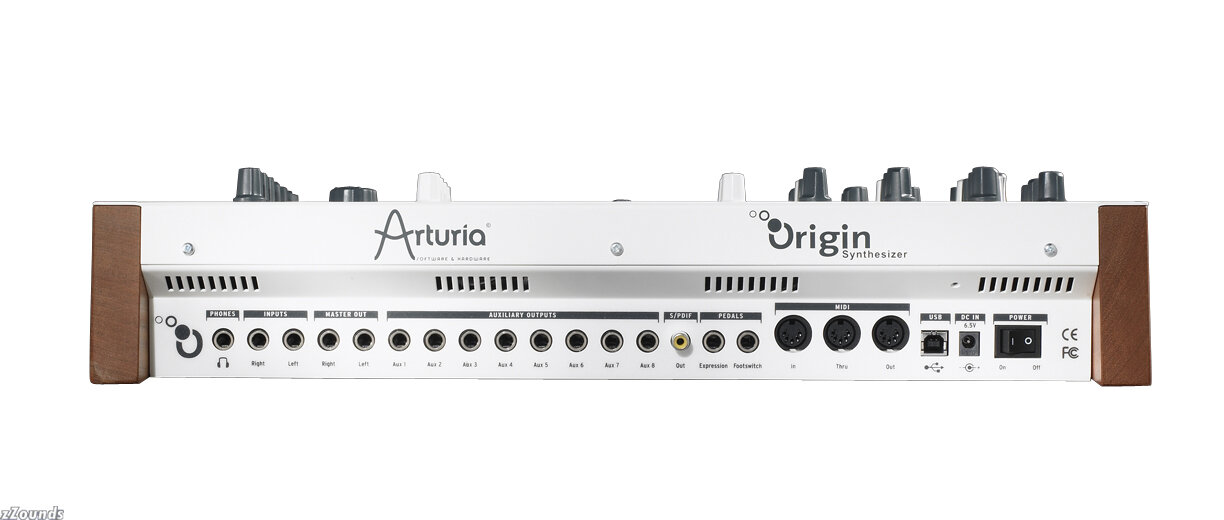

Audio inputs: Two 1/4 inch jacks

Audio outputs:
- 1 headphone output: 1/4 inch stereo jack
- 2 main audio outputs: 1/4 inch balanced jacks
- 8 individual auxiliary outputs: 1/4 inch balanced jacks

Control inputs: 1/4 inch balanced jacks
- 1 foot controller
- 1 footswitch controller

MIDI: IN, OUT, THRU connectors, USB 2 connector

Main screen: 320 x 236 pixels LCD with 32,768 colors

Power supply: 6.5VDC 3.85A

Dimensions (WxDxH): 19 x 11.4 x 3.4 inches (482 x 290 x 87 mm)

Weight: 17.6 lbs (8 kg)

System Requirements
Required Operating System:
- Windows: Windows XP/Vista
- Mac OS X: Mac OS X 10.3.9 or higher and Universal Binary

Required configuration:
- PC/Windows: 512 MB RAM; 1,5 GHz CPU
- Mac OS X : 512 MB RAM; 1,5 GHz CPU

General Requirements: USB port required
