Three Powerful New Additions to Alesis' Already Popular RA Series
With their rugged construction, striking good looks - among the first examples of Alesis' groundbreaking new approach to industrial design - and a long list of features, the new RA Series will quickly find a home in project and commercial recording studios and broadcast and post-production control rooms around the world.
Popular Prices, Powerful Performance
Even with the increasing use of powered speakers, many popular speakers and headphones still require external amplification. These new amps are designed to provide more power and better performance at a lower overall cost per watt than even our own RA100 - as well as any other competing models. As a result, they can more closely match the power needs of virtually any passive speaker or studio monitor, offering a significantly better fit for an exceptionally wide range of budgets, applications, and customers. And providing a crisp, clean signal for outstanding performance and extended speaker life.
Cool, Quiet Operation
Designed for studio use, each RA Series amp incorporates advanced convection cooling for heat dissipation. The result is long, stable operation unaffected by heat-related complications, without the added distraction and annoyance of fan cooling. And eliminating the danger of losing hard-to-hear details due to noisy amp performance.
The New Leaders in Affordable Studio Amplification
Three new RA Series amps - RA150, RA300, and RA500 - providing a bold and powerful answer to the question, "What's next from Alesis" Combined with our popular RA100, they offer a wide range of high-quality, popularly priced solutions for virtually any - and every - situation.
Technical Info

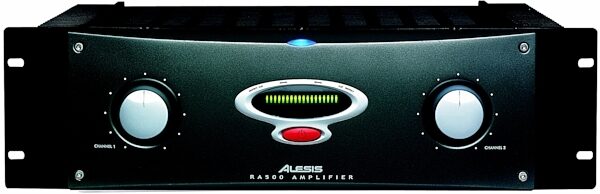

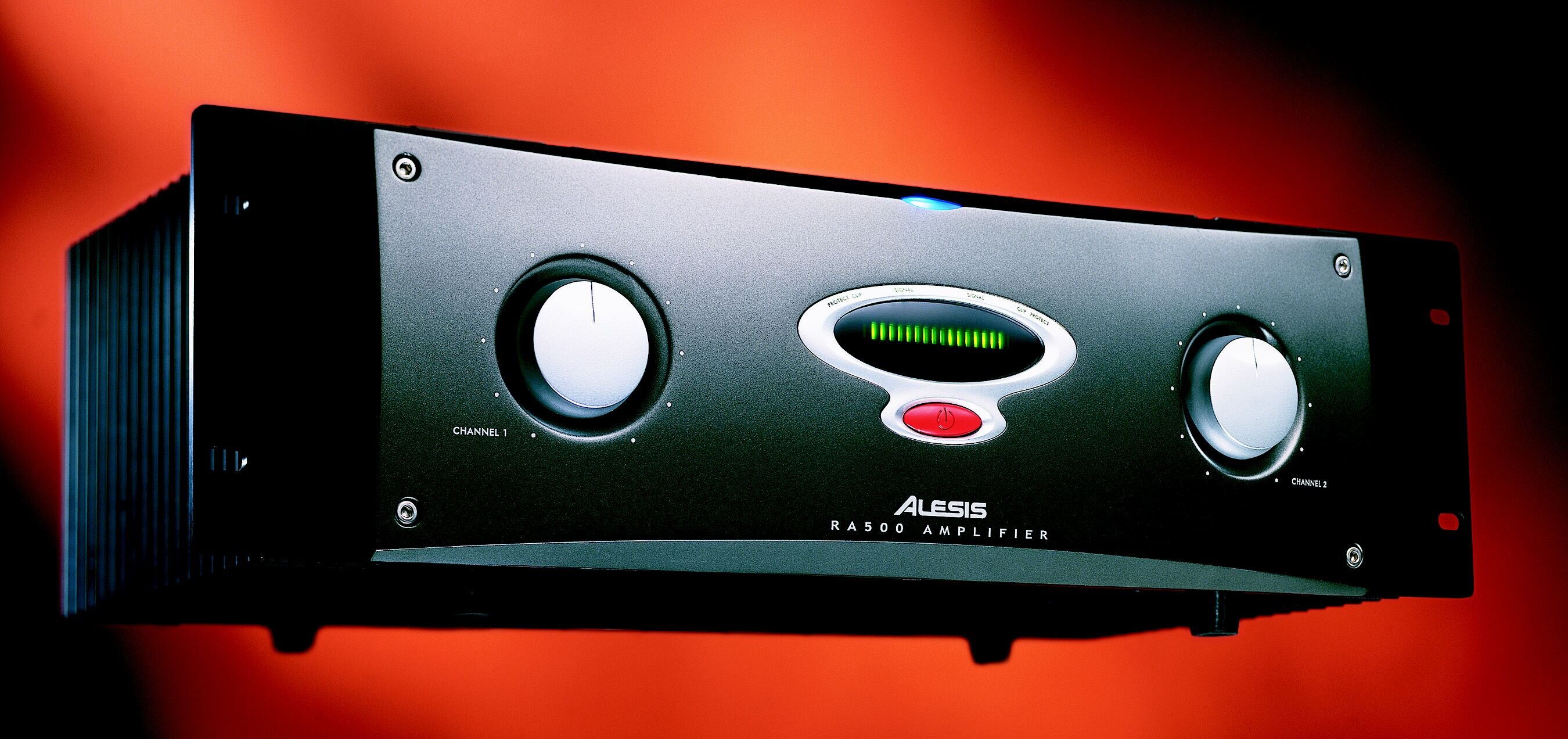

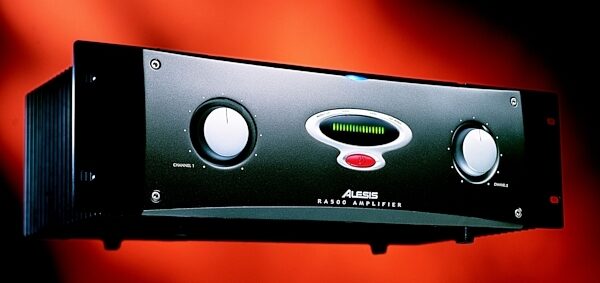

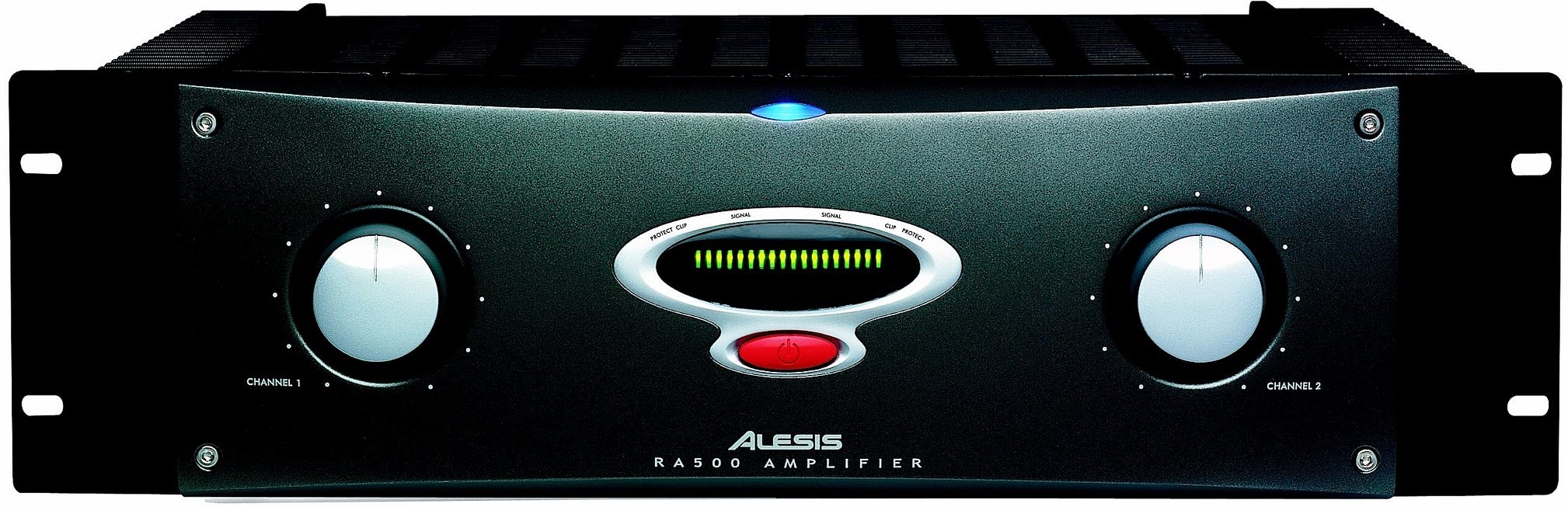

RA500
Height: 3 RU
Rated output:
4 ohms: 250 watts RMS per channel
8 ohms: 150 watts RMS per channel
8 ohms: 500 watts RMS, bridged mode
Signal to Noise Ratio: >105dB
Frequency Response: 10Hz - 70kHz +0, -3dB
Distortion: < 0.02% @ 4ohms, 20Hz - 20kHz
Input Sensitivity: +4dB for rated output
Crosstalk: -85dB, 1kHz
Output offset: +/- 50 mV, Servo controlled
Inputs: 1/4" TRS and RCA
Outputs: Binding Posts
