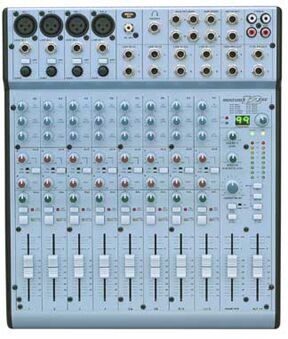

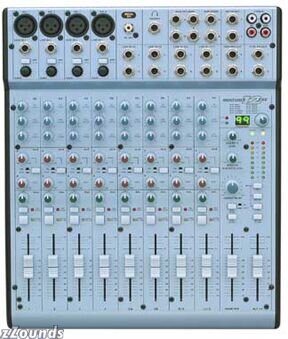

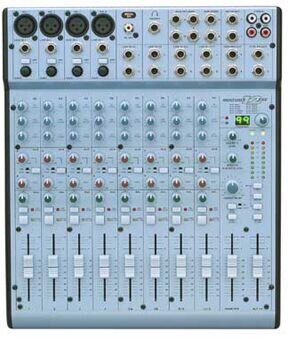

Who said you can't take it with you? Our MultiMix line combines studio-quality components and effects processing with rock-solid construction for the ultimate in compact mixers - all at prices wandering musicians will love.
MultiMix FX mixers are the most compact, affordable, high-quality mixers with built-in 28-bit digital effects and choice of configurations.
MultiMix FX mixers are perfect for musicians and engineers needing a portable, flexible mixer with digital effects for sound reinforcement, rehearsals, studio recording, sub-mixing, field recording, and digital audio/video computer workstation mixing.
Embrace your multiple personalities: The Alesis MultiMix product line.
Features:
Compact, ultra-affordable 12-channel mixer
4 high-gain mic/line (XLR and 1/4" balanced) inputs with phantom power, 4 stereo balanced 1/4" line inputs
100 onboard preset effects including reverbs, delays, chorus, flanging, pitch, and multieffects
2 aux sends (aux 1 is pre/post-fader switchable, aux 2 is post-fader and can send to onboard or external effects), 2 stereo aux returns, 2-track stereo RCA in and out
Separate 1/4" balanced main and monitor outs, 44.1kHz S/PDIF RCA digital out, headphone out
Separate pan/balance, pre-fader listen/solo in place, and mute/buss switches for simple operation
3-band EQ per channel with high/ low shelving and mid bandpass/reject
8-segment LED stereo meters
Smooth 60mm faders
Technical Info
Connections
All 1/4 in. TRS except as noted:
Mic in x 4 (XLR)
mono line in x 4
stereo line in x 4
aux sends x 2
stereo aux returns x 2
stereo main out
stereo control room out
stereo alt 3/4 out
headphone out
2-track stereo in / out (RCA)
44.1kHz S/PDIF digital out (RCA).
Audio Specifications
Frequency response: 20Hz22kHz +/-0.5dB.
Dynamic range: >100dB
Distortion: <0.01%
THD+N (mic/line to L/R master out)
Maximum gain: 60dB (mic in to L/R master out)
Maximum output: +14dBu main L/R, +5dBV 2-track outs
Power
18V AC external transformer
Dimensions
(H x W x D): 3.75 in. x 11.25 in. x 13.25 in. (95mm x 286mm x 337mm)
Weight
7lbs (3.2kg)
