The MicroVerb4 is designed to provide a wide variety of great-sounding, easy-to-use effects for small studios, engineers, and performing musicians. The key to MicroVerb 4's power is in its simplicity. It offers 200 programs that include everything from high-quality reverb, delay, chorus, and flange to exciting multi-effects, and more.
To customize your programs, 2 front panel knobs allow for quick, easy, user-storable edits, or use its MIDI inputs for control over program changes and modulation. You can then save your edited programs in the 100-space user program bank. Even though it's affordable and easy to use, the MicroVerb 4 offers the superb audio quality that you should expect from every Alesis processor.
Technical Info
Frequency Response: 20Hz-20kHz +1/-3 dB
Dynamic Range: 90dB
Harmonic Distortion: .02 @ 1kHz @ 0dBV
A/D-D/A Conversions: Conversion Scheme- 18-bit Delta Sigma, Processor Speed- 3 Million instructions per second, Processor Memory- 64K x 16 bit, Sampling Frequency- 46.875kHz
Inputs: Number of Channels- 2, Nominal Level +4dBV, Maximum Level +20dBV, Impedance 1M per channel in stereo
Outputs: Number of channels- 2, Matrixed Stereo, Maximum Level +14dBV (Effect), +20dBV (Direct), Impedance 220ohms

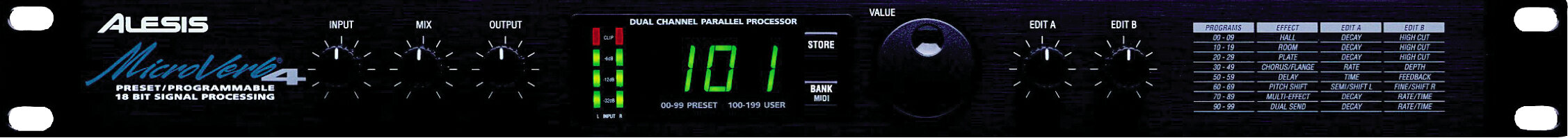

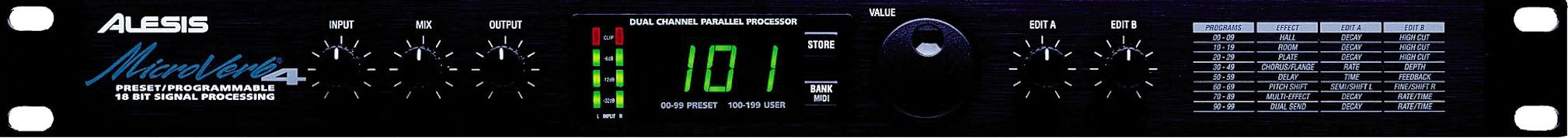

Front Panel: Controls- Input Level, Mix Level, Output Level, Program Selection, Edit A, Edit B, Indicators- LED Display, Dual LED Meters
Rear Panel:
Input Left and Right 1/4 inch
Output Left and Right 1/4 inch
Footswitch 1/4 inch Stereo
MIDI In / MIDI Out / Thru
Power- 5.5mm Barrel Jack
Power Requirements: 9 VAC, 5 Volt Amps external Transformer, UL and CSA Approved
Dimensions: (W x H x D) 19 x 1.75 x 4 in.
Weight: 2.6 lbs.
