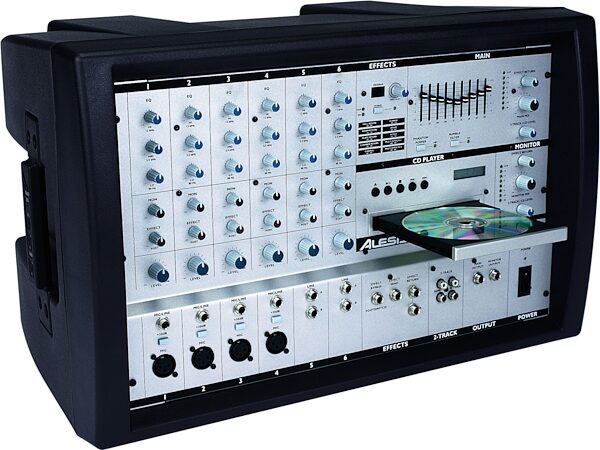

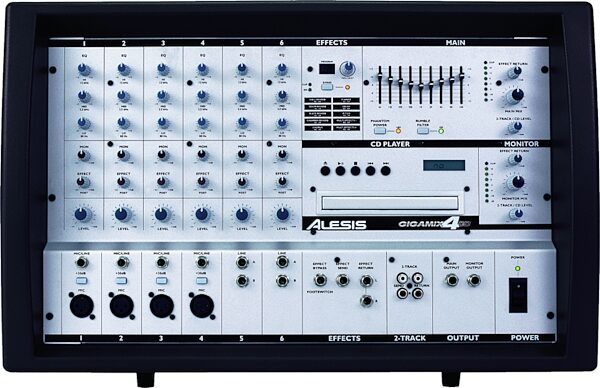

The Alesis GigaMix series offers incredible performance and value in powered PA mixers. Portable and rugged, the GigaMix 4CD includes 100 28-bit digital effects, 3 band active EQ on all input channels, high-pass "rumble filter" on main outputs, post fader effects send and return for external effects, a master tape send and return for recording and playback, and footswitch input for effects bypass.
The GigaMix 4CD features 4 channels XLR mic and 1/4 in. line inputs plus two channels with stereo line inputs. It contains a single 9-band graphic EQ and 200 Watts of power with a mono main output. Also included is a durable built-in CD player designed for the demands of the road.
Features
4 channels (plus two summed stereo channels) and 200 Watts/4 ohms x2
Four high-gain mic/line (XLR and 1/4 in. balanced) inputs with phantom power
Two line input channels with dual, balanced 1/4 in. inputs
28-bit digital effects built in
100 onboard preset effects including reverbs, delays, chorus, flanging, pitch and multi-effects
Internal DSP allows faster setup and greater portability without need to patch in external effects
Generous channel and output EQ
3-band active (+/- 15dB) EQ on every channel
Master 9-band graphic EQ
High-quality mic preamps
Switchable phantom power
Huge 60dB of microphone gain
Switchable 75Hz highpass filters
Built-in CD player
Independent Main and Monitor volume controls
Rugged, Impact Resistant Molded PPE Chassis
48v Phantom Power on all Mic Inputs
3-Band Active (+/-15dB) EQ on all Input Channels
High- Pass "Rumble Filter" on Main Outs
Post-Fader Effects Send (per-Channel) and Return, for External Effects
Master Tape Send and Return for Recording
Footswitch Input for Effects Bypass
Technical Info
Amp Config: Mono Main Output
Amp Power: 200 Watts/4 ohms
Mic/Line Inputs: 4
Dedicated Line Inputs: 2
Master Graphic EQ: 1x 9-Band EQ on Main; 8-Segment LED Level Meter
Effects: 28-bit Effects, 100 Effect Types
Channel EQ: 3-Band Active (+/-15dB) EQ on all Input Channels
Frequency Response: 10Hz-40kHz (+0.5/-3dB)
Dimensions: 21.5 x 12.5 x 14 in. (W x L x D)
Weight: 29 lbs
