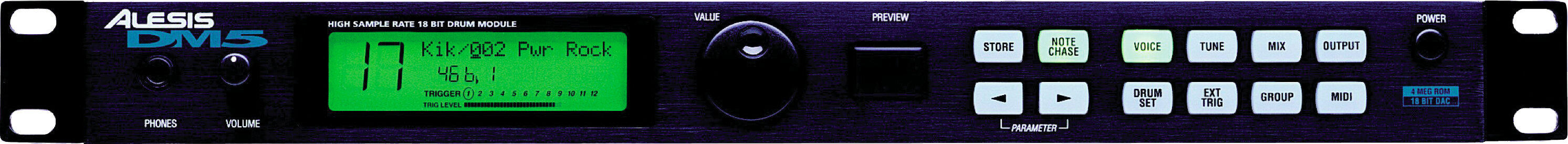

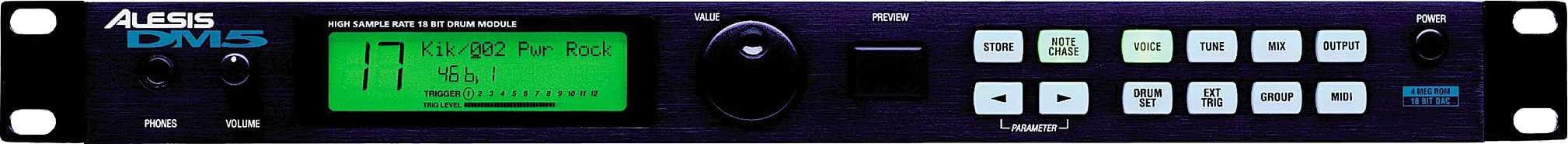

Alesis DM5 Drum Module

Total Tonal Control
In drumming, dynamics aren't just a matter of volume. When a real drummer puts sticks to skins, a hard hit has a different sound from a light one. That's why the Alesis DM5 sports the Expanded Dynamic Articulation feature, allowing drum sounds to change volume, tone, and pitch depending on how hard they're hit

Technical Info

Audio Outputs: 4 (2 stereo pairs)

Trigger Input Jacks: 12 (each with 5 user adjustable trigger parameters)

DAC Bit Resolution: 18

Sample Rate: 48kHz

Sounds: Over 500; includes stereo samples with reverb, ambience, and dynamic articulation

Polyphony: 16-voice

Panning: 7 position, user programmable

Velocity Response: 127 levels of loudness via MIDI or trigger inputs

Kits: 21 Memory locations w/defaults permanently stored in ROM

MIDI Jacks: In, Out/Thru

Headphone Jack: 1/4" TRS w/variable gain

Switchable Footswitch Jack: 1/4" jack can be assigned to hi-hat or program advance mode

Tuning Scheme: Coarse (chromatic) and Fine (cents)

Data Input: Data knob, front panel keypad sound auditioning via velocity sensitive Preview button on front panel

Expanded Dynamic Articulation

Great sound, great price! Sports the Expanded Dynamic Articulation feature, allowing drum sounds to change volume, tone, and pitch depending on how hard they're hit. Connect your MIDI sequencer or up to 12 drum pads to the DM5 and you'll have amazingly expressive drum sounds at your disposal.
