Alesis DEQ224 2-Channel Half-Rack Graphic Equalizer

2-Channel 24-Band EQ. 1/4 in. balanced TRS connectors. 30-Preset, 30-User EQ Curves. 11 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications documents

Manufacturer's Description for Alesis DEQ224 2-Channel Half-Rack Graphic Equalizer

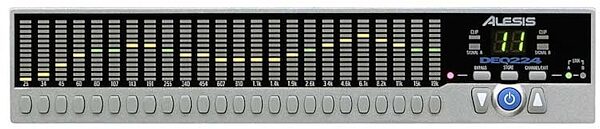

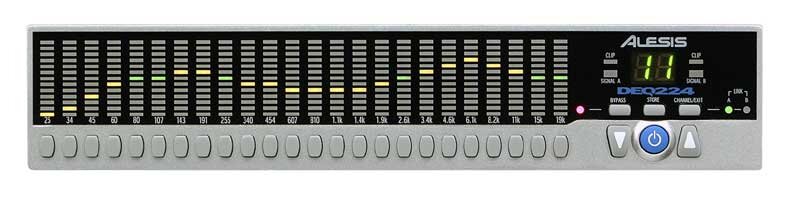

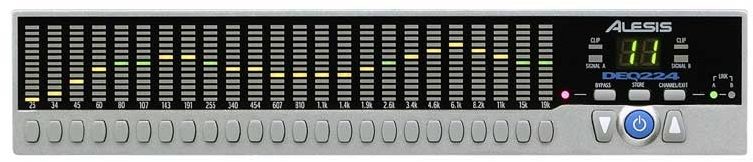

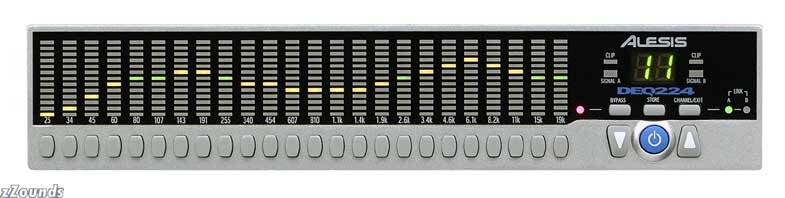

Alesis DEQ224 2-Channel Half-Rack Graphic Equalizer
The 2-channel DEQ224 delivers the same digital performance and quality as Alesis other popular DEQ models, in a new highly compact package. The DEQ224's half-rack form factor and powerful EQ capabilities make this product the ideal solution for professional and home studios with limited rack space. The DEQ224's small size and portability also make the product the perfect addition to any gig bag. Balanced 1/4 in. TRS input and output.

Features

2 independent channels of EQ: 24-band, +/-12dB, 0.5dB resolution

13-LED resolution of boost or cut per frequency band

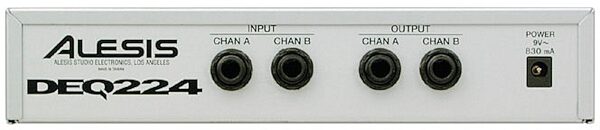

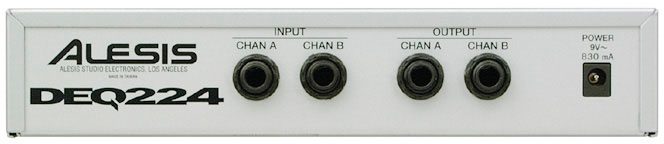

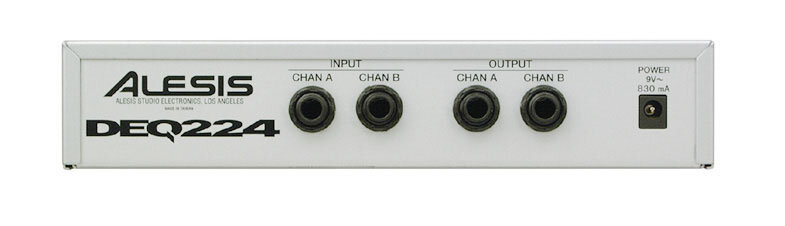

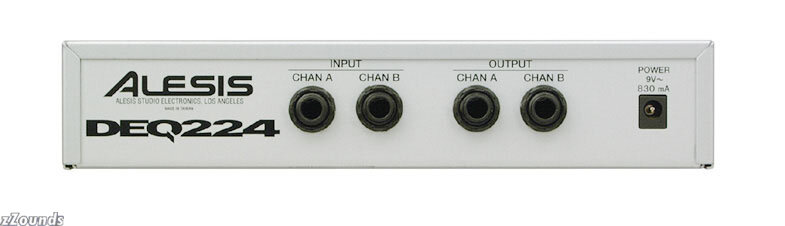

Analog I/O using 1/4 in. balanced TRS connectors

Easy-to-use / Easy-to-understand user interface

1/2 in.-U chassis, mountable in a rack shelf

Equalization powered with Alesis 23-bit, 1K-DSP Technology

20-20kHz frequency response (+0/ -1dB)

<0.005% THD, dynamic range: >97dB (A-weighted)

Individual signal and clip indicators per channel

30 preset EQ curves, plus 30 User-recallable EQ curves

Bypass and channel A-B link controls zZounds is an authorized dealer of Alesis products.

Specifications

Audio Input
Input Connectors: 2
Impedance-Balanced 1/4 in. TRS jacks
Nominal Input Level: -10dBV (-15dBFS)
Maximum Input Level: +5dBV (1.78 Vrms)
Input Impedance: 10kOhms

Audio Output
Output Connectors: 2 Impedance-Balanced 1/4 in. TRS jacks
Nominal Output Level: -10dBV (-15dBFS)
Maximum Output Level: +5dBV (1.78 Vrms)
Output Impedance: 220 Ohms

Audio Performance
Signal To Noise Ratio: >96 dB A-Weighted, Analog In to Analog Out
THD+N: <0.007%, Analog In to Analog Out
Frequency Response: 22-22kHz ± 0.50dB, Analog In to Analog Out
Power Consumption: 15 Watts Max (90-230 VAC / 50-60 Hz)

Mechanical
Size: 1.75 in. H x 8.5 in. W x 5.5 in. D
Rack Spaces: 1/2 Space
Weight: 2.0 lbs. (0.91 kg)
