AKG WMS40MP Micropen Lavalier Wireless System

The micropen provides the most inconspicuous and professional way to transmit a speech signal to the sound system. Just put the miniature transmitter in a convenient pocket or use the supplied cord to hang it round your neck. The microphone is nested in the transmitter. If necessary, you can detach the mic from the transmitter to get a stronger audio signal. It's so easy to get a kind of UHF transmission quality that was previously unheard-of at this kind of price.

System Includes: SR40 Receiver, MP40 Micropen Transmitter.

Features

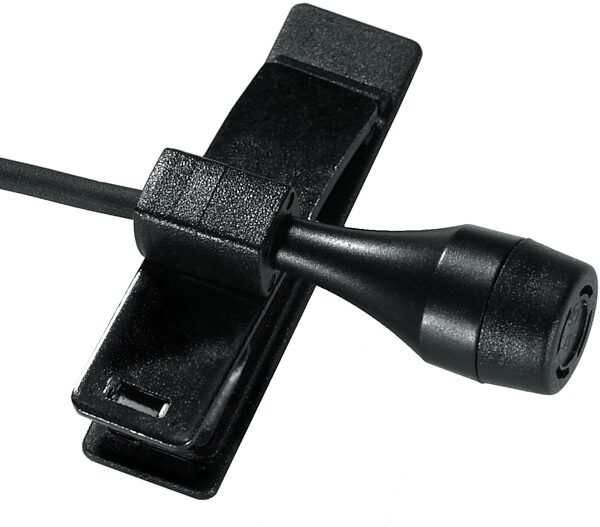

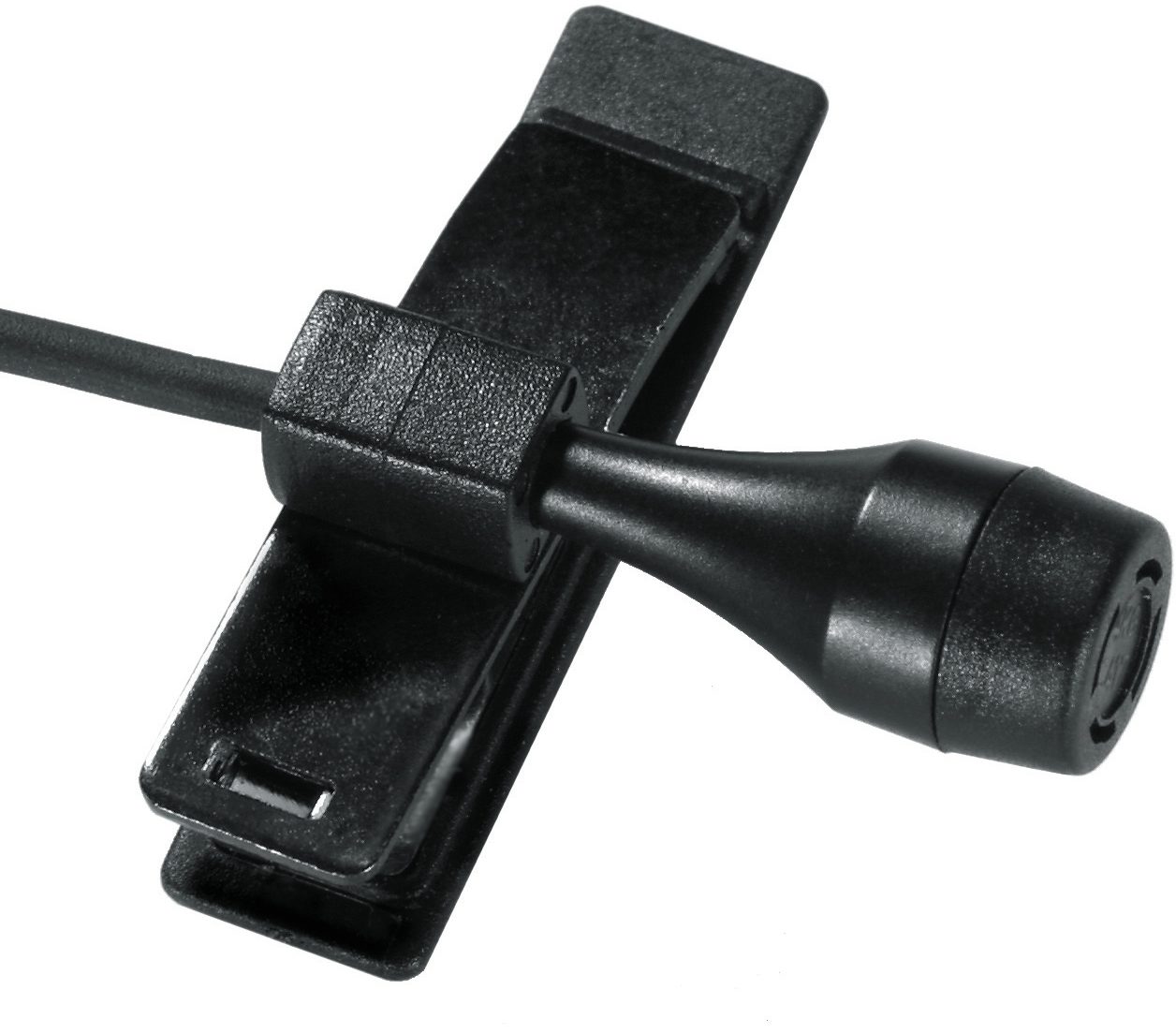

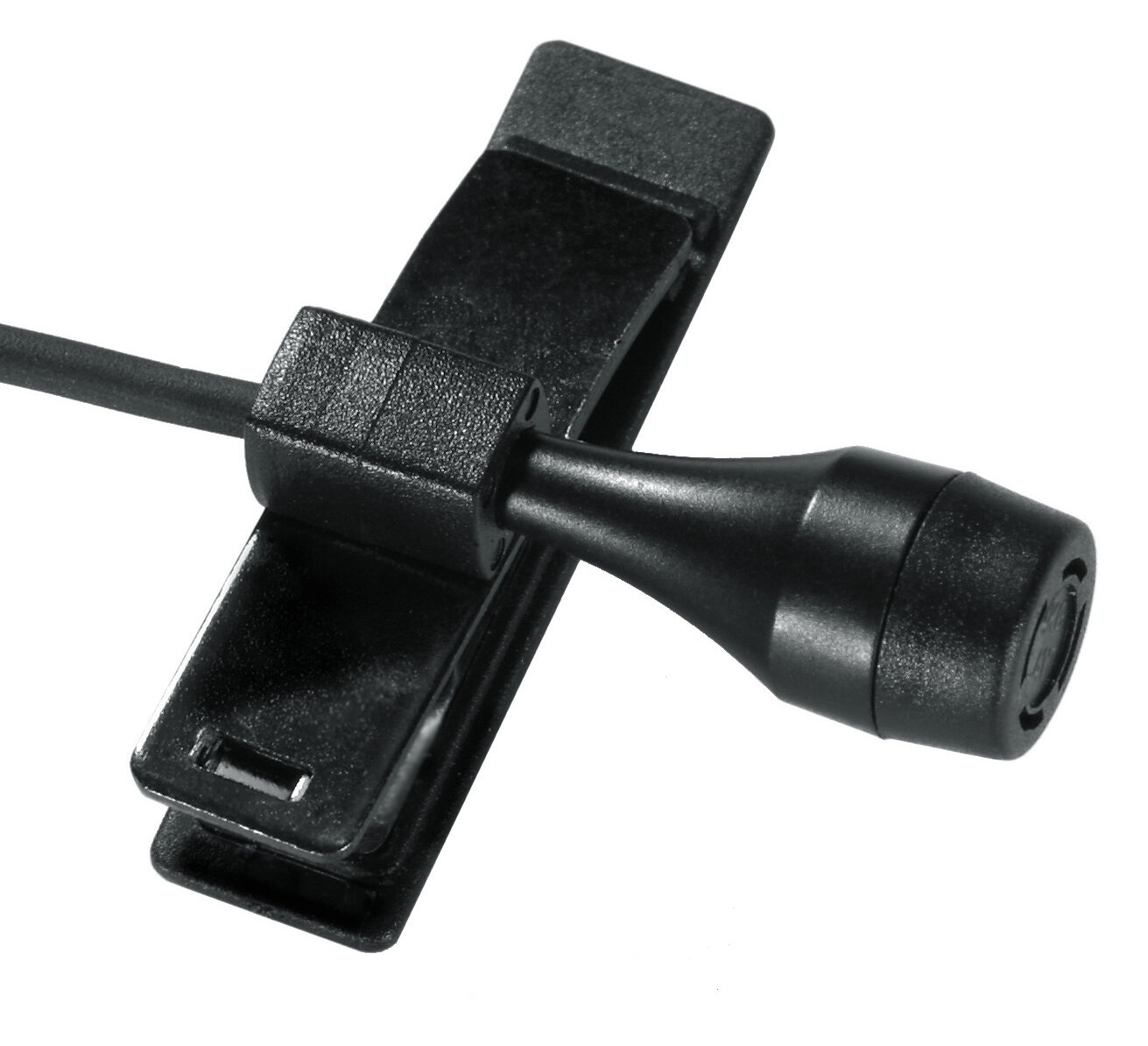

Integrated, detachable C 407 lavalier microphone with cable and attachment clip

Lowest operating cost in its class. Operates on a single AAA size dry or rechargeable battery

Integrated charging contacts and optional charger for easy use of rechargeable batteries

Integrated antenna for optimum transmission

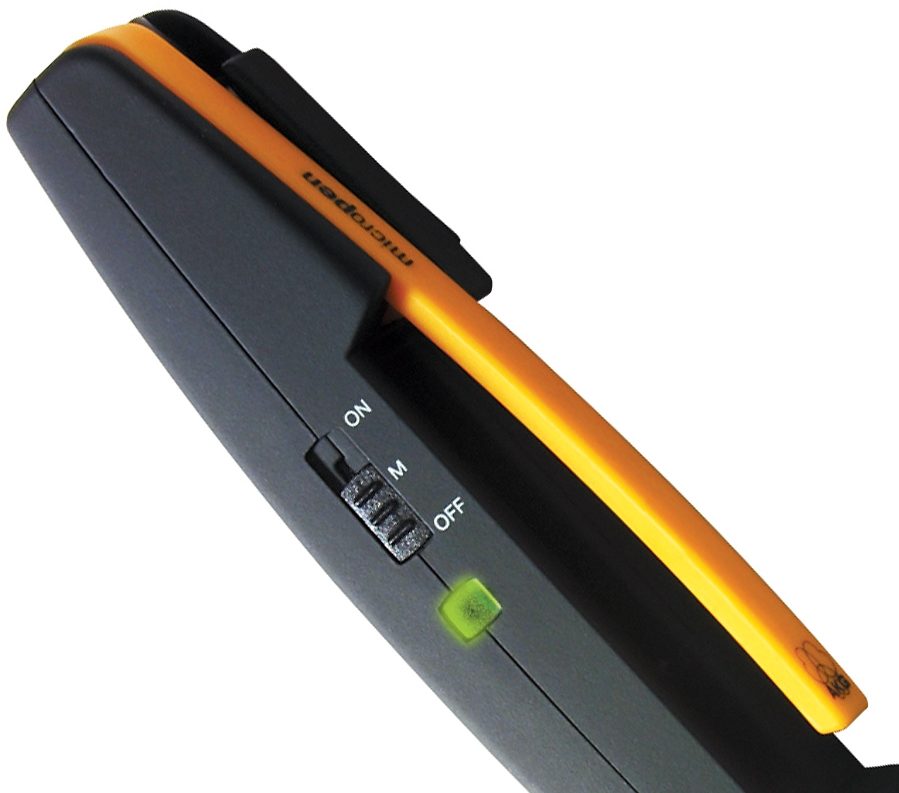

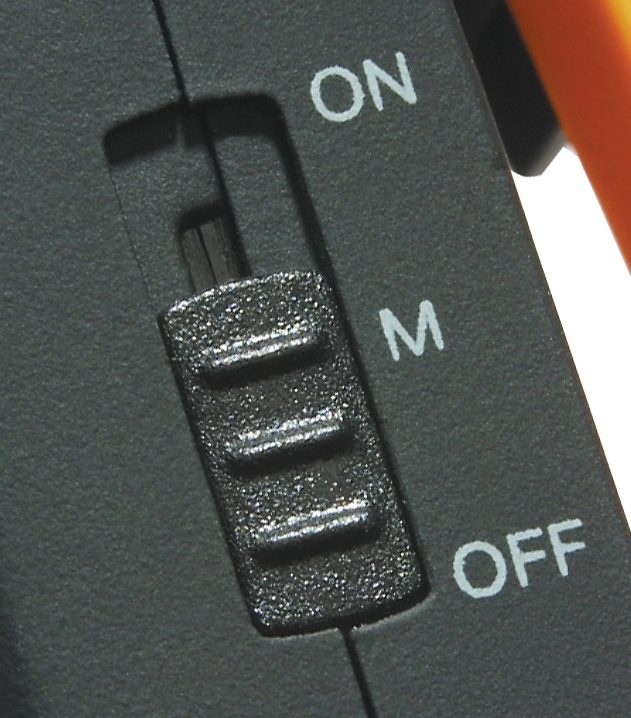

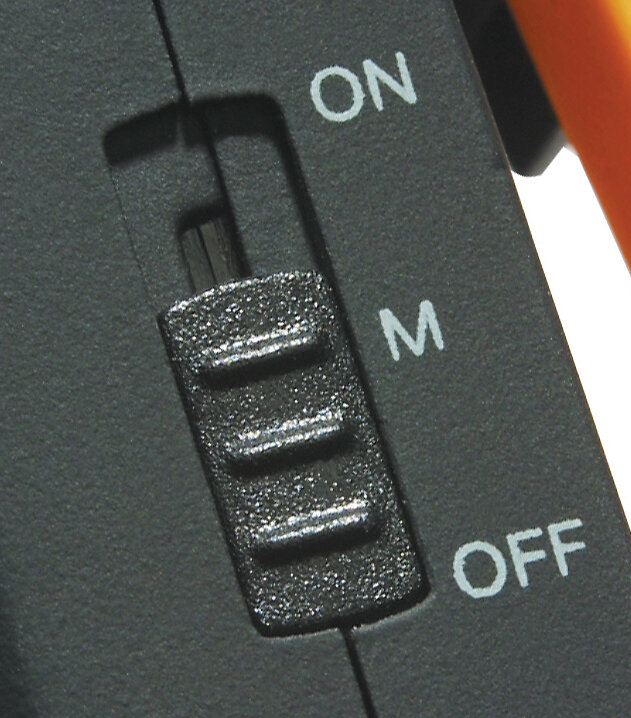

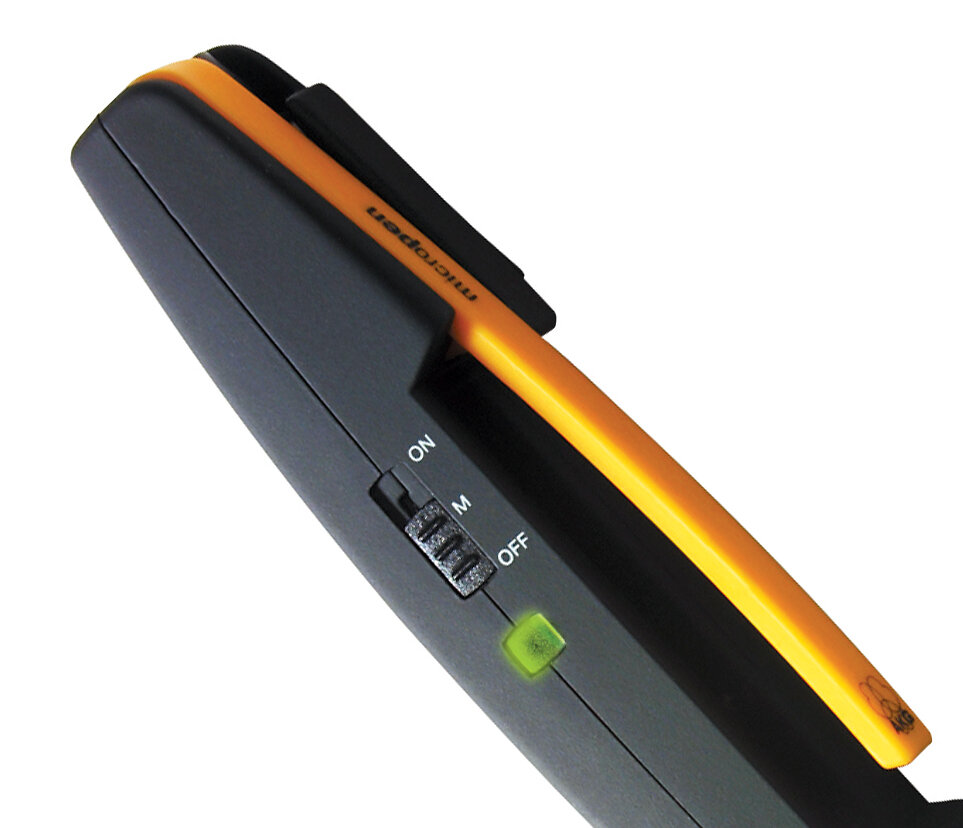

ON/MUTE/OFF switch and battery status indicator

Input gain control for optimum modulation

Replaceable color code element

DC/DC converter for constant transmission quality throughout battery life

For use with WMS 40 receivers only (e.g. SR 40)

Technical Info

System Includes: SR40 Receiver, MP40 Micropen Transmitter.

Carrier Frequency Range: 710 to 865 MHz

Modulation: FM

Audio Bandwidth: 40 to 20,000 Hz

T.H.D. at 1 kHz: typ. 0.8%

Signal/Noise Ratio: Typ. 103 dB(A)

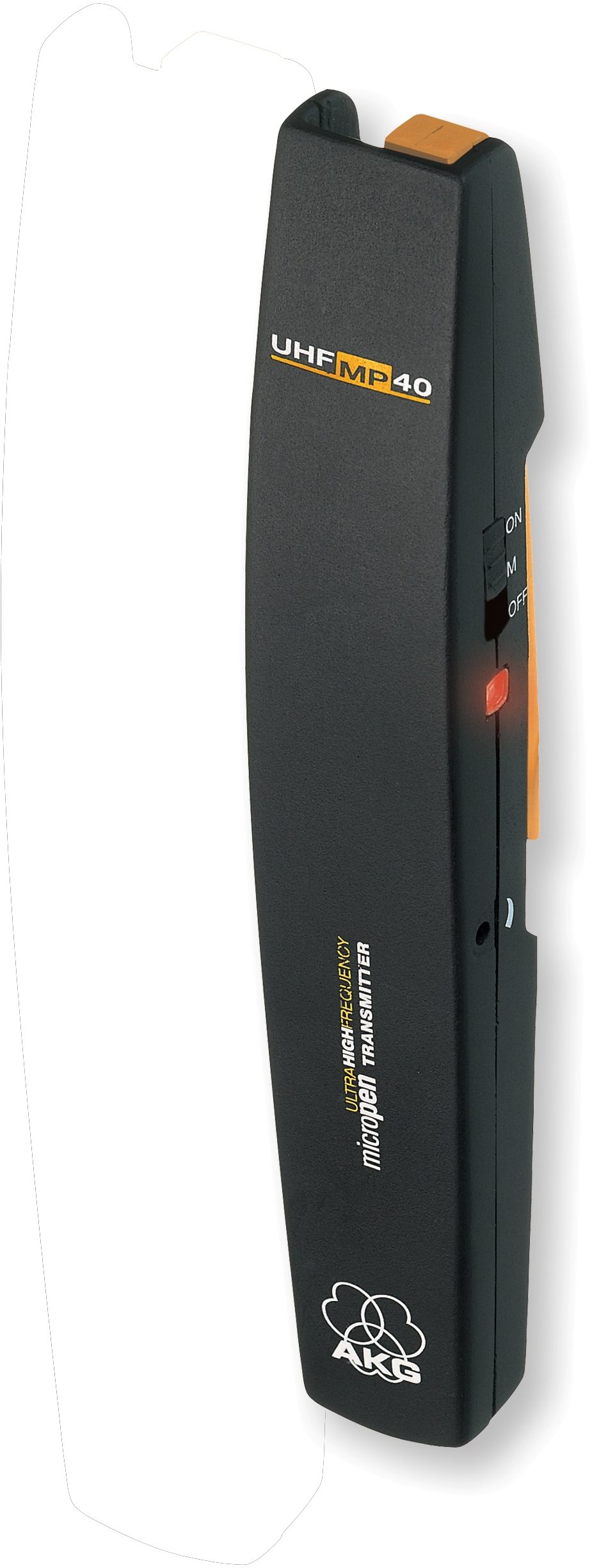

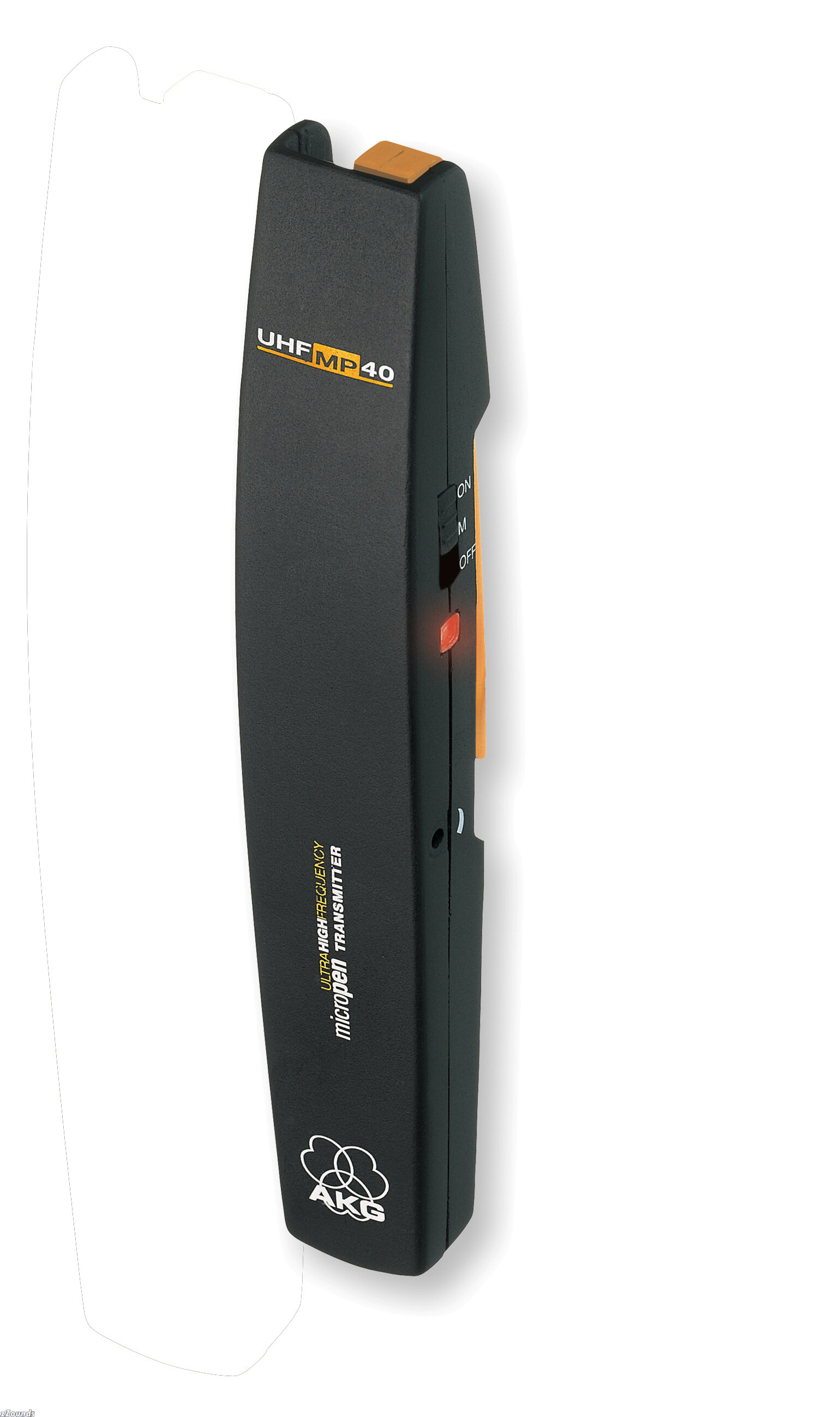

MP 40 Micropen
RF output: Typ. 5 mW (ERP)

Battery Life:
>10 hours (1 x 1.5 V AAA size batteries)
> 5 hours (akku)

Size: 20 x 25 x 145 mm (0.8 x 1 x 5.7 in.)

Weight: 36 g (1.3 oz.)

Receiver SR 40
Audio outputs: balanced XLR and unbalanced Õ in. jack: adjustable from mic to line; 2 Vrms max.

Size: 235 x 142 x 43 mm (9.3 x 5.6 x 1.7 in.)

Weight: 470 g (16.6 oz.)
