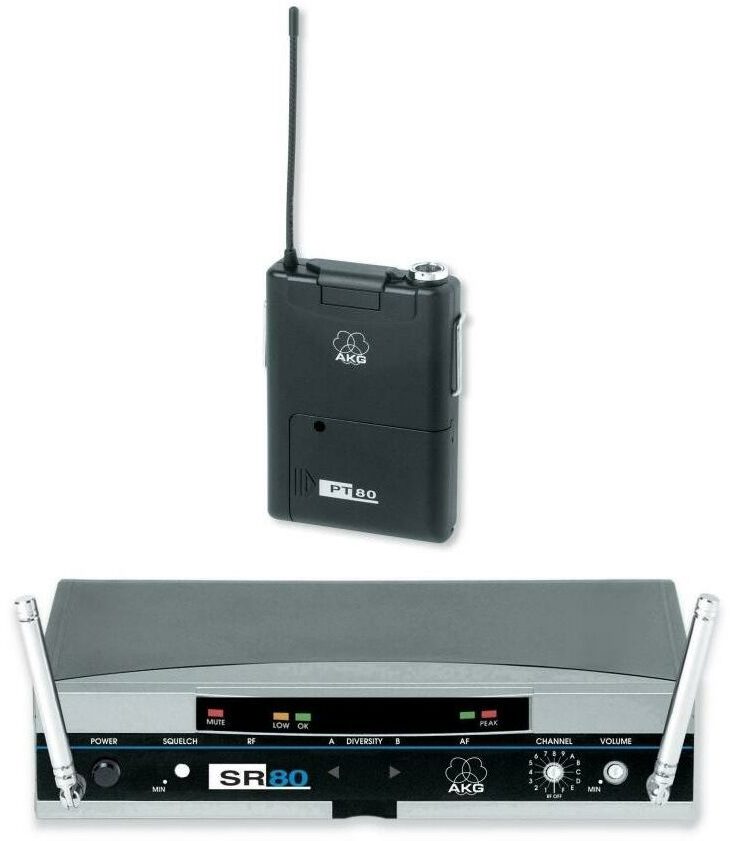

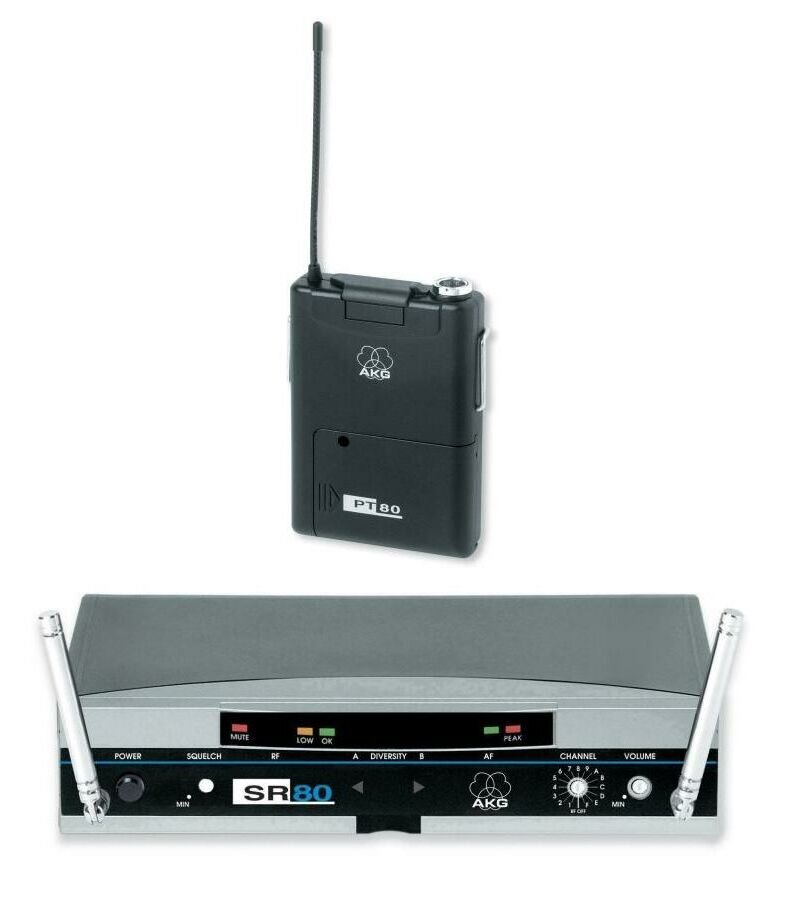

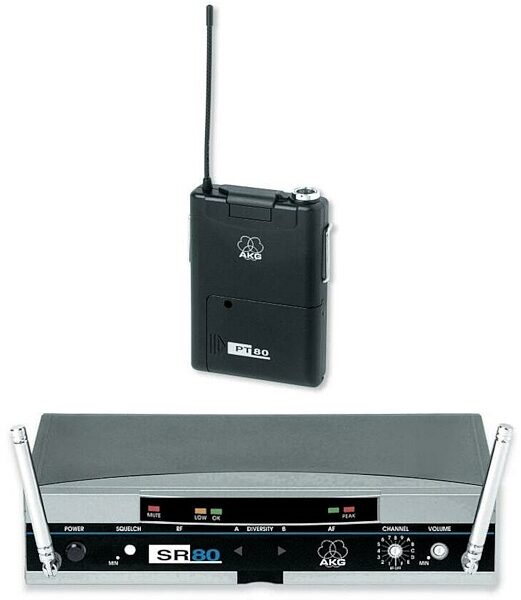

AKG WMS80 UHF Guitar/Bass Wireless System

The WMS 80 professional UHF wireless system is an ideal choice for any application where over achieving performance is required at an exceptional affordable price. The system is a perfect tool for small and medium size stages, clubs, theaters, places of worship as well as conference centers, open-air performances and sports facilities.

System Includes: SR 80 Receiver, HT 80 Transmitter, MKG/L Instrument Cable.

Features:

15 selectable frequencies for interference-free operation

Interchangeable microphone elements for maximum flexibility

Digital "Four Level Diversity" circuitry and SAW filters for interference-free reception

Multi-channel capability for simultaneous use of up to 19 channels

Modular system architecture and interchangeable microphone elements

Complete with 19 in. rack mount kit

Technical Info

System Includes: SR 80 Receiver, HT 80 Transmitter, MKG/L Instrument Cable.

WMS 80 System
Carrier frequency range: 710 to 865 MHz

Modulation: FM

Audio bandwidth: 50 to 20,000 Hz

T.H.D. at 1 kHz: < 0.8%

Signal/noise ratio: > 108 dB(A)

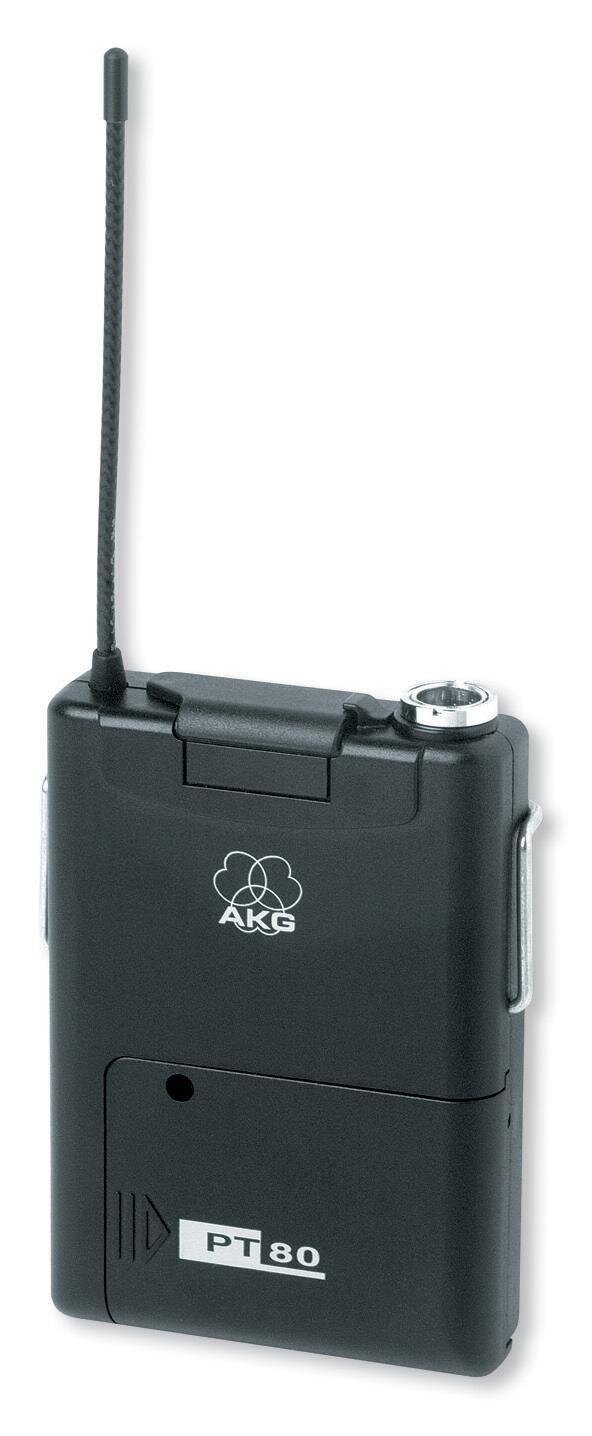

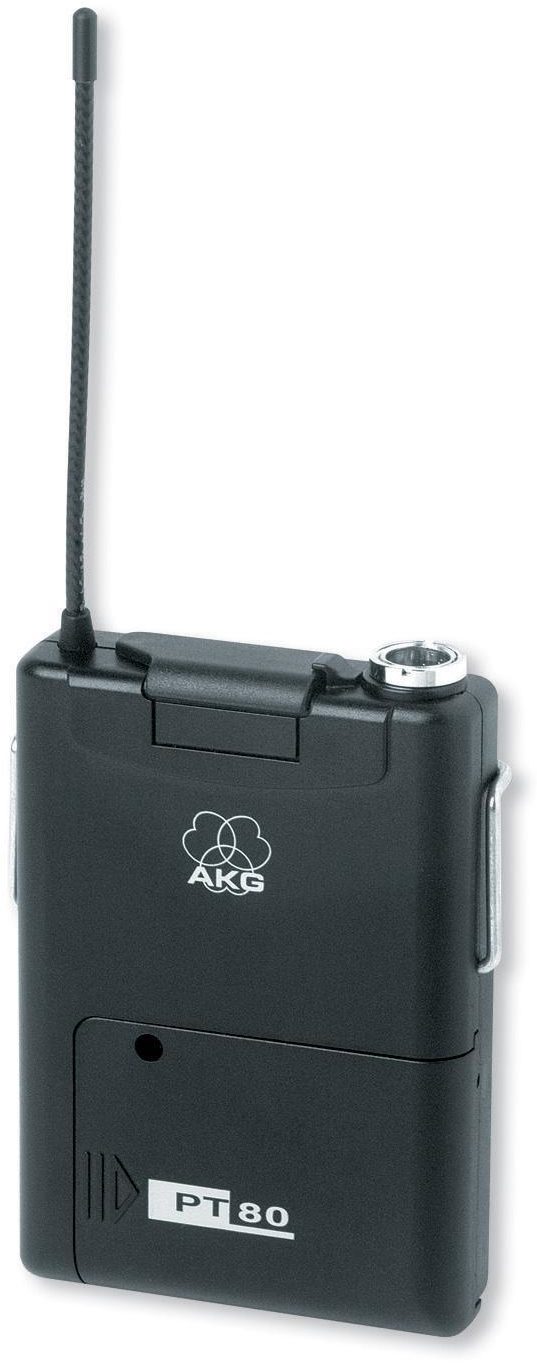

PT 80 Transmitter
Carrier Frequency Range: 710 MHz to 865 MHz

Modulation: FM

Audio Bandwidth: 50 to 20,000 Hz

THD: <0.8% typ.

Signal/Noise Ratio: >108 dB (A) typ.

RF Output: 10 mW (ERP) typ.

Battery Life: 10 hours (2 x 1.5 V AA size dry batteries)

Dimensions: 92 x 65 x 20 mm / 3.6 x 2.6 x 0.8 in.

Net Weight: 76 g / 1.6 oz.

Standard Accessories: 2 AA size batteries, Belt clip

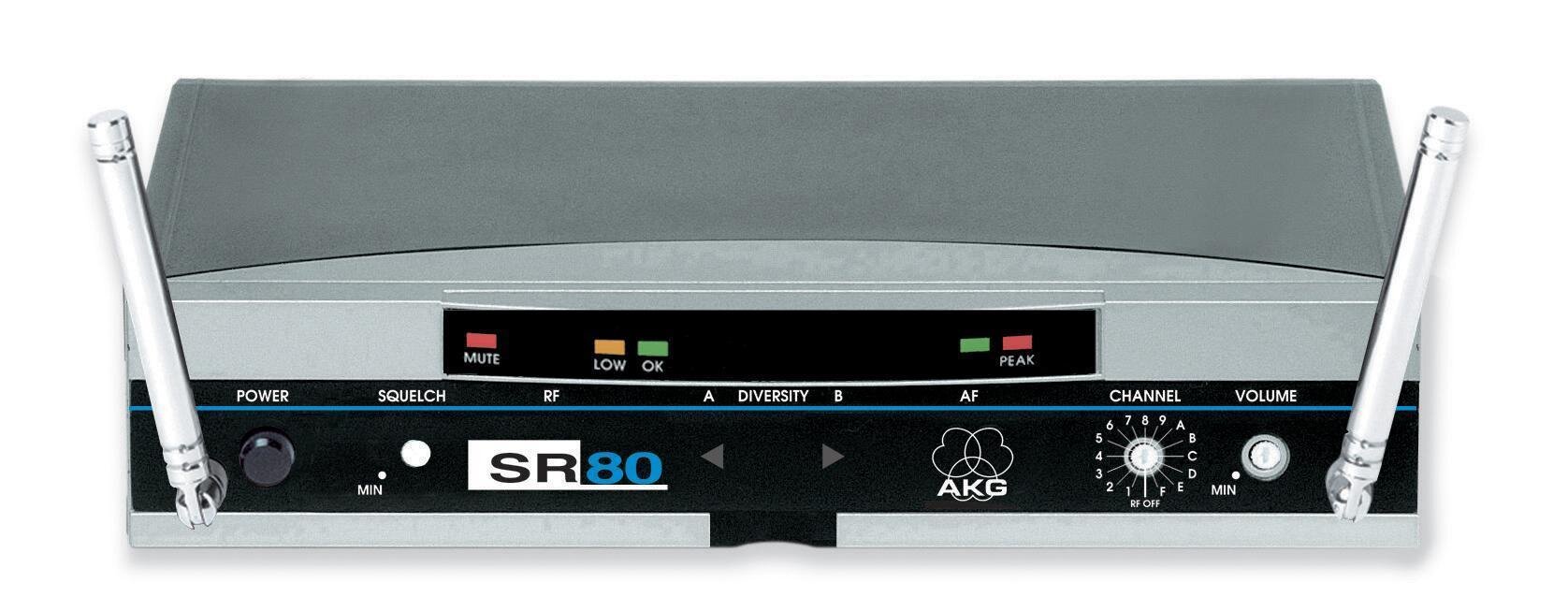

Receiver SR 80
Audio outputs: balanced XLR: switchable to mic or line level, typ. 30 dB; unbalanced 1/4 in. jack: 0 dB; XLR: 6 dB

Size: 210 x 170 x 42 mm (8.3 x 6.7x 1.65 in.)

Weight: 470 g (16.6 oz.)
