AKG WMS80 UHF Lapel Wireless System with C417 Microphone

The WMS 80 professional UHF wireless system is an ideal choice for any application where over achieving performance is required at an exceptional affordable price. The system is a perfect tool for small and medium size stages, clubs, theaters, places of worship as well as conference centers, open-air performances and sports facilities.

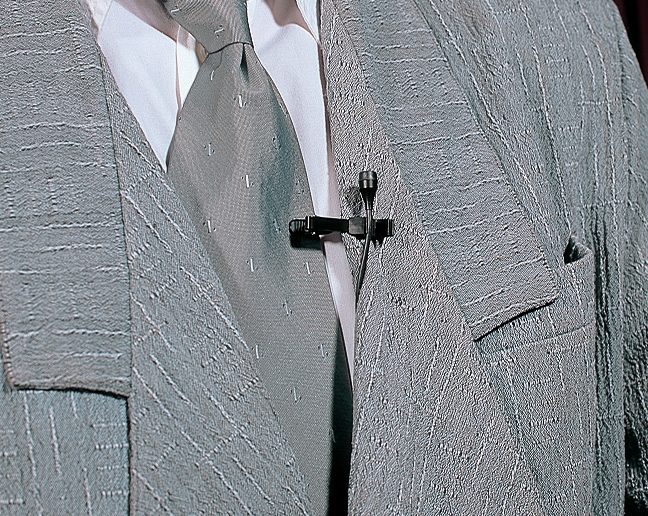

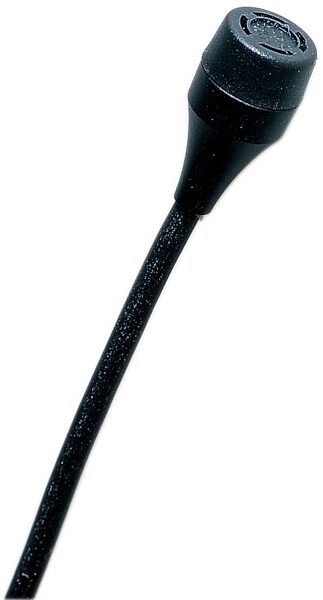

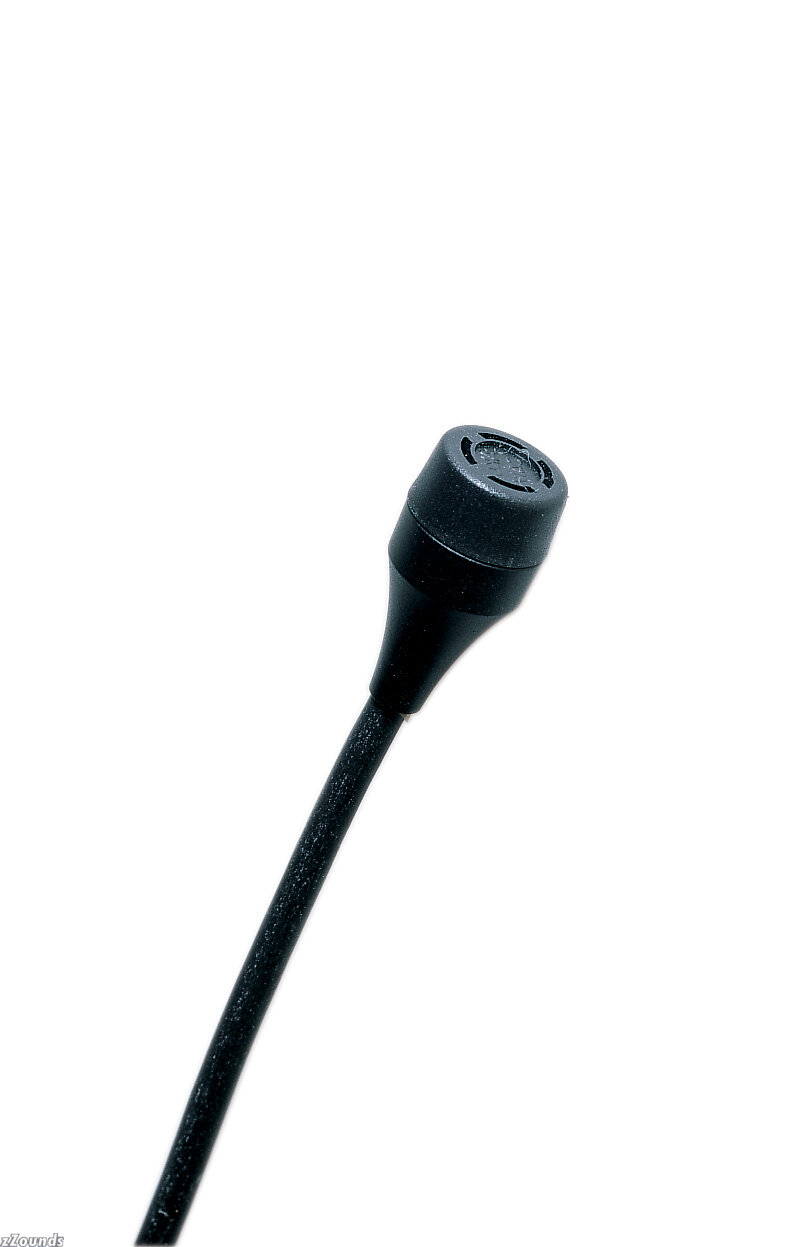

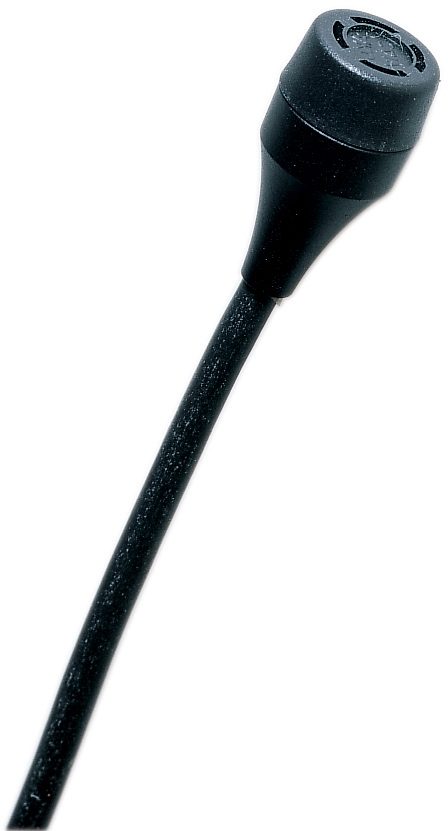

System Includes: SR 80 Receiver, PT 80 Transmitter, C417 Microphone.

Features
15 selectable frequencies for interference-free operation

Interchangeable microphone elements for maximum flexibility

Digital "Four Level Diversity" circuitry and SAW filters for interference-free reception

Multi-channel capability for simultaneous use of up to 19 channels

Modular system architecture and interchangeable microphone elements

Complete with 19 in. rack mount kit

Technical Info

System Includes: SR 80 Receiver, PT 80 Transmitter, C417 Microphone.

WMS 80 System
Carrier frequency range: 710 to 865 MHz

Modulation: FM

Audio bandwidth: 50 to 20,000 Hz

T.H.D. at 1 kHz: < 0.8%

Signal/noise ratio: > 108 dB(A)

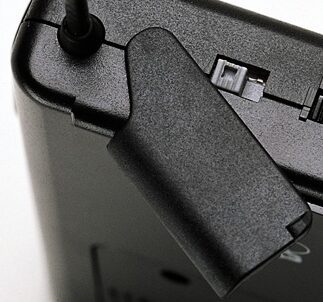

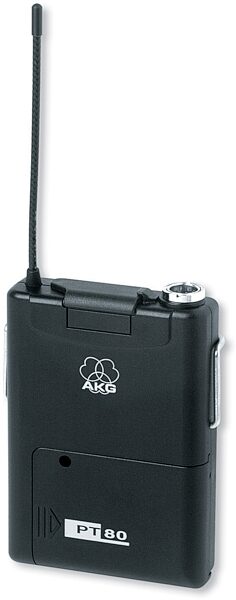

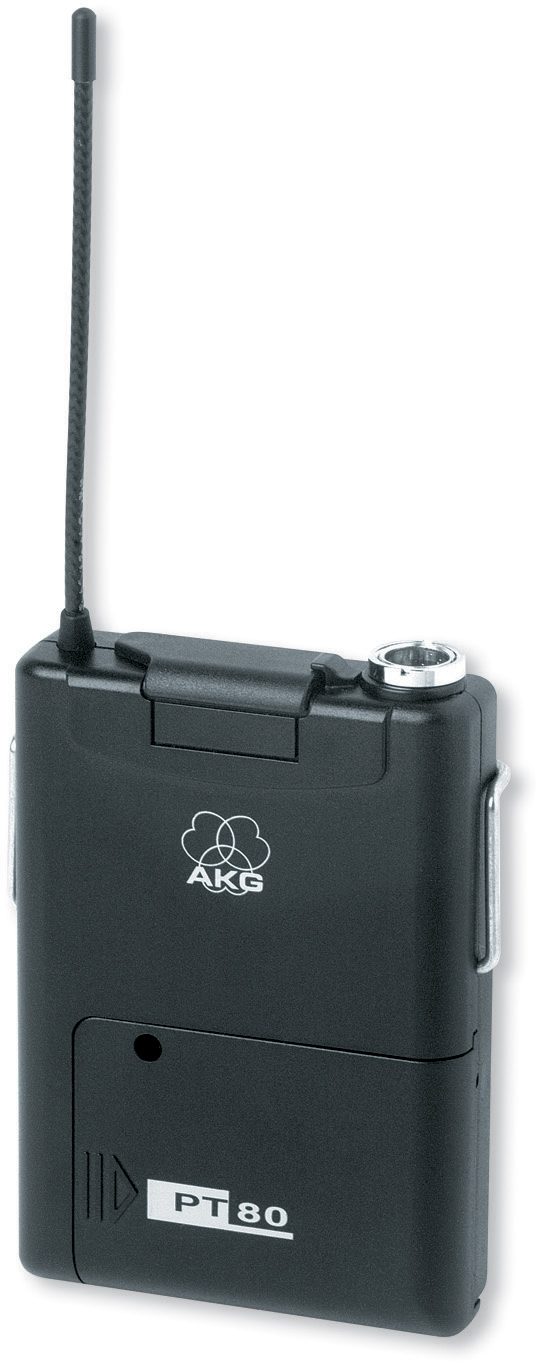

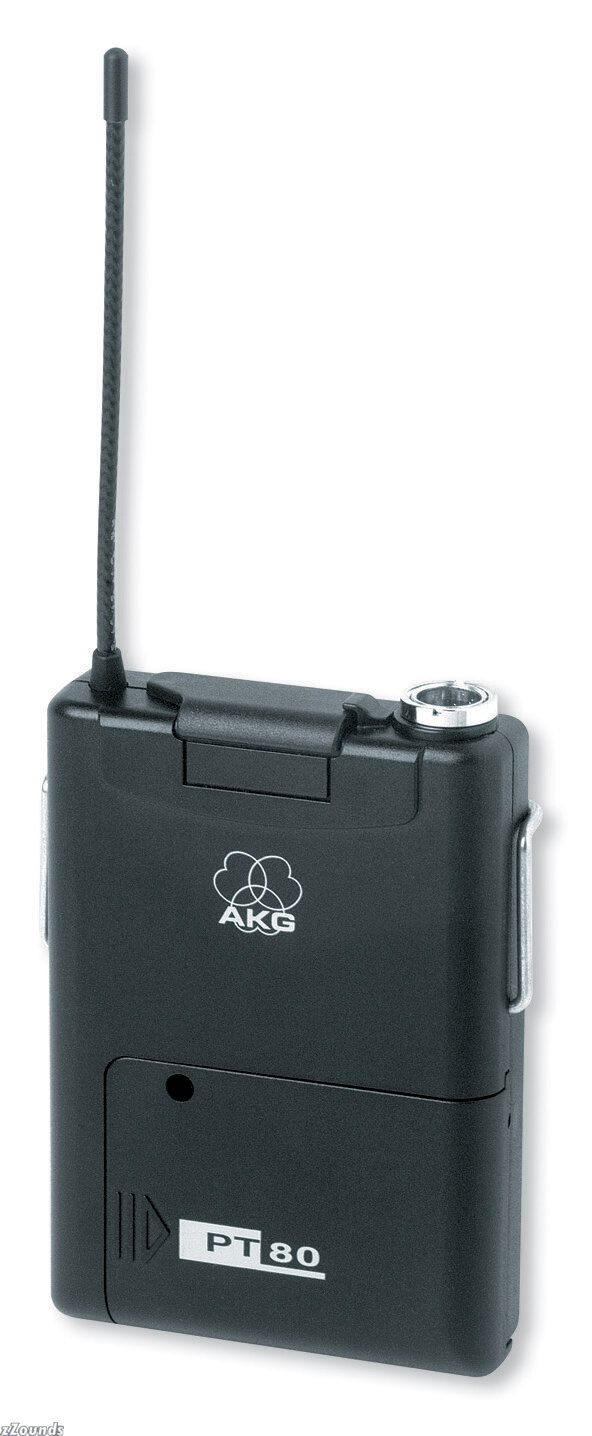

PT 80 Bodypack Transmitter
RF output: 10 mW (ERP)

Battery life: > 10 hours (2 x 1.5 V AA size batteries)

Size: 92 x 65 x 20 mm (3.6 x 2.55 x 0.8 in.)

Weight: 76 g (2.7 oz.)

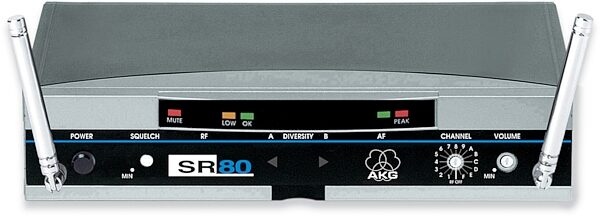

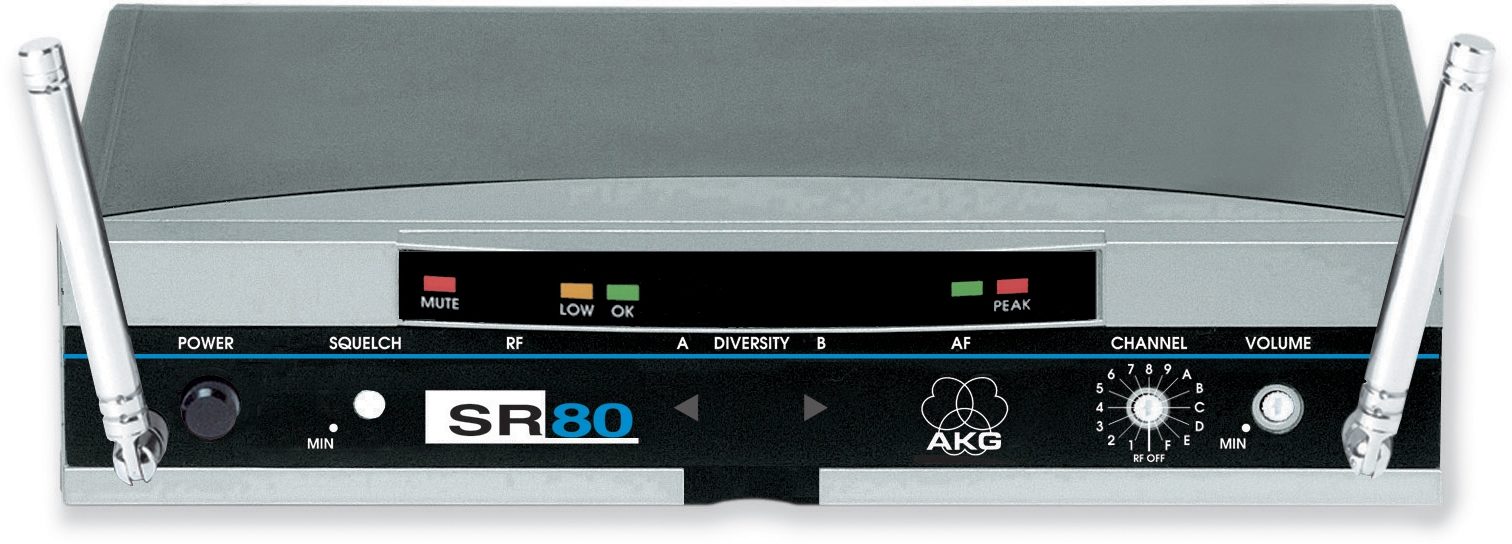

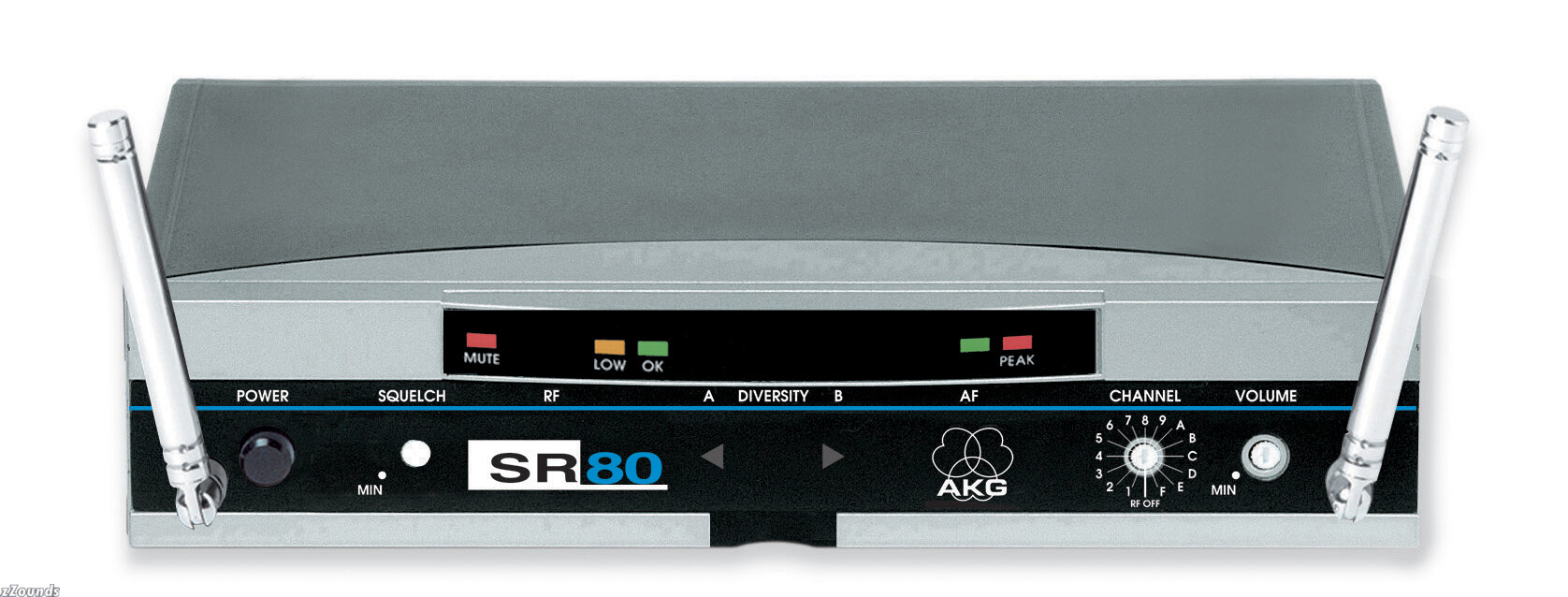

Receiver SR 80

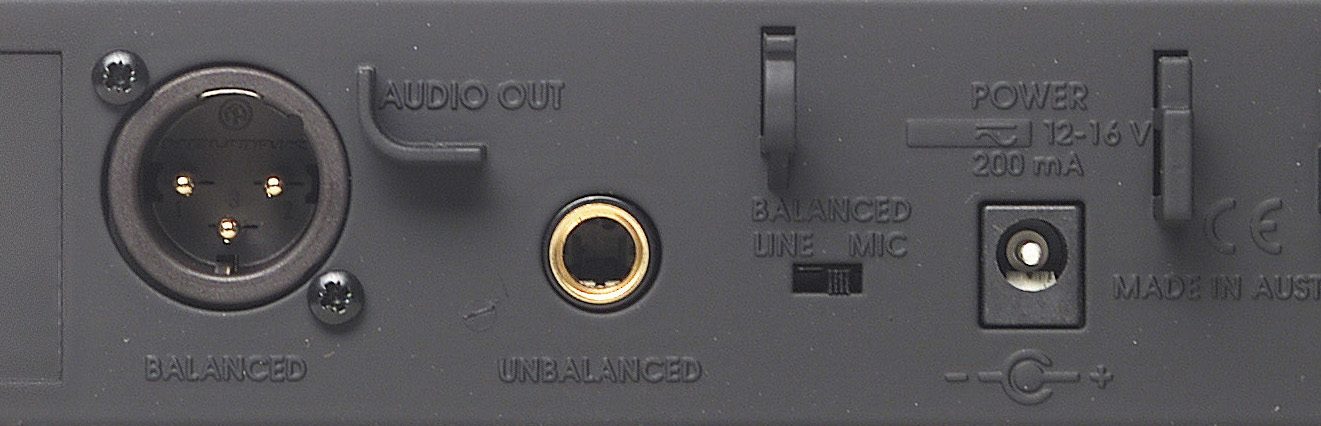

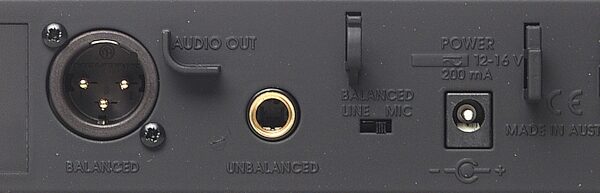

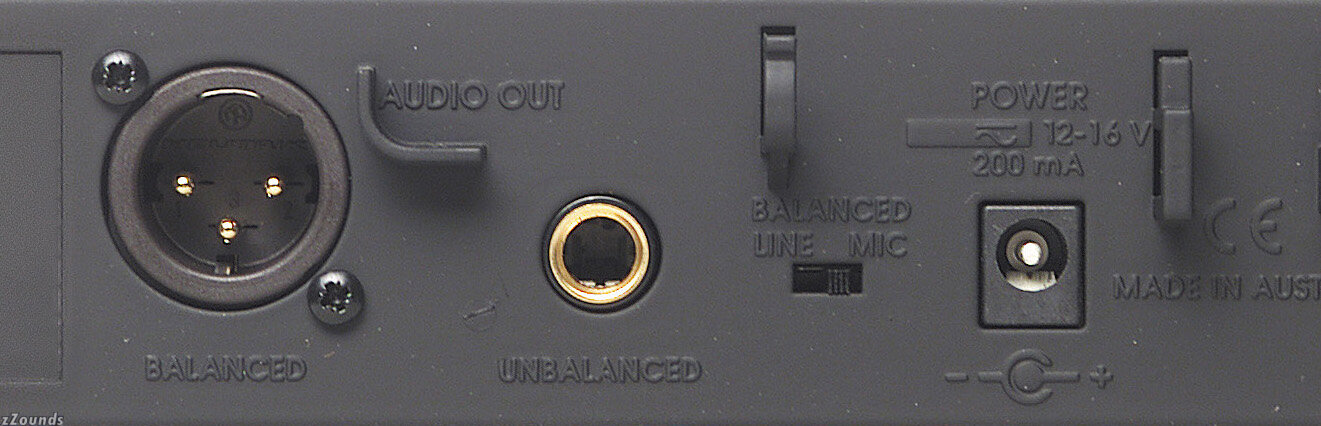

Audio outputs: balanced XLR: switchable to mic or line level, typ. 30 dB; unbalanced Õ in. jack: 0 dB; XLR: 6 dB

Size: 210 x 170 x 42 mm (8.3 x 6.7x 1.65 in.)

Weight: 470 g (16.6 oz.)
