The AKG WMS4500 CK77 L Set Lavalier Wireless System is perfect for all-round application on theater stages. Ideal for recording, monitoring and broadcast. The CK77 WR is an extremely small, omnidirectional professional lavalier microphone. The patented dual-diaphragm capsule has been designed to protect the transducer from moisture and perspiration.
The CK77 WR uses two vertical diaphragms mounted back to back to cancel out mechanical and cable noise by mixing the signals of both capsules out of phase. Its ruggedness and superior sound quality make it an excellent tool for theater and broadcast applications. The screw-on module capsule allows quick and easy service of the microphone.
- Dual-diaphragm transducer for suppression of cable noise
- Resistant to moisture, perspiration and salt withstands sudorific stage performances
- Interchangeable capsule module for quick and easy service
- Omnidirectional polar pattern for unchanging sound quality in all directions

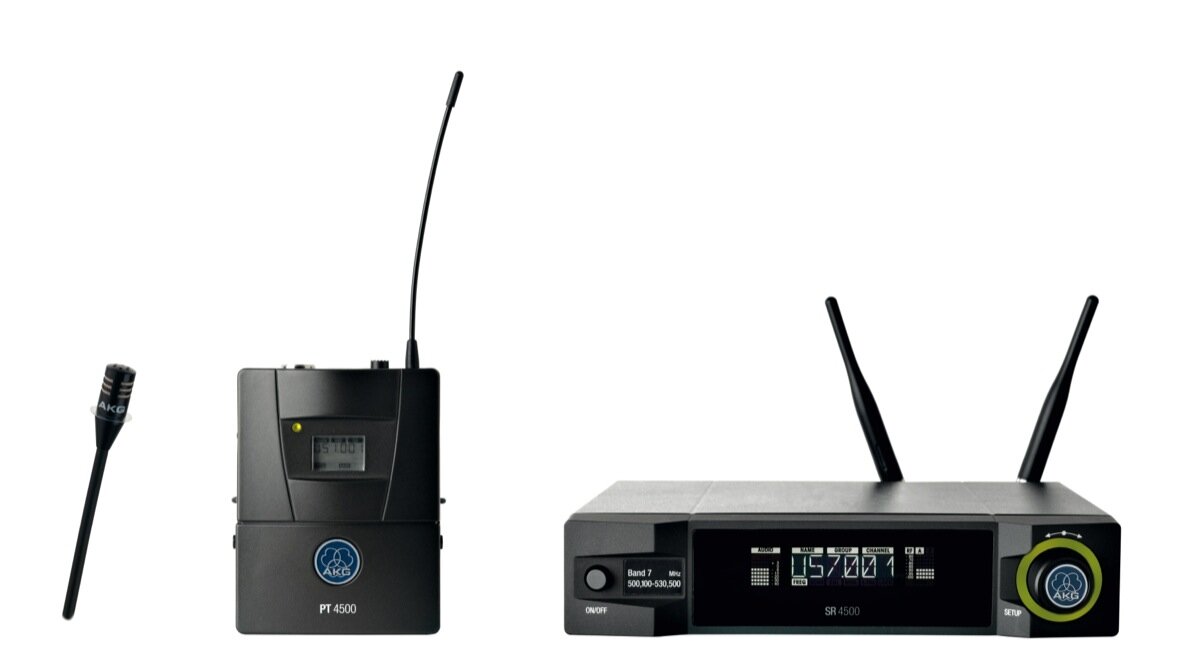

The set includes:
- 1 PT4500 pocket transmitter
- 1 SR4500 receiver
- 1 CK77 WR L lavalier microphone
1 belt clip, 2 AA size batteries, 2 antennas, 1 rack mounting kit, and power supply.
The wireless receiver shall operate over a 30 MHz UHF frequency range in one of 8 bands from 500 MHz to 863 MHz, with a wide range of possible frequency settings. The wireless microphone system shall incorporate factory-optimized sets of both sending and receiving frequency modules that are built into both transmitters and receivers. Each frequency set shall comprise a 30 MHz UHF band and offer up to 1,200 discrete operating frequencies within that band. The receiver shall operate on the true diversity principle, and the switching circuit shall be inaudible. Total harmonic distortion at 1 kHz for rated deviation shall be no greater than 0.3%. The receiver shall provide for a manual squelch adjustment as well as an automatic squelch option (tone code squelch) for optimum system operation. Audio output shall include a balanced XLR connector as well as an unbalanced 6.3 mm / 1/4-inch jack connectors. The output from the 3-pin XLR-type connector shall be adjustable in 3 steps (-30, 0, +6 dB). A RJ11 data port for connecting HUB 4000 Q communicating with Harman System Architect PC software. A logic out connector shall be provided. The receiver shall be controlled by a jog wheel and shall provide a backlit color display as well as a programmable LED ring (red/green) showing the overall system status. The wireless receiver shall be the AKG Acoustics Model SR 4500.
The wireless system shall operate over a 30 MHz UHF frequency range in one of 8 bands from 500 to 863 MHz, with a wide range of possible frequency settings. The wireless microphone system shall incorporate factory-optimized sets of both transmission and receiving frequency modules that are programmed into both transmitters and receivers. Each frequency set shall comprise a 30 MHz UHF band and offer up to 1,200 discrete operating frequencies within that band, with transmitter power not exceeding 50 milliwatts. Both handheld and bodypack type transmitters shall be provided. The bodypack transmitter shall accommodate both microphone and line level inputs. The transmitters shall operate with a companding system that is complemented by the receiver, providing an A-weighted system dynamic range in excess of 120 dB. The transmitters shall indicate input overload via an LED indicator and on a backlit display battery lifetime shall be displayed in hours as well as the transmitting frequency. Handheld transmitters shall have a maximum diameter of 39 mm and a length, including antenna, no greater that 239 mm. The wireless microphone system shall be the AKG Acoustics Model WMS 4500.
