AKG WMS40 Pro Sports Set Single Wireless System with C444L Headset

Highly versatile: the WMS 40 PRO instrumental set. The convenient PT 40 PRO bodypack is the smallest and lightest transmitter in its class.

The new C 444 L head-worn microphone from AKG is rugged, extremely easy to use, and offers outstanding price/performance. Resting securely and comfortably on the head, the C 444 is the ideal microphone for any handsfree application including gymnastics instruction, presentations, or onstage performances.

With its new cheek pads, the C 444 L will stay in place even if you turn your head abruptly and a capsule shock mount reduces handling noise to a minimum. A frequency response rise at 10 kHz and rolloff below 800 Hz ensure optimum audio and intelligibility even in noisy environments. The new moisture shield that prevents perspiration from penetrating into the transducer and other design features provide optimum protection from moisture.

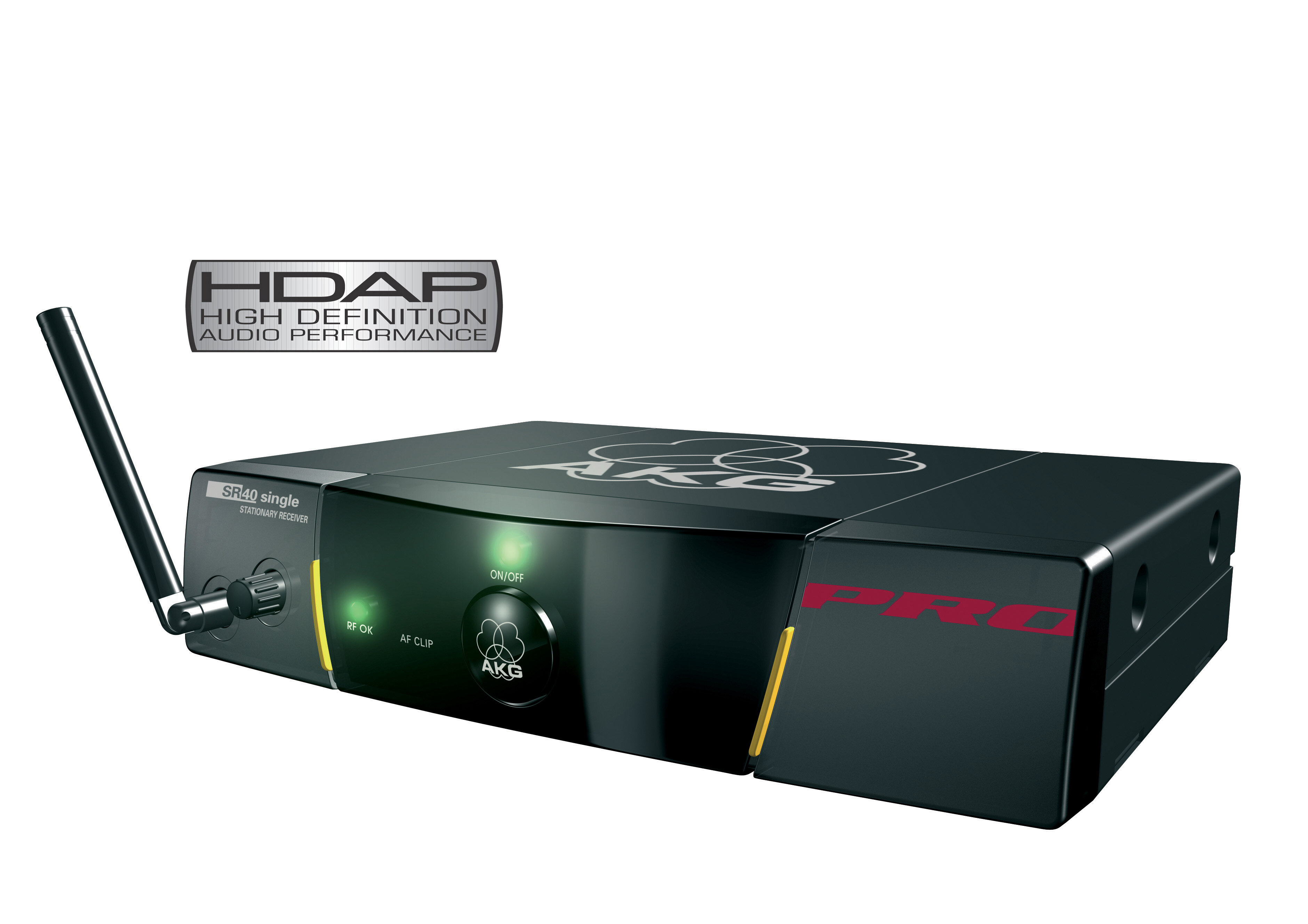

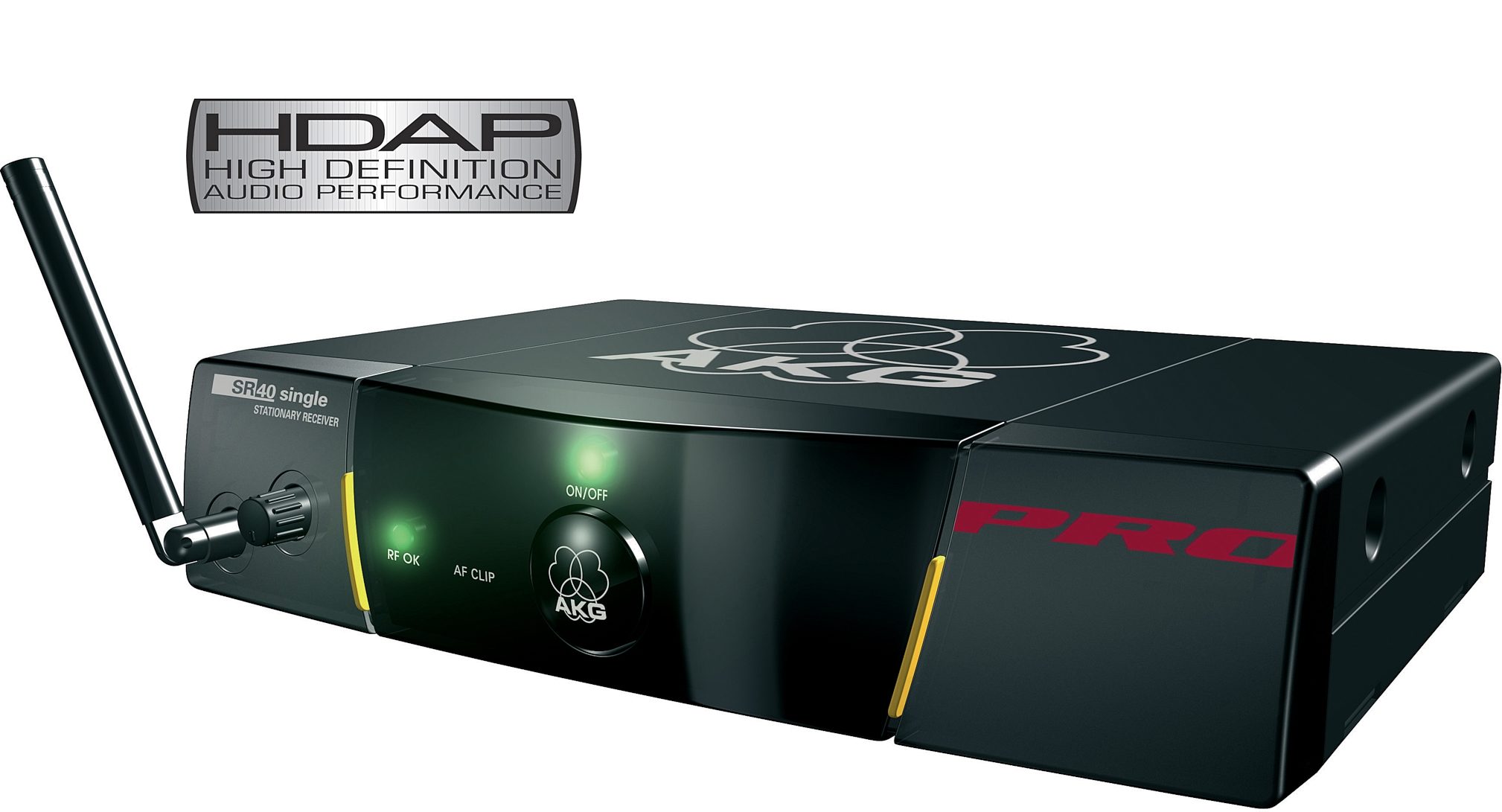

SR 40 SINGLE
Single fixed frequency.

All-metal case.

Multichannel capability for simultaneous use of up to seven channels (maximum number of channel depends on local frequency plans).

High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.

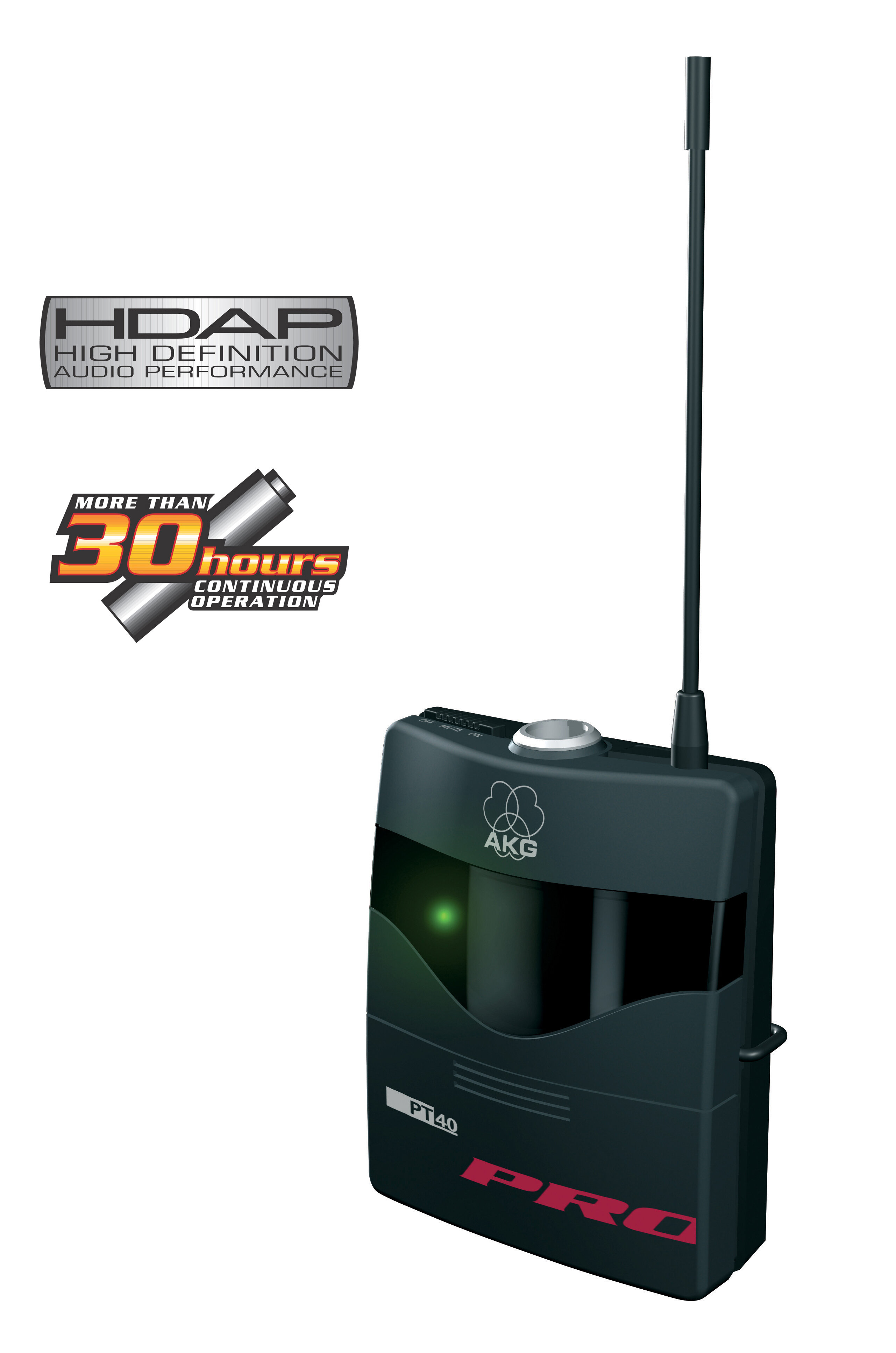

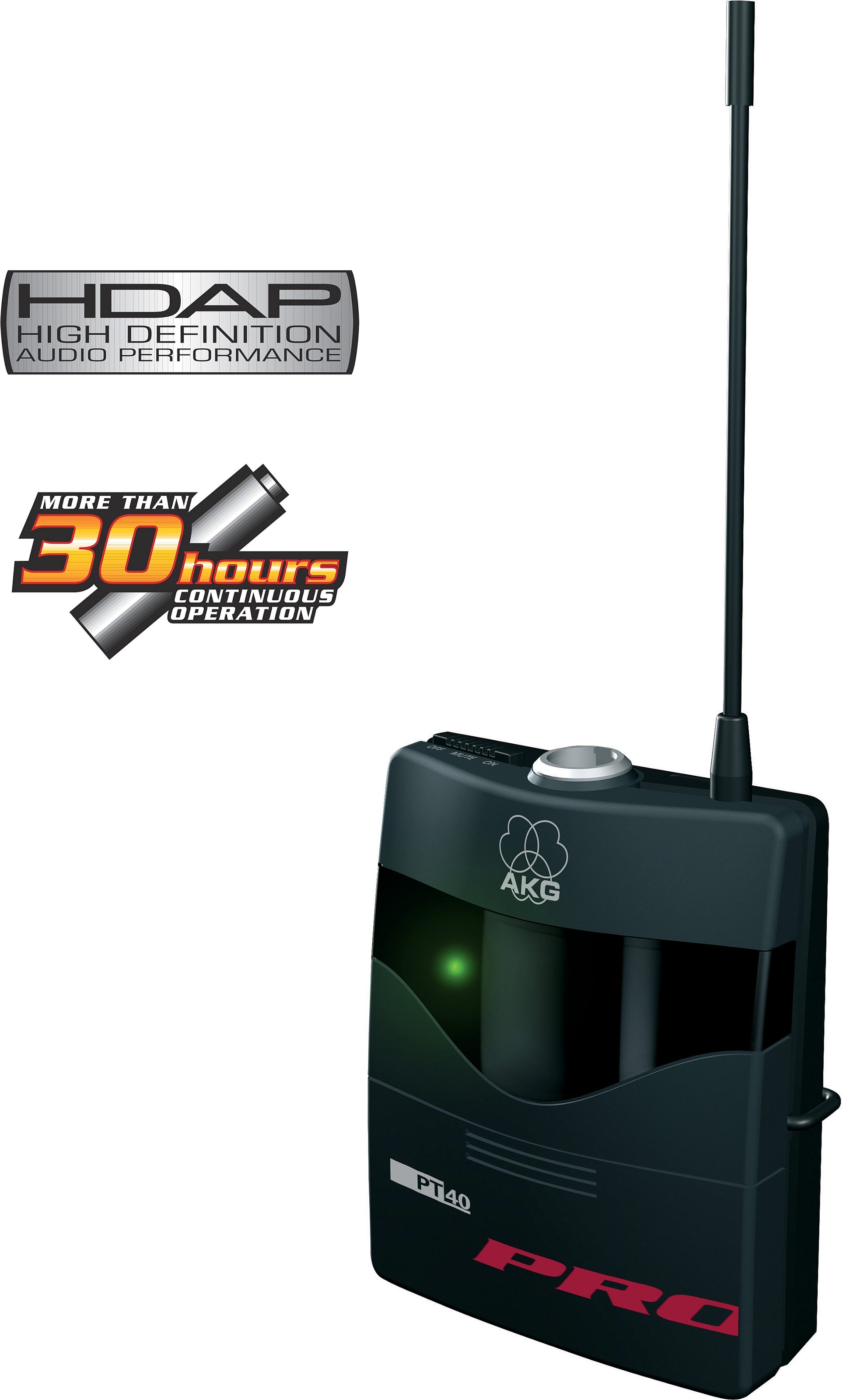

PT 40 PRO
Miniature transmitter.

Single-battery powering.

Multichannel capability for simultaneous use of up to seven channels (maximum number of channel depends on local frequency plans).

High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.

Transmitter operates for at least 30 hours off a single AA size battery, saving cost, maximizing dependability, and minimizing onstage stress.

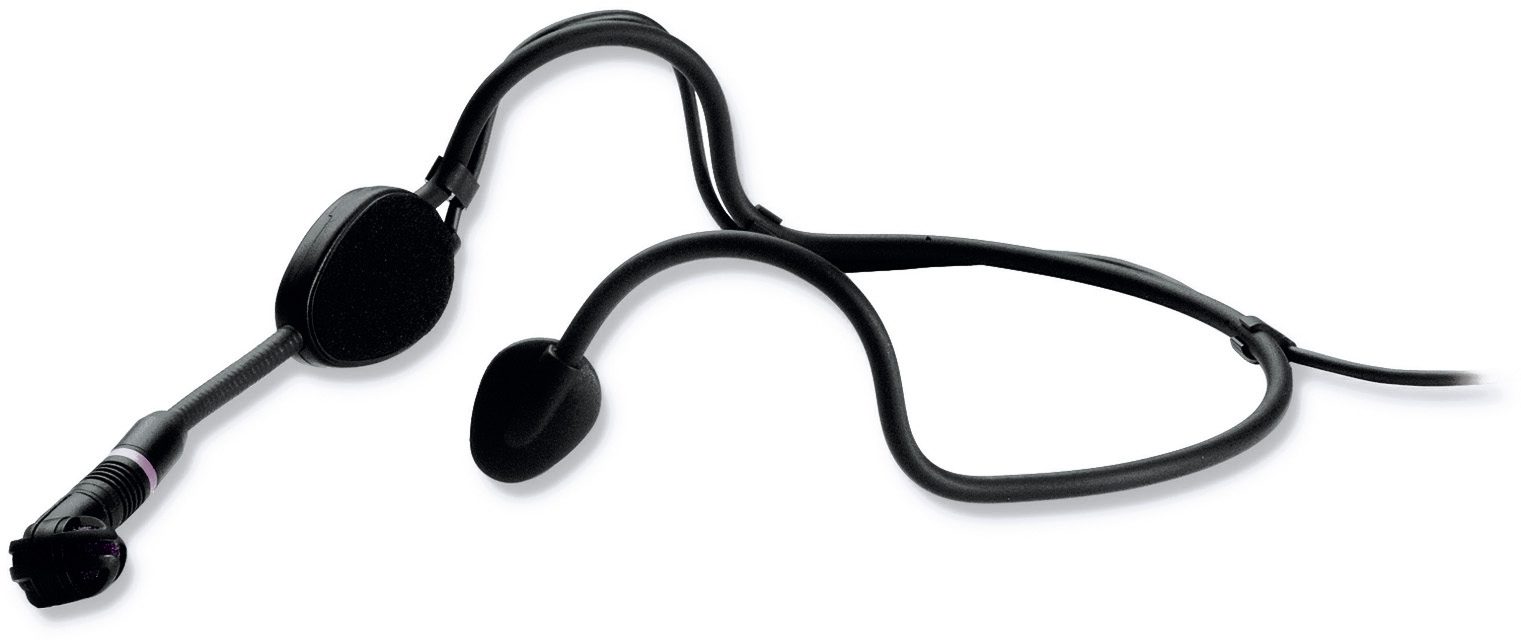

C 444 L
Ergonomically optimized behind-the-neck headband.

Moisture shield.

External shock mount for high mechanical-noise rejection.

With mini XLR connector for use with AKG WMS bodypack transmitters.

Technical Info

Channel Frequencies
Channel 54: 710.400 MHz
Channel 54B: 711.000 MHz
Channel 58: 734.600 MHz
Channel 58B: 736.975 MHz
Channel 60A: 748.875 MHz
Channel KR4: 750.900 MHz
Channel 60B: 751.550 MHz

SR 40 SINGLE
Carrier frequency range: 710 to 865 MHz, 1 fixed frequency

Modulation: FM

Audio bandwidth: 40 Hz to 20 kHz

THD: typ. 0,8 % (at 1 kHz)

Signal/noise ratio: typ. 110 dB(A)

Power supply: 120/230 V AC

Audio outputs: bal. 1/4 in. jack, output level adjustable, at rated deviation: 500 mV rms.

Dimensions: 200 x 190 x 44 mm (7.8 x 7.4 x 1.7 in.)

Net weight: 581 g (1.3 lbs.)

PT 40 PRO
Carrier frequency range: 710 to 865 MHz, 1 fixed frequency

Modulation: FM

Audio bandwidth: 40 Hz to 20 kHz

THD: typ. 0,8 % (at 1 kHz)

Signal/noise ratio: typ. 110 dB(A)

Power supply: 1 AA size battery

RF output: typ. 10 mW (ERP)

Battery life: typ. 30 h (for 2200 mAh)

Dimensions: 60 x 74 x 30 mm (2.4 x 2.9 x 1.2 in.)

Net weight: 60 g (2.1 oz.)

C 444 L
Polar pattern: cardioid

Frequency range: 20 to 20,000 Hz

Sensitivity: 40 mV/Pa (-28 dBV)

Max. SPL: (k=1%) 126 dB

Equivalent noise level: 22 dB-A

Signal/noise ratio: (A-weighted) 72 dB

Impedance: 200 ohms

Recommended load impedance: >2000 ohms

Supply voltage: 1-10 V

Current consumption: <2 mA

Connector: 3-pin mini XLR

Cable: 1.5 m (5 ft.)

Finish: matte black

Dimensions: 145 x 110 x 70 mm / 5.7 x 4.3 x 2.8 in.

Net weight: 30 g / 1.1 oz.

Shipping weight: 200 g / 7.1 oz.

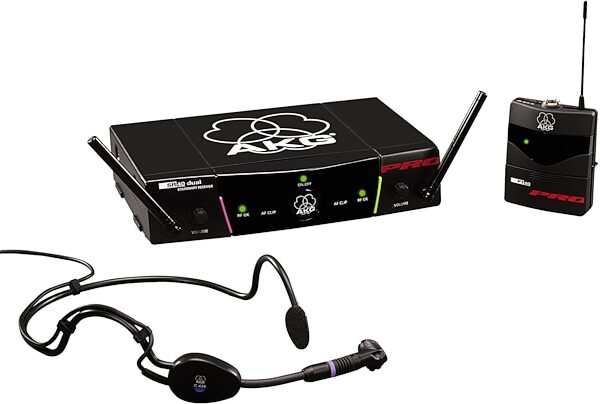

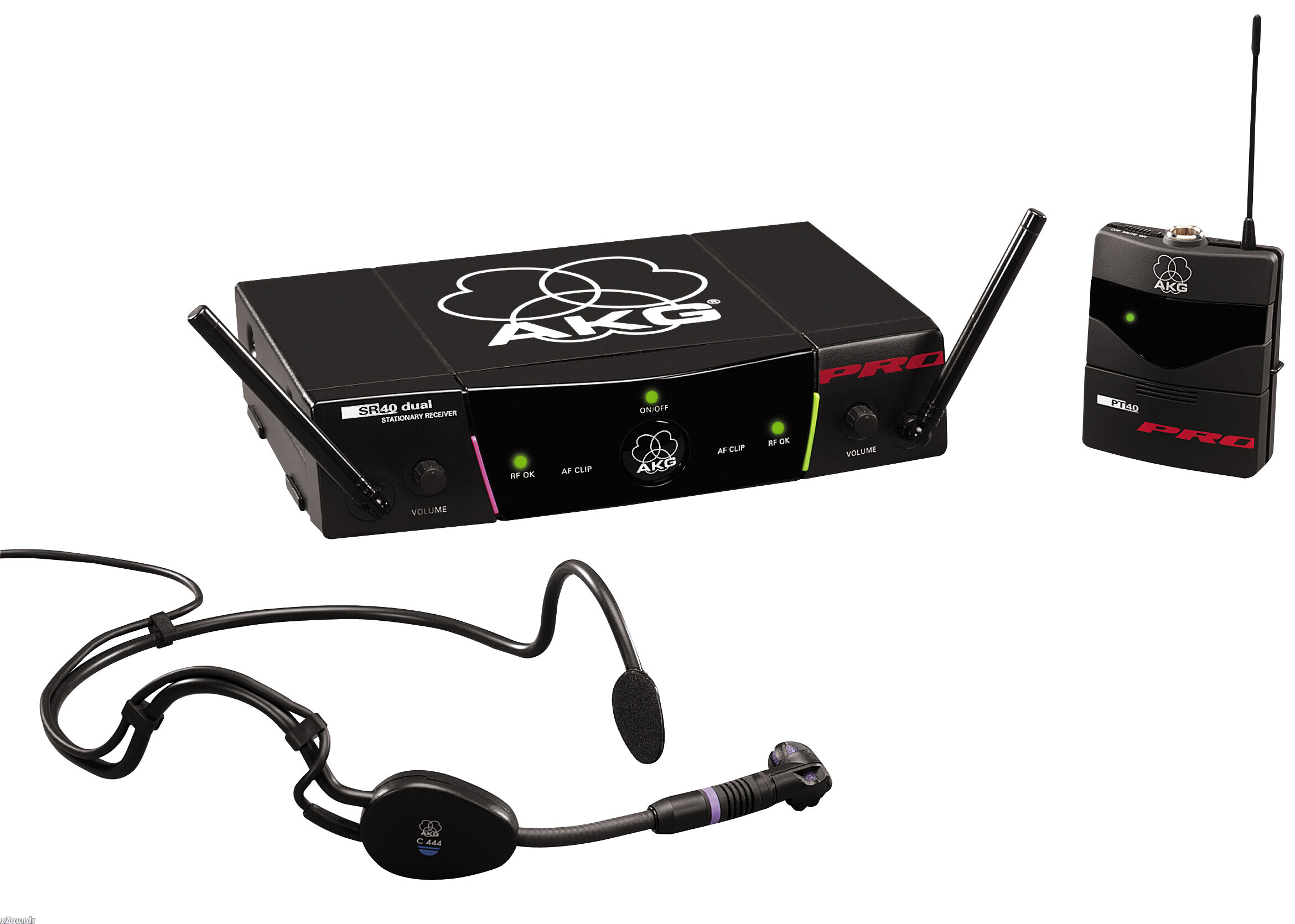

Headset system with SR 40 Single receiver, PT 40 PRO transmitter and C 444 L mic.
