AKG WMS40 UHF Guitar/Bass Wireless System and Handheld Wireless System with D880 Microphone Package

Manufacturer's Description for AKG WMS40 UHF Guitar/Bass Wireless System and Handheld Wireless System with D880 Microphone Package

Go Out on Stage and Let It Rip!
If your first wireless system must provide excellent sound and your budget is limited, consider the professional WMS 40. It operates in the UHF (Ultra-High Frequency) band from 710 MHz to 865 MHz and is ideally suited for small stages, clubs, touring, places of worship, hotels, fitness centers, etc. The WMS 40 uses highly selective SAW filters and advanced circuitry to ensure interference-free operation and excellent audio even under difficult conditions. Each WMS 40 operates on a fixed frequency and is extremely easy to set up.

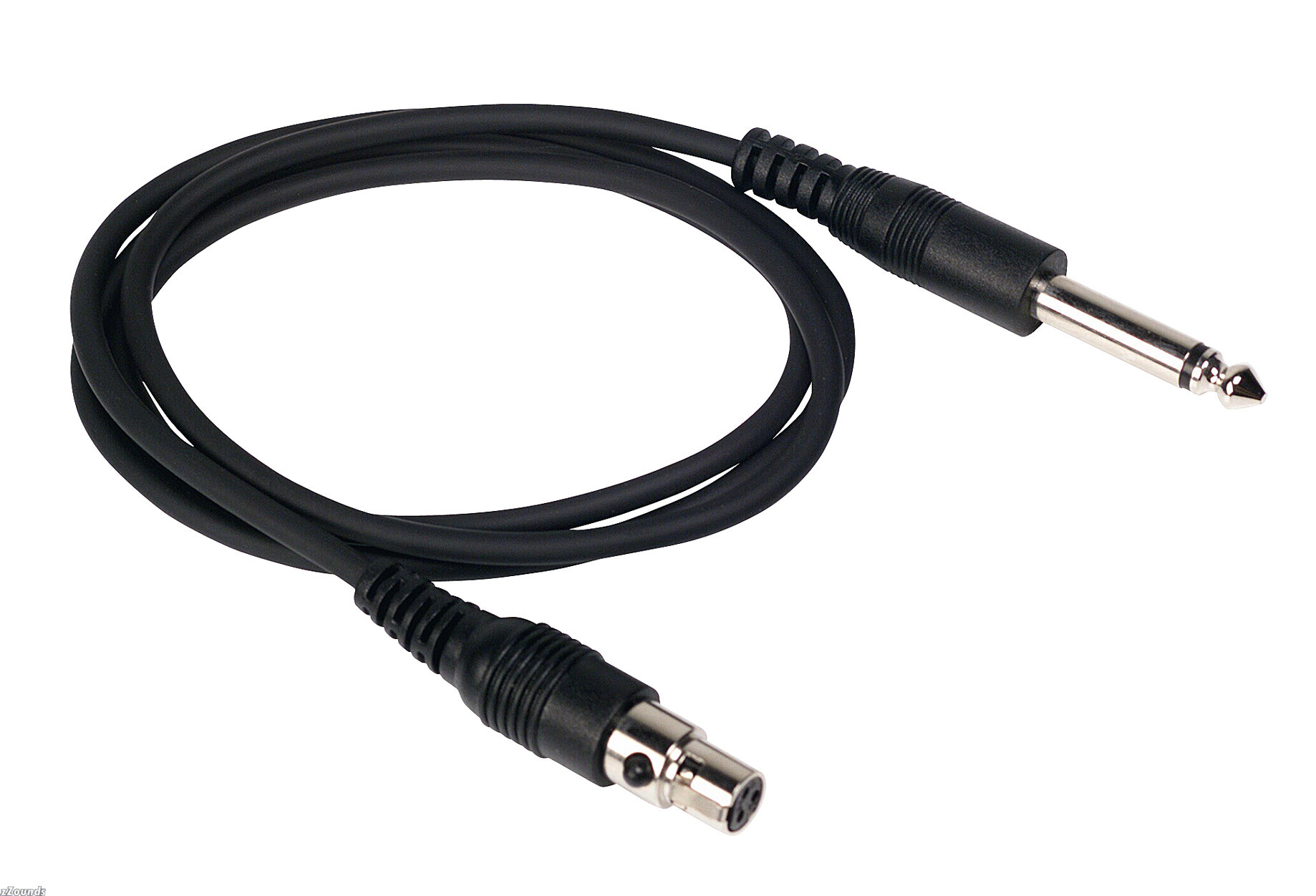

System 1 Includes: PT40 Bodypack, SR40 Receiver, MKG/L Instrument Cable. System 2 Includes: SR40 Receiver, HT40 with D 880 microphone element.

Features
Operates for more than 35 hours off the same set of batteries

Lowest operating cost in its class

SAW filters for interference-free operation

Adjustable squelch for noise-free reception

Comprehensive indicators for easy status monitoring

Professional XLR and 1/4 in. jack outputs

Easy to mount in any 19 in. rack using optional rack mount kit

SR 40 Receiver
Rugged half-rack case

SAW filters for interference-free operation. Adjustable squelch for noise-free reception

Power, RF, and mute LEDs for easy status monitoring

Professional outputs including a balanced XLR connector and unbalanced TS 1/4 in. jack

Output level adjustable from mic to line level

Easy to mount in any 19 in. rack using optional rack mount kit

PT 40 Bodypack Transmitter
Rugged plastic case

Professional mini XLR connector

Extended audio bandwidth for optimum transmission of microphone as well as guitar and bass signals.

Controls include on/mute/off switch and battery status LED

Mic/line selector and input level control for exceptional flexibility

Uses 1.5 V AA size dry or rechargeable batteries for low operating cost

Battery life exceeds 35 hours

AC/DC converter maintains constant transmission quality throughout battery life

Recommended Microphones for the PT 40: C 417 L, C 419 L, C 420 L, C 444 L, MKG/L instrument cable.

HT 40 Handheld Transmitter
D 880 microphone element for brilliant voice reproduction

Integrated antenna for optimized RF output and optimum transmission quality

Battery life in excess of 35 hours. Uses 1.5 V AA size dry or rechargeable batteries for low operating cost

DC/DC converter maintains constant transmission quality throughout battery life

Controls include on/mute/off switch and battery status LED

Replaceable color code clip for channel identification zZounds is an authorized dealer of AKG products.

System 1 Includes: PT40 Bodypack, SR40 Receiver, MKG/L Instrument Cable. System 2 Includes: SR40 Receiver, HT40 with D 880 microphone element.

WMS 40 System
Carrier frequency range: 710 to 865 MHz

Modulation: FM

Audio bandwidth: 40 to 20,000 Hz

T.H.D. at 1 kHz: typ. 0.8%

Signal/noise ratio: typ. 108 dB(A)

HT 40 Handheld Transmitter
RF output: 10 mW (ERP)

Battery life: >30 hours (2 x 1.5 V AA size batteries)

Size: 258 x 40 mm (10.1 x 1.6 in.)

Weight: 245 g (8.7 oz.)

PT 40 Bodypack Transmitter
RF output: 10 mW (ERP)

Battery life: >35 hours (2 x 1.5 V AA size batteries)

Size: 96 x 64 x 22 mm (3.8 x 2.5 x 0.9 in.)

Weight: 76 g (2.7 oz.)

Receiver SR 40
Audio outputs: balanced XLR and unbalanced 1/4" jack: adjustable from mic to line; 2 Vrms max.

Size: 235 x 142 x 43 mm (9.3 x 5.6 x 1.7 in.)

Weight: 470 g (16.6 oz.)
