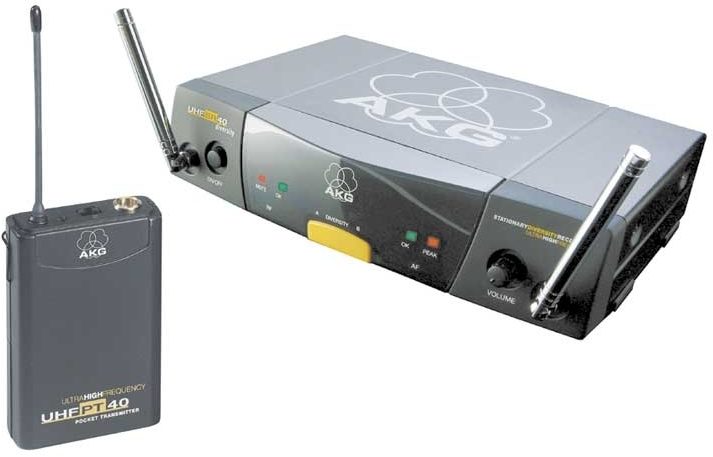

WMS 40 - The Professional Entry-Level Wireless System
Looking for superior sound on a budget? The professional WMS 40 is for you. This entry-level wireless system operates in the UHF range and is ideal for small stages, clubs, concert tours, worship centers, hotels, fitness centers, etc. The WMS 40 stands for easy handling, excellent performance, and a very affordable price.
Wireless Made Easy
The WMS 40 disproves all prejudices against wireless systems. Easy to use and flexible, it is a genuine plug-and-play system: plug it in, insert batteries, and power up. Fixed preset frequencies allow you to unpack and use the system without studying the manual first. A complete set of indicators makes it easy to check system status.
Superior Sound Made Affordable
Even though the WMS 40 is one of the most cost-efficient wireless systems available today, it provides the high level of quality, sound, ruggedness, and reliability AKG is known for. Advanced circuitry ensures smooth operation and perfect sound even under difficult conditions.

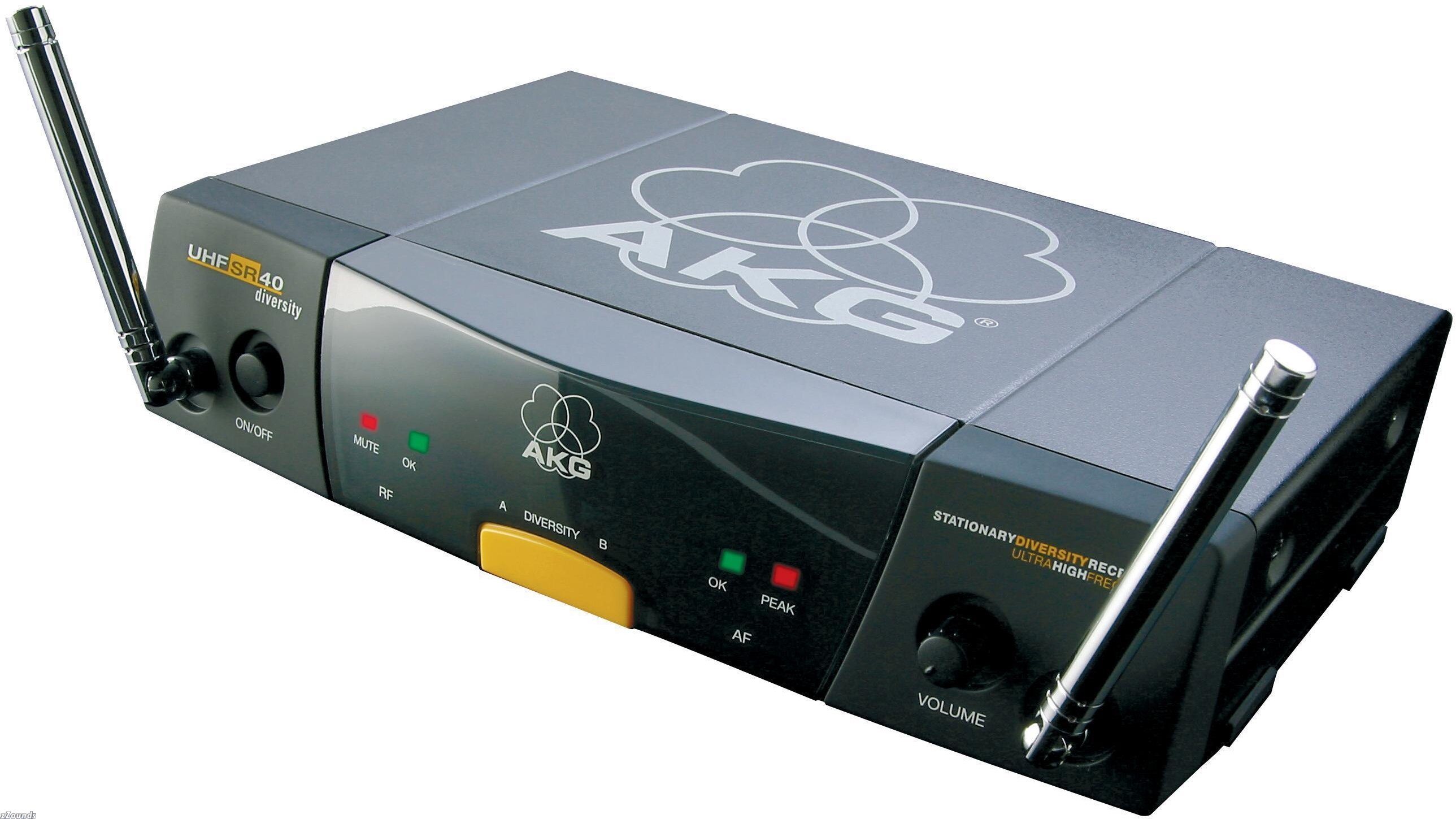

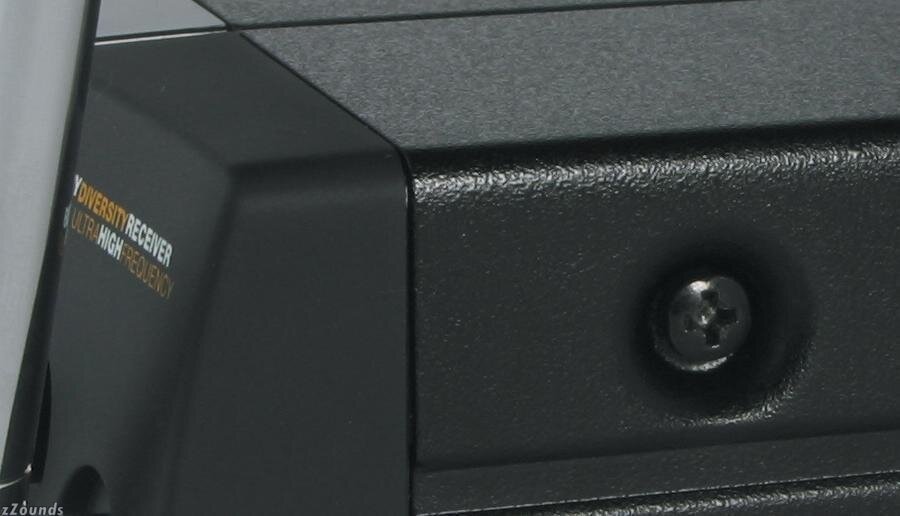

SR 40 Diversity
The SR 40 diversity is a stationary receiver for all WMS 40 and microtools Series transmitters. Operating in the 710 MHz to 865 MHz UHF range, the SR 40 diversity is perfectly suited for small stages, clubs, small touring systems, places of worship, hotels, gyms, etc. The plug and play concept and fixed preset frequency let you set up and operate the system quickly and efficiently even if you are not a trained sound engineer.

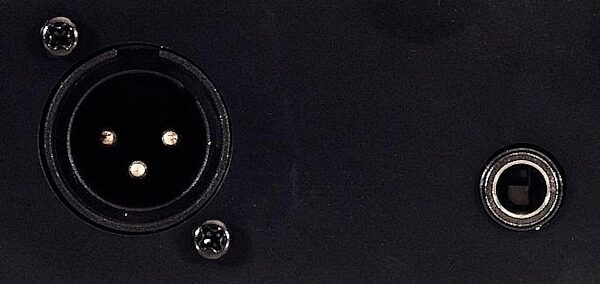

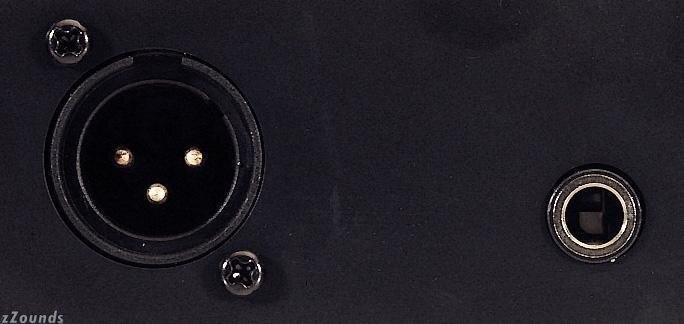

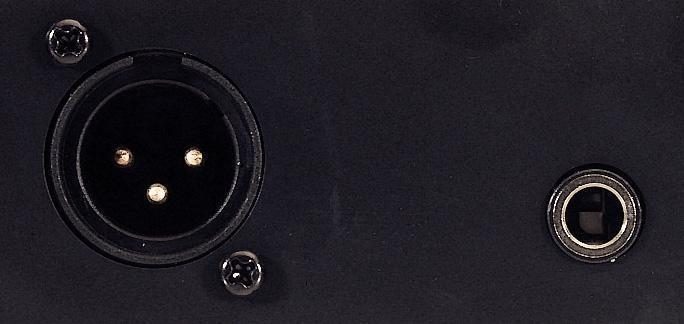

Professional outputs include a balanced XLR and unbalanced TS 1/4 in. jack for connecting to every kind of equipment. An output level control allows you to match the SR 40 diversity's output signal to the input stage of the subsequent device. The rugged half-rack case gives you the choice of using the receiver free-standing or mounting it in a 19 in. rack.
Features:
Digital Four Level Diversity system for interference-free reception

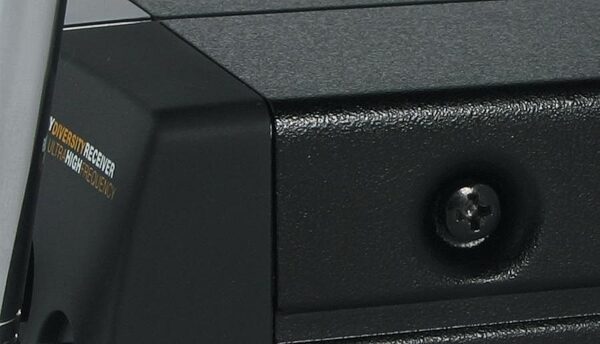

Rugged metal case

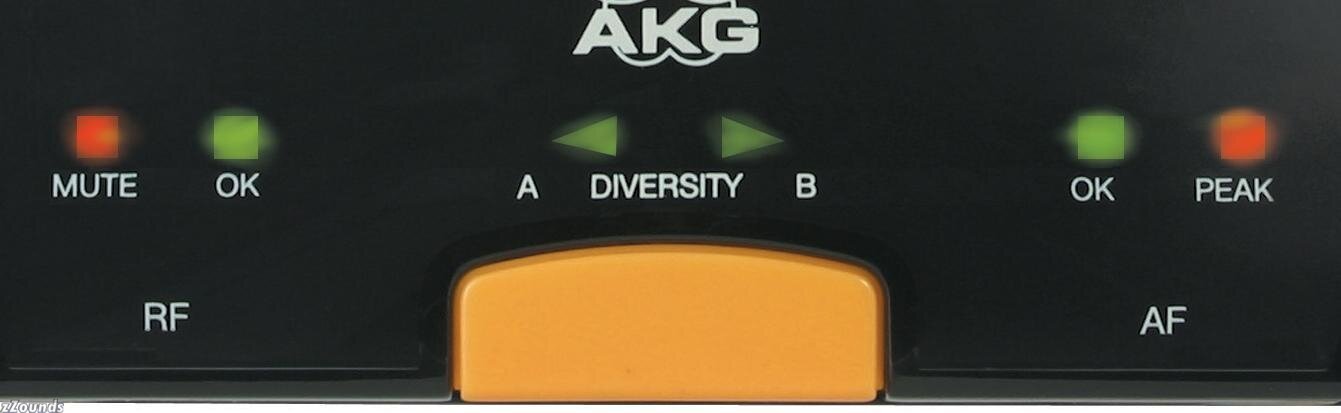

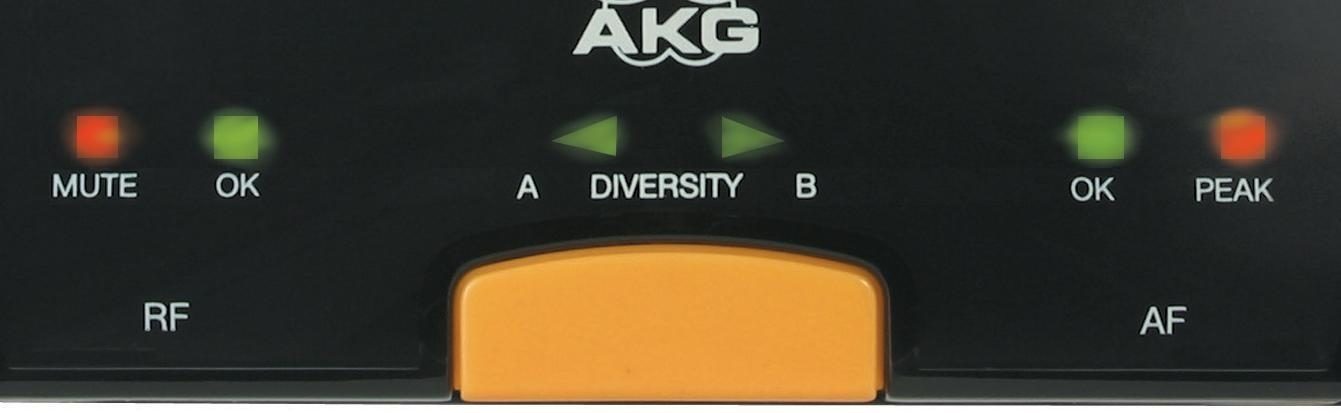

Full metering for easy status monitoring
Professional XLR and 1/4 in. outputs
1/4 to mini XLR cable included

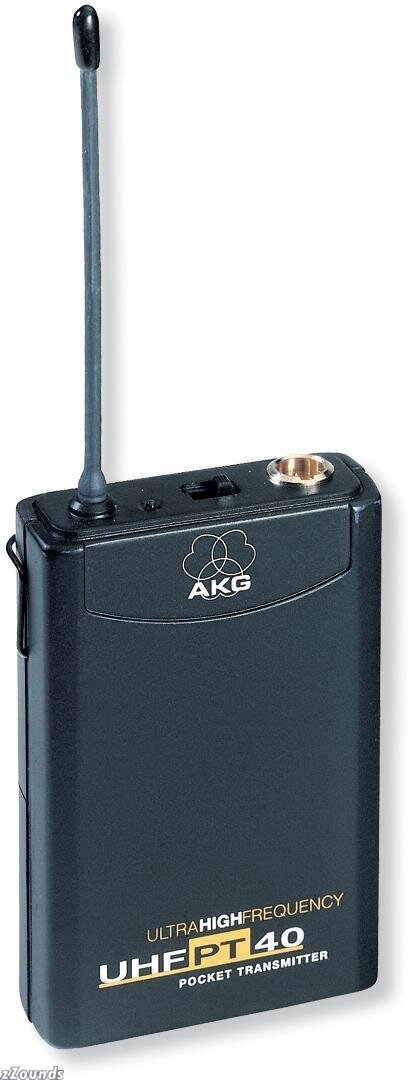

PT 40 Bodypack Transmitter
The WMS 40 Series PT 40 bodypack transmitter is a true universal genius. You can connect everything from lavalier or head-worn microphones to a guitar, bass, or portable keyboard.
In spite of its light weight and small size, the PT 40 operates for more than 35 hours off a single set of batteries, so its operating cost is the lowest in its class. An input gain control, noiseless on/mute/off switch, and professional mini XLR input provide maximum reliability and ease of use in every application. A belt clip makes it easy to attach the PT 40 to clothes or instrument straps.
Features:
Bodypack transmitter with rugged plastic body
Professional mini XLR input for variety of applications
Ease of use
Operates for more than 35 hours off the same set of AA size batteries.
Extremely low operating cost
Technical Info
SR 40 Diversity Receiver
Carrier Frequency Range: 710 MHz to 865 MHz
Modulation: FM
Audio Bandwidth: 40 to 20,000 Hz
THD: 0.8% typ.
Signal/noise Ratio: 103 dB (A) typ.
Power Supply: 120/230 V AC, 50/60 Hz, 95 +/-15 mA
Audio Outputs: Balanced XLR and unbalanced TS 1/4 in. jack, adjustable from mic to line level, 2 V rms max.
Dimensions: 200 x 135 x 42 mm / 7.8 x 5.3 x 1.6 in.
Net weight: 470 g / 16.6 oz.
Accessories (included): Power supply
PT 40 Bodypack Transmitter
Carrier frequency range: 710 MHz to 865 MHz
Modulation: FM
Audio bandwidth: 40 - 20,000 Hz
THD: 0.8% typ.
Signal/noise ratio: 103 dB (A) typ.
Power supply: 2 x 1.5 V AA size batteries
RF output: 10 mW typ. (ERP)
Battery life: >35 hours (dry batteries)
Dimensions: 96 x 64 x 22 mm / 3.8 x 2.5 x 0.9 in.
Net weight: 76 g / 2.7 oz.
Accessories (included): 2 AA size batteries, Battery compartment cover, Belt clip, 1/4 to mini XLR cable included
