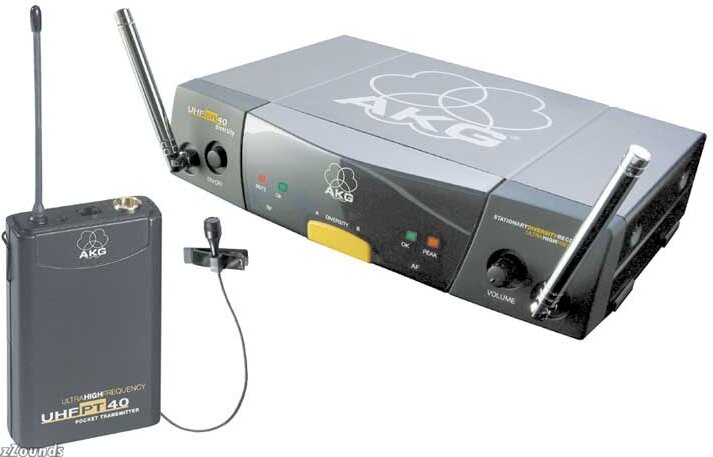

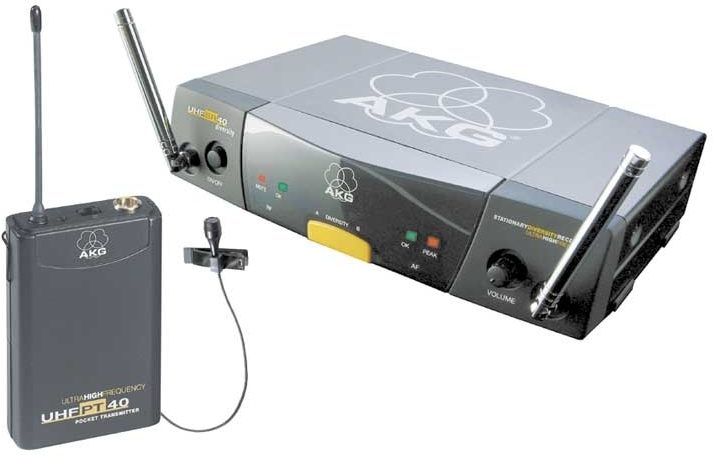

AKG WMS40DV407 Diversity Lavalier Wireless System with C407 Lapel Microphone

WMS 40 - The Professional Entry-Level Wireless System
Looking for superior sound on a budget? The professional WMS 40 is for you. This entry-level wireless system operates in the UHF range and is ideal for small stages, clubs, concert tours, worship centers, hotels, fitness centers, etc. The WMS 40 stands for easy handling, excellent performance, and a very affordable price.

Wireless Made Easy
The WMS 40 disproves all prejudices against wireless systems. Easy to use and flexible, it is a genuine plug-and-play system: plug it in, insert batteries, and power up. Fixed preset frequencies allow you to unpack and use the system without studying the manual first. A complete set of indicators makes it easy to check system status.

Superior Sound Made Affordable
Even though the WMS 40 is one of the most cost-efficient wireless systems available today, it provides the high level of quality, sound, ruggedness, and reliability AKG is known for. Advanced circuitry ensures smooth operation and perfect sound even under difficult conditions.

Handheld or Bodypack, the Choice is Yours
The Handheld System includes an HT 40 handheld transmitter with D 880 microphone element, an SR 40 receiver, and a stand adapter. The high quality D 880 element provides the same brilliant vocal sound as its hardwire Emotion Series counterpart. The Bodypack System comprises a PT 40 transmitter for use with an optional microphone of your choice and an SR 40 receiver. Either system includes batteries for the transmitter and an AC adapter for the receiver.

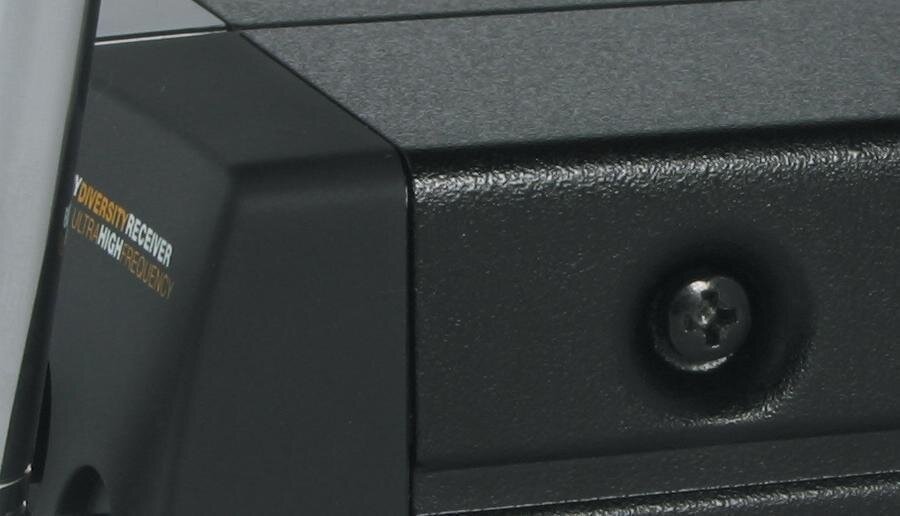

SR 40 Diversity
The SR 40 diversity is a stationary receiver for all WMS 40 and microtools Series transmitters. Operating in the 710 MHz to 865 MHz UHF range, the SR 40 diversity is perfectly suited for small stages, clubs, small touring systems, places of worship, hotels, gyms, etc. The plug and play concept and fixed preset frequency let you set up and operate the system quickly and efficiently even if you are not a trained sound engineer.

Professional outputs include a balanced XLR and unbalanced TS 1/4 in. jack for connecting to every kind of equipment. An output level control allows you to match the SR 40 diversity's output signal to the input stage of the subsequent device. The rugged half-rack case gives you the choice of using the receiver free-standing or mounting it in a 19 in. rack.

Features:
Digital Four Level Diversity system for interference-free reception

Rugged metal case

Full metering for easy status monitoring

Professional XLR and 1/4 in. outputs

PT 40 Bodypack Transmitter
The WMS 40 Series PT 40 bodypack transmitter is a true universal genius. You can connect everything from lavalier or head-worn microphones to a guitar, bass, or portable keyboard.

In spite of its light weight and small size, the PT 40 operates for more than 35 hours off a single set of batteries, so its operating cost is the lowest in its class. An input gain control, noiseless on/mute/off switch, and professional mini XLR input provide maximum reliability and ease of use in every application. A belt clip makes it easy to attach the PT 40 to clothes or instrument straps.

Features:
Bodypack transmitter with rugged plastic body

Professional mini XLR input for variety of applications

Ease of use

Operates for more than 35 hours off the same set of AA size batteries.

Extremely low operating cost

Technical Info

SR 40 Diversity Receiver
Carrier Frequency Range: 710 MHz to 865 MHz

Modulation: FM

Audio Bandwidth: 40 to 20,000 Hz

THD: 0.8% typ.

Signal/noise Ratio: 103 dB (A) typ.

Power Supply: 120/230 V AC, 50/60 Hz, 95 +/-15 mA

Audio Outputs: Balanced XLR and unbalanced TS 1/4 in. jack, adjustable from mic to line level, 2 V rms max.

Dimensions: 200 x 135 x 42 mm / 7.8 x 5.3 x 1.6 in.

Net weight: 470 g / 16.6 oz.

Accessories (included): Power supply


PT 40 Bodypack Transmitter
Carrier frequency range: 710 MHz to 865 MHz

Modulation: FM

Audio bandwidth: 40 - 20,000 Hz

THD: 0.8% typ.

Signal/noise ratio: 103 dB (A) typ.

Power supply: 2 x 1.5 V AA size batteries

RF output: 10 mW typ. (ERP)

Battery life: >35 hours (dry batteries)

Dimensions: 96 x 64 x 22 mm / 3.8 x 2.5 x 0.9 in.

Net weight: 76 g / 2.7 oz.

Accessories (included): 2 AA size batteries, Battery compartment cover, Belt clip
