AKG WMS40 UHF Lapel Wireless System with C407 Microphone and Handheld Wireless System with D880 Microphone Package

If your first wireless system must provide excellent sound and your budget is limited, consider the professional WMS 40. It operates in the UHF (Ultra-high Frequency) band from 710 MHz to 865 MHz and is ideally suited for small stages, clubs, touring, places of worship, hotels, fitness centers, etc. The WMS 40 uses highly selective SAW filters and advanced circuitry to ensure interference-free operation and excellent audio even under difficult conditions. Each WMS 40 operates on a fixed frequency and is extremely easy to set up.

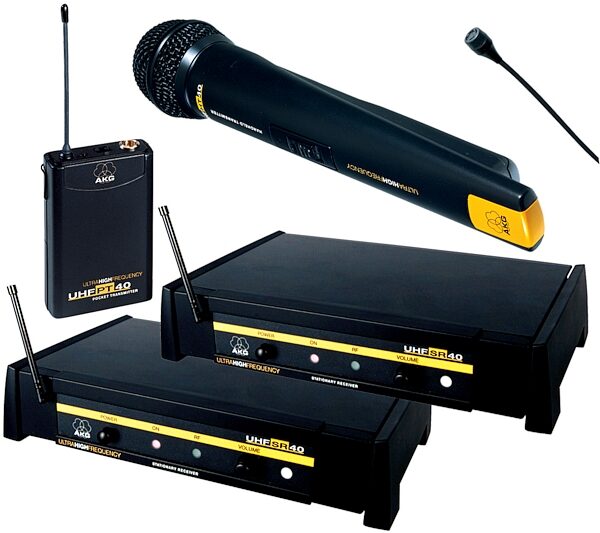

System 1 Includes: PT40 Bodypack System, SR40 Receiver, C407 Microphone. System 2 Includes: HT40 with D 880 microphone element, SR40 receiver.

Features
Operates for more than 35 hours off the same set of batteries.

Lowest operating cost in its class.

SAW filters for interference-free operation.

Adjustable squelch for noise-free reception.

Comprehensive indicators for easy status monitoring.

Professional XLR and 1/4" jack outputs.

Easy to mount in any 19" rack using optional rack mount kit.

Technical Info

System 1 Includes: PT40 Bodypack System, SR40 Receiver, C407 Microphone. System 2 Includes: HT40 with D 880 microphone element, SR40 receiver.

WMS 40 System
Carrier frequency range: 710 to 865 MHz

Modulation: FM

Audio bandwidth: 40 to 20,000 Hz

T.H.D. at 1 kHz: typ. 0.8%

Signal/noise ratio: typ. 108 dB(A)

HT 40 Handheld Transmitter
RF output: 10 mW (ERP)

Battery life: >30 hours (2 x 1.5 V AA size batteries)

Size: 258 x 40 mm (10.1 x 1.6 in.)

Weight: 245 g (8.7 oz.)

PT 40 Bodypack Transmitter
RF output: 10 mW (ERP)

Battery life: >35 hours (2 x 1.5 V AA size batteries)

Size: 96 x 64 x 22 mm (3.8 x 2.5 x 0.9 in.)

Weight: 76 g (2.7 oz.)

Receiver SR 40
Audio outputs: balanced XLR and unbalanced 1/4" jack: adjustable from mic to line; 2 Vrms max.

Size: 235 x 142 x 43 mm (9.3 x 5.6 x 1.7 in.)

Weight: 470 g (16.6 oz.)
