AKG WMS40 UHF Handheld Wireless System with D880 Microphone

Go Out on Stage and Let It Rip!
If your first wireless system must provide excellent sound and your budget is limited, consider the professional WMS 40. It operates in the UHF (Ultra-High Frequency) band from 710 MHz to 865 MHz and is ideally suited for small stages, clubs, touring, places of worship, hotels, fitness centers, etc. The WMS 40 uses highly selective SAW filters and advanced circuitry to ensure interference-free operation and excellent audio even under difficult conditions. Each WMS 40 operates on a fixed frequency and is extremely easy to set up.

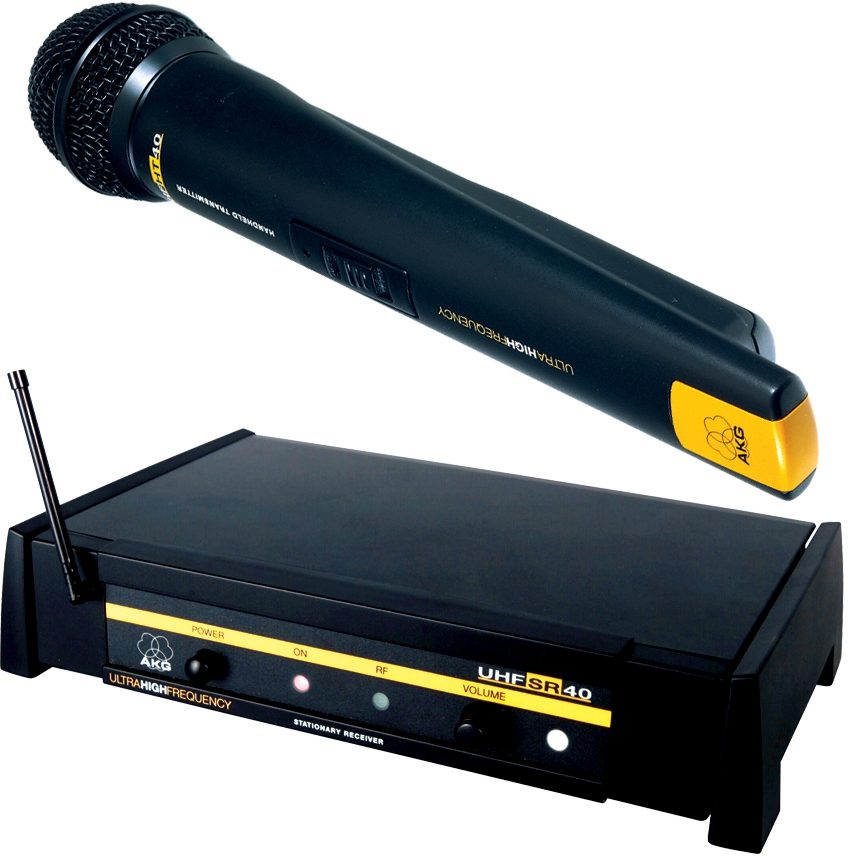

System Includes: HT40 with D 880 microphone element, SR40 receiver.

Features
Operates for more than 35 hours off the same set of batteries

Lowest operating cost in its class

SAW filters for interference-free operation

Adjustable squelch for noise-free reception

Comprehensive indicators for easy status monitoring

Professional XLR and 1/4 in. jack outputs

Easy to mount in any 19 in. rack using optional rack mount kit

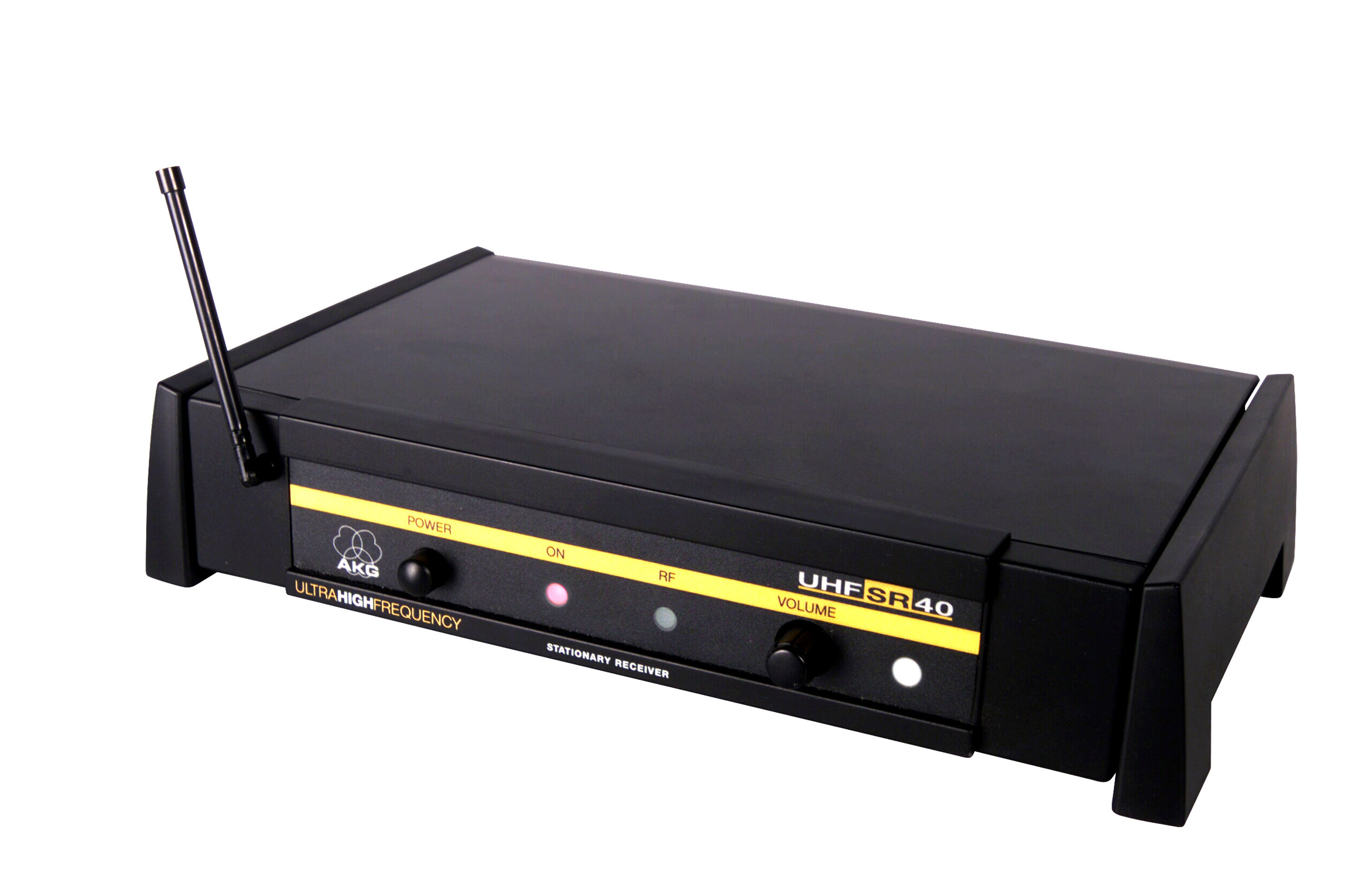

SR 40 Receiver
Rugged half-rack case

SAW filters for interference-free operation. Adjustable squelch for noise-free reception

Power, RF, and mute LEDs for easy status monitoring

Professional outputs including a balanced XLR connector and unbalanced TS 1/4 in. jack

Output level adjustable from mic to line level

Easy to mount in any 19 in. rack using optional rack mount kit

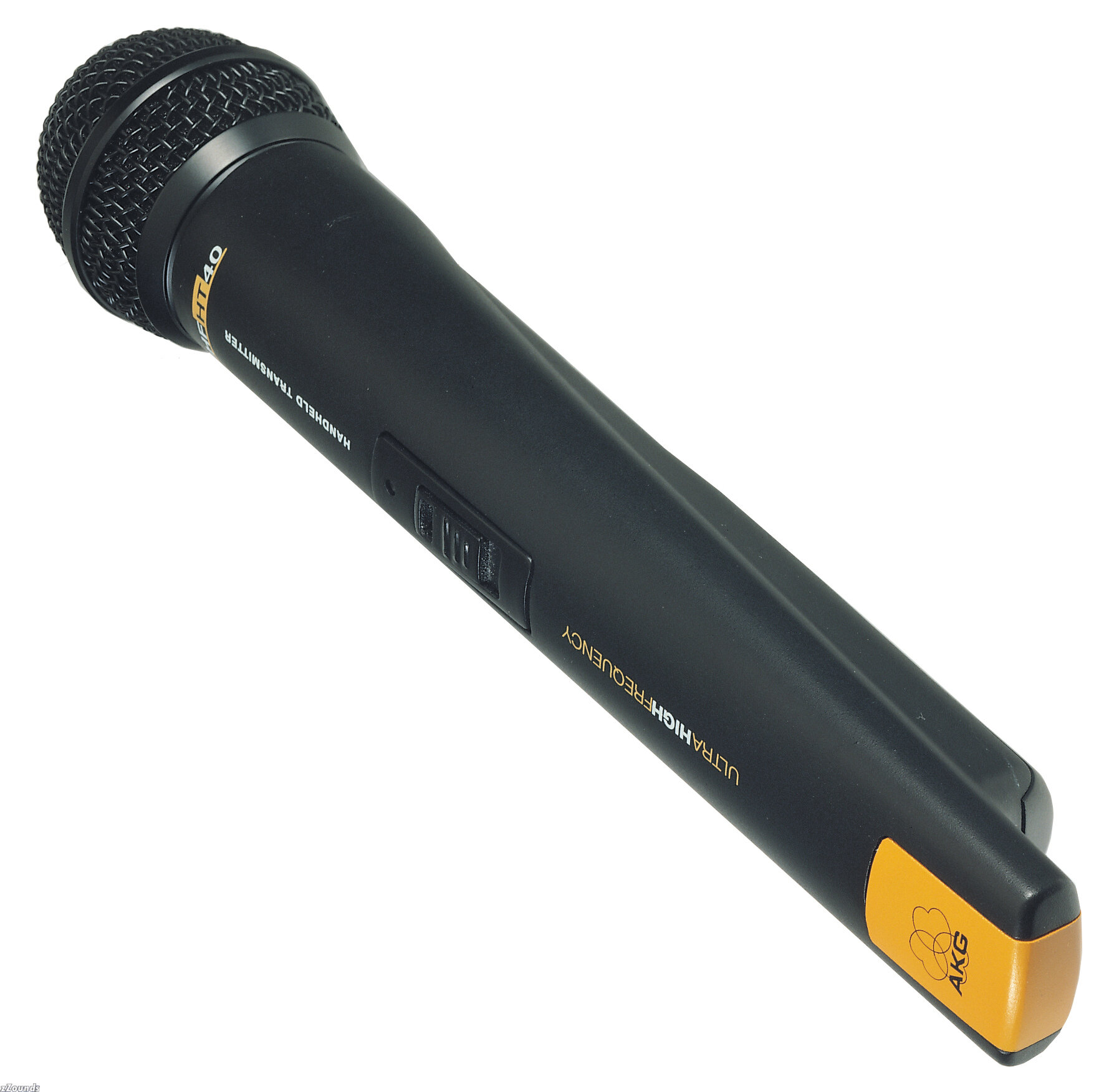

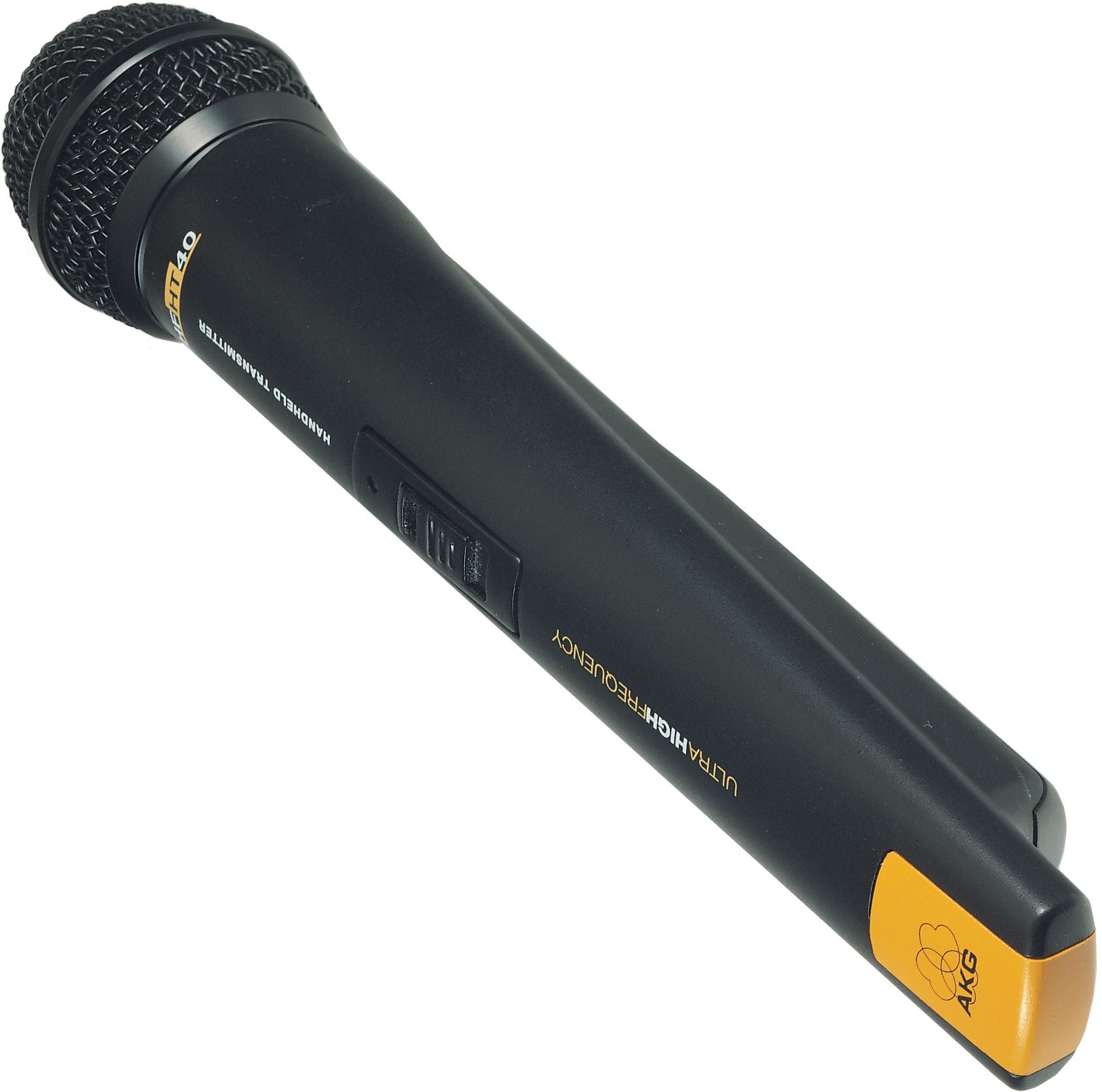

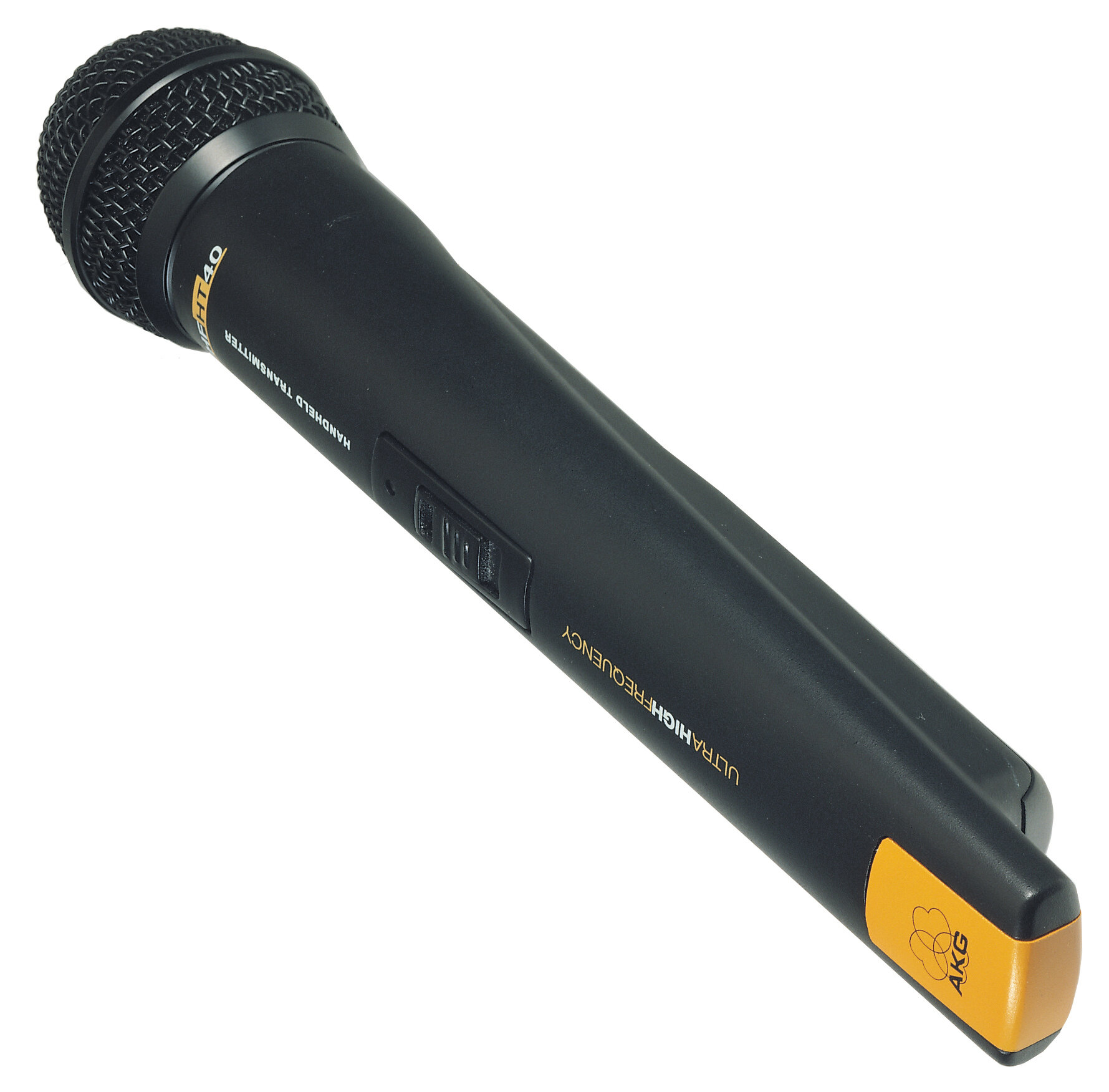

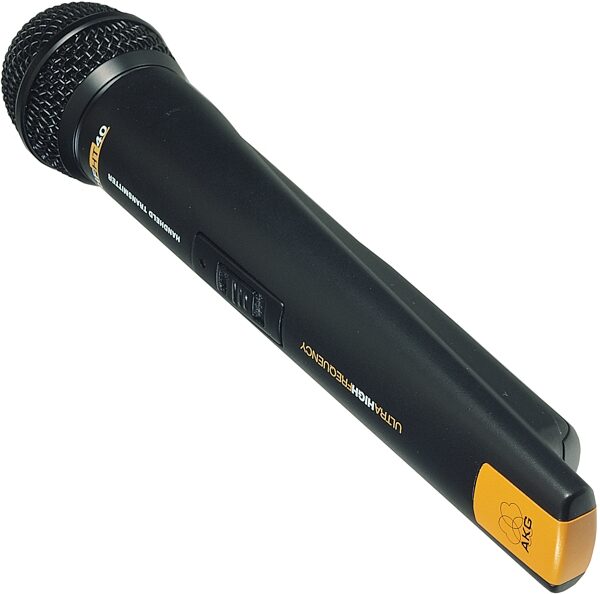

HT 40 Handheld Transmitter
D 880 microphone element for brilliant voice reproduction

Integrated antenna for optimized RF output and optimum transmission quality

Battery life in excess of 35 hours. Uses 1.5 V AA size dry or rechargeable batteries for low operating cost

DC/DC converter maintains constant transmission quality throughout battery life

Controls include on/mute/off switch and battery status LED

Replaceable color code clip for channel identification

Technical Info

System Includes: HT40 with D 880 microphone element, SR40 receiver.

WMS 40 System
Carrier frequency range: 710 to 865 MHz

Modulation: FM

Audio bandwidth: 40 to 20,000 Hz

T.H.D. at 1 kHz: typ. 0.8%

Signal/noise ratio: typ. 108 dB(A)

HT 40 Handheld Transmitter
RF output: 10 mW (ERP)

Battery life: >30 hours (2 x 1.5 V AA size batteries)

Size: 258 x 40 mm (10.1 x 1.6 in.)

Weight: 245 g (8.7 oz.)

Receiver SR 40
Audio outputs: balanced XLR and unbalanced 1/4" jack: adjustable from mic to line; 2 Vrms max.

Size: 235 x 142 x 43 mm (9.3 x 5.6 x 1.7 in.)

Weight: 470 g (16.6 oz.)
