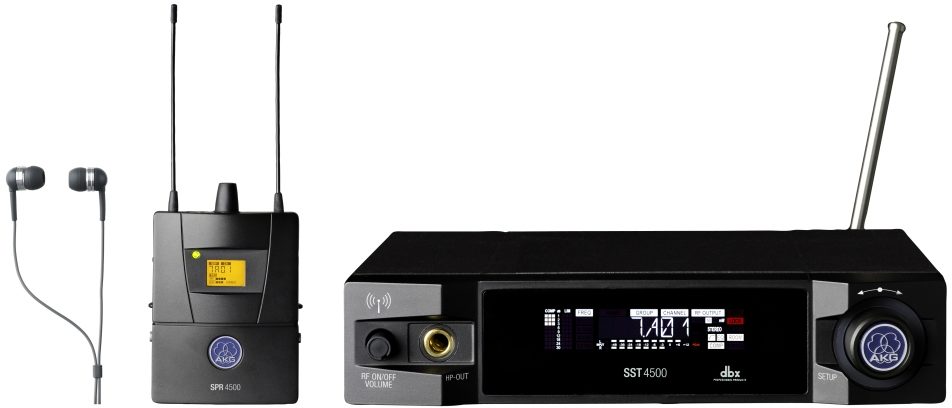

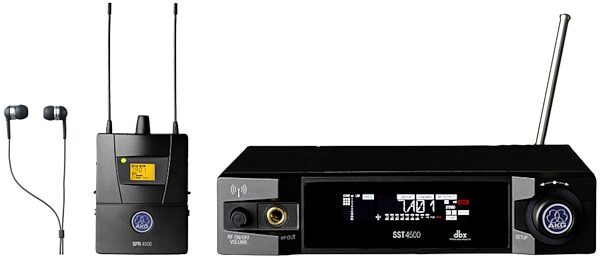

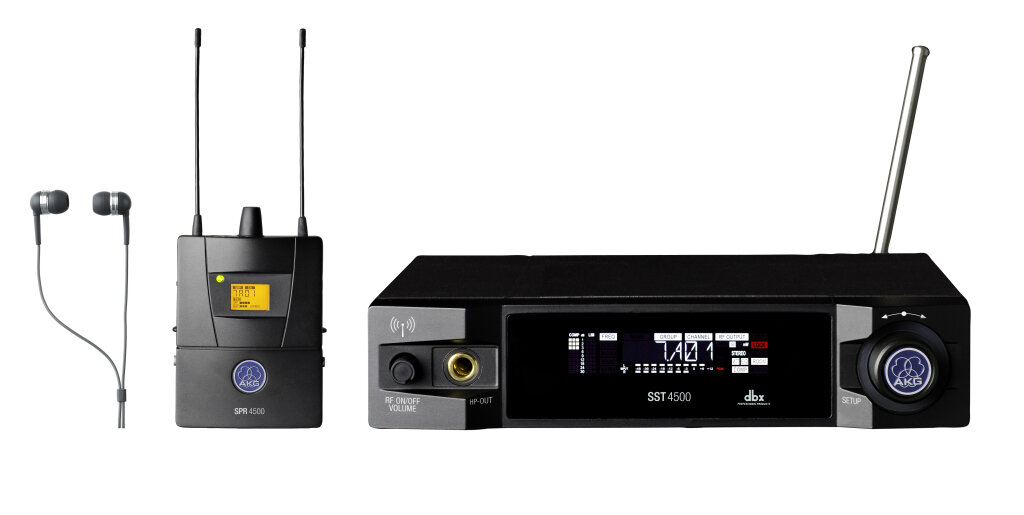

AKG IVM4500 In-Ear Monitor Wireless System

Hear everything with the AKG IVM4500 wireless in-ear monitoring system. This set comes with transmitter, bodypack receiver, earbuds, and all the accessories.
Ships to: Can ship to United States Can ship to Canada
Can ship to Puerto Rico Can ship to APO/FPO
Roll Over to Enlarge Main

Product Description

The AKG IVM4500 is an in-Ear monitor wireless system with unique signal processing capabilities for live applications and professional installations.

Integration into a HiQnet system with optional HUB 4000 Q

The IVM 4 is the first system ever to combine all the features required for professional in-ear monitoring in a single, compact device. The IVM 4 allows the input signal to be processed individually to meet the requirements of both the artist and the sound system environment.

Unique integrated signal processing for a natural listening experience and a complete set of inputs and outputs make the IVM 4 an ideal tool for professional applications.

HiQnet - System Architect

With the optional HUB 4000 Q, AKG wireless systems can be integrated into a HiQnet system. The wireless system can be remote-controlled and monitored with the Harman control software System Architect (from a PC), the AKG Wireless iPhone App (from an iPhone/iPod touch/iPad) or VM2 (from a Soundcraft Vi mixing console). The setup and configuration of the frequency management of a multichannel wireless system is incredibly easy within the System Architect with tools like 1 Click Setup, RF Monitor, Device Manager and Environment Scan.

Includes

- 1 SST 4 stereo transmitter
- 1 SPR 4 bodypack stereo receiver
- 1 pair IP 2 earphones
- 1 rod antenna
- 1 rack mounting kit
- 2 AA size batteries
- 12-piece color code set
- 1 AC adapter
zZounds is an authorized dealer of AKG products.
- IVM 4:
- Carrier frequency bands:
- 500-530
- 570-600
- 720-750
- 790-820
- 835-865 MHz
- RF bandwidth: 30 MHz / 25 kHz
- Modulation: FM, MPX Stereo
- Audio formats: stereo, mono, dual channel (selectable)
- Audio bandwidth: 35 Hz to 20 kHz
- THD: typ. < 0.8%
- Signal/noise ratio: > 90 dBA
- Operating temperature: -10 degrees C to +50 degrees
- SST 4 Transmitter:
- Clean carriers per frequency band: 14
- RF output: 10, 20, 50, 100 mW (selectable, depending on local legislation)
- Antenna: 50-ohm rod antenna with BNC connector
- Audio input: 2 x combined XLR/1/4 in. jacks, balanced, 10 dBV max.
- Input gain and limiter: digitally controlled
- Audio processor: 24-bit DSP
- Audio outputs:
- AUDIO LOOP: 2 x 1/4 in. jacks, directly connected to audio input
- LINE OUT: TRS 1/4 in. jack, connected to audio section output, 0 dBV max.
- HP OUT: 18 Hz to 20 kHz, THD < 0.5%, maximum power 2 x 500 mW into 16 to 600 ohms
- Power supply: 12 V DC, 0.5 A
- Size: 200 x 190 x 44 mm (7.8 x 1.7 x 7.4 in.)
- Weight: 1070 g (2.4 lbs.)
- SPR 4 Receiver:
- Squelch threshold: -102 dBm to -80 dBm, selectable
- Audio bandwidth: 35 Hz to 15 kHz
- THD at 1 kHz: < 0.8%
- Channel separation: > 40 dB
- Signal/noise ratio: > 90 dBA
- Audio output: TRS mini jack
- Controls: Jog switch, volume control, backlit LCD, status LED
- Power supply: 2 AA size dry batteries or BP 4000 battery pack
- Battery life: 6 to 8 hours
- Size: 70 x 90 x 25 mm (2.8 x 3.5 x 1 in.)
- Net weight inc. batteries: 165 g (5.8 oz.)
- IP 2 Earbuds:
- Frequency range: 12 Hz to 35 kHz
- Sensitivity: 121 dB SPL/V
- Power handling capability: 25 mW
- Rated impedance: 16 ohms
- Weight (inc. cable): 3 g (0.1 oz.)
- Connecting cable: 1.5 m (5 ft.) long, Y connected
- Connector: TRS mini jack plug
Dimensions and Weight in Packaging
Channel 1, 50mW
Shipping Weight: 6 lbs
Shipping Dimensions: 14 x 9 x 5 in
Channel 7, 50mW
Shipping Weight: 6 lbs
Shipping Dimensions: 14 x 9 x 5 in
Channel 7, 100mW
Shipping Weight: 6 lbs
Shipping Dimensions: 14 x 9 x 5 in
Channel 8, 50mW
Shipping Weight: 5 lbs
Shipping Dimensions: 14 x 9 x 5 in
Channel 8, 100mW
Shipping Weight: 5 lbs
Shipping Dimensions: 14 x 9 x 5 in
Channel 9, 50mW
Shipping Weight: 5 lbs
Shipping Dimensions: 14 x 9 x 5 in
AKG Warranty If you have additional warranty questions, please call the manufacturer at 818-920-3212
Because this item is used at your mouth or ear, it cannot be returned once opened due to health reasons. details
