AKG DSR70Q Digital 4-Channel Wireless Receiver

Add four channels of pristine digital wireless to your system in a single rack space with the AKG DSR70Q receiver. Four XLR outputs connect to your mixer.
Ships to: Can ship to United States Can ship to Canada
Can ship to Puerto Rico Can ship to APO/FPO

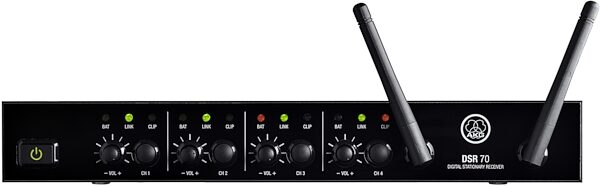

Roll Over to Enlarge Main

Product Description

The AKG DMS70 professional digital diversity receiver features bidirectional communication between the transmitter and receiver, which offers a number of valuable functions including remote power off for all transmitters, battery status monitoring and more. The dynamic frequency selection (DFS) intelligently chooses only the cleanest frequency bands to establish a robust connection to the transmitters. Thanks to the one-click pairing function, the system is up and running immediately.

Two AKG DMS70 receivers can operate together, providing up to eight simultaneous channels.
The package includes a universal power supply kit for worldwide use.

Features

- Dynamic frequency selection automatically selects the best frequency band
- Standard AES 128-bit encryption prevents tapping of the audio signal
- Auto correction switch, more processor power for clearer signals
- Four-channel receiver, four channel outputs and one MIX output via XLR connector

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure. zZounds is an authorized dealer of AKG products.
- Carrier frequency range: Dynamic frequency selection (DFS) in 2,4 GHz ISM band (2.404 - 2.470 GHz)
- Audio bandwidth: 20 Hz to 20 MHz (+/- 3 dB)
- Overall dynamic range: typ. 120 dB(A)
- THD: <= 0.05 %
- Gain Potis: 0 - 1.4 Vrms
- Operating range: Indoor 30m (LOS), Outdoor 30m (LOS)
- Modulation: Orthogonal Frequency-Division Multiplexing - OFDM
- Encryption: 128 Bit AES
- Diversity system: Digital controlled antenna diversity
- Audio outputs: 4 x XLR channel balanced, 1x XLR sum balanced
- RF output power: max. 100mW
- Power supply: SMPS 12 Vdc, 0,5 A, EU/US/UK adapters
- Dimensions: Standalone: 315 mm 42 mm 147 mm (12.4 x 1.6 x 5.8 in.)
Rack: 482 mm 42 mm 147 mm (19 x 1.6 x 5.8 in.)
- Net weight: 1180 g (2.6 lbs.)
Dimensions and Weight in Packaging
Shipping Weight: 3 lbs
Shipping Dimensions: 20 x 10 x 3 in
AKG Warranty
AKG Warranty
If you have additional warranty questions, please call the manufacturer at 818-920-3212
Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
