Akai QuadComp VST Plug-In Software

While it is possible to use an ordinary compressor for tightening up and adding punch to a stereo mix, it is very common that low frequencies can cause "pumping" effects on the overall signal. However, by splitting the signal into 4 different frequency bands, each frequency region can be separately processed. This is achieved on the QuadComp using a series of crossover filters. These filters are constructed as linear phase FIR filters in order to produce a signal path which is perfectly free of phase errors.

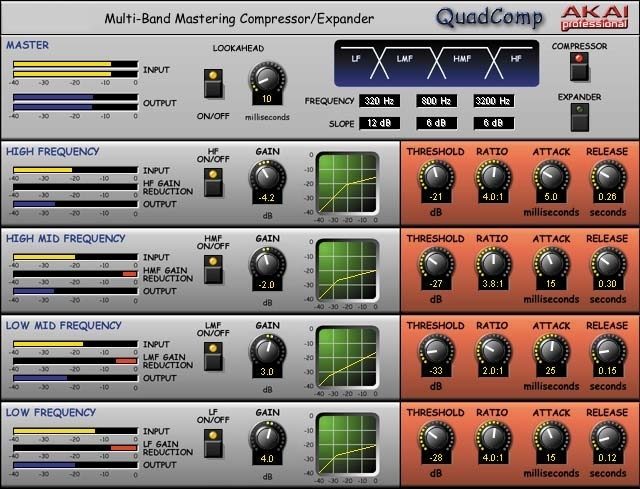

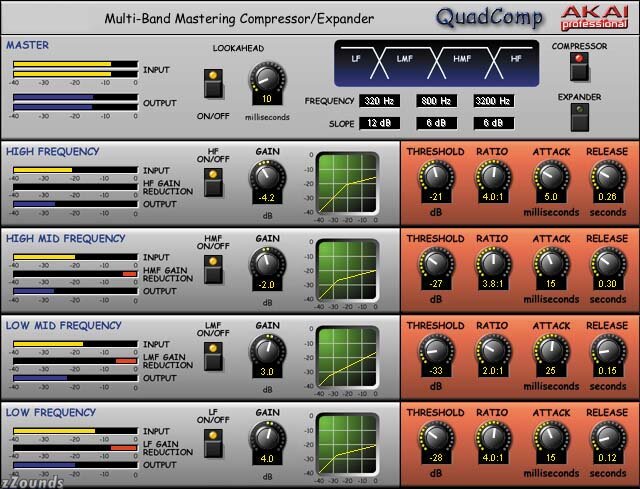

At the top of the panel, you can set the crossover frequencies for the 4 bands. Each band has controls for Threshold, Ratio, Attack and Release and as these are adjusted, so the compression curve is shown graphically. The Gain control allows you to compensate for level changes that may occur.

Technical Info

System Requirements (minimum)

Windows OS: Windows 98/98SE, Me, 2000

CPU: 400 MHz (or higher)

Memory 128 MByte (or greater)

Mac OS: MacOS 8.5 (or higher)

CPU: PowerMac G4/400 MHz (or higher)

Memory: 128 MByte (or greater)
