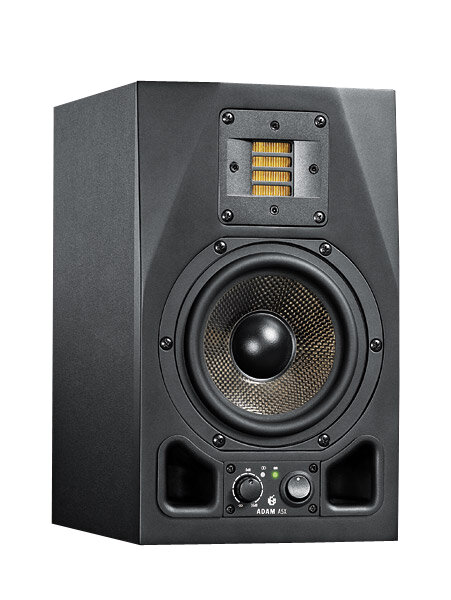

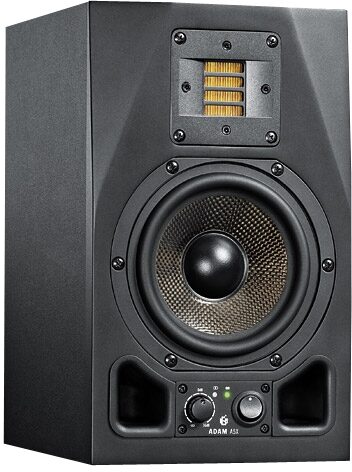

Adam A5X Powered Studio Monitor

Manufacturer's Description for Adam A5X Powered Studio Monitor

The small A5 managed to make itself a big name in both professional environments as well as in computer or desktop applications. A wealth of truly outstanding reviews and many awards helped to establish this speaker as one "of the best small monitors" and a "great choice for the small studio." (Future Music, 01/2009).

The New A5X

The similar dimensions and name could make one believe that the A5X is nothing more than a new version of the A5. A quick listening however leaves no doubt that the A5X is much more than that.

Like all other models of the AX-Series it features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.

A 5.5-inch Midwoofer reproduces the frequencies below 2.5kHz. The diaphragm is made from Carbon fiber/Rohacell/Glass fiber, which is the same composite structure shared in the next two bigger models. This material with minimum weight and maximum rigidity prevents break up resonances, resulting in an outstanding dynamic behaviour and impeccable sound characteristics.

Stereolink

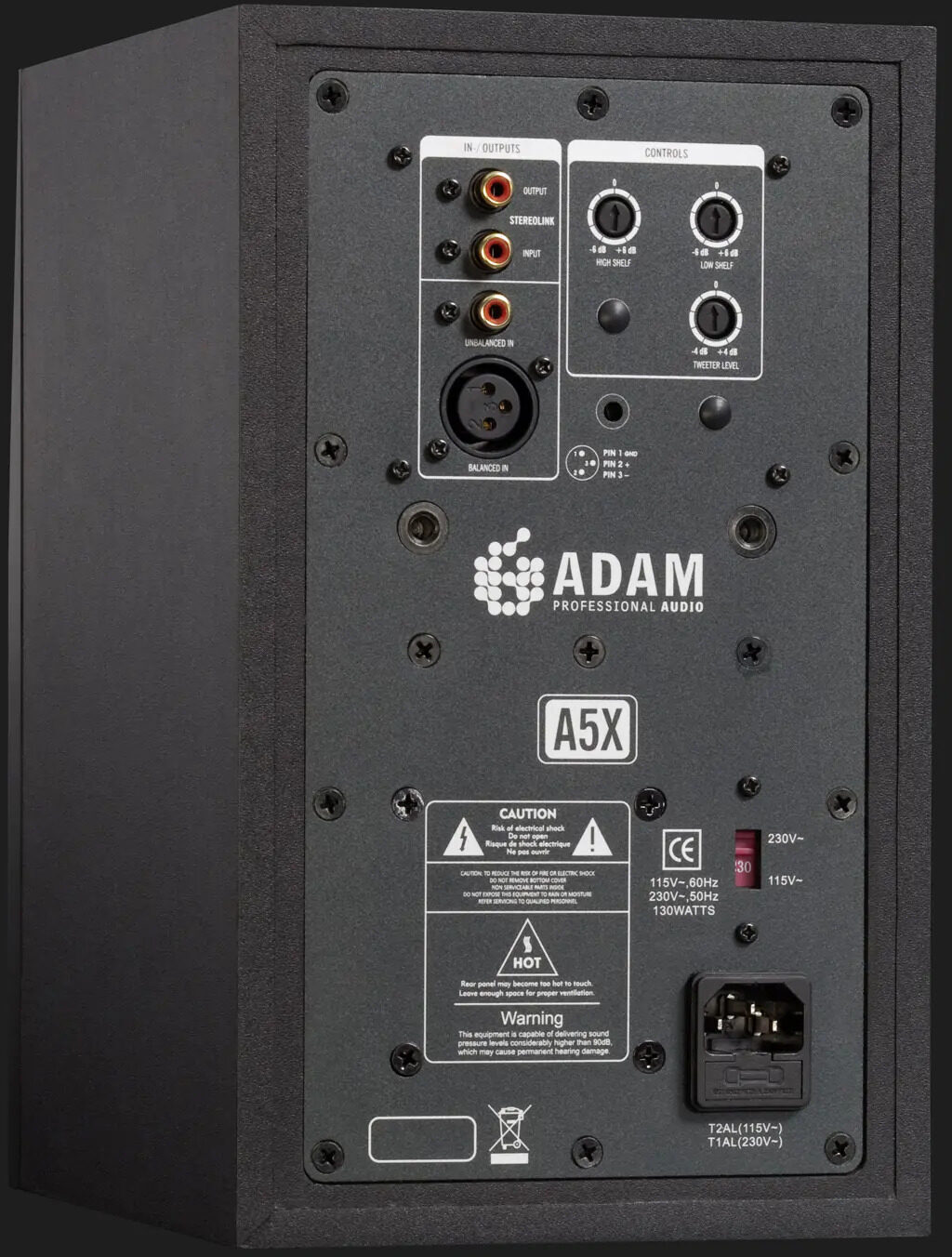

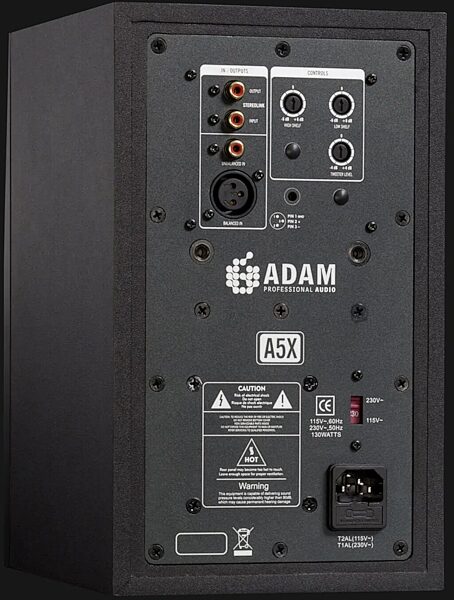

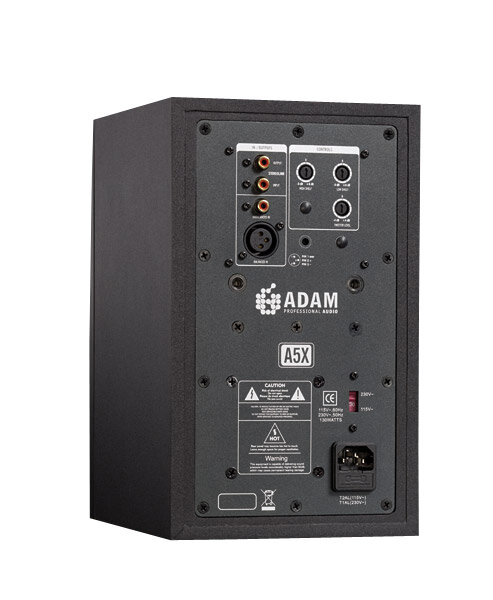

A very handy and exclusive feature found in the two smaller AX monitors is the Stereolink. This is accomplished by a pair of additional RCA connections that allow for a bypass of the second stereo channel to the other speaker.

This new technology connects two A5X speakers in such a manner as to allow the user the option to control the overall stereo volume of the system from either speakers gain control. This makes the A5X a natural for "mixer-less" desktop applications where overall system volume needs to be adjusted easily. zZounds is an authorized dealer of Adam Audio products.

Mid-Woofer
Number: 1

Basket O: 5.5" (145 mm)

Voice coil O: 1.5" (32 mm)

Cone material: Carbon/Rohacell/Glass Fiber

Tweeter
Number: 1

Type: X-ART

Diaphragm area: 4 inch (2420 mm)

Equiv. Diaphragm O: 2" (56 mm)

Velocity transform ratio: 4:1

Diaphragm weight: 0.17 g

Built-in Amplifiers
Mid-Woofer: 1

Type: PWM

Amp. power RMS / music: 50 W / 75 W

Tweeter: 1

Type: A/B

Amp. power RMS / music: 50 W / 75 W

Control panel
Input Sensitivity: -()() to +14 dB

High shelve > 5 kHz: +/-6 dB

Low shelve < 300 Hz: +/-6 dB

Tweeter gain: +/-4 dB

Input connectors
Analog: XLR / RCA

General data
Frequency response: 50 Hz - 50 kHz

THD 90dB/1m > 100 Hz: <=0.6 %

Long term output: >=102 dB

Max. peak: >=110 dB

Crossover frequencies: 2500 Hz

Input impedance: 30 K Ohm

Weight: 14.6 lb (6,6 kg)

Magnetically shielded: No

Height x Width x Depth: 11" (280 mm) x 6.5" (170 mm) x 8.5" (220 mm)

Warranty: 5 Years

Dimensions and Weight in Packaging

Single Speaker

Shipping Weight: 15 lbs

Shipping Dimensions: 9 x 7 x 11 in
