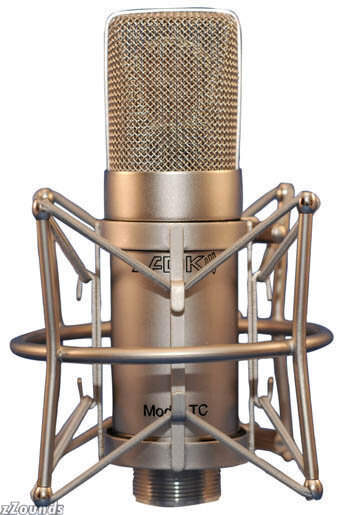

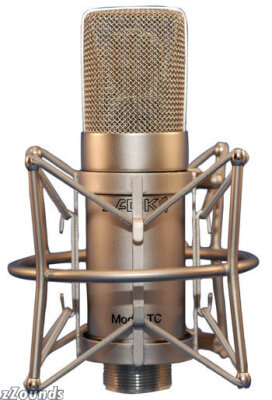

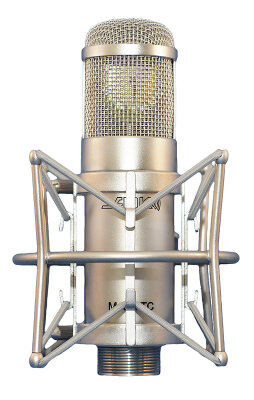

ADK TC Tube Condenser Microphone

The ADK TC is a Class A tube fixed cardioid 1-inch diaphragm condenser mic. It includes 6072A valve, external power supply, shock mount and our premium aluminum flight case. A great tube microphone is well within your reach with ADK.

Applications: LEAD Male and Female Vocals, Acoustic and Electric Guitar, Reed Instruments (Sax), Strings (Violin, Viola, Cello, and Contrabass), Drum Overheads, or anywhere you would use a Vintage Tube Microphone. "This Mic Smokes!!" - George Petersen, Mix Magazine.

Technical Info

Type: Class A Valve (Tube) Pressure Gradient Fixed Cardioid Condenser Microphone with a Six Micron Diaphragm and NEW Dedicated Turbo-Tube Power Supply.

Polar Pattern: Fixed Cardioid (TC = Tube/Cardioid)

Sensitivity: 14mV/Pa = -37dBV (0 dBV = 1v/Pa)

Frequency Range: 20 to 20k Hz

Impedance: <250 ohms

Recommended Load Impedance: 1000 ohms

Max. SPL for 1% THD @1000Hz: 125dB

Equivalent Noise Level: IEC 268-4 (A Weighted): 18dB-A Typical

S/N Ratio 1Pa: 76dB

Power Requirement: Included Dedicated ADK Power Supply

Rel. Humidity: 90% (C) / 85% (C)

Connector: 7 Pin Multi-Pin Cable (Supplied)

Size: Diameter 53mm (2.1") Length 165mm (6.5")

Net Weight: 550gm (18.5oz)

Includes: Large Flight Case, Power Supply, 7-Pin Cable, and T-Super-Mount.
