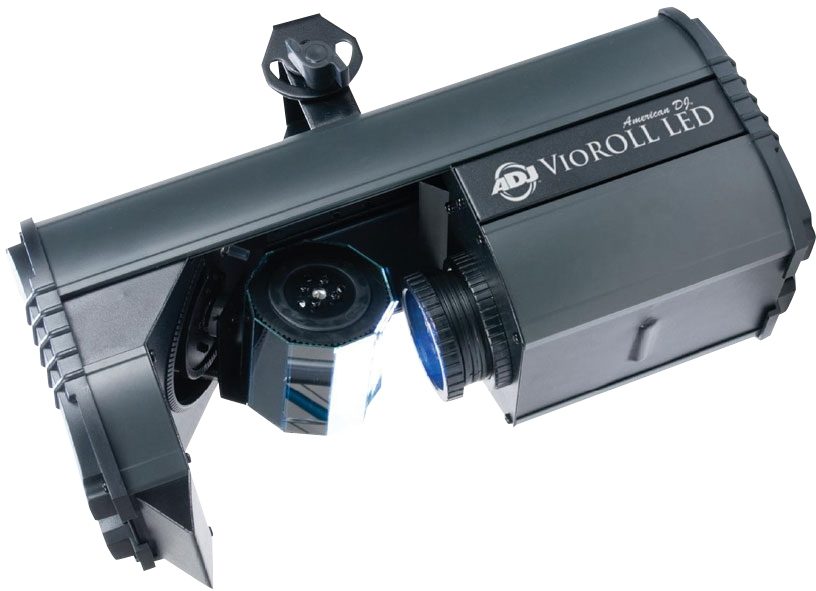

American DJ Vio Roll LED Effect Light

Three operational modes, a built in DMX menu, and stepper motor driven scanning barrel mirror allow the discerning DJ to create a more sophisticated display.

(1) Read 1 review for this product | Rate and Review This Product

Click to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized American DJ and Audio dealer

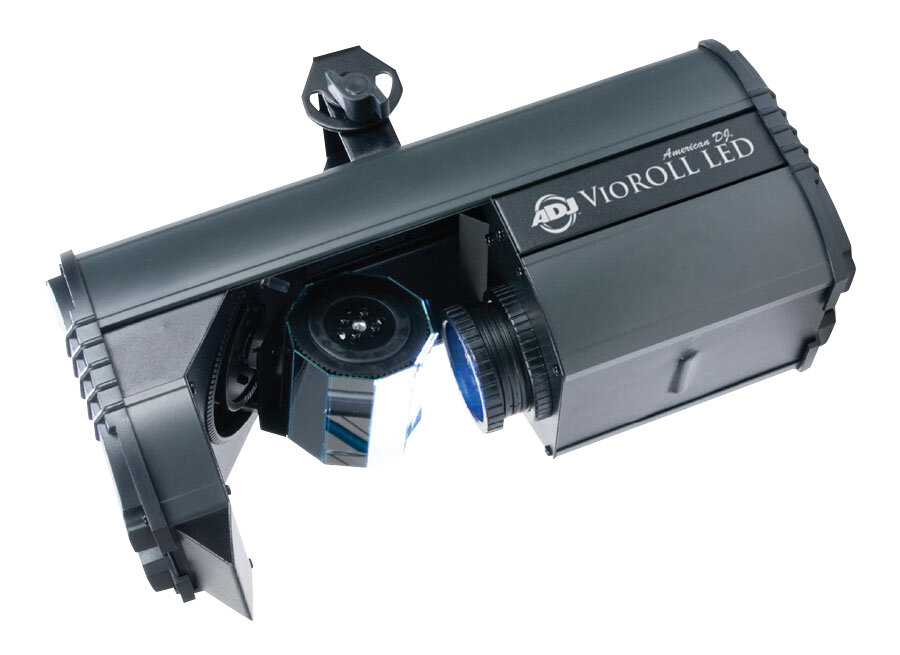

The American DJ Vio Roll LED is a high output, low maintenance Moonflower effect with a smooth, stepper motor driven scanning barrel mirror. It's 10-watt Quad LED source produces dozens of red, green, blue and white (RGBW) beams from it's exciting built-in programs.

The Vio Roll LED has three operational modes (DMX, Master/Slave, Sound Active), has a Pan/Tilt Inversion Mode and a long-life 30,000 hour rated LED. This unit offers many useful features not found on other effect lighting in this price range, such as: 4-button DMX menu, 1.8 degree stepper motors, IEC AC IN/OUT on rear to daisy chain power, ADJ UC3 easy-to-use controller compatibility and a safety hook.

American DJ Vio Roll LED Lighting Effect Features

- LED DMX-512 barrel mirrored scanner with sharp Red, Green, Blue and White Beams
- Bright 10W RGBW Quad LED
- 2 DMX Channel Modes (1 Channel or 5 Channels)
- 4-Button menu system LED Display making it easy to navigate
- 3 Operational modes: DMX controller, Master/Slave & Sound Active
- Exciting built-in lighting programs
- Pan/Tilt Inversion Mode: when using 4 scanners in Master/Slave Scanner 1 and 3 sync opposite Scanner 2 and 4
- Manual focusing lens
- Dimming: 0-100%
- Strobe effect
- Beam angle: 30-degrees
- X/Y mirror movement
- 1.8 degree Stepper motors with micro stepping
- Hanging Bracket + safety hook included
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- Run all night - No duty cycle - Unit stay cool all night
- No cooling fan required - Very little maintenance needed

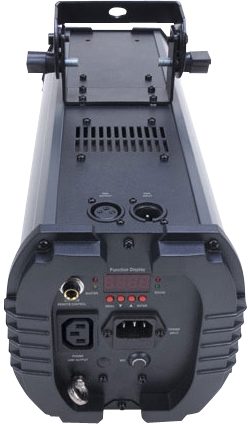

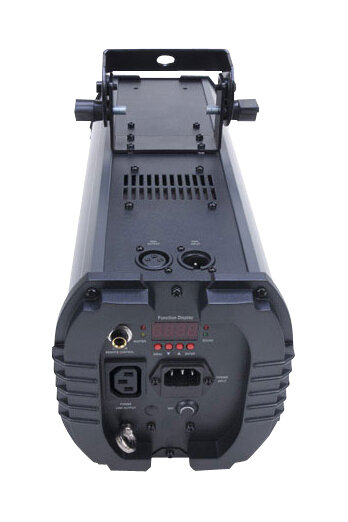

- IEC AC IN/OUT on rear to daisy chain power
- Extreme long lifetime of the LED (30,000 hr. rating) zZounds is an authorized dealer of American DJ and Audio products.

- LUX at 3M: Red = 177; Green = 493; Blue = 11; White = 620
- Power consumption: 34W max
- Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket
- Dimensions (LxWxH): 16.5 x 6.5 x 6.75 inches / 420x161x172mm
- Weight: 10 lbs. / 4.2kg.

Manual

American DJ and Audio Warranty

American DJ Warranty

If you have additional warranty questions, please call the manufacturer at 323-582-2650

zZounds is an
authorized American DJ and Audio dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "This is the first time I've shopped with zZounds and I couldn't have had a better experience. I was able to find what I was looking for easily, and the processing was simple and fast." - customer on May 7, 2013

Customer Reviews

5 out of 5 (1 ratings) Rate and Review This Product

Read 1 American DJ Vio Roll LED Effect Light Review

zZounds has verified that this customer bought this product from us. "2 VIO Rolls make for a great show."

Sound: It does not really make sound, but it reacts to sound quite nice. Feature: Great features, really easy to use. Ease of Use: Easy. Quality: Seems very well made, should last a long time. Value: The quality of light show you can get for $250 is great. Manufacturer Support: ADJ always has great support. The Wow Factor: I own 2 of them, and will be getting 2 more. Overall: I run 2 of them in master / slave mode, I inverted the pan and barrel on the slave and this creates an awesome show.

Style of Music: Everything
