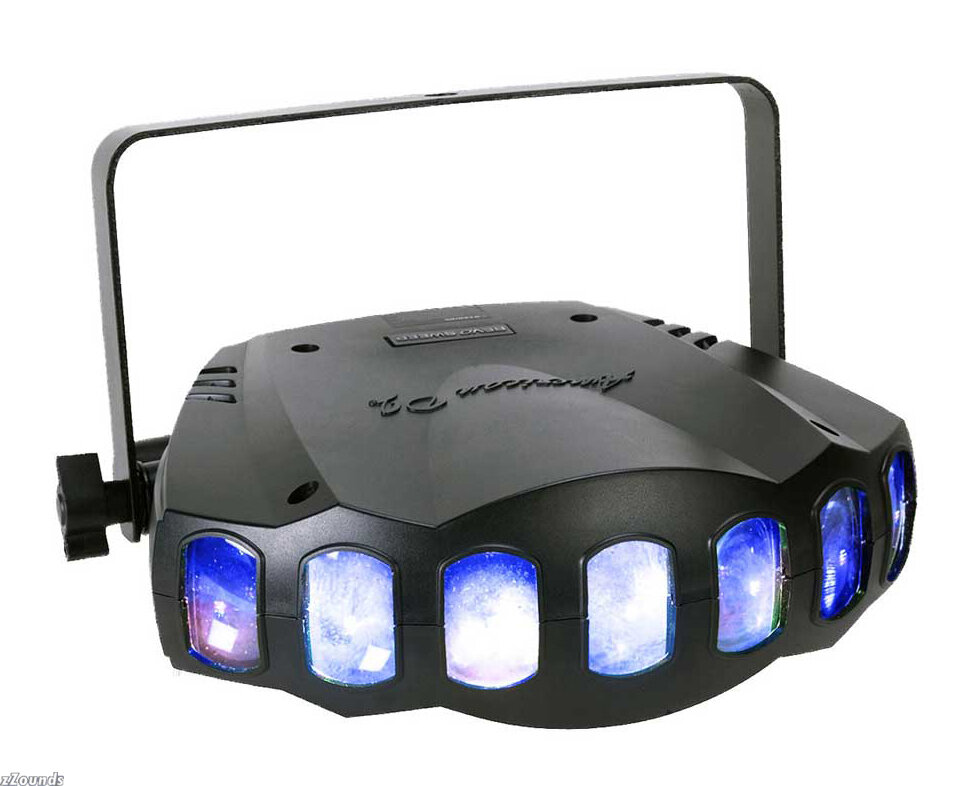

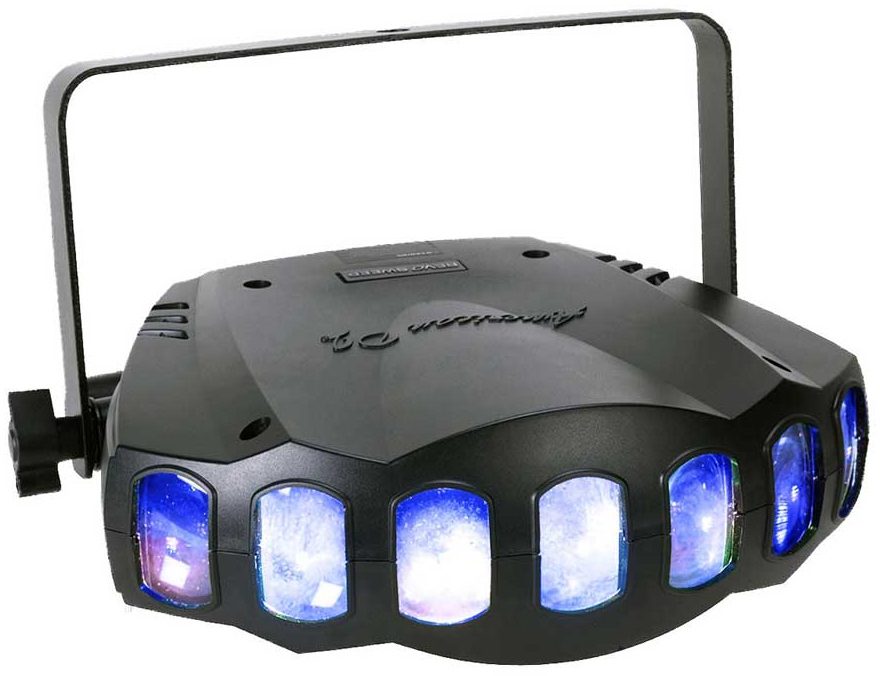

American DJ Revo Sweep LED Effect Light

The American DJ Revo Sweep is a high energy effect with red, green, blue and white LED beams. The fixture has three different operating modes; sound-active mode, show mode, or it can be controlled by a DMX controller. In DMX mode it has 2 different channel mode; a 3 channel mode and 28 channel mode. It can operate as a stand alone fixture or in a Master/Slave configuration. For best results use fog or special effects smoke to enhance the beams projections.

Features
# Long life (Rated at 100,000 hrs.)

# Low power consumption

# Very low heat output

# Run all night

# RGBW Color Beams & Color Chasing

# Colors will not fade in time

# 84 5mm LEDs 21 Red, 21 Green, 21 Blue & 21 White LEDs)

# 2 DMX Modes: 3 Channel Mode; 28 Channel mode for programming flexibility

# 3 operational modes: DMX-512; Master/Slave: Sound Active

# Built-in high-energy lighting programs (Master/Slave & Sound Active)

# Beam angle: 116 degrees

# Color strobe effect (fast to slow)

# Electronic Dimming 0 - 100%

# Linkable via 3-pin XLR cable

# 4-button LED display on rear panel

# IEC IN/OUT on rear to daisy chain power

# Includes mounting brackets

Technical Info

Specifications
Power Draw: Power Draw: 9W (120V) / 13W (230V)

Multi-voltage operation: 120-240V AC,/ 50~60Hz

Dimensions without bracket (L x W x H): 8 x 12.5 x 7.25 in. / 250 x 317 x 182mm

Weight: 5 lbs. / 2 kgs.
