American DJ Flat PAR QWH12X Stage Light
No longer available at zZounds
zZounds Gear Experts Say...
Perfect for uplighting, the American DJ Flat PAR QWH12X can sit flat on the ground, with twelve 5-watt RGBW LEDs for smooth color mixing and true white.
Overview
Take your color mixing to the next level with the American DJ Flat PAR QWH12X professional "low profile" LED fixture. It features twelve 5-Watt QUAD LEDs (4-in-1 RGBW) with smooth RGB color mixing as well as a White LED to get the hard-to-achieve true cool white.

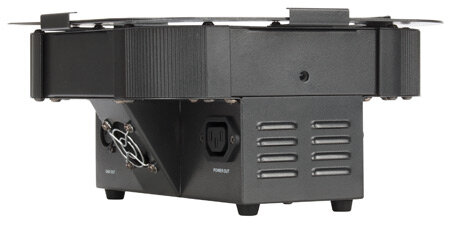

The unit's low-profile sideways power and DMX Ins/Outs along with dual hanging brackets make it ideal for inserting into truss or for uplighting.
The Flat PAR QWH12X has 8 different DMX channel modes, and may also run in Sound Active or Master/Slave modes. Users can also go "wireless" with the ADJ LED RC2 wireless remote (sold separately). This LED fixture also features: 44 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 25-degree beam angle. The Flat Par QWH12X LEDs are rated at 50,000 hours, and only draws 80-Watts of power per fixture.
- Unique "sit flat" design -- Power & DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss
- Great for performance stages where traditional par cans emit a lot of heat onto performers
- Low profile case design
- Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC2 - sold separately)
- 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
- 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode… read more and DMX-512 Mode
- Smooth RGBW color mixing (fast or slow color change operation)
- QUAD LED (4-in-1) projects no RGB shadows
- 44 built-in Color Macros
- Color strobe effect
- Flicker Free
- Dual bracket yoke allows fixture to be hung or set on the ground
- Includes gel frame for optional diffusion filters
- IEC AC IN/OUT outlets on rear to daisy chain power (up to 7 units)
- Run all night -- No duty cycle
- Long Life LEDs (50,000 hrs.)
- Linkable via 3-pin XLR cable (In/Out)
- 4-button LED DMX display on rear panel
- ETL approved read less
The unit's low-profile sideways power and DMX Ins/Outs along with dual hanging brackets make it ideal for inserting into truss or for uplighting.
The Flat PAR QWH12X has 8 different DMX channel modes, and may also run in Sound Active or Master/Slave modes. Users can also go "wireless" with the ADJ LED RC2 wireless remote (sold separately). This LED fixture also features: 44 Color Macros, Electronic Dimming (0-100%), IEC AC IN and OUT on rear to daisy chain power and a 25-degree beam angle. The Flat Par QWH12X LEDs are rated at 50,000 hours, and only draws 80-Watts of power per fixture.
Features:
- Ultra bright slim fixture with 12x 5-Watt QUAD LEDs (4-in-1 RGBW- Red, Green, Blue & White)- Unique "sit flat" design -- Power & DMX Ins/Outs are intelligently designed so the unit can be set flat on the ground or set inside truss
- Great for performance stages where traditional par cans emit a lot of heat onto performers
- Low profile case design
- Wireless infrared remote control up to 15 ft./4.5M (Model: ADJ LED RC2 - sold separately)
- 8 DMX Channel modes: 1, 2, 3, 4, 5, 6, 7 or 8 channel modes
- 6 Operational modes: Manual Color Mode; Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode… read more and DMX-512 Mode
- Smooth RGBW color mixing (fast or slow color change operation)
- QUAD LED (4-in-1) projects no RGB shadows
- 44 built-in Color Macros
- Color strobe effect
- Flicker Free
- Dual bracket yoke allows fixture to be hung or set on the ground
- Includes gel frame for optional diffusion filters
- IEC AC IN/OUT outlets on rear to daisy chain power (up to 7 units)
- Run all night -- No duty cycle
- Long Life LEDs (50,000 hrs.)
- Linkable via 3-pin XLR cable (In/Out)
- 4-button LED DMX display on rear panel
- ETL approved read less
Specs
Electronic Dimming: 0 - 100%
Power Draw: 80W max
Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
Dimensions (LxWxH): 13"x11"x4.5" / 328x280x115mm
Weight: 7 lbs. / 3.2 kg.
Power Draw: 80W max
Multi-voltage operation: AC 100-240V, 50/60Hz (IEC power In/Out)
Dimensions (LxWxH): 13"x11"x4.5" / 328x280x115mm
Weight: 7 lbs. / 3.2 kg.
