American DJ Duo Station Lighting Controller

Orchestrate more intricate lighting shows with the American DJ Duo Station, capable of acting as an On/Off Switching System and a standard RGB LED control. (5) Read 4 reviews for this product | Rate and review this product
Ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO
close [x]
zZounds.com 800-ZZOUNDS (800-996-8637)
List: $209.95
Savings: $59.96 (29%)
$149.99
Play as you Pay on
orders $249.00+ details
More Expected Soon!More expected Dec 22
FAST FREE SHIPPING
$$$$ Seen it for less? Request Lower Price
Questions? Call a gear expert now! (800-996-8637)
PAYMENT PLANS ON ORDERS $249.00+
PLAY AS YOU PAY

Product Description

The American DJ Duo Station features two controllers in one. One side is a basic 3-channel RGB LED controller with the same functions as the ADJ RGB3C, while the other side is an 8-channel On/Off Switching System similar to the ADJ SC8 controller. The American DJ Duo Station has separate outputs on the rear control panel so each side runs independently from the other. It's the ideal control solution for DJs, bands, small night clubs, and bars that want simple LED control and On/Off control of effect type lights.

See what's under the hood of the Duo Station:


Features:

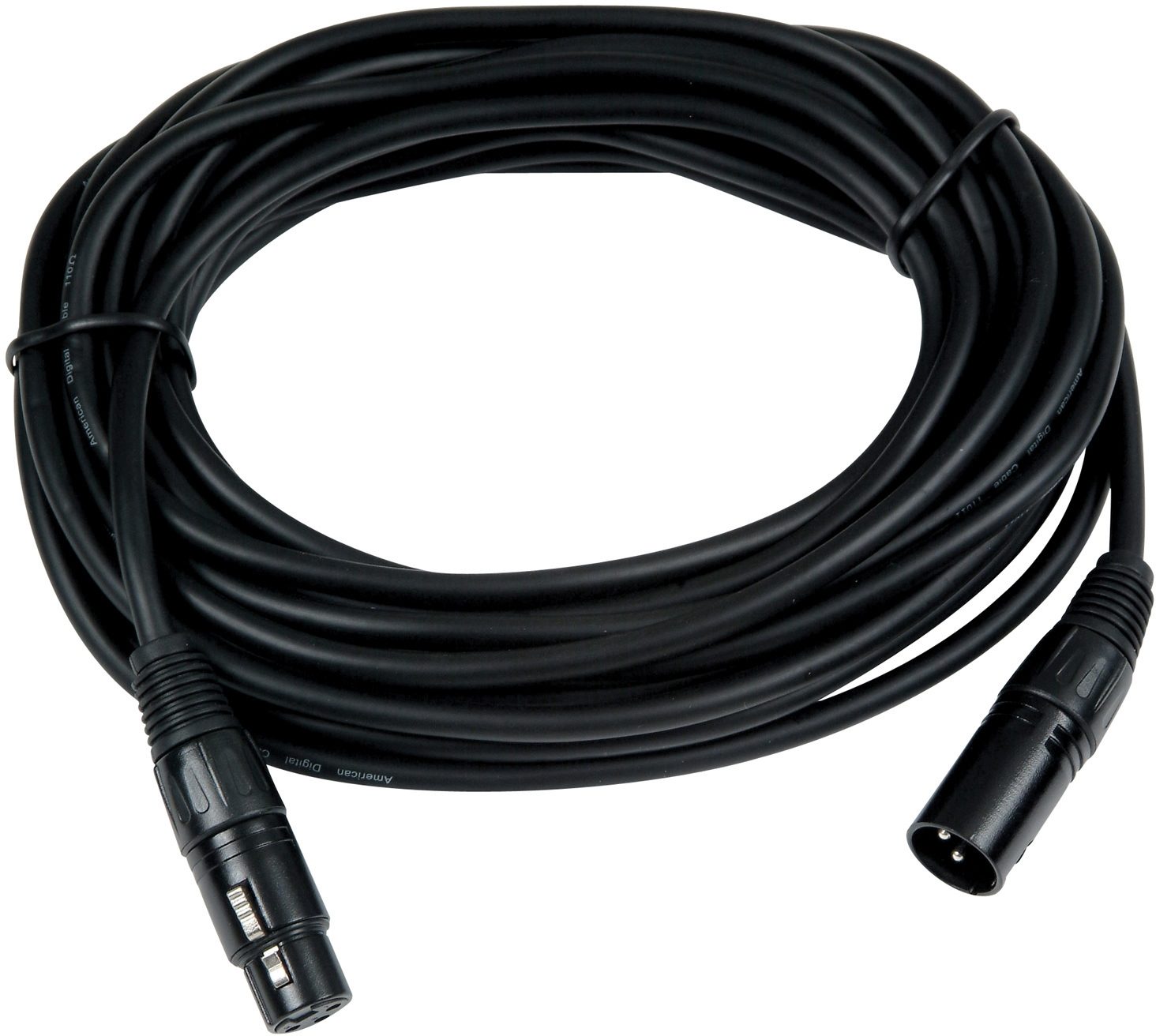

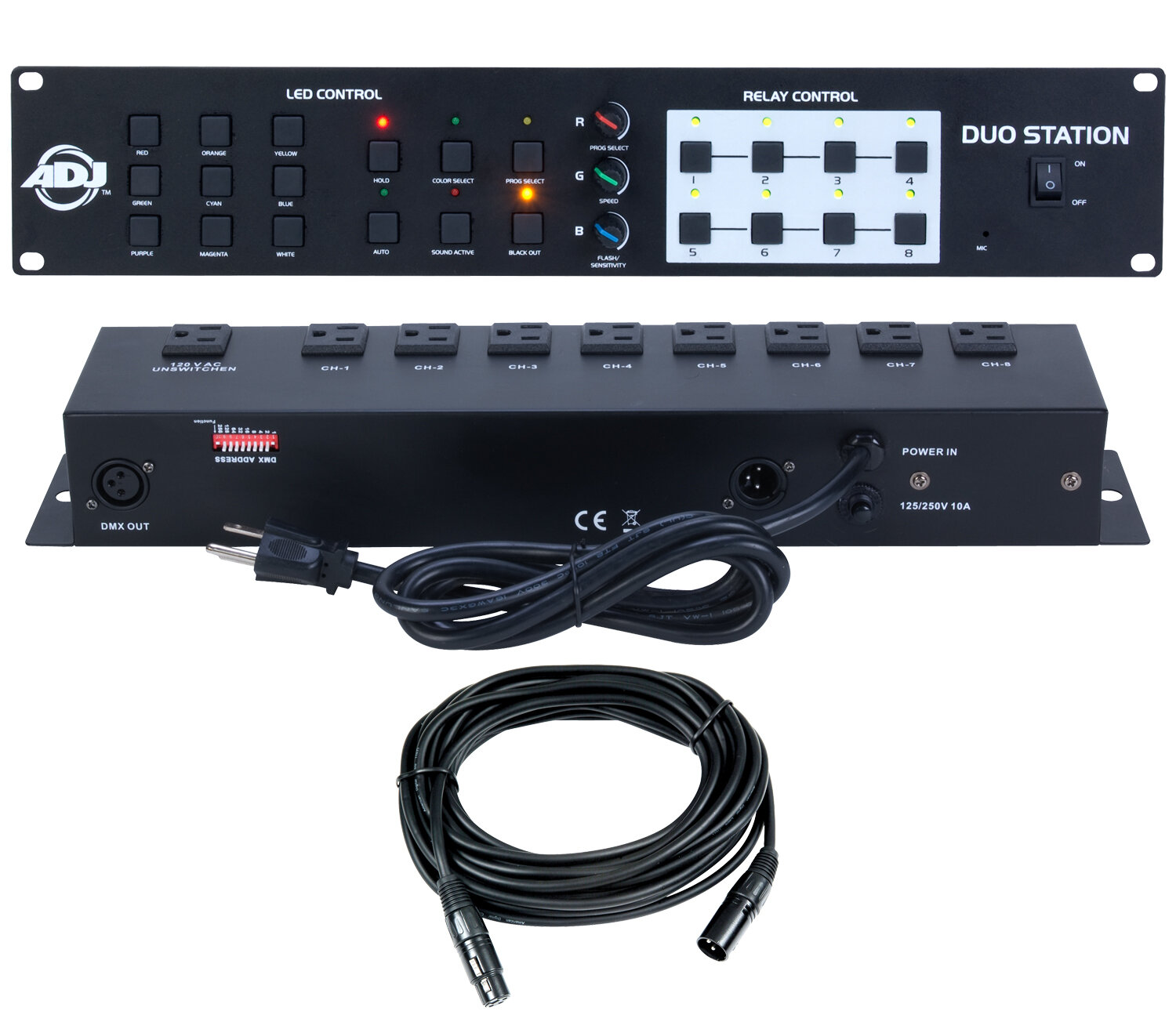

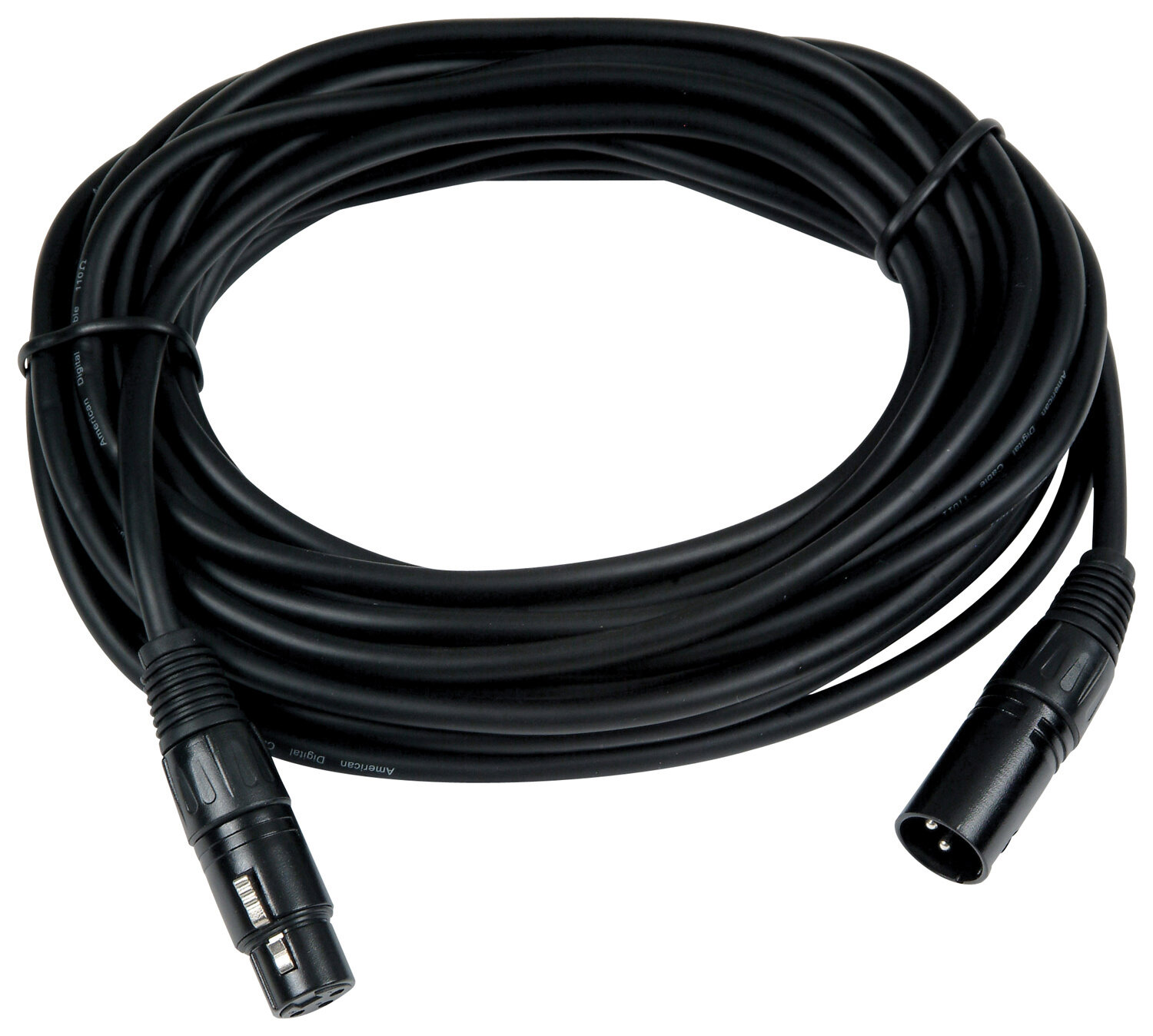

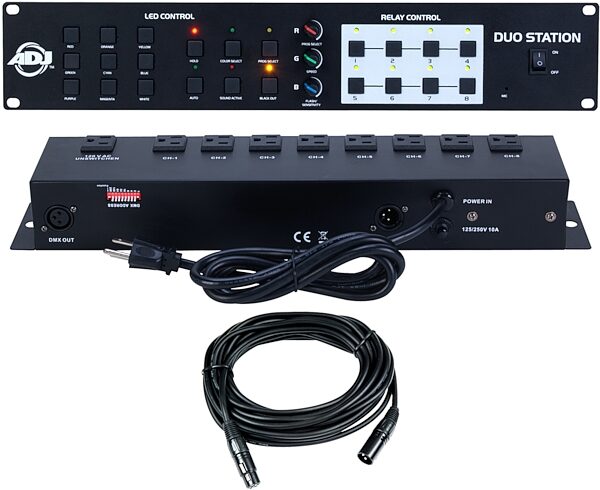

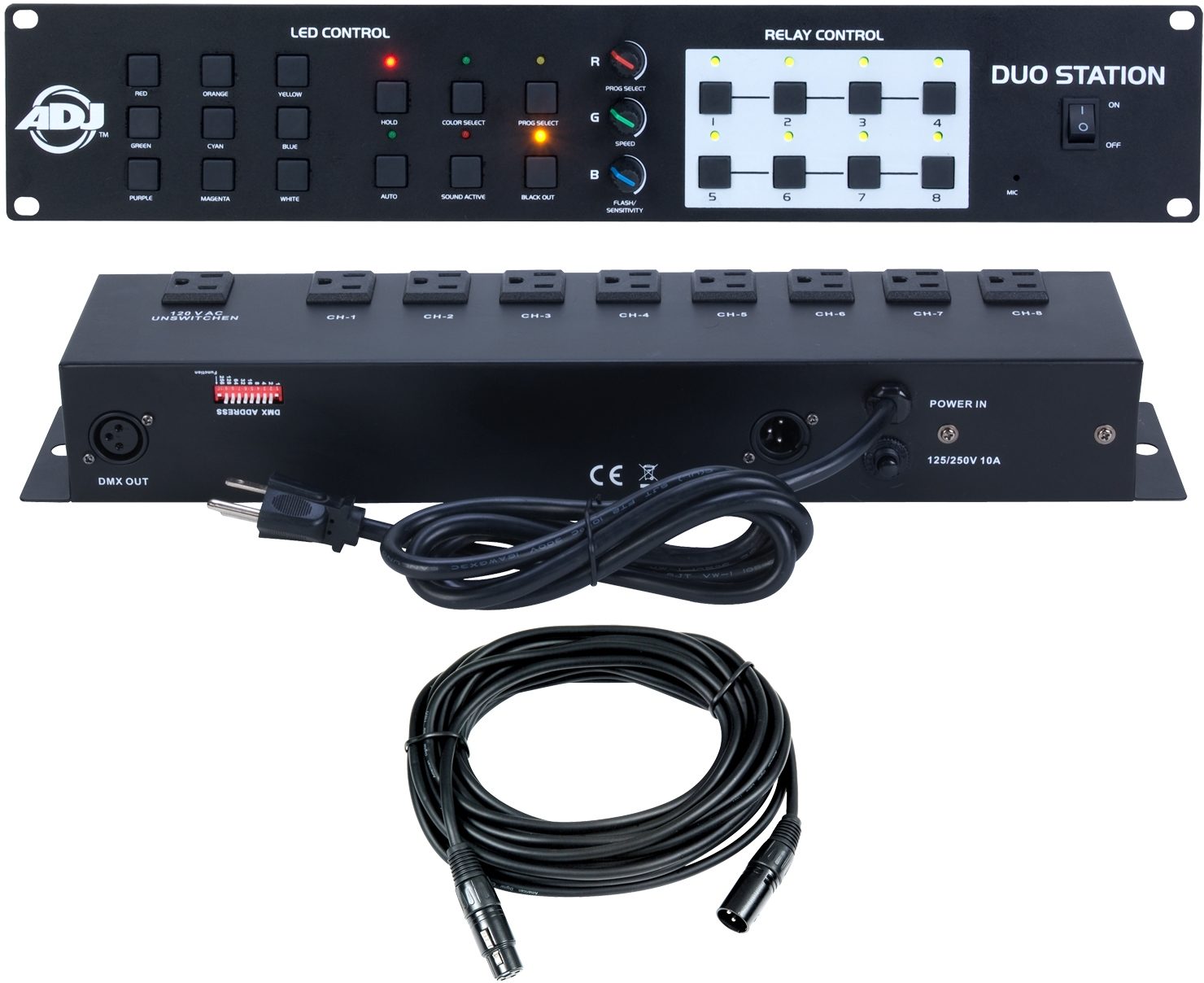

- System includes: 1x Duo Station Controller, 1x Relay Pack, 1 x 20-foot/7M DMX Cable
- 2 Lighting Controllers in 1: RGB LED 3-channel Controller + Relay On/Off controller with separate data outputs.
- Built in programs and static color scenes for 3-channel RGB led fixtures.

LED Control Features:

- Basic 3-channel RGB LED controller designed to control any standard 3 channel RGB fixture where channel 1 is Red, channel 2 is Green and channel 3 is Blue.
- 9 static color buttons
- Hold COLOR button
- Color Select button
- Program Select button: 16 single and multi color chase programs
- Auto button: activates the 16 chase programs to randomly sequence while the speed of the chases can be controlled via the SPEED potentiometer
- Sound active button: actives 16 chase programs
- Black out button zeros output on the LED control side.
- 3 manual RGB potentiometers: allows the user to dial in a desired color on the fly
- RGB potentiometers double as Program Select, Chase Speed and Flash/Sensitivity manual controls

Relay Control (On/Off)

- 8 buttons to switch relative channels on/off

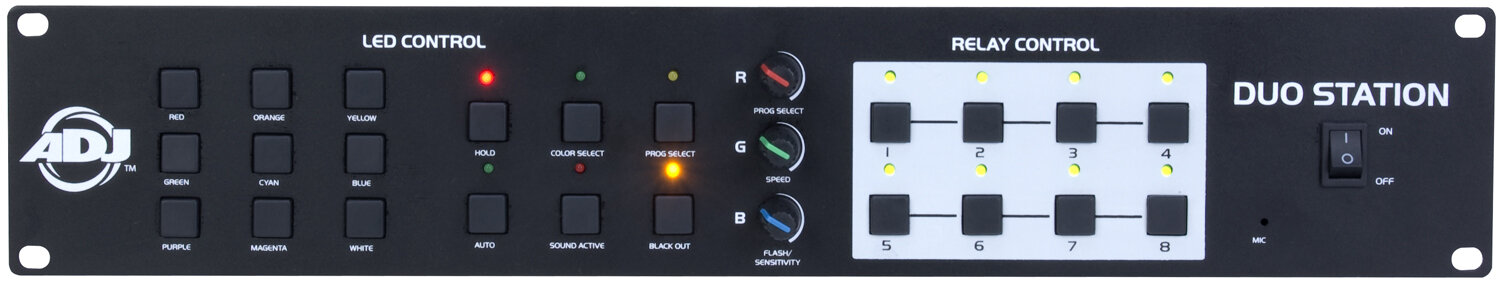

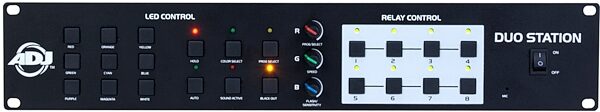

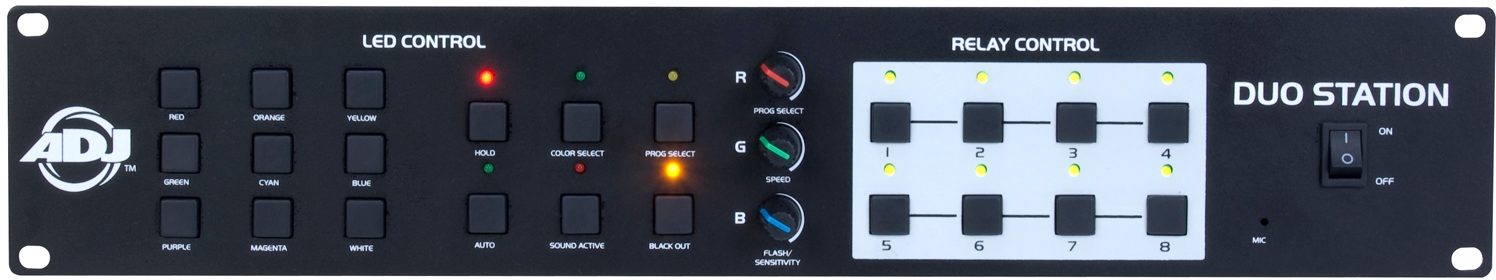

Duo Station Control Panel Technical Specs:

- DMX output connector: 3-pin XLR
- Power In: 12V 500mA (Included)
- Power consumption: 3.6 Watts
- Dimensions (L x W x H): 19 x 3.5 x 3.5 in., (483 x 89 x 89 mm) (2 rack spaces)
- Weight: 3.5 lbs. / 1.5 kg.

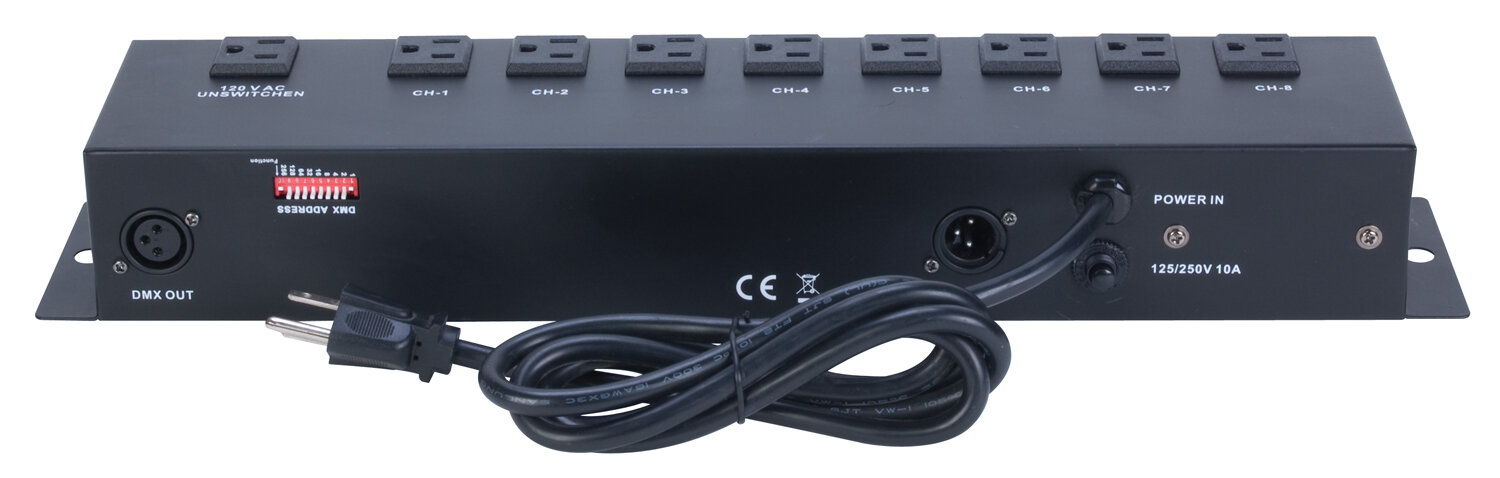

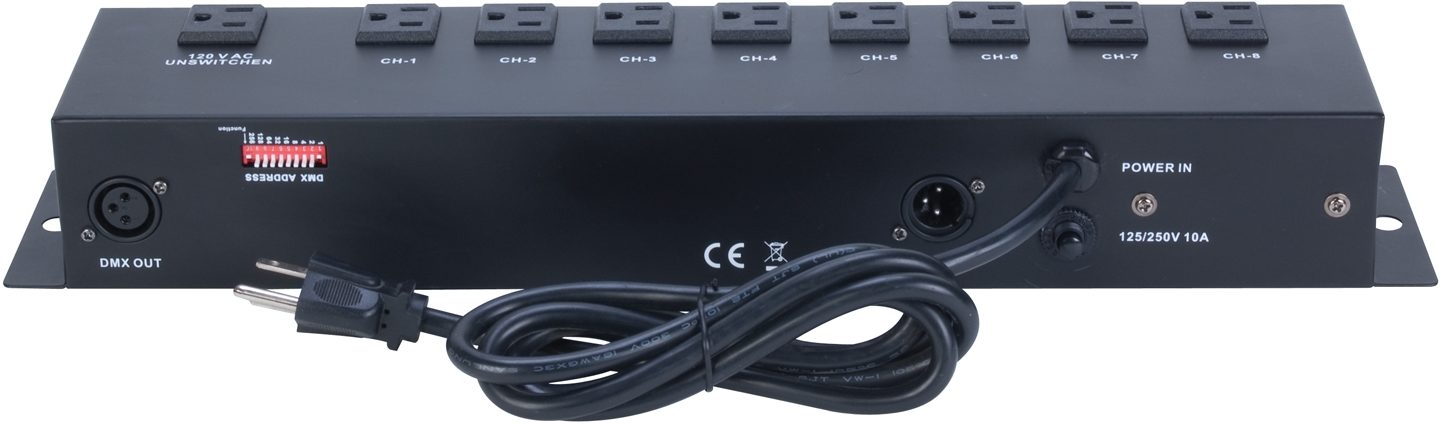

Relay Pack Technical Specs:

- DMX & Stand Alone operation modes
- DMX input & output connectors: 3-pin XLR
- Dip switches for DMX addressing and work mode setting
- 8 x 3-prong "switched" Edison sockets (120V/60Hz)
- 1 x 3-prong "Constant power" Edison socket (120V/60Hz)
- 5A max per socket
- Dimensions: 18.75 x 3.5 x 2.5 in., (473 x 91 x 63 mm)
- Weight: 5 lbs., (2.25 kg)


zZounds is an authorized dealer of American DJ and Audio products.
Weight, Dimensions, and Manufacturer Part Numbers
Shipping Weight: 11 lbs
Shipping Dimensions: 22 x 12 x 6 in
Manufacturer Part Number (MPN): DUO722
If you have additional warranty questions, please contact the manufacturer at 323-582-2650
