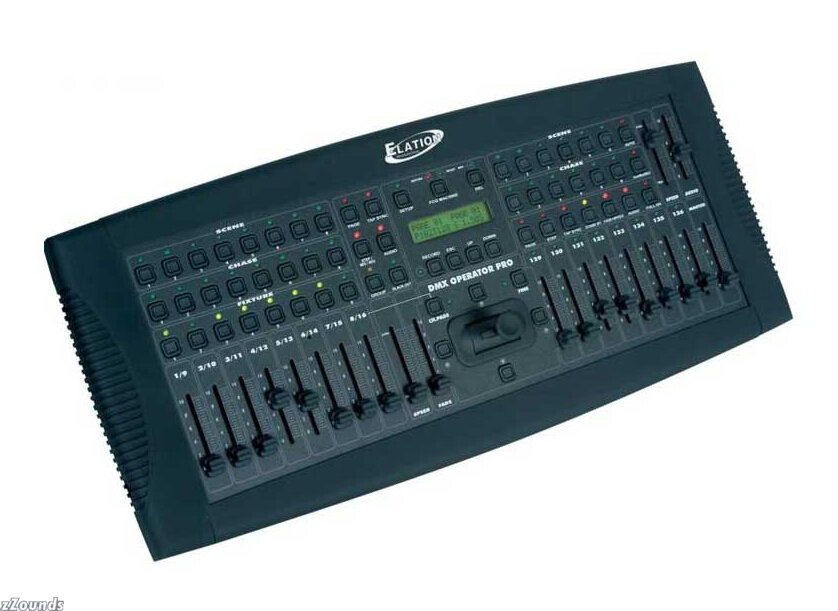

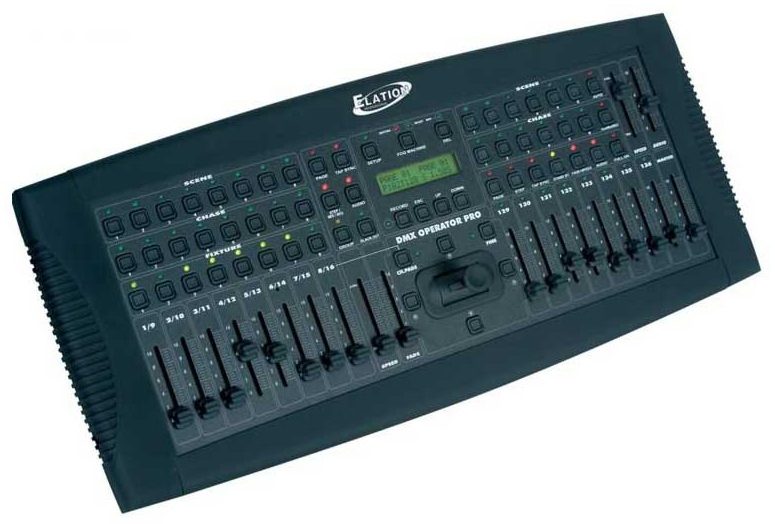

American DJ DMX Operator Pro Lighting Controller

A 136 channel hybrid lighting control device designed for DJ’s, clubs, and small touring applications, the American DJ DMX Operator Pro Lighting Controller puts the control in your hands!

Features
# 2 Controllers in One: Intelligent and Dimmer ON/OFF

# 136 total DMX Channels: 128 channels for Intelligent and 8 Channels for Par Cans

# Intelligent (128 channels):
- 8 individual fixtures each with 16 DMX channels
- 96 programmable scenes
- 8 programmable chases with fade and speed control

# Dimmer ON/OFF (8 channels):
- 8 individual channels
- 96 programmable scenes
- 6 programmable chases with fade and speed control

# Back-up memory using an optional 32 MB Compact Flash Card

# Fog Machine trigger button

# DMX Patching

# Tap Sync

# Fixture Group function

# Step/Mix Sequence function: Automatically sequences your chases

The DMX Operator Pro allows operators to easily manipulate conventional and moving lights via simple to use buttons and faders, and puts programming, playback and live manipulation of Scenes and Chases at your fingertips.
The DMX Operator Pro can control up to 8 moving lights, each consisting up to 16 channels for a maximum of 128 channels. Up to 96 programmable Scenes and 8 programmable Chases can be recorded for the moving light section, and up to 96 programmable Scenes and 6 programmable Chases can be recorded for the conventional par can section.

The DMX Operator Pro features 14 quick access scene buttons, 8 for moving lights and 6 for par cans, 8 quick access Chase buttons for moving lights, and 6 Chase buttons for par cans. An assignable joystick ideal for pan/tilt control of scanners and moving heads, master fader used to control the overall intensity for all 8 par can channels, and a separate section of 8 independent faders are included so the lighting operator can easily control par cans on the fly.

Other features include a Tap Sync button for manual Chase override, Step/Mix/Sequence button for Chase playback, Audio button for music trigger (via internal microphone or line level input), Group button to control more than 1 fixture at a time and four speed and fade faders for manual override of Chases.

Technical Info

Specifications
Intelligent and Dimmer ON/OFF
136 total DMX Channels: 128 channels for Intelligent & 8 Channels for Par Cans

Intelligent (128 channels): 8 individual fixtures each with 16 DMX channels, 96 programmable scenes, 8 programmable chases with fade and speed control

DIMMER / ON/OFF (8 channels):
- 8 individual channels
- 96 programmable scenes
- 6 programmable chases with fade and speed control

Back-up memory using a 32 MB Compact Flash Card

Fog Machine trigger button

DMX Patching

Tap Sync

Fixture Group function

Step/Mix Sequence function: automatically sequences your chases
