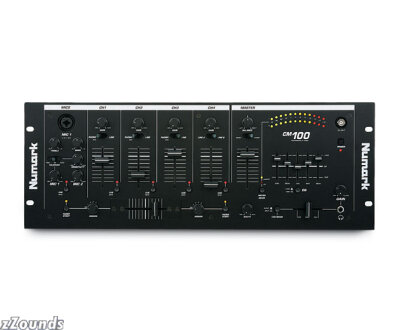

Numark CM100 Rackmount DJ Mixer

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

Need a 4 channel DJ mixer at an unbeatable price? Check out the Numark CM100. Featuring 13 inputs, 4 outputs, split or blend cueing, EQ, and more, the CM100 gives you more features for your buck.

Features
Inputs: 8 line, 3 phono, 2 mic

Outputs: master balanced, zone, cue, record

Split or blend cueing, PFL gain adjust w/ meter

+/- 6 or 12 dB 5-band graphic EQ w/ rear panel defeat

Mic 1 w/ individual EQ and auto-mute w/ sensitivity adjustment

Fader start, panning on master fader

4U rack mount

Technical Info

INPUTS:
Line: 10kΩ input impedance; 85mV rms sensitivity (for 1.22V output)

Mic: 10kΩ input impedance unbalanced; 2 mV rms sensitivity (for 1.22V output); 60mV rms max input

Phono:47kΩ input impedance; 1.5mV rms sensitivity @ 1 KHz (for 1.22V output)

OUTPUTS:
Line: 9V rms max

Headphone Amp: 0.5 watt into 47Ω

Distortion less than 0.01%

SIGNAL TO NOISE RATIOS* (vs. maximum output):
Line: Better than 96 dB

Mic: Better than 78 dB

Phono:Better than 87 dB

*JIS - weighted

FREQUENCY RESPONSE:
Line: 20 Hz- 22k Hz ±0.5 dB

Line: 20 Hz- 20k Hz ±0.5 dB

Phono:±1 dB except for controlled attenuation of -3 dB @ 20 Hz to reduce rumble and feedback

EQUALIZER:
±12dB @ 63.250.1K.5K.17KHz

POWER CONSUMPTION:
10 Watt typical

17 watt with full headphone output

DIMENSIONS (W x H x D):
480mm x 175mm x 95mm

19” x 7” x 4"

WEIGHT: 3.2 kgs, 8.7 lbs
