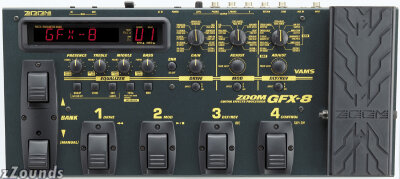

This is Zoom's all-new, top-of-the-line guitar box, with a metal case for onstage use and abuse. Besides the VAMS (Zoom's Variable Architecture Modeling System) amp and preamp emulations, there are 69 effect types - use up to 9 at once! The "Easy Edit" knobs and MIDI implementation make live and studio use a breeze. There are 160 built-in Zoom patches and 80 user programmable patches.
This is a Zoom product, so you know there are still more features. How about a 25 second phrase sampler? The sampler also has a mode called "Jam Play," which lets you record 12 seconds of audio and play it back at a slower speed - without changing the pitch! Cool!
When you factor in the built-in expression pedal and the large LED display, you have a formidable tool for making some awesome guitar sounds. This box is for all guitarists looking for a multi-effects pedal.
Features
VAMS (Variable Architecture Modeling System).
69 Effects types - up to 9 at once.
New! Sophisticated Distortion technology can duplicate the sound of guitar amps and preamps.
Intuitive "Easy Edit" knobs for live performace.
MIDI in and out.
Edit and manage patches with supplied software for Windows 95/98 or Macintosh OS.
160 built-in Zoom patches/80 user programmable patches.
25-second phrase sampler/12-second Jam Play feature. You can alter the speed of your samples without changing the pitch.
Rugged all metal chasis designed specifically for on stage use.
Built-in expression pedal.
Large, easy-to-read LED display.
Technical Info
Effect Programs: 69 (67 effects + amp simulator + ZNR)
Effect Modules: 4 modules + amp simulator + ZNR
Sampler Function: 25 sec max. recording time, playback speed control
User Patch Memory: 20 banks x 4 = 80 (read/write)
Preset Patch Memory: 40 banks x 4 = 160
Sampling Frequency: 40 kHz
A/D Conversion: 20-bit, 64x oversampling
D/A Conversion: 20-bit, 128x oversampling
Input: Standard monaural phone jack
Input Impedance: 470 kilohms
Nominal Input Level: -10 dBm
External Return: standard monaural phone jack
Return Impedance: 470 kilohms
Return Input Level: -10 dBm
Aux In: Mini stereo phone jack
Aux Input Impedance: 10 kilohms
Aux Reference Input Level: -10 dBm to +4 dBm
Line Output: Standard monaural phone jack x 2 = stereo
Rated Line Output level: +4 dBm
Line Output Load Impedance: 10 kilohms or more
Headphone Output: Standard stereo phone jack
Rated External Send Output Level: -10 dBm
External Send Output Load Impedance: 10 kilohms or more
Control Connectors: MIDI Out, MIDI In
Display: 8-digit alphanumeric LED display, 2-digit 7-segment LED display
Power Requirements: 12 V AC (from supplied AC adapter AD-0008)
Dimensions (W x D x H): 455 x 203 x 80mm
Weight: 3.6 kg
