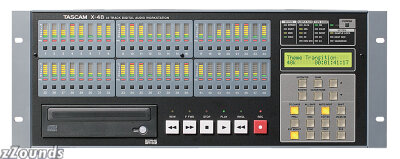

The X-48 has 96kHz/24-bit recording ability across all 48 tracks and 192kHz across 24 tracks. Multi format support for audio files and OMF import and export enable for integration into a range of workstations, including Pro Tools. The X-48 also supports Firewire hard drives and Gigabit Ethernet transfer. Other highlights include its built-in, automated 48-channel digital mixer, VGA display output, powerful editing functions and DVD+RW backup drive.
Features
48-track digital recording at up to 96kHz/24-bit
24-track recording at 192kHz/24-bit
32-bit floating point audio file recording and playback with no loss of track count
VGA and PS/2 connections for keyboard, monitor and mouse
Built-in 48-channel TDIF inputs and outputs
Built-in S/PDIF I/O
Two 24-channel option slots support analog, ADAT or AES/EBU expansion cards
Advanced integrated synchronization and machine control, including HDTV tri-level sync
Time-stamped Broadcast WAVE file format
Front-panel transport, track arming, project management and meter functions
Built-in 80GB hard drive
Built-in DVD+RW drive for backup and restore
Two FireWire (IEEE-1394) and four USB 2.0 ports for external hard drive support
Graphic User Interface for editing, mixing, plug-ins and meters
+/- 12.5% varispeed
Grid-style editing
Theater Play mode
Gigabit Ethernet, includes FTP server and drive sharing
Non-destructive editing with undo/redo
Built on embedded Windows XP operating system
OMF, AAF and OpenTL import and export
Additional Features
In addition, the X-48 functions as an all-in-one workstation, with powerful digital editing and mixing facilities:
Turn-key operation: no software or hardware conflicts to troubleshoot
48-channel digital mixing at 96kHz / 24-channels at 192kHz
6 stereo returns (60 inputs at mixdown)
24 busses
6 aux sends
Stereo buss
32-bit floating point mixer resolution
Full dynamic automation
Dynamics and four-band EQ per channel
4 VST plug-in inserts on each channel, group and aux return
Controllable using the US-2400 24-fader Universal Controller
Full graphic user interface
