Whether you're performing at the local rock club, lecturing at a corporate seminar, or speaking in a house of worship, the Electro-Voice RE-2 brings ease-of-use, clear sound, and clean channels to wireless.

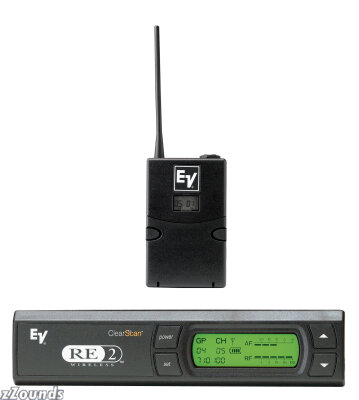

RE-2 Receiver
The RE-2 Series Wireless Microphone System brings sophisticated professional features to an affordable price point. The RE-2 is a completely programmable frequency agile system with one-touch Auto-ClearScan, operates over 28MHz (6 TV channels), XLR Mic or Line level output and many other features.
RE-2 Bodypack
The BPU-2 is a compact bodypack transmitter for the RE-2 wireless system made from high impact ABS plastic. The single on/off switch also functions as a mute and the TA4 microphone connector is compatible with any of the EV lapel and headworn microphones including the new RE97Tx. A cell phone style rotating beltclip, smart battery and unique guitar optimization mode are just a few of the features that make the BPU-2 as easy to use and versatile transmitter in its class.
Technical Info
RE-2 Receiver
RF Specifications: A Band 648 - 676 MHz (TV Ch. 43-48) B Band 696 - 724 MHz (TV Ch. 51-56)
Connector Type: 1/4 in.unbalanced
Connector Type: 3-pin XLR
Antennas: External 1/4 wave detachable
Diversity: Digital Posi-Phase™ True Diversity
Indicators LCD: Group, Channel, Frequency, AF Meter, RF Meter, Battery Level
Number of channels: 1112 possible (programmable in 25kHz steps) per band
Power Requirement: 12 V AC/DC 300mA
Squelch: Tone Code plus Amplitude
Wired/Wireless: Wireless
Finish: Non-reflecting Black
Case Material: Metal
Dimensions (HxWxD): 43.7 x 190.5 x 150 mm
(1.72 in. x 7.5 in. x 5.91 in.)
RE-2 Bodypack
Displays: Group/Channel, Frequency, or Battery Level
Connector Type: TA4M
Antennas: External 1/4 wave fixed
Battery Life: >8 hours with alkaline typical
Power Requirement: 9V Battery
RF Output: 30 mW typical
Wired/Wireless: Wireless
Finish: Non-reflecting Black
Case Material: High-Impact ABS Plastic
Dimensions (HxWxD): 96.5 x 66 x 23.4 mm
(3.8 in. x 2.6 in. x 0.92 in.)
