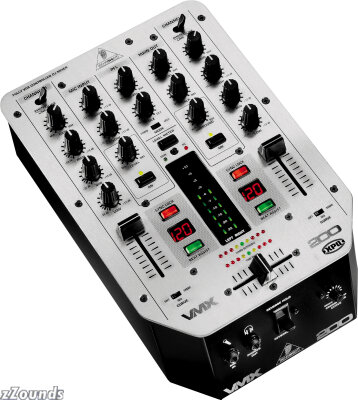

The VMX200 perfectly embodies the VMX concept, combining no more channels than you need with an impressive set of state-of-the-art performance features and typical Behringer audio and build quality. Its 2 dual-input stereo channels allow connection of 4 stereo sources with top-panel selection. Each stereo channel features a gain control, an effective 3-band kill EQ with up to 32 dB of attenuation, and a 45mm Ultraglide fader with a 3-way curve switch. In addition, the VMX200 sports a dedicated mic channel with a ULN input stage, 2-band EQ and an auto-talkover function with depth control.
The PFL section is equipped with a CH-1/CH-2 balance control and a split option, which routes the channel signal to one side of the headphones and the main output signal to the other. A dual 10-segment LED level meter displays your choice of main or PFL signals. Our impressive QRS 3D surround effect is also on board, with ON/OFF button and depth control, as well as the automatic BPM counter with Tempo Difference and Time Offset displays. A continuously variable crossfader curve control plus a crossfader reverse switch with our revolutionary tap-and-hold mechanism give you plenty of power for mixing tricks. Last but not least, the VMX200 features a professional, VCA-level engine for utmost fader precision and reliability.
Features
- 2 dual-input stereo channels
- Gain and 3-band kill EQ (-32 dB) per stereo channel
- 1 microphone input with 2-band EQ plus auto-talkover function with depth control
- Awesome QRS 3D stereo surround effect
- Intelligent dual auto BPM counter with time and beat sync display
- Super-smooth Ultraglide faders with up to 500,000 lifecycles and full VCA control
- Reverse switch for crossfader
- Dedicated curve control for all faders
- PFL function with CH-1/CH-2 balance control and split option, assignable to level meter
Technical Info
Mic Input: 40dB gain, servo balanced
Phono Inputs 1 and 2: 40 dB gain @ 1kHz, unbalanced
Line Inputs 1 and 2: 0dB gain, unbalanced
Return: 0dB gain, unbalanced
Main Out: Max. +21dBu @ +10 dBu (Line In)
Tape Out: Typically 0 dBu
Send: Typically 0dB
Headphone Out: Typically 125mW @ 1% THD
EQ: +/-8dBu
Stereo Low: +12dB/-32dB @ 50 Hz
Stereo Mid: +12dB/-32dB @ 1.2 kHz
Stereo High: +12dB/-32dB @ 10 kHz
Signal to Noise Ratio: >86dB (Line)
Crosstalk: >77dB (Line)
Distortion (THD): <0.06%
Frequency Response: 20Hz-20kHz
Input Gain Adjustment: -20dB-+9dB
AC Voltage: 120V .60Hz fuse T 160mA H
Dimensions: 3-1/2 x 8 x 11 in. (88 x 203 x 280mm), approximately
Weight: 2.5 kg (5 lbs., 8 oz.), approximately
