Designed for the busy semi-pro player who doesn't require all the sophisticated tone shaping and connectivity of the ABM range, the MAG range nonetheless delivers classic Ashdown tone all the way.

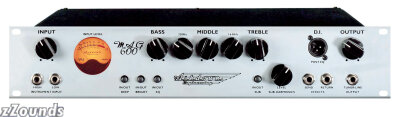

Bigger brother to the MAG300 model, the MAG 600R rack-mounting amplifier head features a potent new fan-cooled 575W RMS power section. Rotary bass, middle and treble controls are supplemented by smaller rotary controls providing 15dB of cut and boost at 220Hz and 1.6kHz, providing a comprehensive 5 band EQ section. Additionally, front panel push switches for Bright and Deep settings provide instant access to attacking and warm, rounded sounds respectively and, on the subject of low-end response, the trademark Ashdown sub-harmonic generator is ready and able to deliver truck loads of earth moving tone if called upon. inputs are provided for active and passive instruments and the front panel also features an effects send and return, a tuner/line output and a balanced DI output for direct connection to a mixing console.
Technical Info
Power output: 575W RMS
High input: impedance 3.9 megohms / input range 150mV - 20V p-p
Low input: impedance 10 kilohms / input range 300mV - 40V p-p
Line input: impedance 22 kilohms / input level 0dBu nominal
Effects return: impedance 22 kilohms / level 0dBu nominal
Tuner output: impedance 22 kilohms / level 0dBu nominal
Effects send: impedance 22 kilohms / level 0dBu nominal
DI output: 600 ohms balanced / level -20dBu nominal
Speaker outputs: minimum impedance 4 ohms
Bass: +/-15dB @ 100Hz
Lo mid: +/-15dB @ 220Hz
Middle: +/-15dB @ 660Hz
Hi mid: +/-15dB @ 1.6kHz
Treble: +/-15dB @ 7kHz shelving
Deep: +8dB @ 50Hz
Bright: +10dB @ 10kHz
Signal to noise: better than 80dB (EQ flat)
Distortion: less than 0.5% THD
Frequency response: -3dB at 17Hz and 30KHz
Power requirements: 230 /115v
H x W x D: 7.68 x 20.67 x 15.16 in.
Weight: 20.94 lbs
